Schoeps Mono-Set CMC 6, MK 8

Schoeps Mono-Set CMC 6, MK 8 [138105]

The Schoeps Mono-Set CMC 6, MK 8 combines an MK 8 figure-eight capsule with a CMC 6 U microphone amplifier. The set includes one complete Colette microphone with an analog XLR output, stand clamp, wind protection and a wooden storage case.

Applications

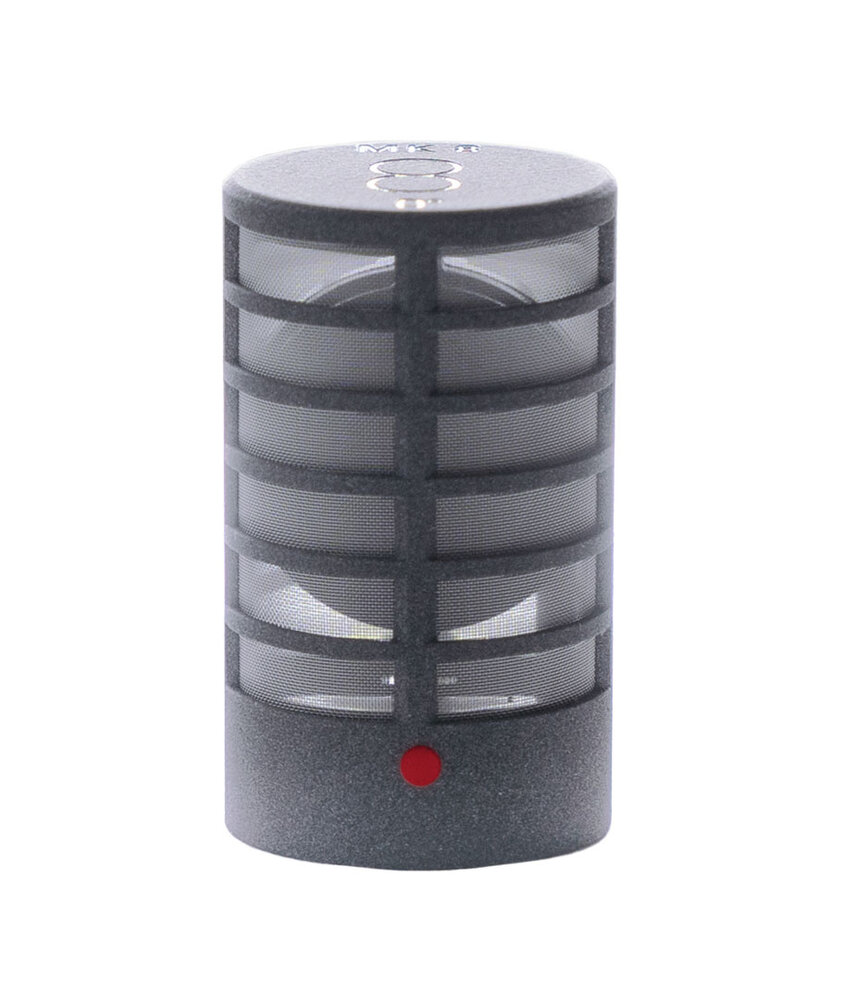

The MK 8 is side-addressed, with its pickup axis perpendicular to the microphone body. Red and black dots identify the two opposing pickup directions. The capsule has a symmetrical figure-eight polar pattern.

This microphone can provide the side channel in an M/S arrangement with a separate mid microphone. Blumlein stereo requires a second figure-eight microphone. This mono set contains one microphone.

Features

• MK 8 pressure-gradient capsule with a figure-eight polar pattern.
• CMC 6 U microphone amplifier with a balanced XLR output.
• Modular Colette system with an interchangeable capsule.
• O-rings for radial alignment of the capsule.
• Operates on P12 or P48 phantom power.

Technical specifications

• Microphone type: small-diaphragm condenser microphone.
• Polar pattern: figure-eight.
• Pickup axis: lateral, perpendicular to the microphone body.
• Frequency range: 40 Hz–15 kHz.
• Sensitivity: 12 mV/Pa.
• Equivalent noise level: 17 dB(A); 26 dB CCIR.
• Signal-to-noise ratio: 77 dB(A).
• Maximum sound pressure level: 133 dB SPL at THD < 0.5%.
• Output: XLR-3M, analog, one channel.
• Phantom power: P12 or P48.
• Current consumption: 8 mA at P12; 4 mA at P48.
• Output impedance: 42 Ω.
• Minimum recommended load impedance: 1 kΩ.
• Maximum output voltage: 1 V into a 1 kΩ load.
• Fixed low-cut filter: 20 Hz, 12 dB/octave.

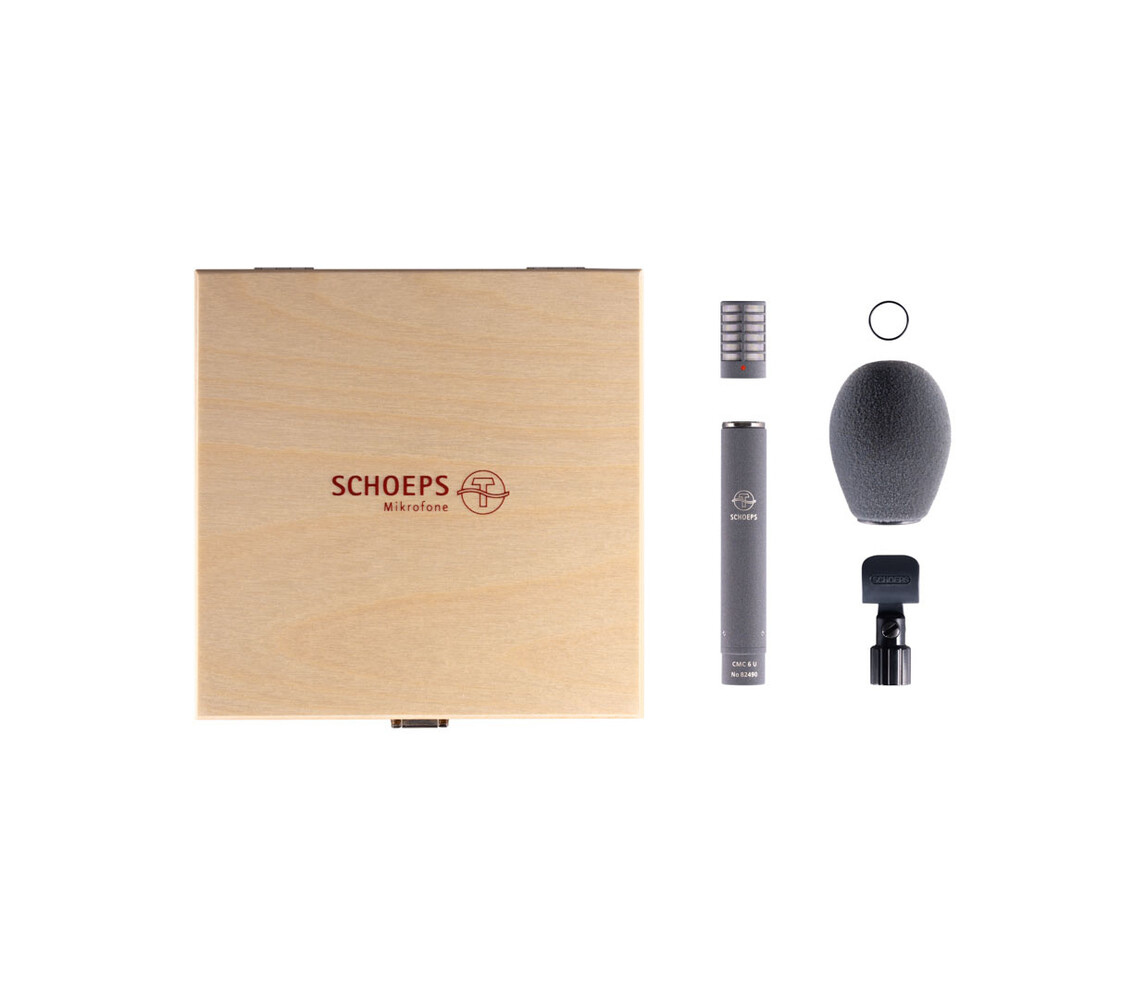

Included

• 1 × MK 8 figure-eight capsule.

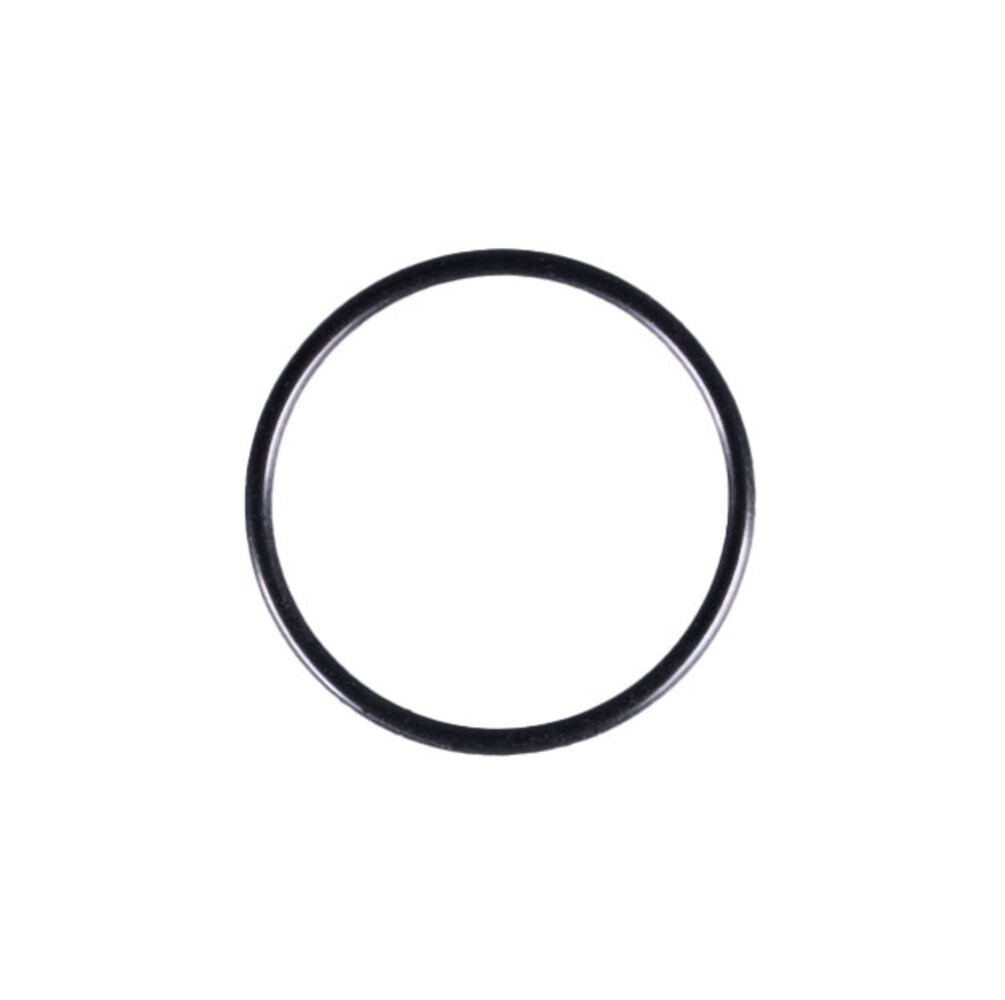

• O-rings for radial alignment of the MK 8 capsule.

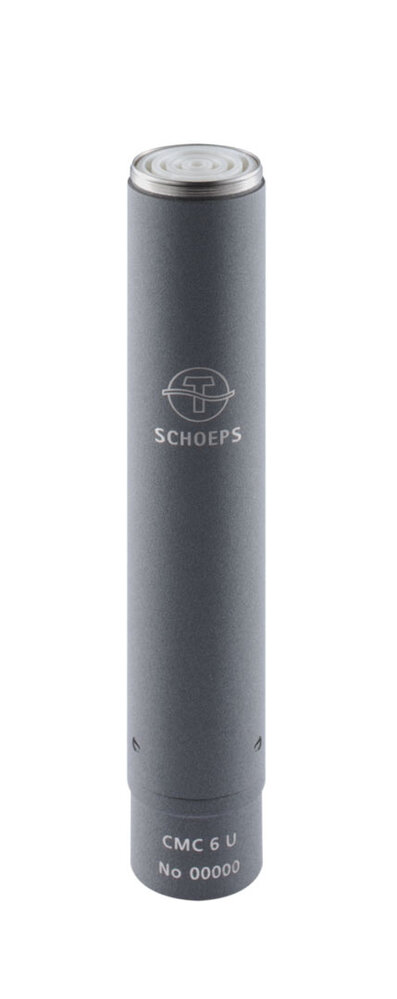

• 1 × CMC 6 U microphone amplifier.

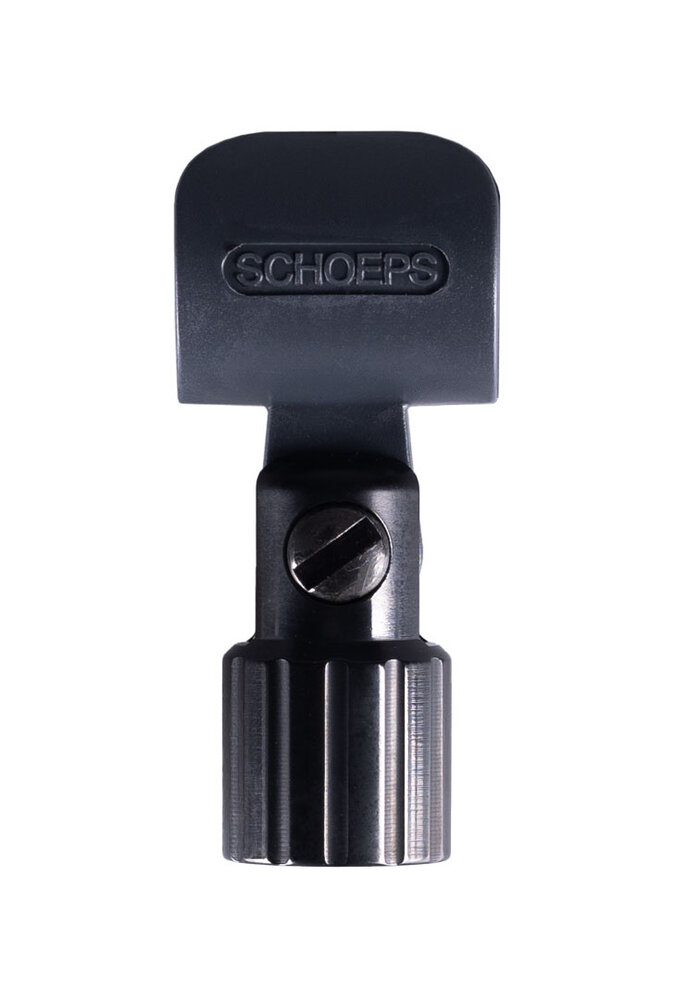

• 1 × SG 20 stand clamp, 2026 version.

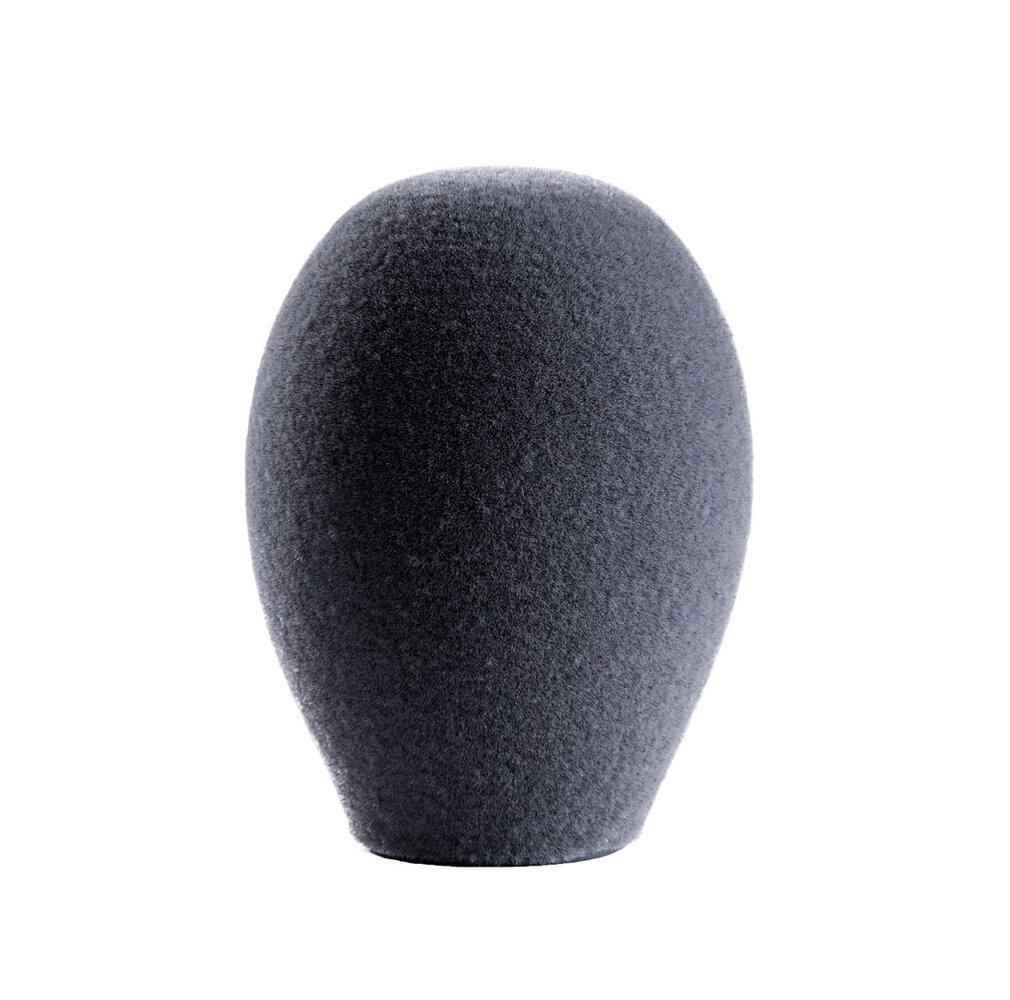

• 1 × B 5 D hollow foam windscreen and pop filter.
• Schoeps hook-and-loop cable strap.

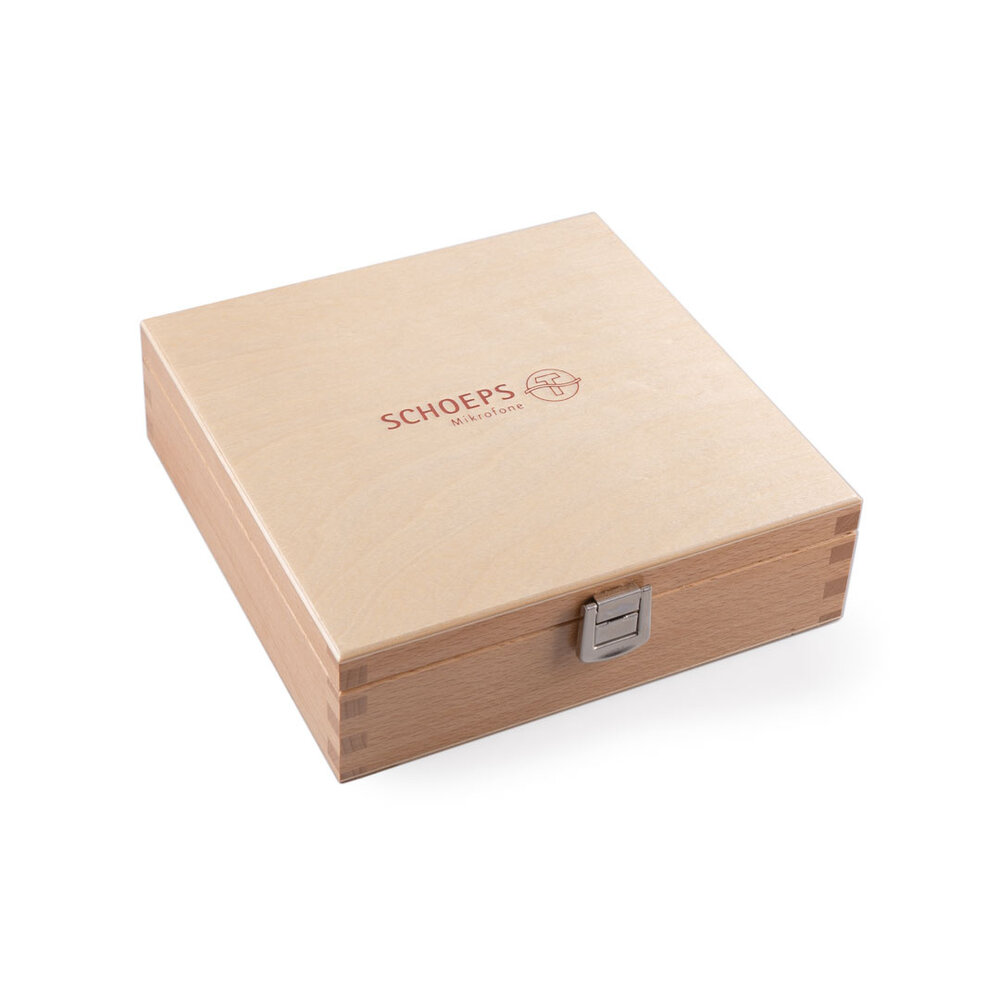

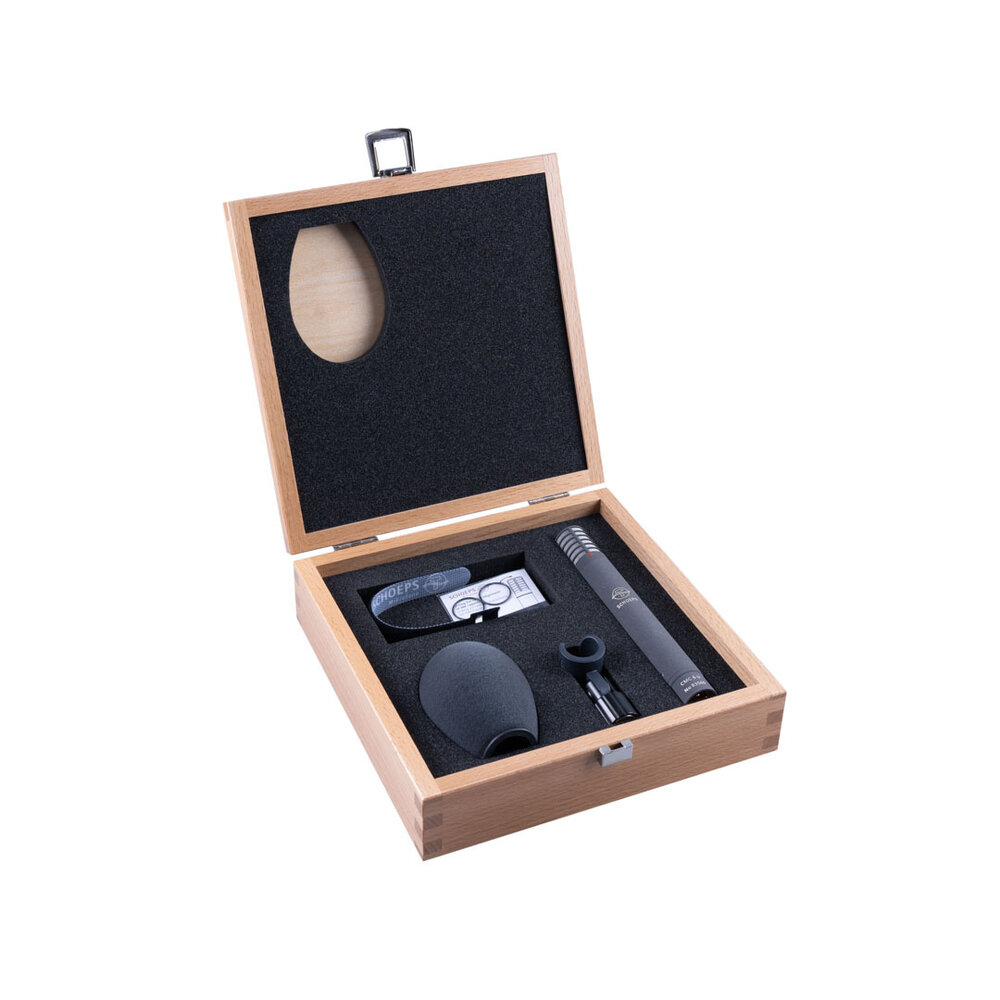

• Wooden storage case for the mono set.
