Schoeps Mono-Set CMC 6xt, MK 8

Schoeps Mono-Set CMC 6xt, MK 8 [137105]

The Schoeps Mono-Set CMC 6xt, MK 8 combines an MK 8 capsule with a CMC 6xt U microphone amplifier. Together they form an analog microphone with a figure-eight pattern and side-address pickup. The set contains one microphone; M/S or Blumlein stereo requires additional microphones.

Main Features

• Figure-eight pattern with front and rear pickup and strong lateral rejection.
• Modular construction within the Schoeps Colette system.
• Balanced analog XLR3M output.
• Operates on P12 and P48 phantom power.

Specifications

• Capsule: MK 8.
• Amplifier: CMC 6xt U.
• Frequency range with MK 8: 40 Hz–15 kHz.
• Sensitivity: 12 mV/Pa.
• Equivalent noise level: 17 dB-A; 26 dB CCIR.
• Amplifier output impedance: 42 Ω.
• Minimum recommended load impedance: 1 kΩ.
• Capsule and amplifier finish: matte gray.

The extended response of the CMC 6xt U does not give the MK 8 a frequency range reaching 40 kHz. Schoeps specifies 40 Hz–15 kHz for this combination.

Included

• Schoeps MK 8 [131105] microphone capsule.
• O-rings for radial alignment of the capsule.
• Schoeps CMC 6xt U [132007] microphone amplifier.
• Schoeps SG 20 v2026 [161125] microphone clamp.

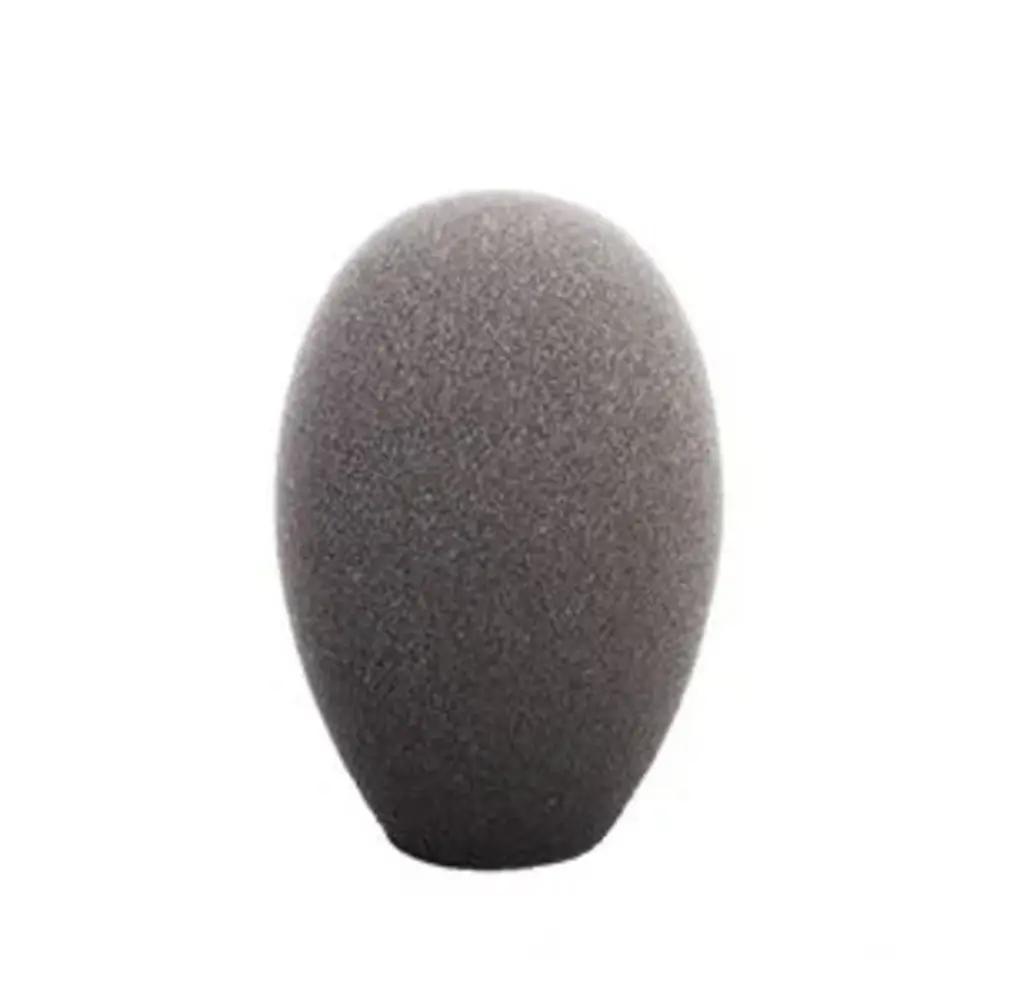

• Schoeps B 5 D [170108] hollow foam windscreen.

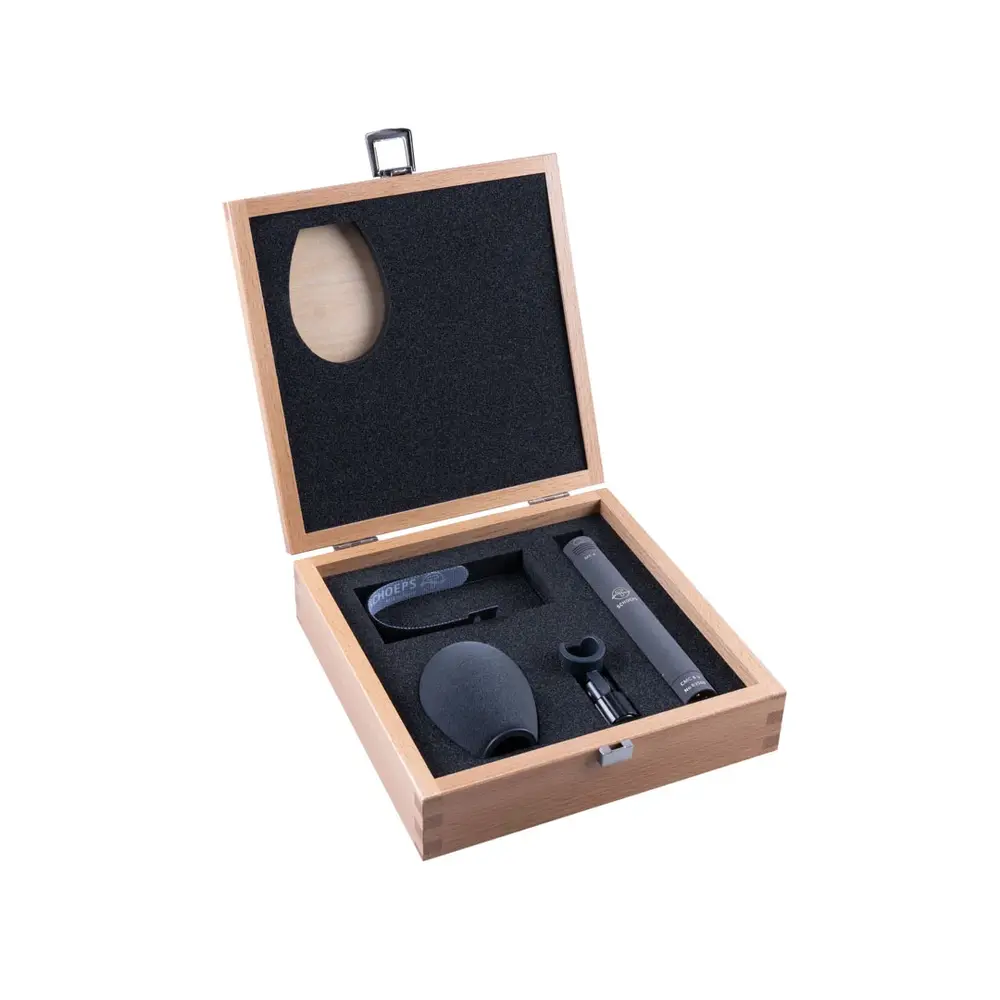

• Premium case for Mono Set.

Use

The red dot marks the capsule's 0° pickup direction. For M/S recording, it points to the left when viewed from behind the microphone. The MK 8 is sensitive to wind, breath noise and solid-borne sound; select wind protection and suspension suitable for the setup.
