Schoeps Stereo-Set CMC 1 L, MK 4

Schoeps Stereo-Set CMC 1 L, MK 4 [139305]

Colette stereo set with two CMC 1 L microphone amplifiers and a matched pair of MK 4 cardioid capsules. The capsules are selected as a pair by Schoeps and supplied with a matching certificate.

Use and connection

Suitable for stereo techniques such as XY and ORTF. Microphone spacing and angle are set using separate stands or a suitable stereo bar.

Each microphone has a miniature Lemo output. Two included K 5 LU cables, each 5 meters long, connect the microphones to XLR microphone inputs with P12 or P48 phantom power.

Specifications per microphone

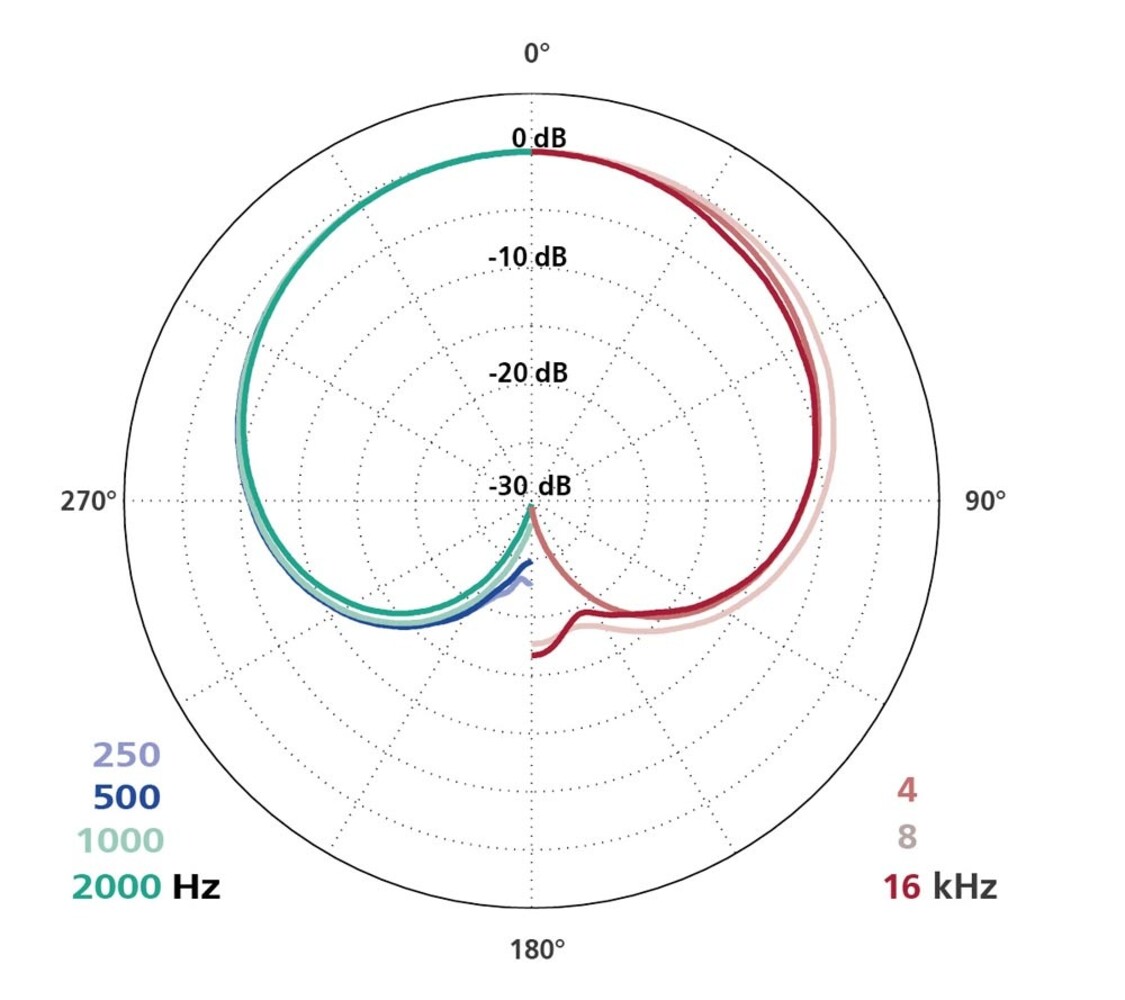

• Polar pattern: cardioid
• Frequency range: 40 Hz–26 kHz
• Sensitivity: 15 mV/Pa
• Equivalent noise level: 14 dB-A; 24 dB CCIR
• Signal-to-noise ratio: 80 dB-A
• Maximum SPL at THD < 0.5%: 135 dB SPL at P48; 131 dB SPL at P12
• Power supply: P12 / P48
• Current consumption: 3 mA at P12; 2 mA at P48
• Output impedance: 50 Ω

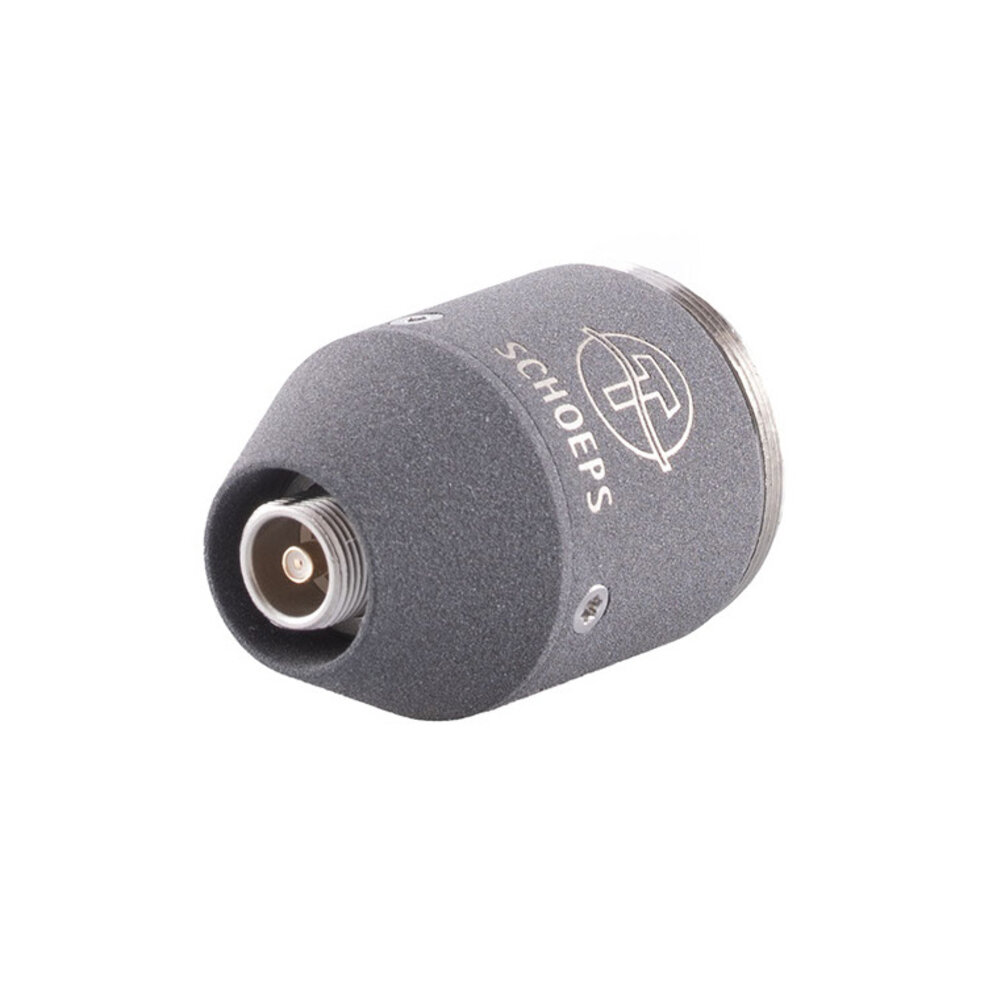

• Microphone connector: Lemo
• Included cable: 5 m, Lemo to XLR-3M
• Finish: matte gray

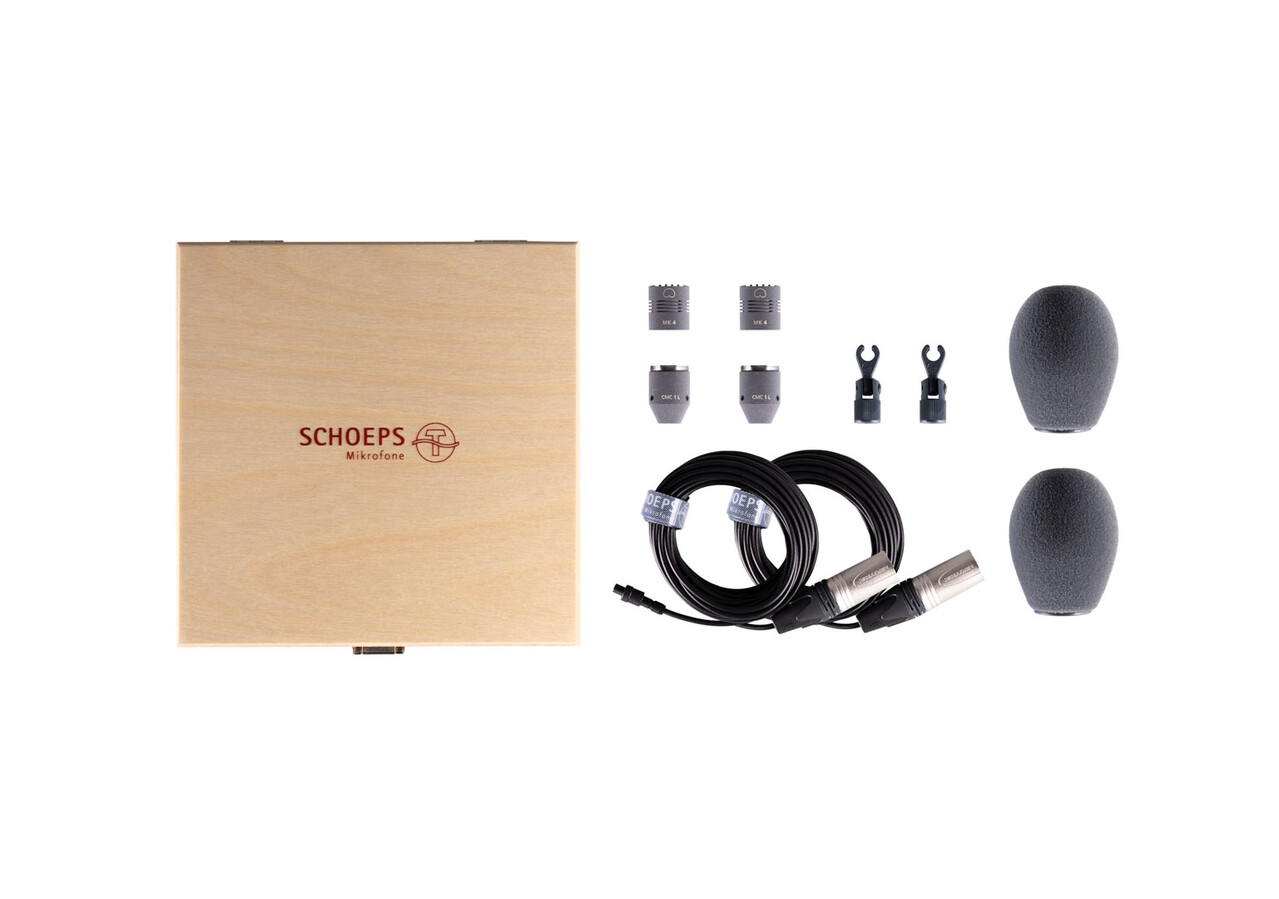

Included

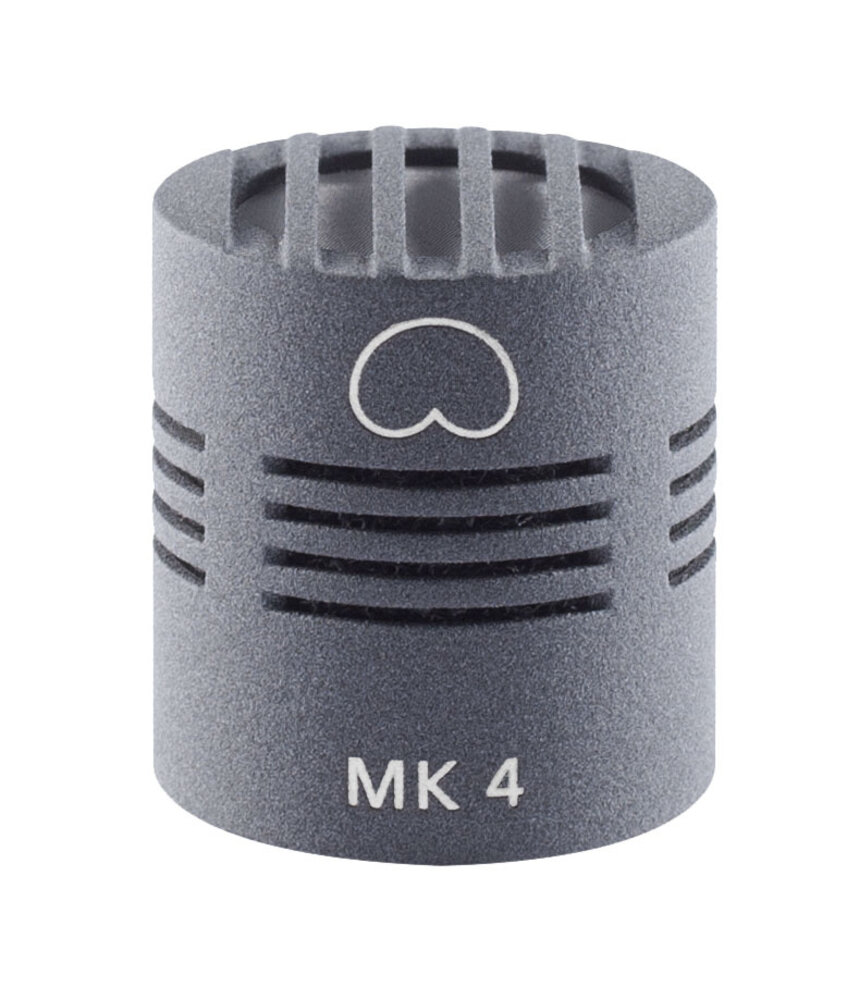

• 2 × MK 4 microphone capsule, matched pair
• Matching certificate

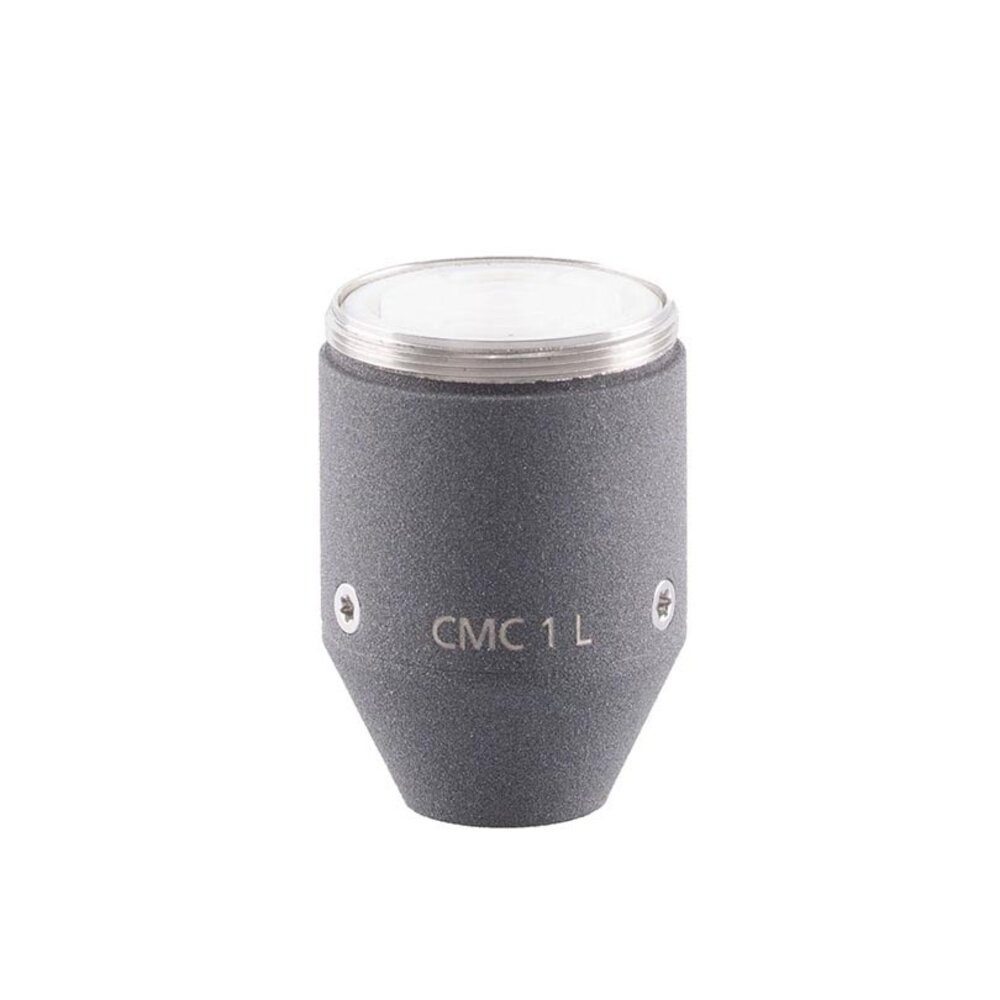

• 2 × CMC 1 L microphone amplifier

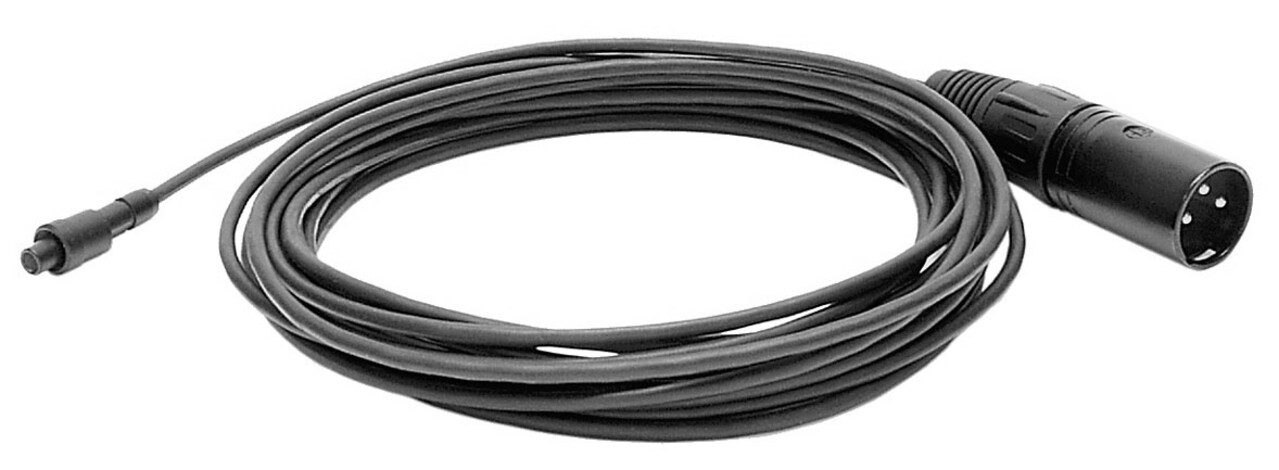

• 2 × K 5 LU cable, 5 meters each

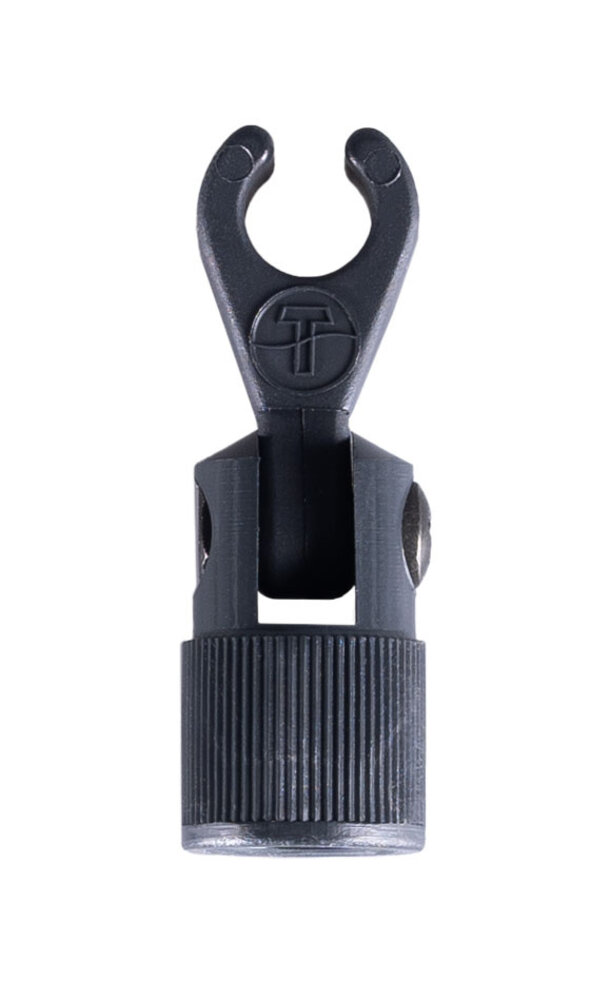

• 2 × SGC microphone clamp

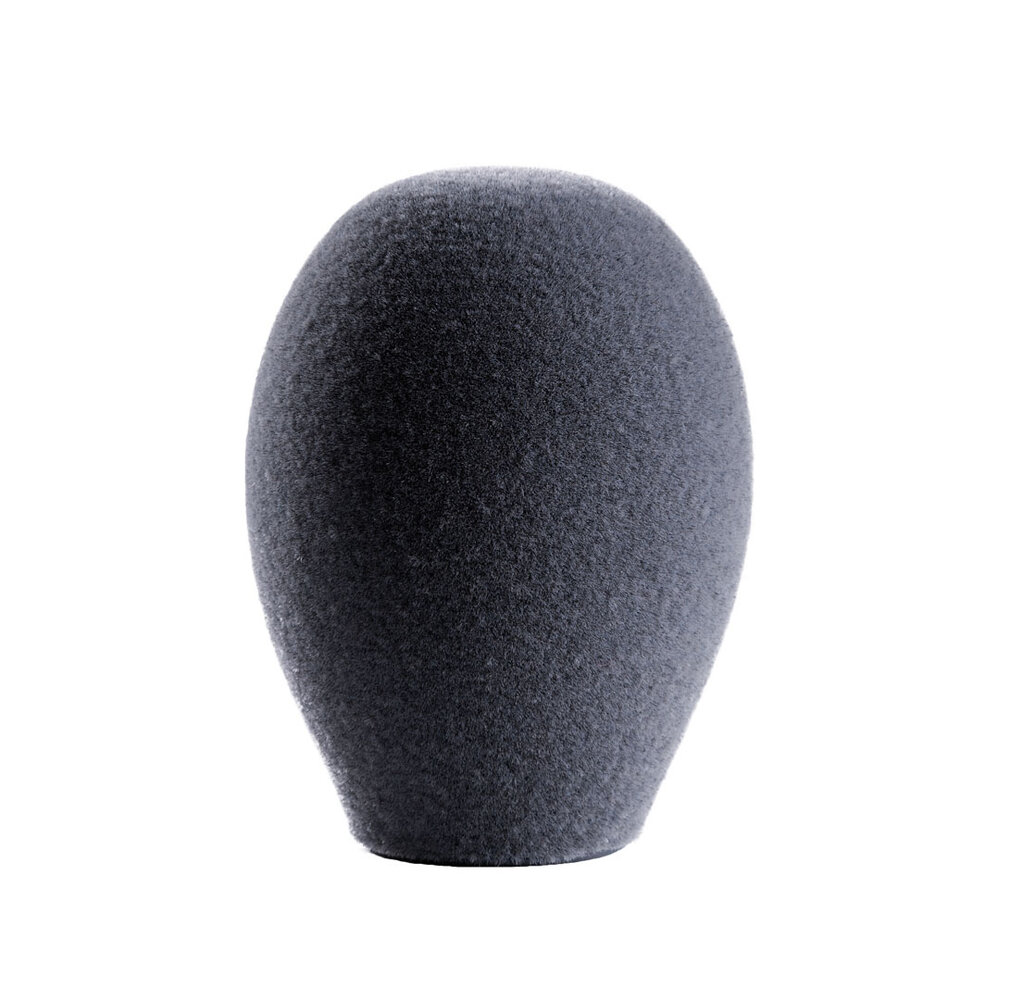

• 2 × B 5 D hollow foam screen
• Schoeps hook-and-loop cable strap

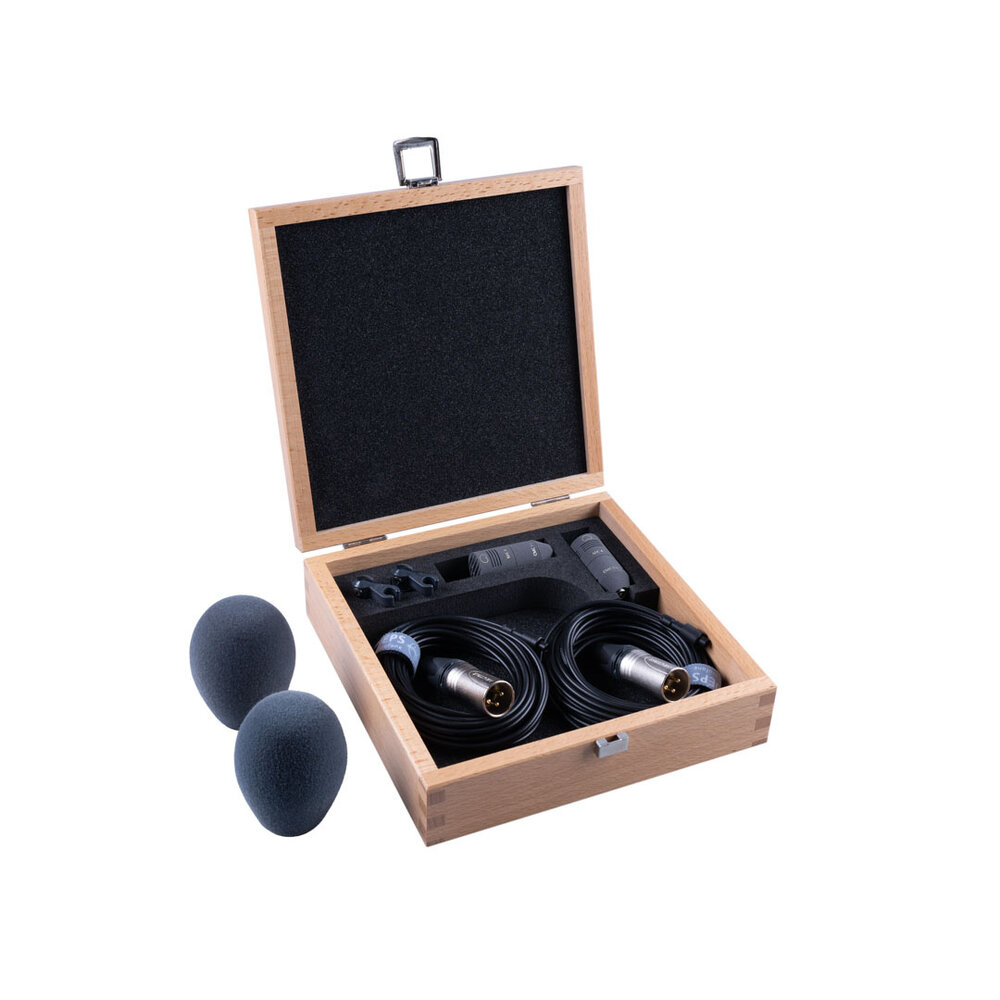

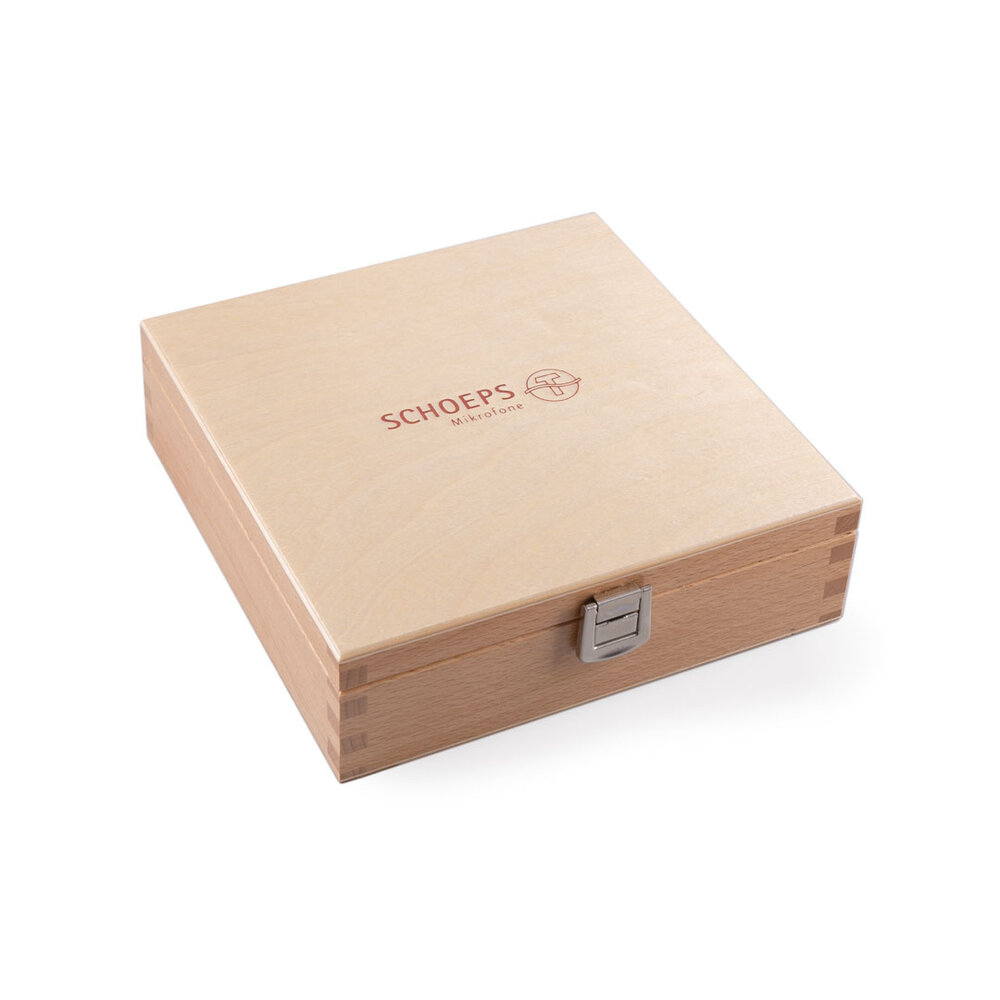

• Wooden storage case

Microphone stands and stereo bar not included.

Corresponding mono set

For one microphone with the same capsule and amplifier, choose the Mono-Set CMC 1 L, MK 4 [138415].
