Schoeps Stereo-Set CMC 6, MK 4V

Schoeps Stereo-Set CMC 6, MK 4V [139009]

Colette stereo microphone set with two CMC 6 U microphone amplifiers and a matched pair of MK 4V cardioid capsules. Schoeps selects the capsules as a pair and includes a matching certificate.

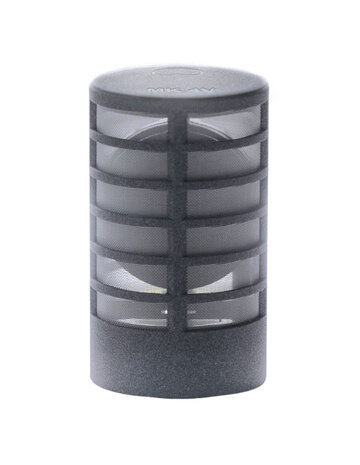

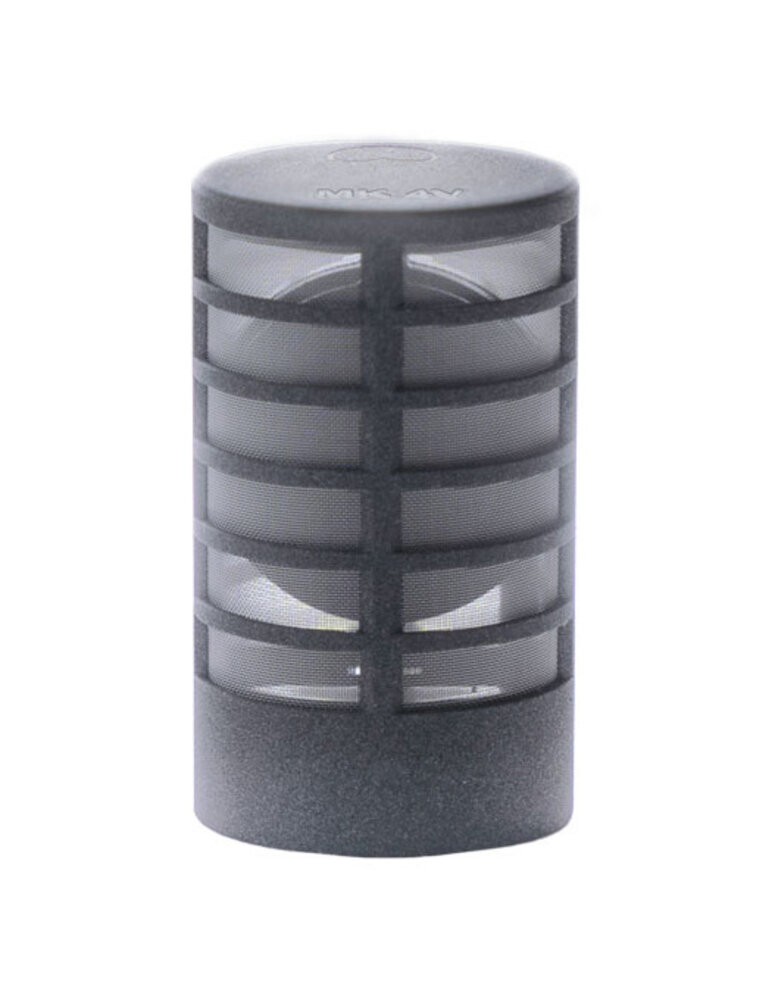

The MK 4V picks up sound from the side, perpendicular to the microphone body. Its mild high-frequency boost supports applications including orchestral and speech recording. The included O-rings allow radial alignment of the capsules on the amplifiers.

Main Features

• Matched side-address cardioid capsules.
• Modular Colette construction with interchangeable capsules.
• Two separate balanced XLR outputs.
• CMC 6 U amplifiers with RFI Shield against radio-frequency interference.

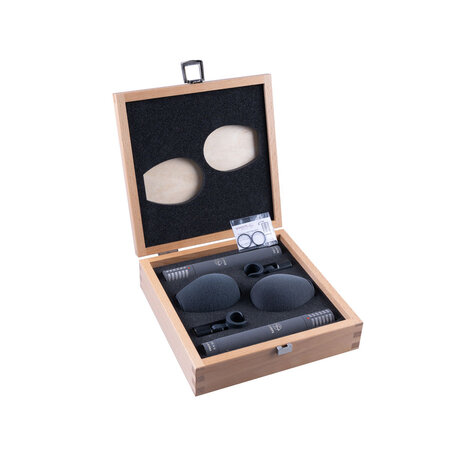

• Includes microphone clamps, windscreens and a wooden storage case.

Specifications per Microphone

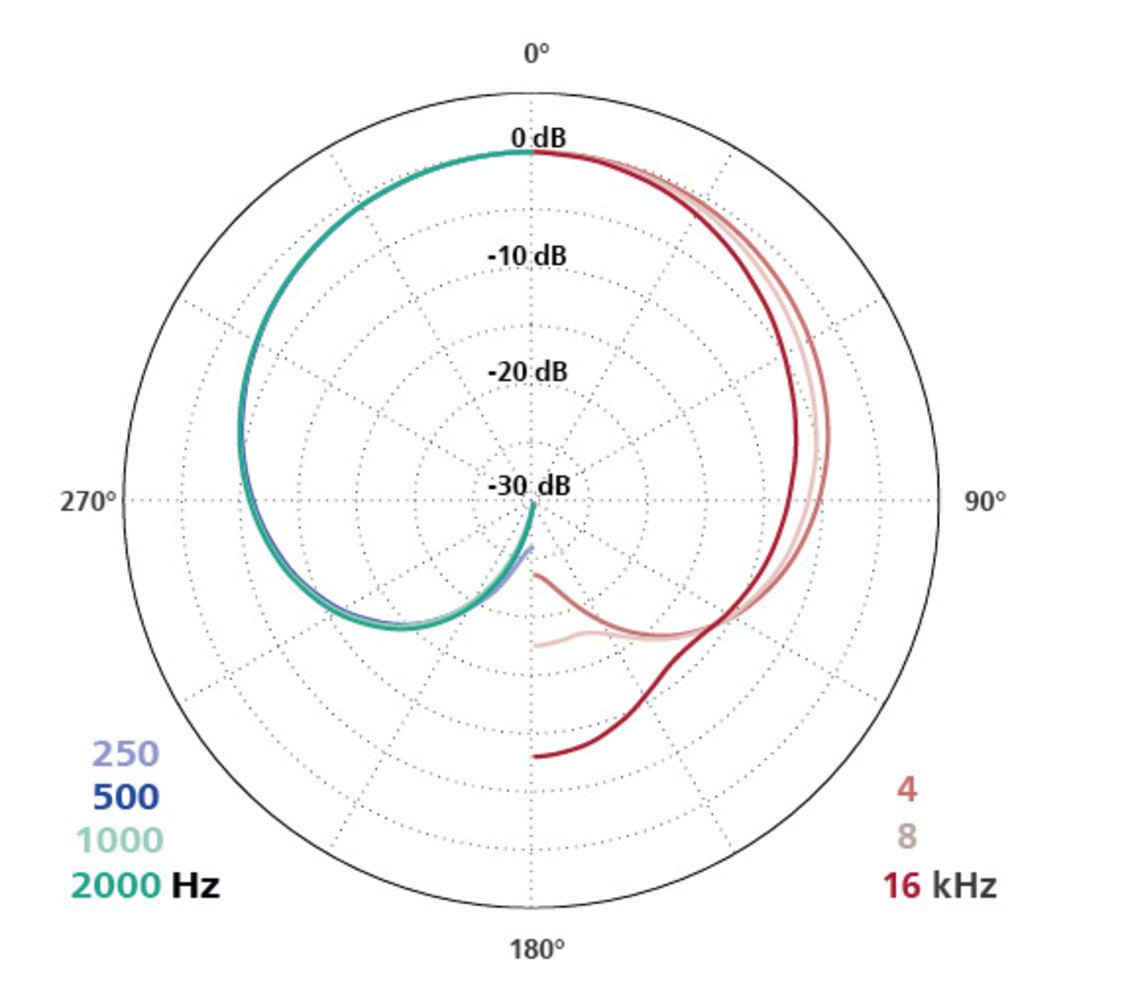

• Pickup pattern: cardioid.

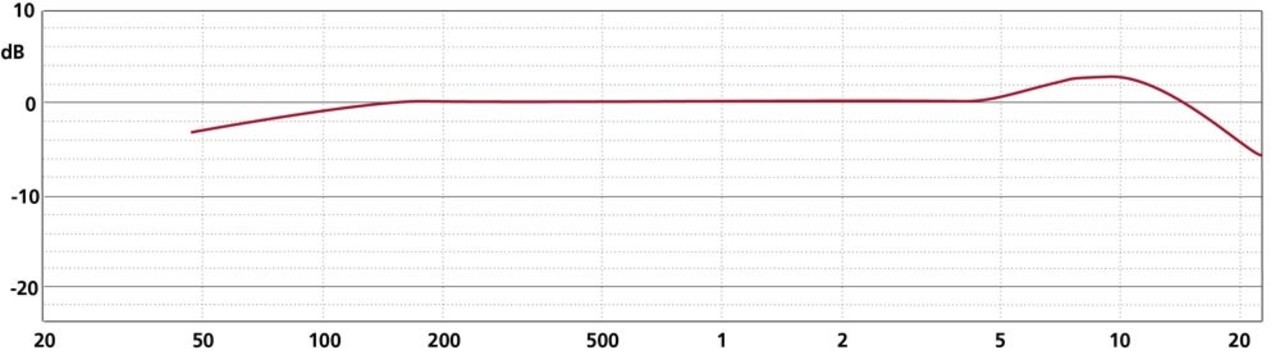

• Frequency range with CMC 6: 40 Hz – 19 kHz.
• Sensitivity: 15 mV/Pa.
• Equivalent noise level: 13 dB-A / 23 dB CCIR.
• Signal-to-noise ratio: 81 dB-A.
• Maximum SPL: 131 dB SPL, THD < 0.5%.

Connection and Powering

• Output per microphone: balanced, XLR-3 male.
• Output impedance: 42 Ω.
• Minimum recommended load impedance: 1 kΩ.
• Maximum output voltage: 1 V into a 1 kΩ load.
• Powering: P12 or P48.
• Current consumption per microphone: 8 mA at P12 / 4 mA at P48.
• Fixed amplifier low-cut filter: 20 Hz, 12 dB/octave.

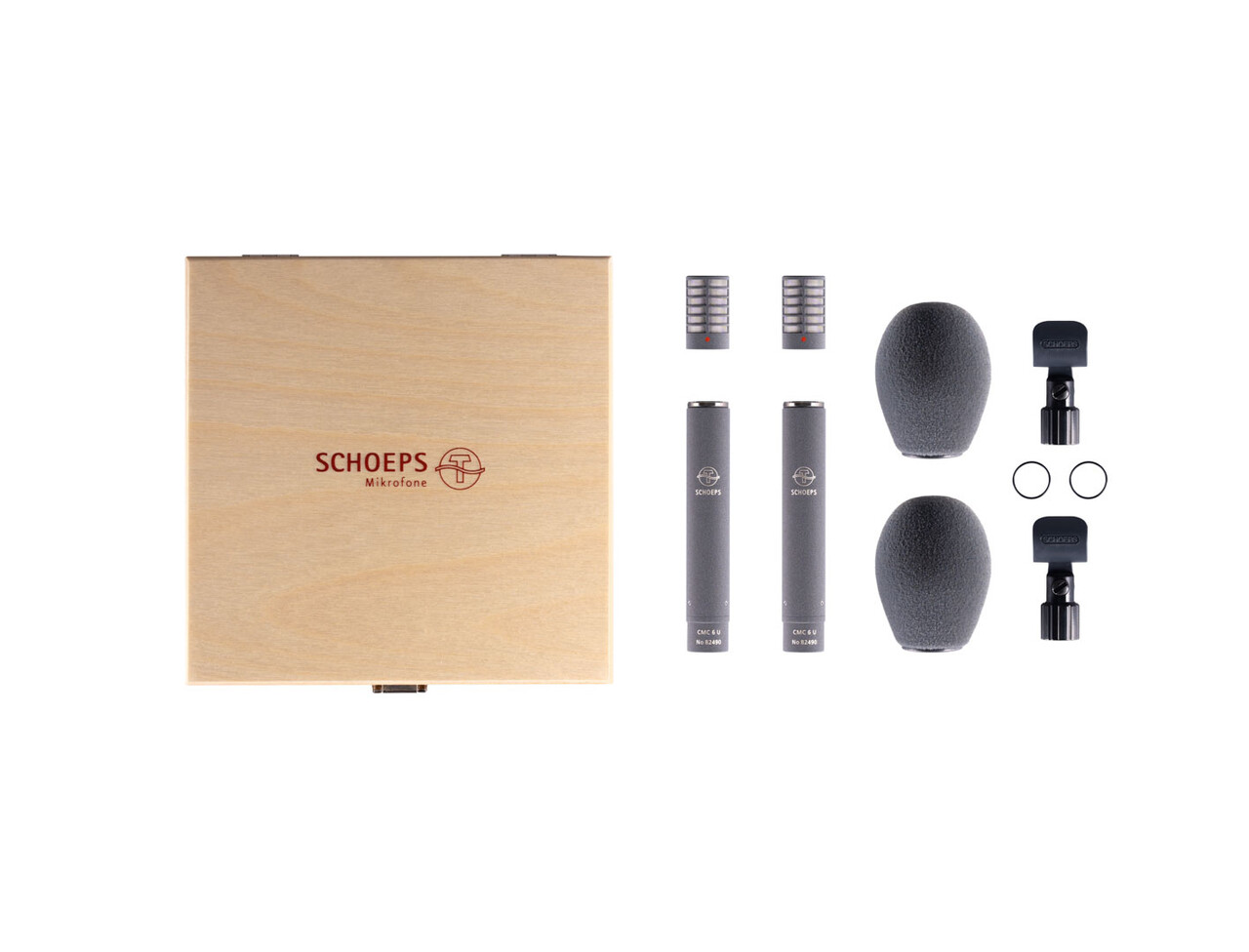

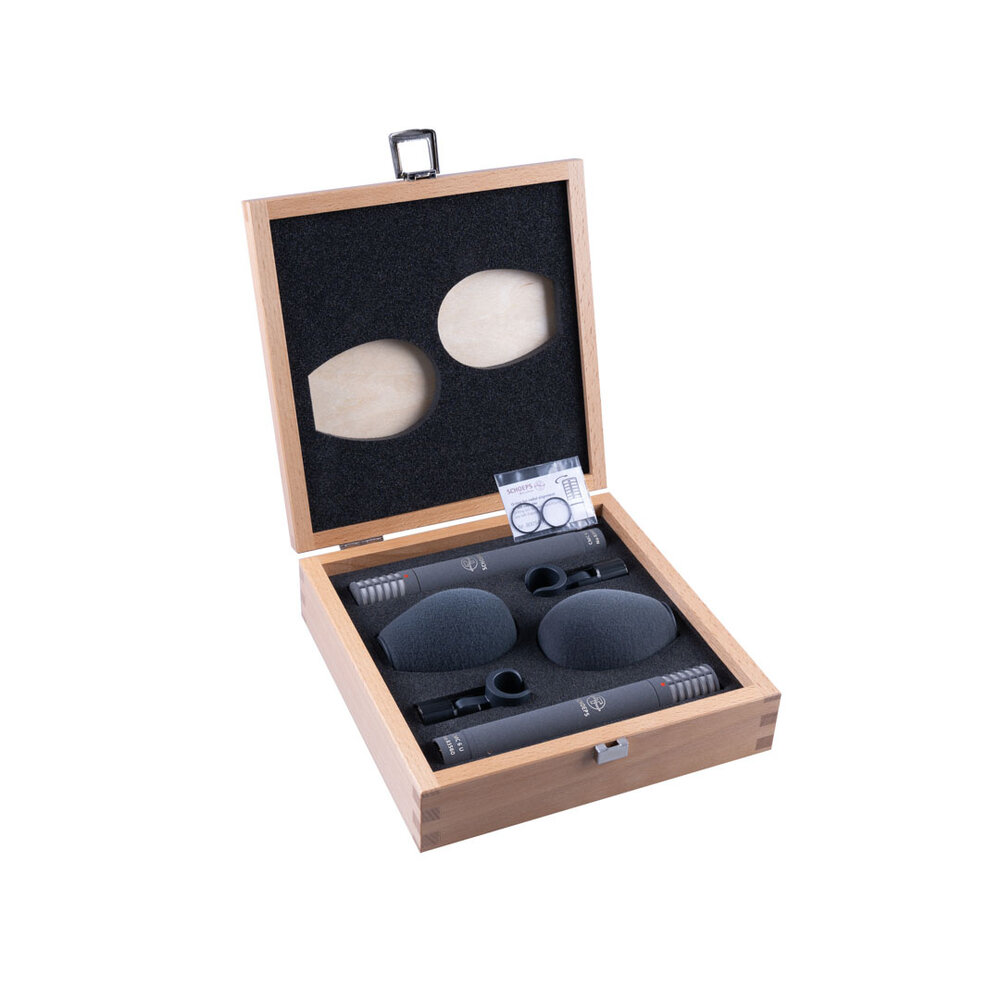

Included

• 2 × Schoeps MK 4V capsule, matched pair.
• 1 × Matching certificate.

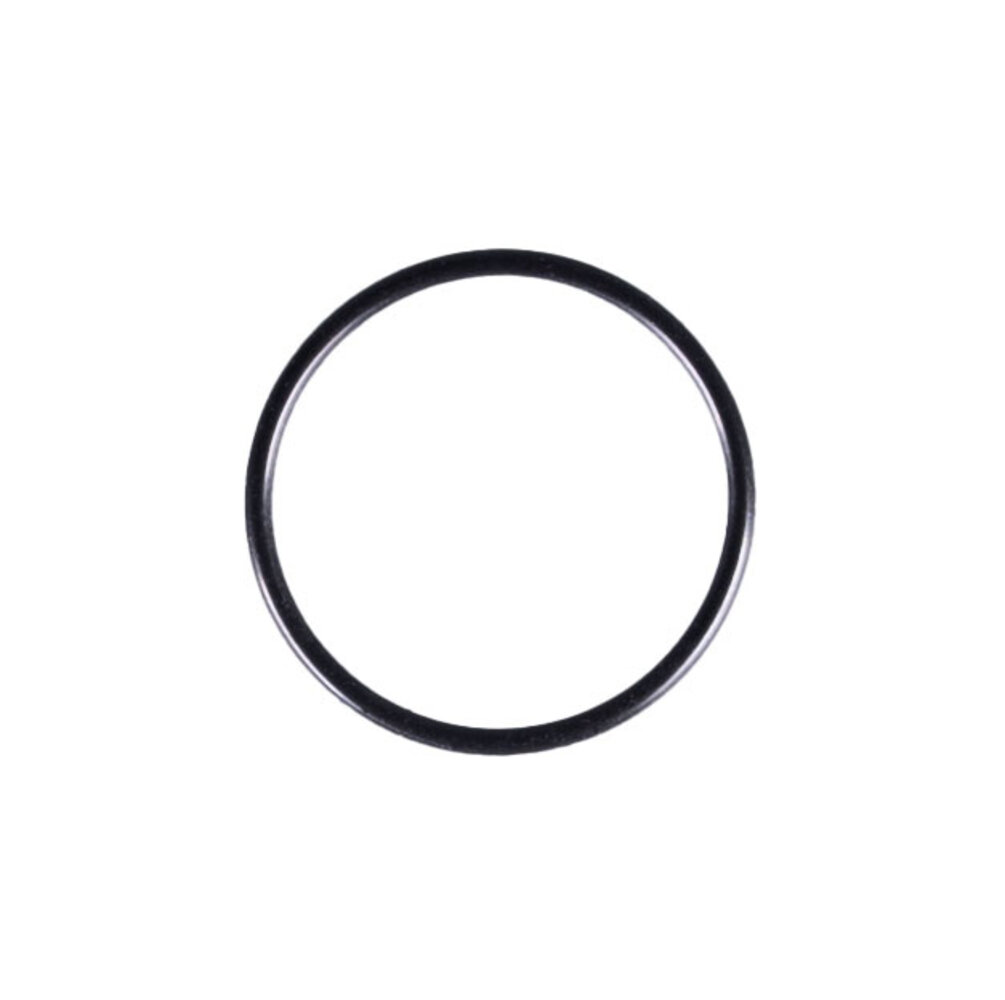

• O-rings for radial alignment of the capsules.

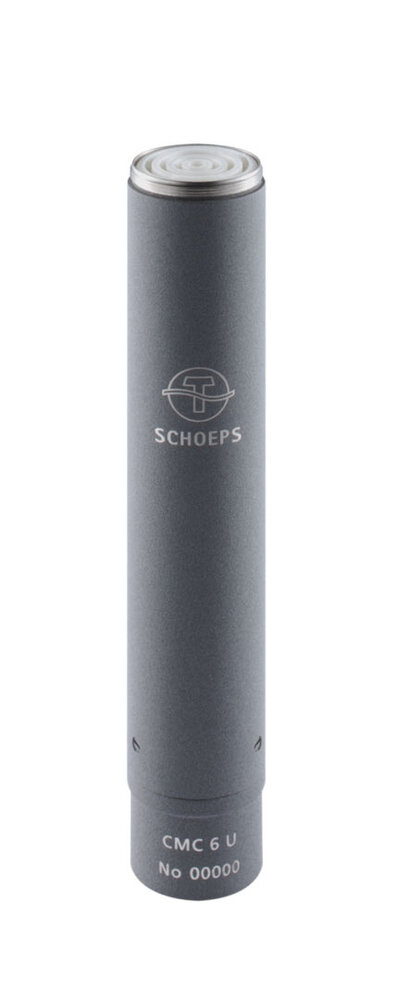

• 2 × Schoeps CMC 6 U microphone amplifier.

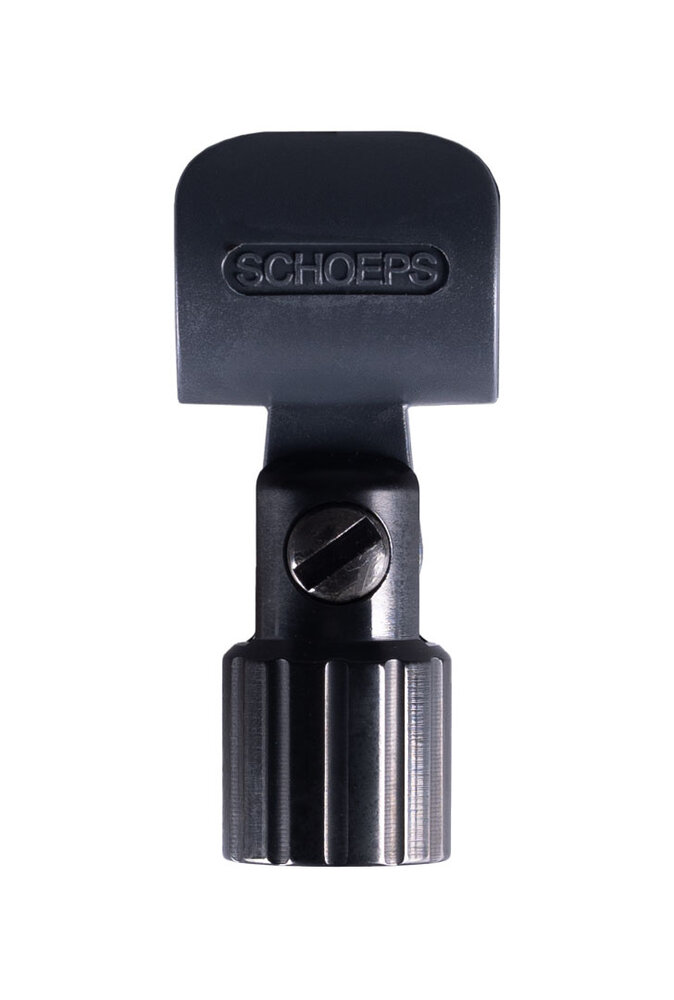

• 2 × Schoeps SG 20 microphone clamp, 2026 version.

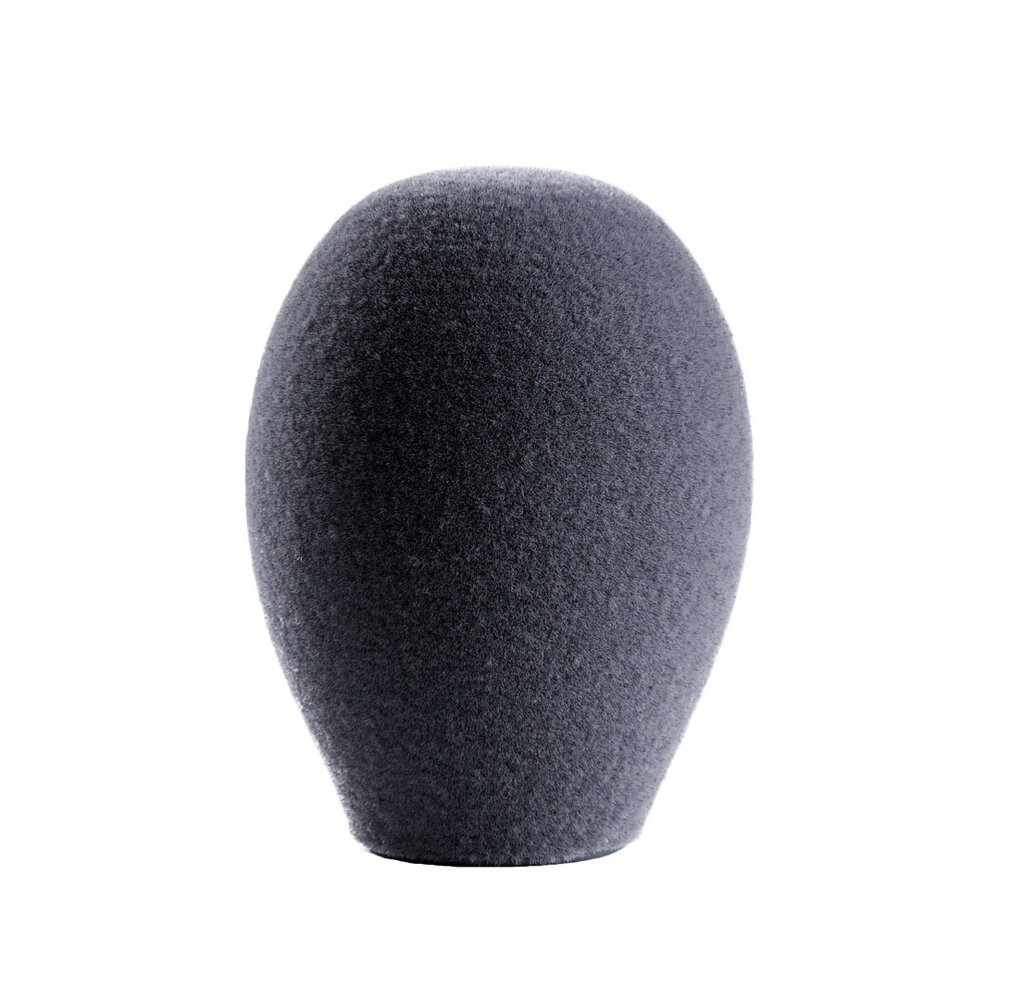

• 2 × Schoeps B 5 D hollow foam windscreen.
• 1 × Schoeps hook-and-loop cable strap.

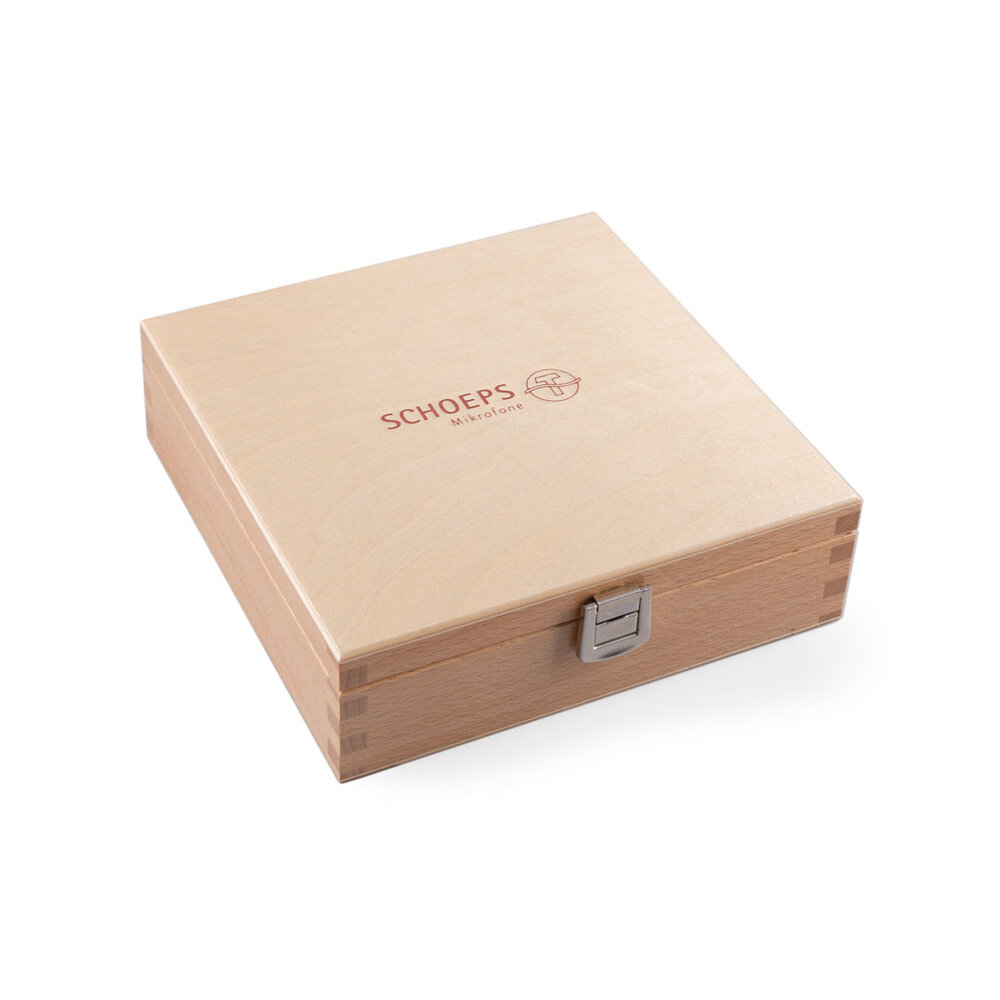

• 1 × Wooden storage case.
