Sonosax SX-RX8+

Sonosax SX-RX8+

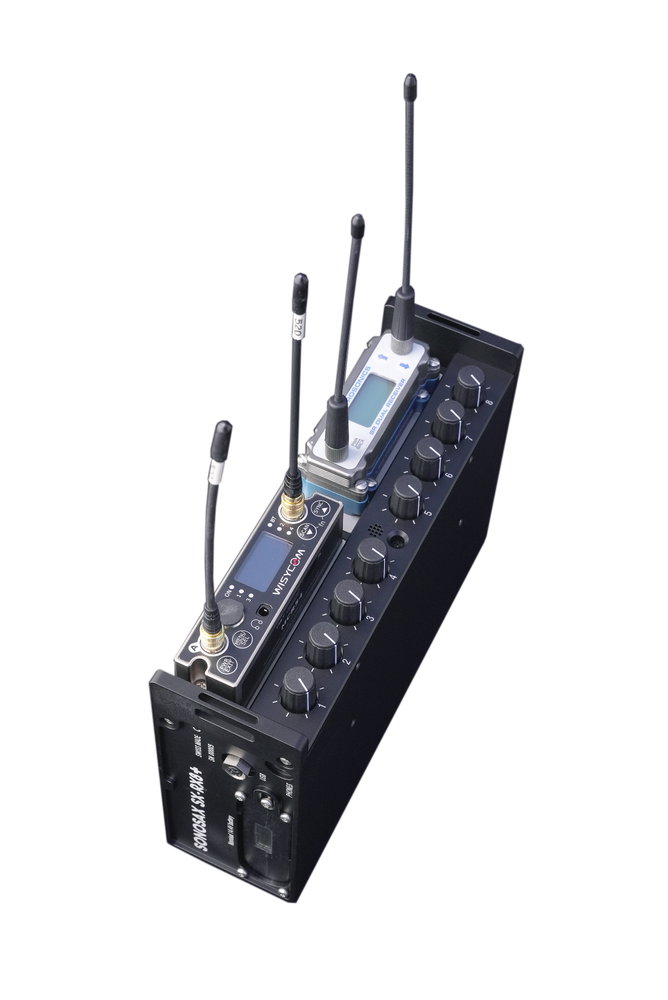

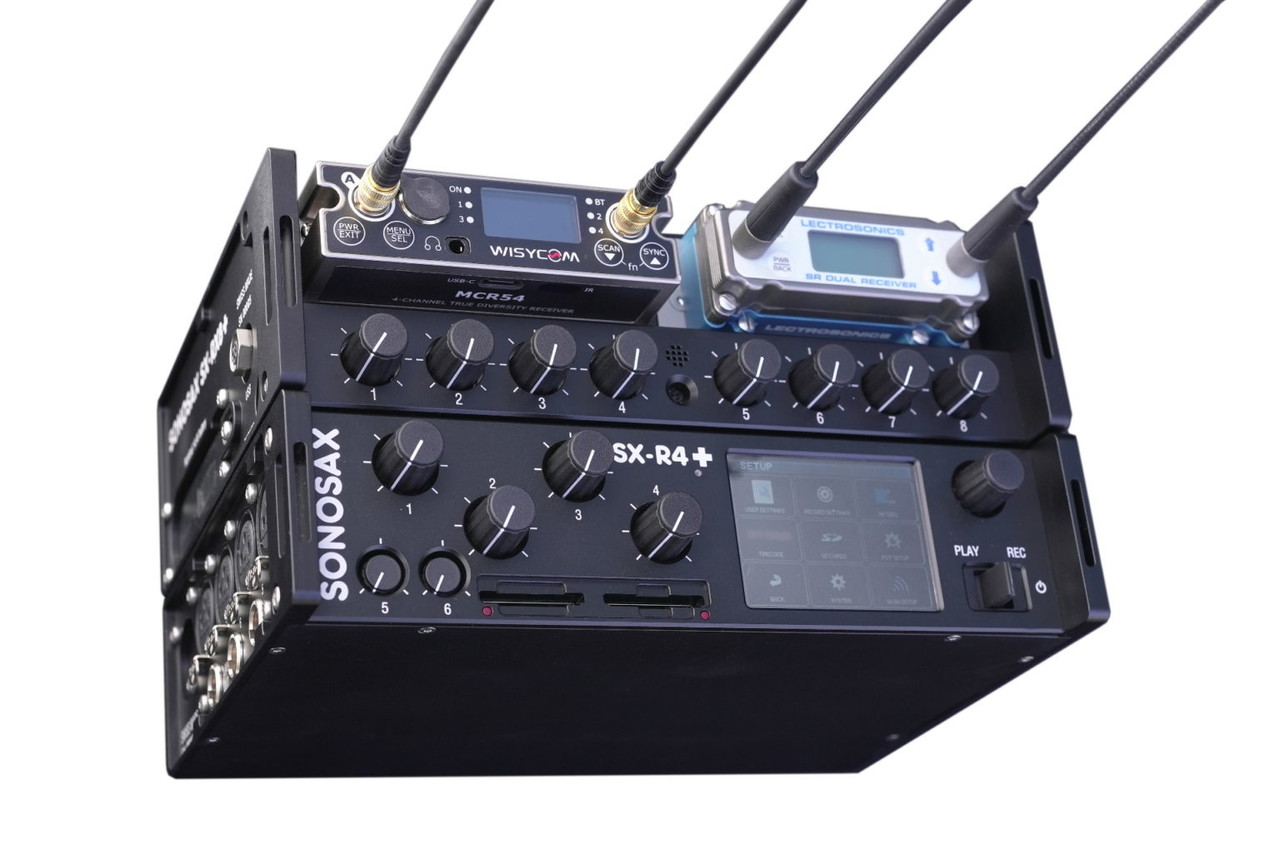

The SX-RX8+ is a Minislot extension for two wireless receivers and up to eight digital audio channels. When connected to the Sonosax SX-R4+, its eight rotary controls operate gain or faders for eight audio channels. The push-button functions are freely assignable.

Main Features

• Two receiver positions
• Eight rotary controls with assignable push-button functions
• USB MIDI control of compatible external equipment

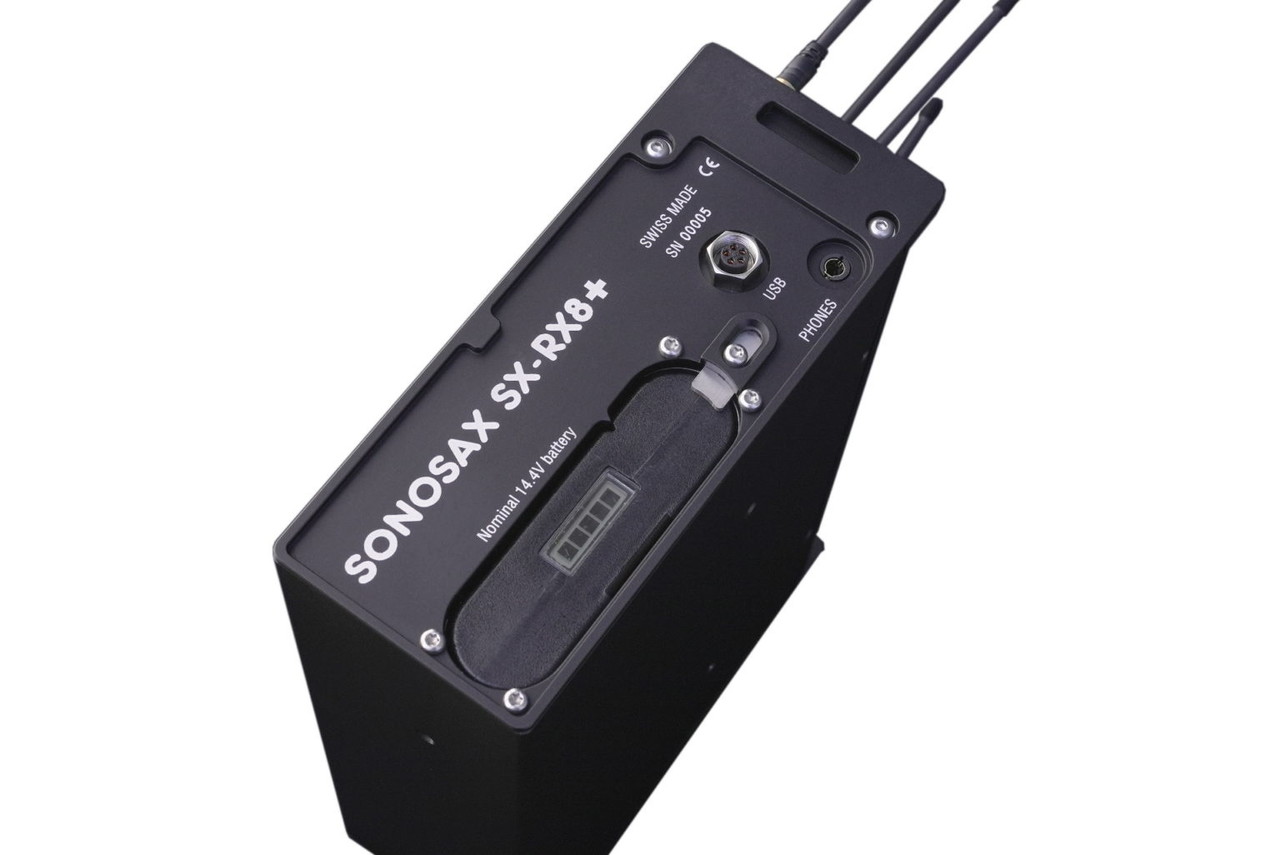

• 98 Wh battery slot for powering the module, receivers and recorder

Compatibility

The required mounting plate and cable set are ordered separately. Sonosax lists the following receivers:

• Wisycom MCR42 with BPA42-IKSS

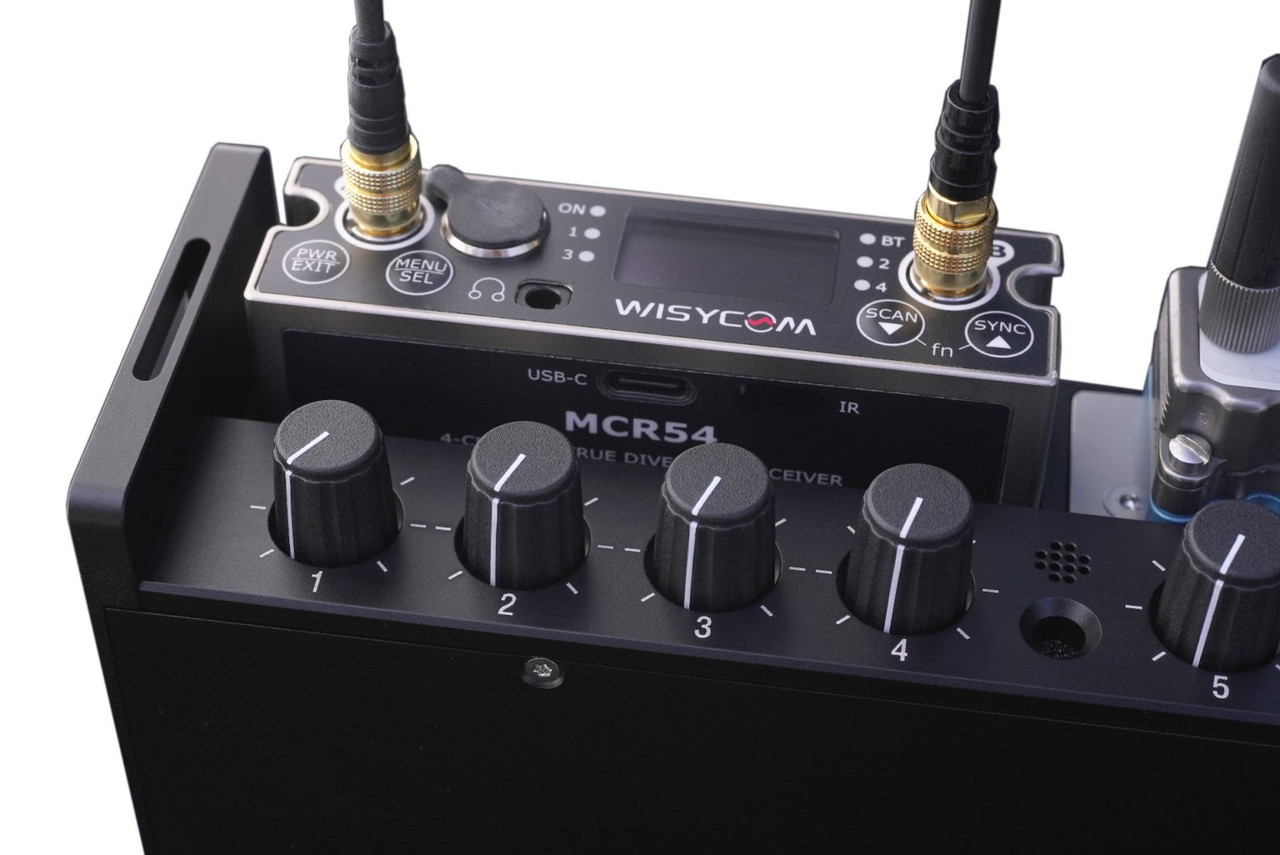

• Wisycom MCR54 with SLK54-IK
• Lectrosonics SRc with SRSUPER or SR-AES3
• Audio Limited A10-RX, with or without A-FLIP
• Sennheiser EK6042, Sony DWR-S03D and Shure ADX5D with D-Sub-25

Receiver positions can be configured with the MCR42, SRc or Combi sets, or a blank panel.

The SX-RX8+ has no integrated antenna splitter and does not support serial-bus receiver control.
