Sound Devices HX 3

HX-3 Key Features

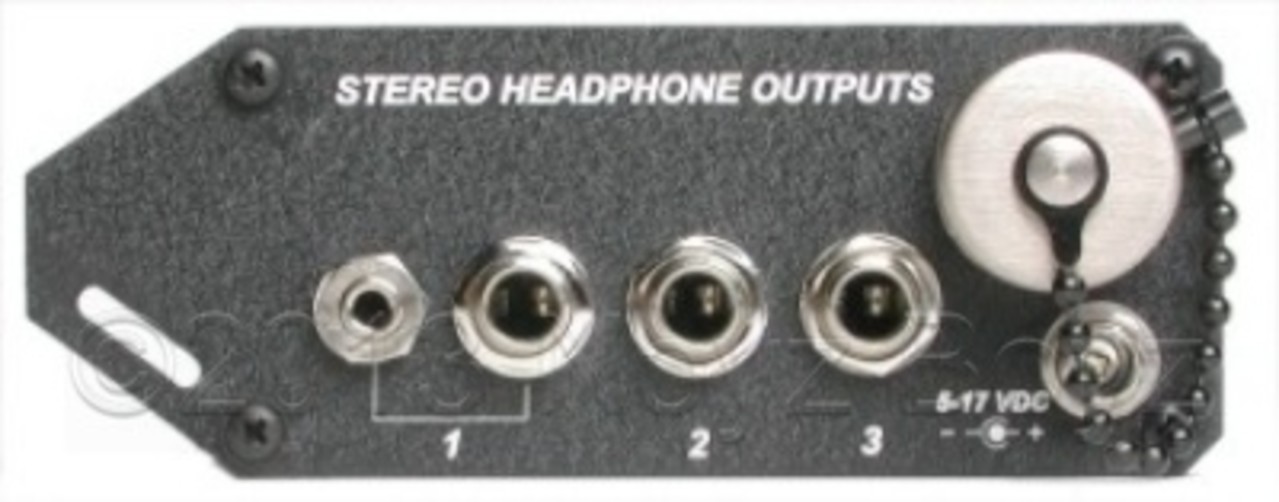

• Three isolated headphone outputs with individual volume controls.
• 125 dB dynamic range with flat frequency response.
• Durable 1/4-inch connectors, panel mounted for strength.
• Stereo or mono monitoring.
• Peak LED indicates headphone overload.

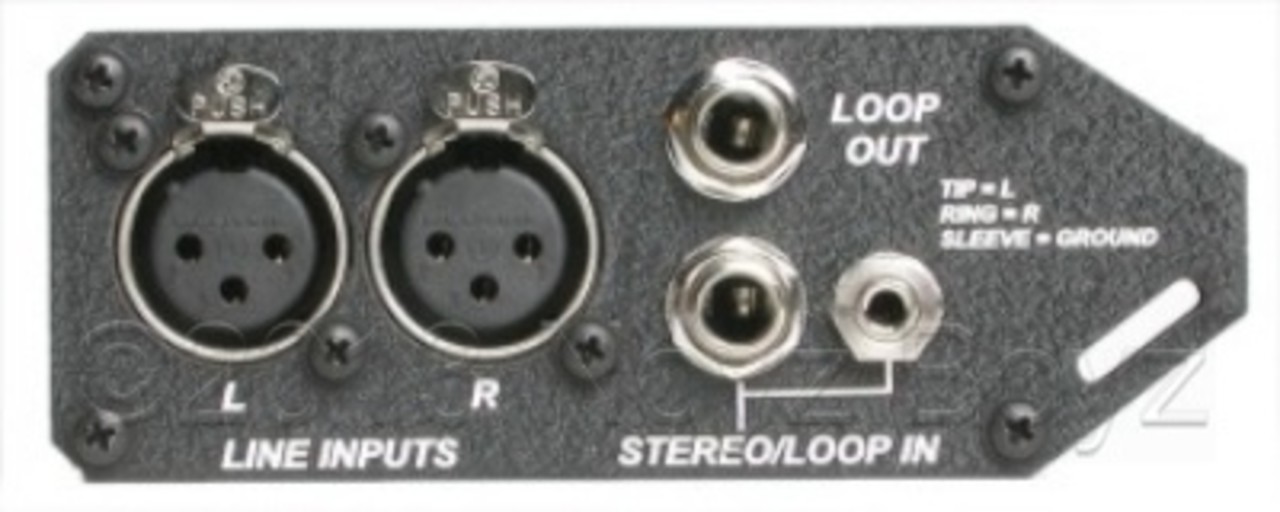

• Two balanced XLR line level inputs or unbalanced 1/4-inch and 1/8-inch stereo inputs.
• Loop Output to connect additional HX-3’s in series.
• All-metal connectors solidly mounted to the chassis for durability and RF immunity.
• Free from “Pin-1” grounding problems.
• Internal battery power for up to 18 hours from two AA alkaline batteries.
• Chassis-isolated 5 to 18 VDC input for easy external DC powering.
• Power LED indicates low battery power.
• High strength, extruded aluminum chassis with protective metal end panels.

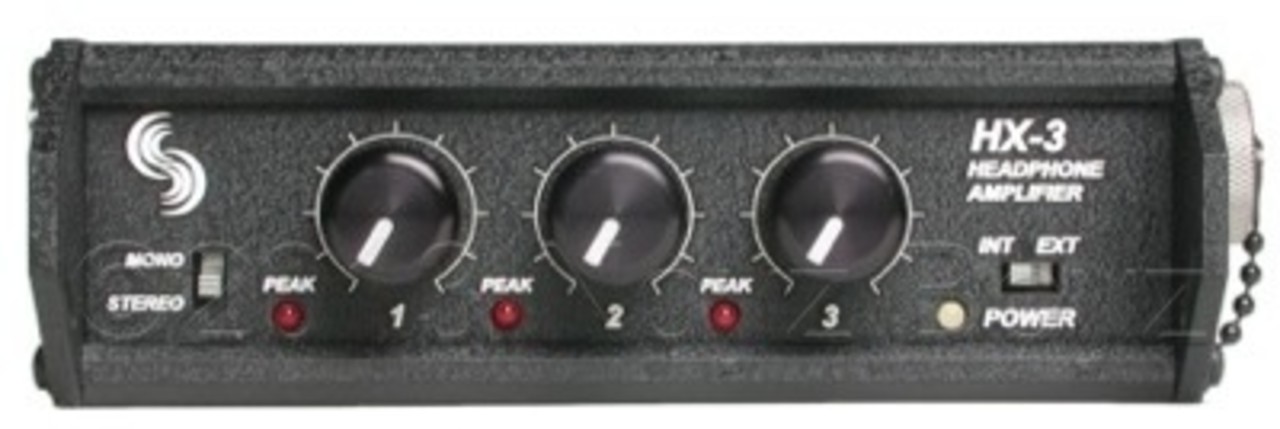

The HX-3: Portable Headphone Distribution Amplifier

The compact HX-3 Headphone Distribution Amplifier is the perfect accessory to quickly provide three high-performance stereo headphone feeds with individual level controls from line-level sources. The HX-3 can produce very high headphone levels with extremely low noise and distortion.
