Lectrosonics Duet M2T E01

Lectrosonics M2T/E01

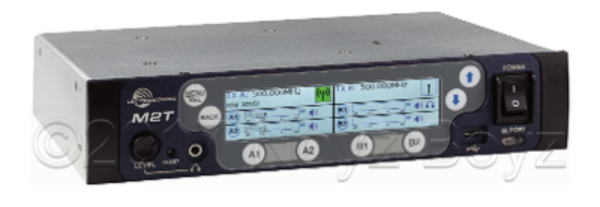

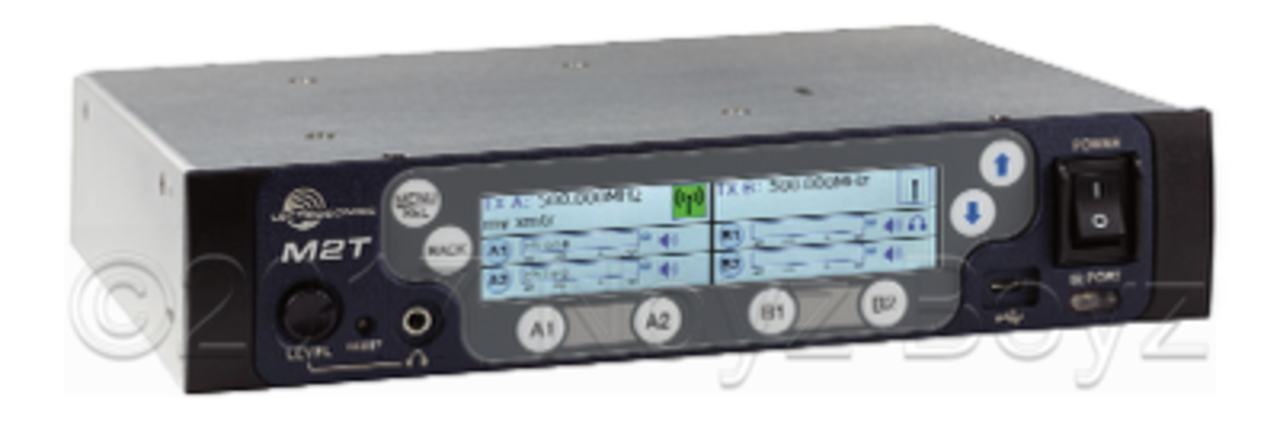

The M2T/E01 is a digital IEM/IFB transmitter from the Lectrosonics M2 Duet System. This half-rack unit integrates two independent stereo transmitters in one chassis, capable of delivering two stereo or four mono mixes. Its rugged build, flexible routing and low latency make it well-suited for live sound, broadcast and theater.

Main Features

• Part of the M2 Duet System
• Two independent stereo transmitters (A/B) in 1/2 rack form-factor
• Four analog XLR/TRS combo inputs, independently routable
• Digital RF modulation (8PSK) with 24-bit audio
• Adjustable RF power: 10 / 25 / 50 mW
• Frequency range E01 (A1B1): 470.100–614.375 MHz, 25 kHz steps
• Total latency (analog source): < 1.4 ms
• 2× BNC antenna outputs
• Headphone monitoring on front panel
• Ethernet port for Wireless Designer software control
• IR sync and USB port for firmware updates
• Dimensions (H×W×D): 44.45 × 212.7 × 196.8 mm
• Weight: ~998 g
• Power: 9–18 VDC, consumption ~5 W

Included

• DCR15/4AU DC power cable
• USB cable (21926)
• Rack-mount hardware (flanges, handles, brackets, screws)
• 2× antennas
• User manual

Related

• Matching receiver: M2Ra
• Dante version: M2T/E01 with Dante
• Antenna combiner: M2C-L
• Digital transmitter: DCHT
