Lectrosonics VRM2

Lectrosonics VRM2

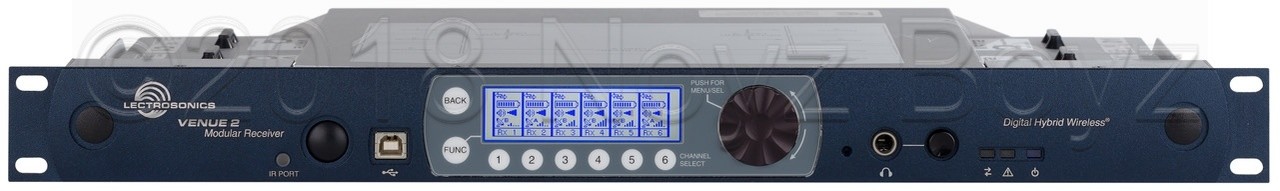

The Lectrosonics VRM2 is a wideband 6-channel receiver chassis designed to hold up to six separately available VRT2 modules. Built for demanding broadcast and film applications, the system supports Digital Hybrid Wireless® and features an integrated antenna multicoupler, tracking filters, talkback compatibility, and full support for Wireless Designer software.

Main Features

• Wideband receiver chassis for up to six VRT2 modules (not included)
• Integrated antenna multicoupler with 230 MHz bandwidth
• Talkback support with compatible transmitters
• iQ tracking filters for enhanced RF performance
• IR port for fast transmitter setup
• Supports hybrid and analog compatibility modes
• USB, Ethernet, and RS-232 interface ports

Technical Specifications

• Tuning range: up to 76 MHz per module
• Frequency step size: 100 kHz or 25 kHz
• Frequency stability: ±0.001%
• Dimensions: 1.75 × 19 × 7.75 in
• Weight (without modules): approx. 2 kg

Included

• VRM2 rack chassis (no VRT2 modules included)
• Power supply
• USB cable
• Wireless Designer software (download)
