Schoeps CCM 2 H K

Schoeps CCM 2 H K

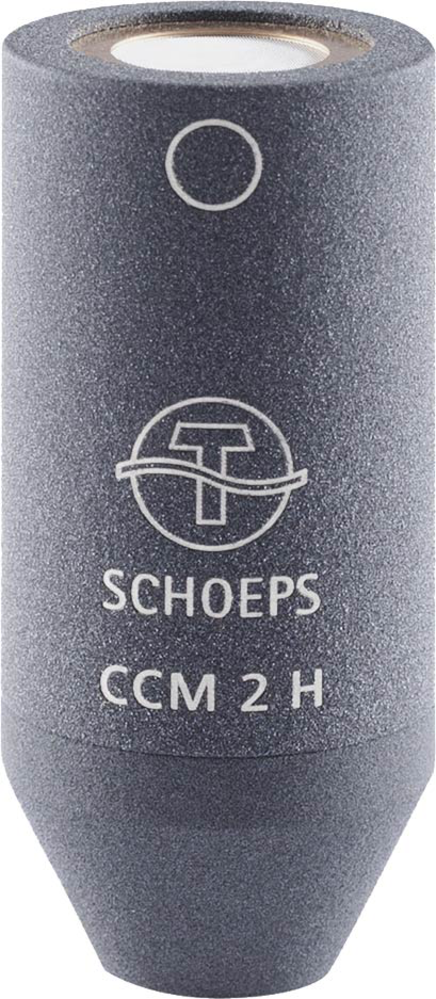

The Schoeps CCM 2 H K is a compact omnidirectional condenser microphone with a slight high-frequency emphasis above 6 kHz. This version features a permanently attached cable with an XLR-3M connector, ensuring reliable and durable connections.

Key Features

• Omnidirectional Polar Pattern: Captures sound evenly from all directions, ideal for recording natural room acoustics and ensembles.

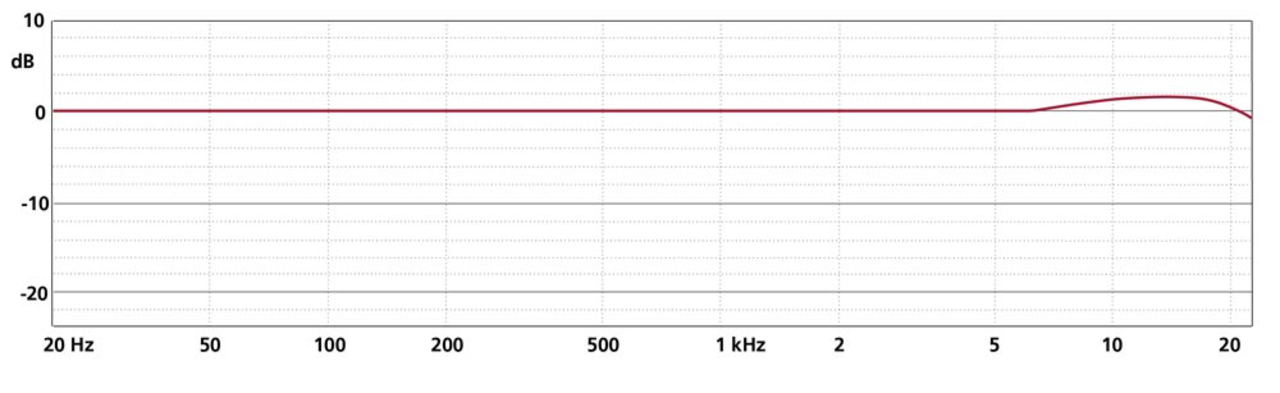

• Subtle High-Frequency Emphasis: The narrow sound inlet, marked with a gold ring, creates a gentle acoustic boost of approximately 2 dB at 10 kHz, compensating for high-frequency loss in diffuse sound fields.
• Compact and Lightweight Design: At just 46 mm in length and 33 grams in weight, it is ideal for situations where space is limited or discretion is required.

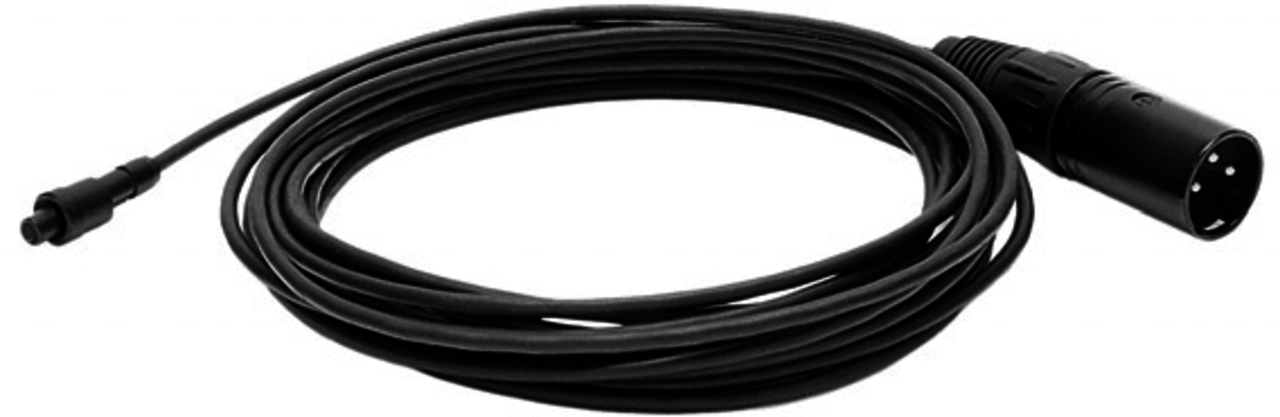

• Permanent Cable with XLR Connector: The "K" version includes a fixed 5 m cable with an XLR-3M connector for stable and secure connections.

Specifications

• Frequency Response: 20 Hz – 20 kHz
• Sensitivity: 15 mV/Pa
• Maximum SPL (THD < 0.5%): 135 dB SPL (P48); 127 dB SPL (P12)
• Maximum Output Voltage: 2.6 V (8.3 dBV) at 2 kΩ load
• Low-Cut Filter: 20 Hz, 12 dB/oct.
• Output Impedance: 90 Ω
• Recommended Load Impedance: 2 kΩ
• Current Consumption: 4 mA (P48); 3.6 mA (P12)
• Dimensions: Length: 46 mm; Diameter: 20 mm
• Weight: 33 g
• Surface Finish: Matte grey

Applications

The CCM 2 H K is particularly suited for capturing instruments and orchestras in spaces with balanced reverberation. It is a popular choice for AB stereo setups and the Decca Tree configuration, often combined with the KA 40 spherical diffuser to achieve greater directivity and a slight boost in midrange frequencies.

With its outstanding sound quality, compact design, and flexible connectivity, the Schoeps CCM 2 H K is an excellent choice for demanding recording scenarios requiring precision and reliability.
