Schoeps CCM 2 XS L

Schoeps CCM 2XS L

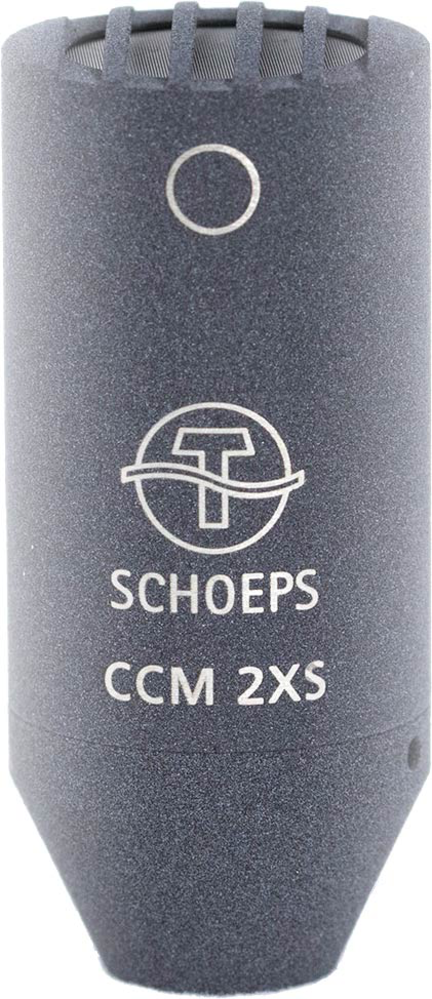

The Schoeps CCM 2XS L is a compact omnidirectional condenser microphone designed for placement in diffuse sound fields, such as at greater distances from the sound source in reverberant environments. It features a significant high-frequency emphasis to compensate for losses in such settings, resulting in a brighter ambient sound. The "L" version is equipped with a Lemo connector, allowing for flexible use with detachable cables and various accessories.

Key Features

• Omnidirectional Polar Pattern: Captures sound uniformly from all directions, ideal for recording natural room acoustics and ensembles.

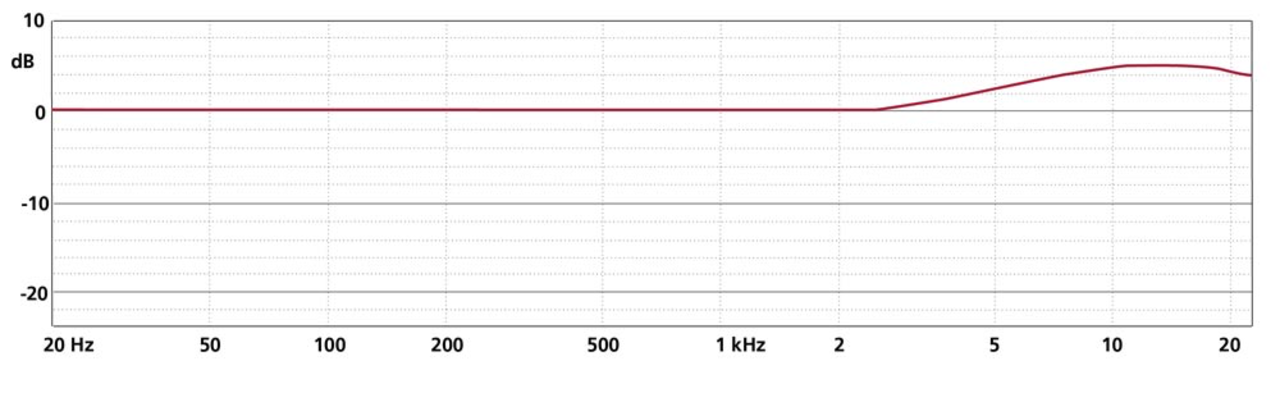

• High-Frequency Emphasis: Provides a noticeable boost in high frequencies, compensating for attenuation in diffuse sound fields and enhancing ambient brightness.
• Compact and Lightweight Design: Measuring 46 mm in length and weighing only 33 grams, it is suitable for situations where space is limited or a discreet setup is required.

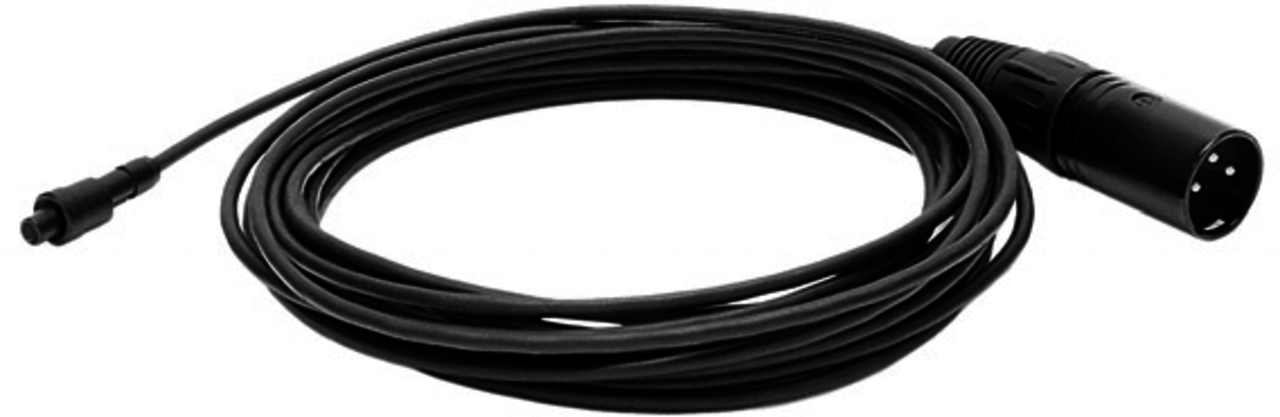

• Lemo Connector: Equipped with a Lemo connector, allowing use with detachable cables and various accessories such as extension tubes and goosenecks.

Specifications

• Frequency Response: 20 Hz – 20 kHz
• Sensitivity: 15 mV/Pa
• Maximum SPL (THD < 0.5%): 135 dB SPL (P48); 127 dB SPL (P12)
• Maximum Output Voltage: 2.6 V (8.3 dBV) at 2 kΩ load
• Low-Cut Filter: 20 Hz, 12 dB/oct.
• Output Impedance: 90 Ω
• Recommended Load Impedance: 2 kΩ
• Current Consumption: 4 mA (P48); 3.6 mA (P12)
• Dimensions: Length: 46 mm; Diameter: 20 mm
• Weight: 33 g
• Surface Finish: Matte grey

Applications

The CCM 2XS L is particularly suited for capturing ambient sounds in reverberant environments, effectively compensating for high-frequency losses at greater distances from the sound source. It is a popular choice for room microphones, AB stereo setups, and Decca Tree configurations, providing a brighter and more detailed sound in diffuse sound fields.

With its exceptional sound quality, compact design, and flexible connectivity, the Schoeps CCM 2XS L is an excellent choice for demanding recording scenarios requiring precision and brightness in ambient sound capture.
