Schoeps CCM 21 K

Schoeps CCM 21 K [121004]

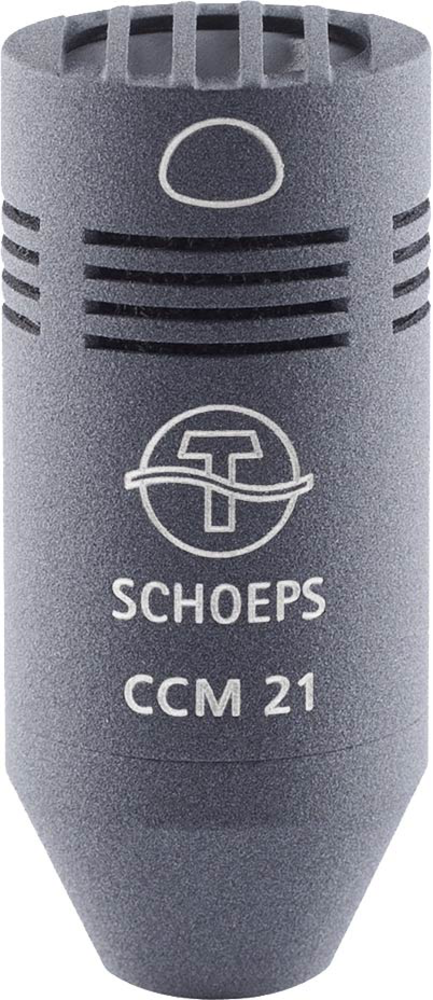

The Schoeps CCM 21 K is a compact wide cardioid condenser microphone with an integrated capsule and microphone amplifier. The K version has a fixed 5 meter cable with an XLR-3M connector for connection to a microphone input supplying phantom power.

Broad pickup with moderate directionality

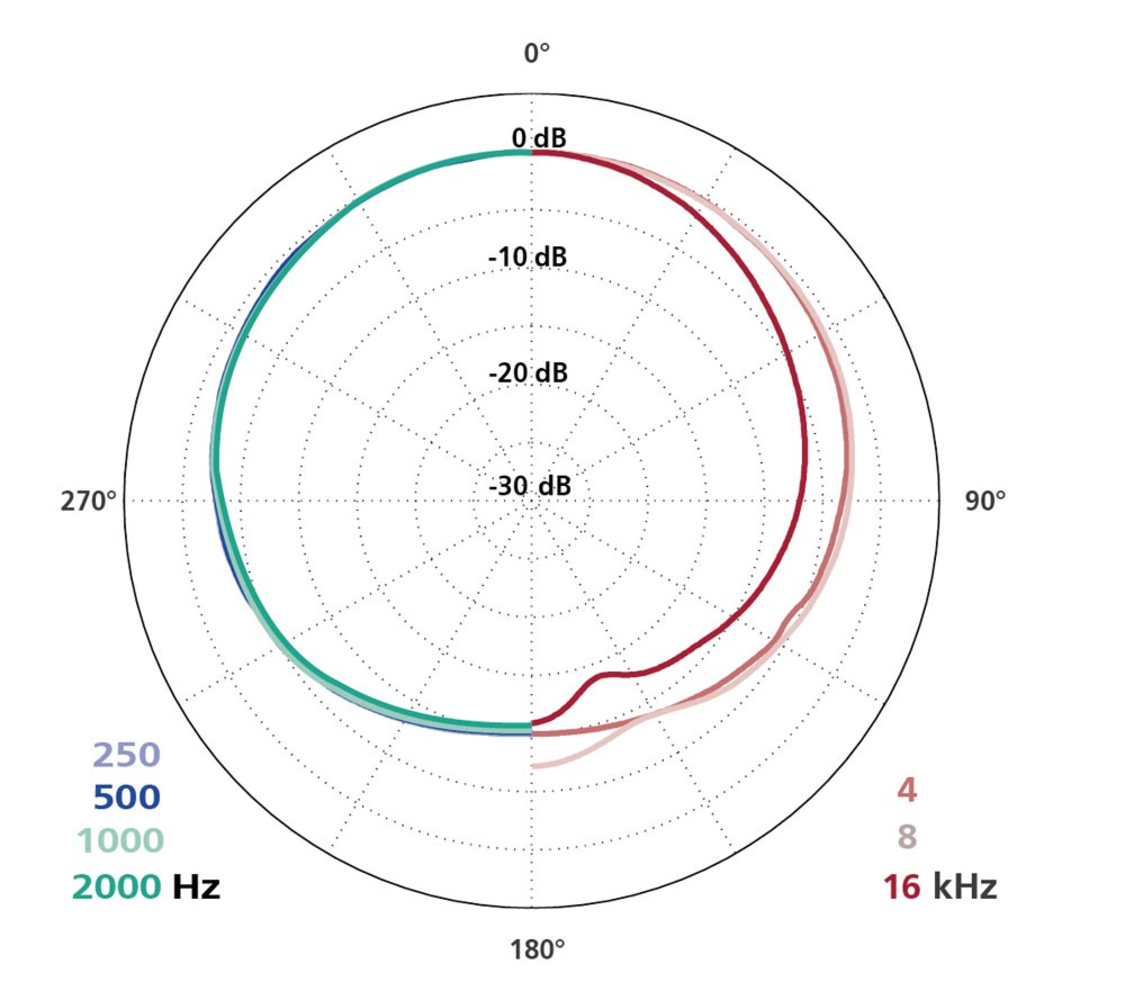

The polar pattern lies between omnidirectional and cardioid. The CCM 21 K therefore combines broad coverage with some attenuation of sound arriving from the rear. Its directional response remains consistent across a broad frequency range.

The microphone is suitable for spot pickup and stereo arrangements with some spacing between microphones. Its directionality is insufficient to produce adequate left-to-right level differences for XY. In an MS setup, the CCM 21 can provide the Mid channel alongside a separate figure-8 microphone.

Specifications

• Polar pattern: wide cardioid

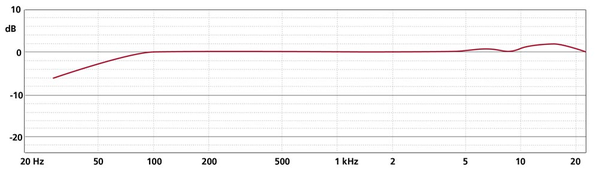

• Frequency range: 30 Hz–29 kHz
• Sensitivity: 14 mV/Pa
• Maximum SPL at less than 0.5% THD: 136 dB SPL with P48; 128 dB SPL with P12
• Low-cut filter: 20 Hz, 12 dB/octave
• Output impedance: 90 Ω at 1 kHz
• Minimum recommended load impedance: 2 kΩ
• Powering: P12 or P48 phantom power
• Current consumption: 3.6 mA with P12; 4 mA with P48
• Connection: fixed 5 meter cable with XLR-3M connector
• Finish: matte gray

Included

• Schoeps CCM 21 K microphone with fixed 5 meter connecting cable and XLR-3M connector

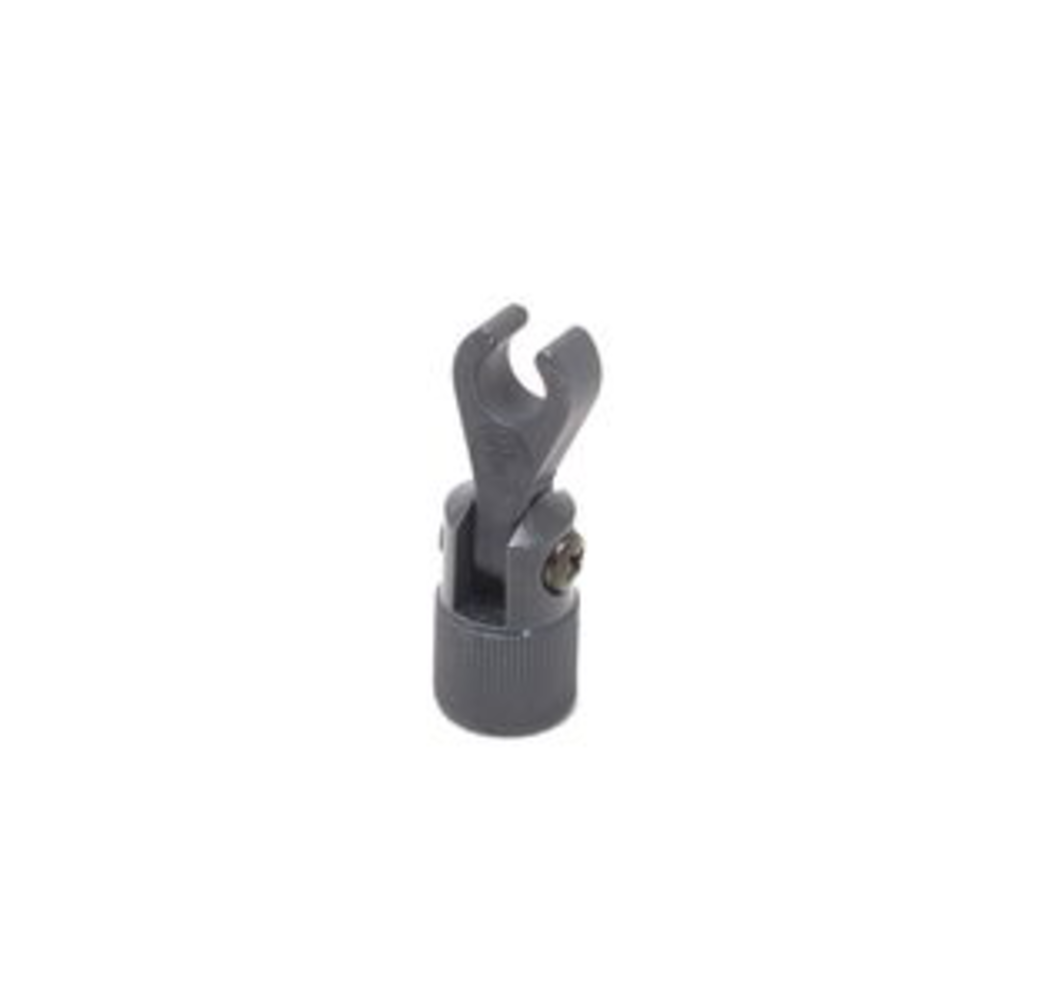

• SGC microphone clamp
• Wooden storage case

Other version

The CCM 21 L offers the same acoustic performance with a detachable cable and Lemo connection.
