Schoeps CMC 1 SO for Zaxcom

Schoeps CMC 1 SO [132302]

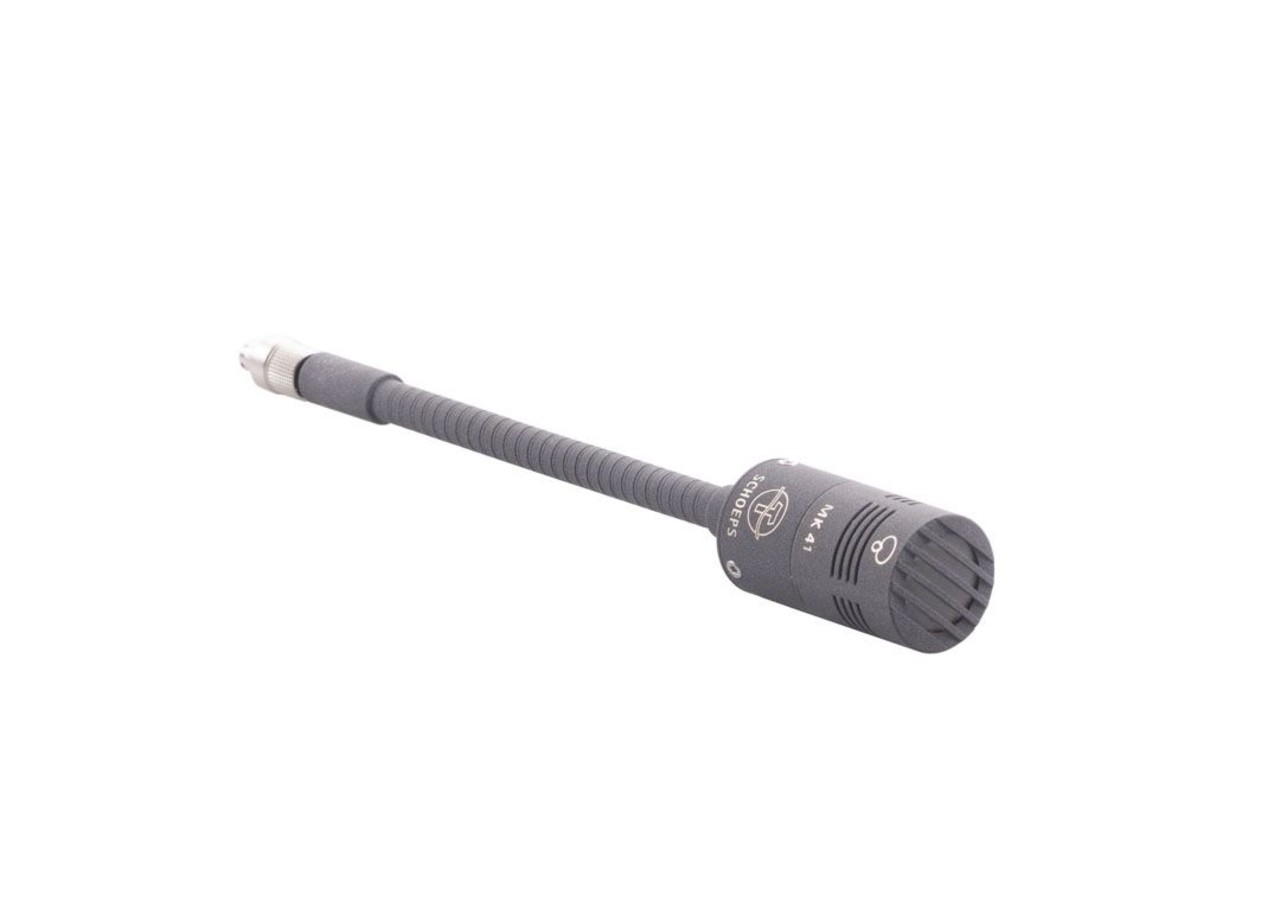

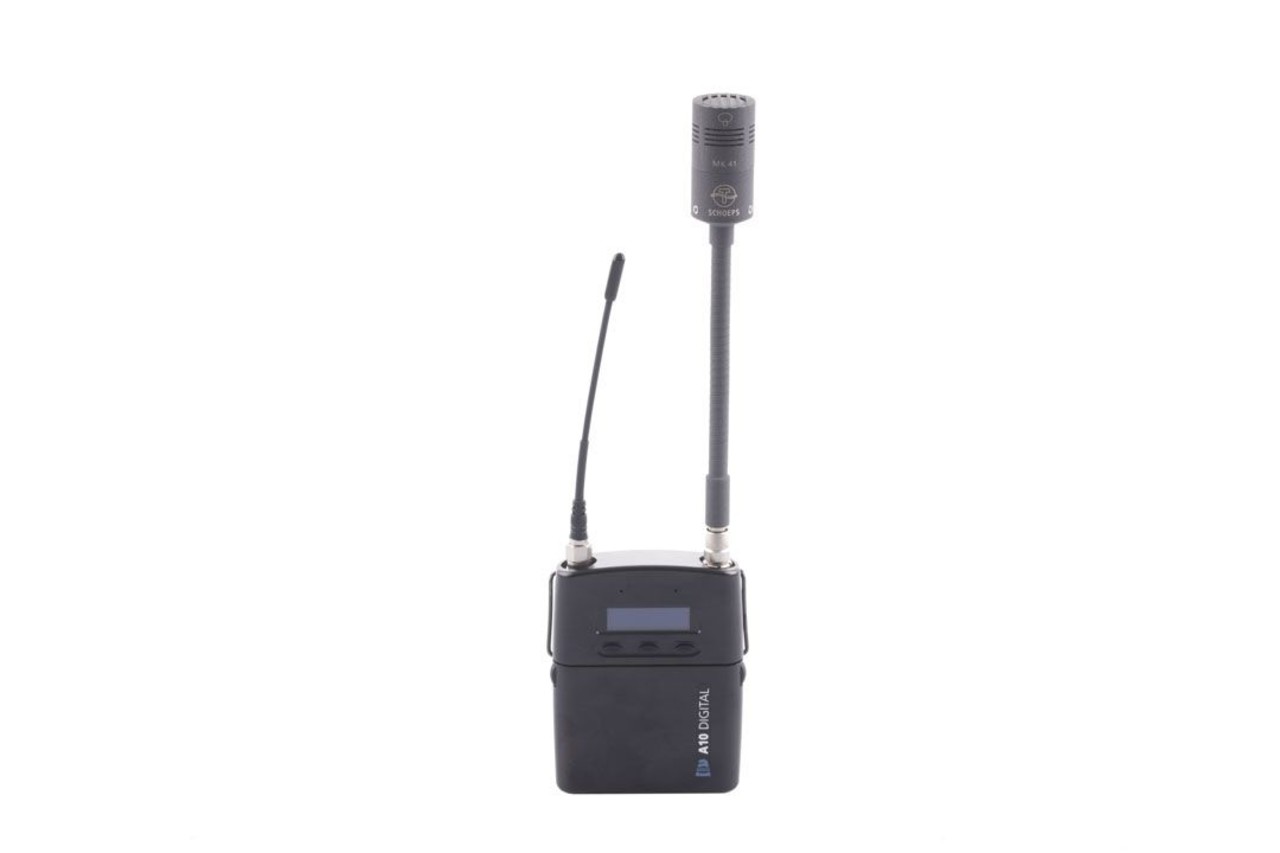

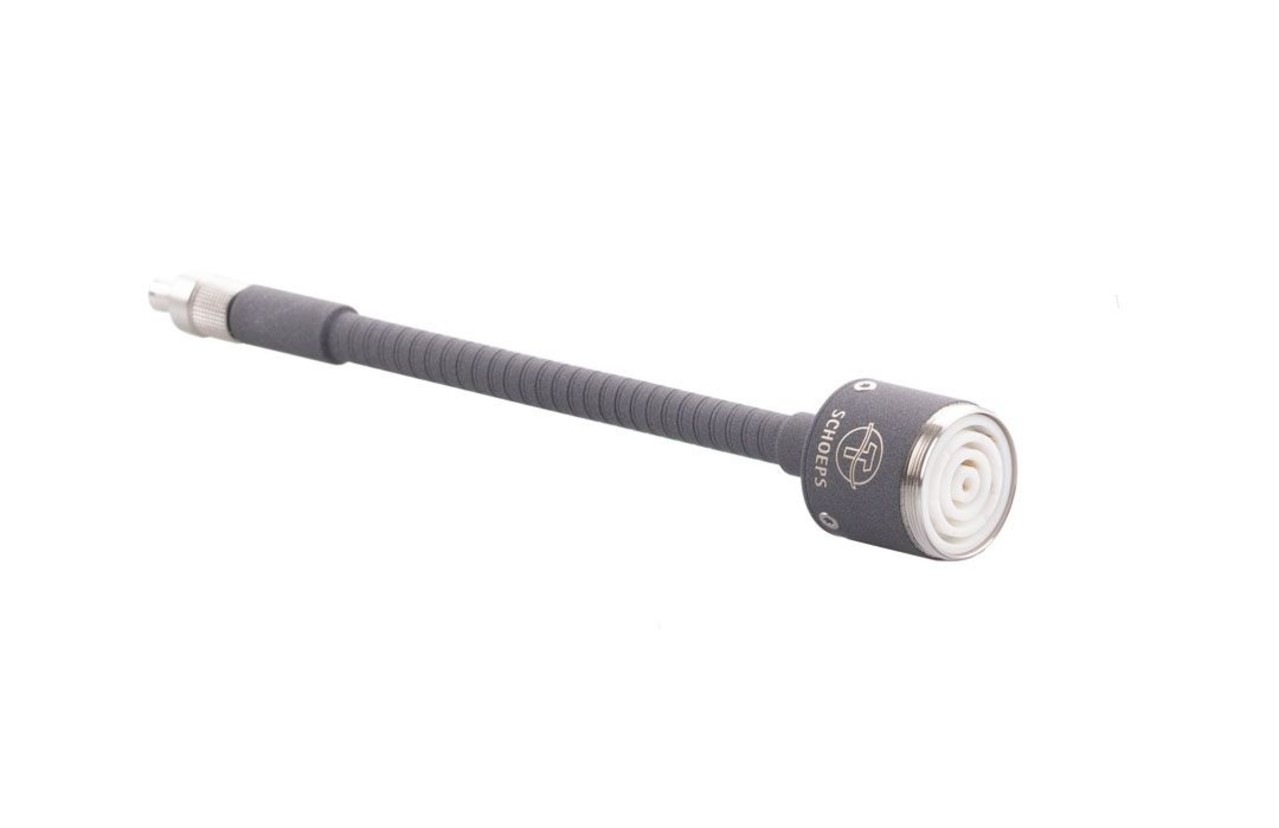

The Schoeps CMC 1 SO [132302] is a compact microphone amplifier with fixed gooseneck and 3-pin Lemo output, specifically configured for Zaxcom ZMT transmitters such as the ZMT4. This version includes the correct pin assignment for direct connection to Zaxcom beltpack systems.

Functionally identical to the CMC 1 U, the CMC 1 SO replaces the XLR connector with a flexible gooseneck and fixed Lemo output. It is fully compatible with all MK capsules from the Colette series and supports active accessories such as the CUT 60. With full digital shielding and high RF immunity, it is ideal for compact, reliable setups using Zaxcom wireless systems.

Main Features

• Specific pinout for Zaxcom ZMT transmitters
• Fixed gooseneck approx. 12 cm with 3-pin Lemo output
• Compatible with all MK capsules and Colette accessories
• Digitally shielded with high RF interference immunity
• Full 20 Hz – 20 kHz frequency response

Technical Specifications

• Power: P12 or P48 via Zaxcom beltpack
• Frequency range: 20 Hz – 20 kHz
• Output: 3-pin Lemo for Zaxcom ZMT
• Gooseneck length: approx. 12 cm

Included

• CMC 1 SO amplifier with fixed gooseneck
• SGC microphone clamp
