Schoeps CMC1L MK2H Mono Set

Schoeps CMC1L MK2H Mono Set

The Schoeps CMC1L MK2H Mono Set combines the ultra-compact CMC 1 L microphone amplifier with the MK 2H omnidirectional capsule. This set is ideal for natural sound recordings in acoustically balanced environments. The MK 2H capsule offers a balanced and rounded sound, with a slight high-frequency boost to compensate for diffuse field loss. The CMC 1 L amplifier features a Lemo output and is compatible with all MK capsules and Colette accessories.

Main Features

• Omnidirectional recording with natural sound reproduction
• Ultra-compact CMC 1 L amplifier with Lemo output
• Compatible with all MK capsules and Colette accessories
• Includes SG 20 microphone clamp and B 5 D windscreen

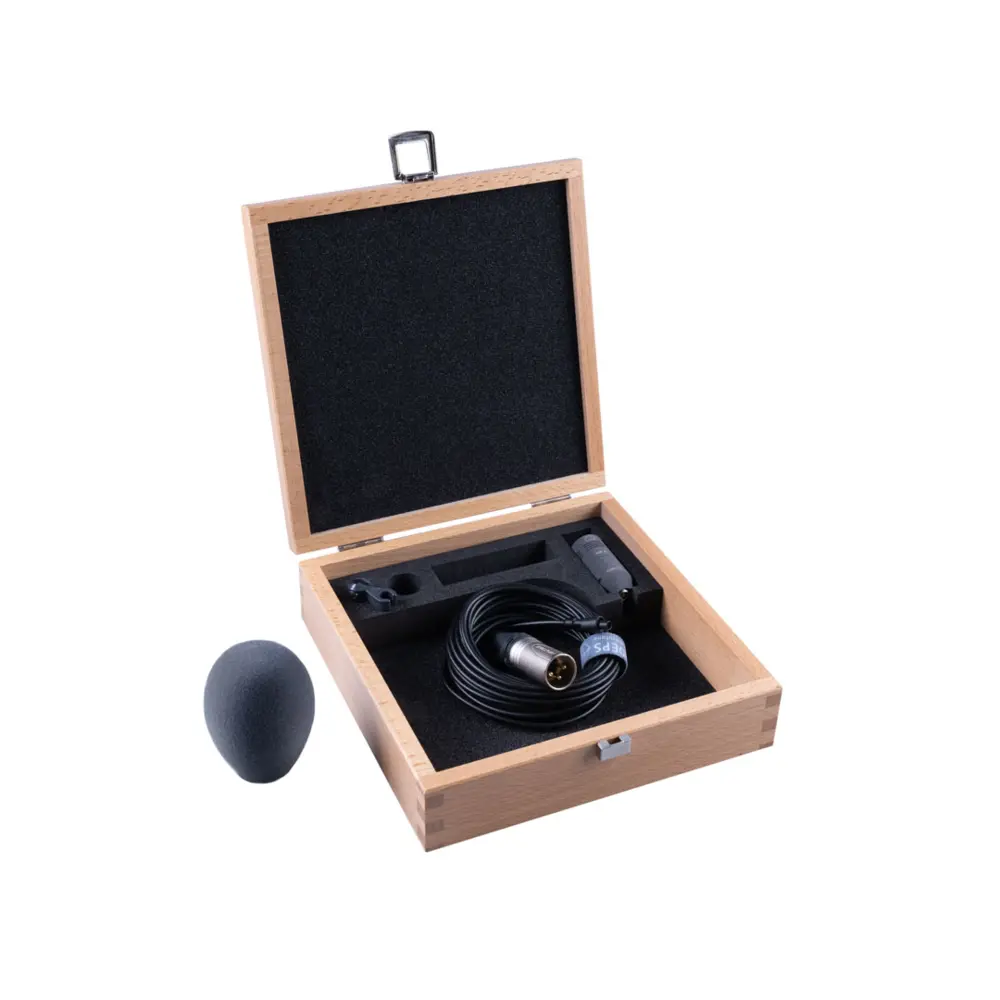

• Supplied in a protective case

Specifications

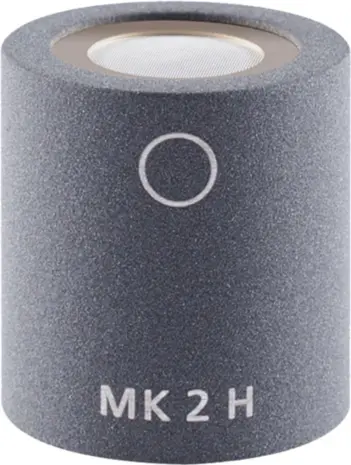

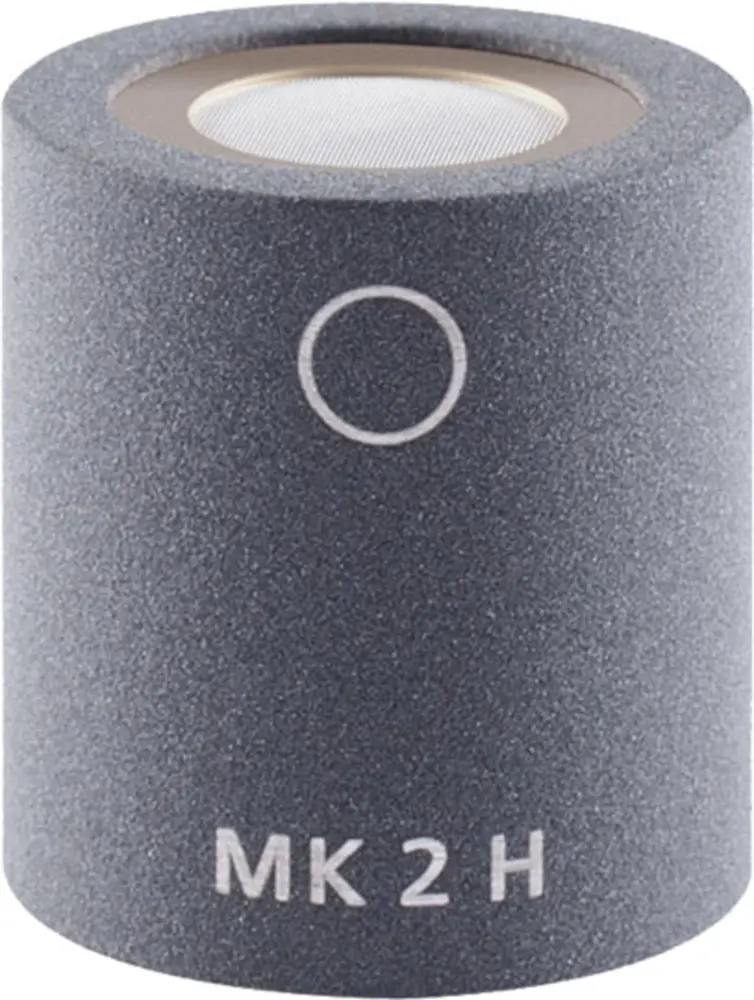

• MK 2H capsule:

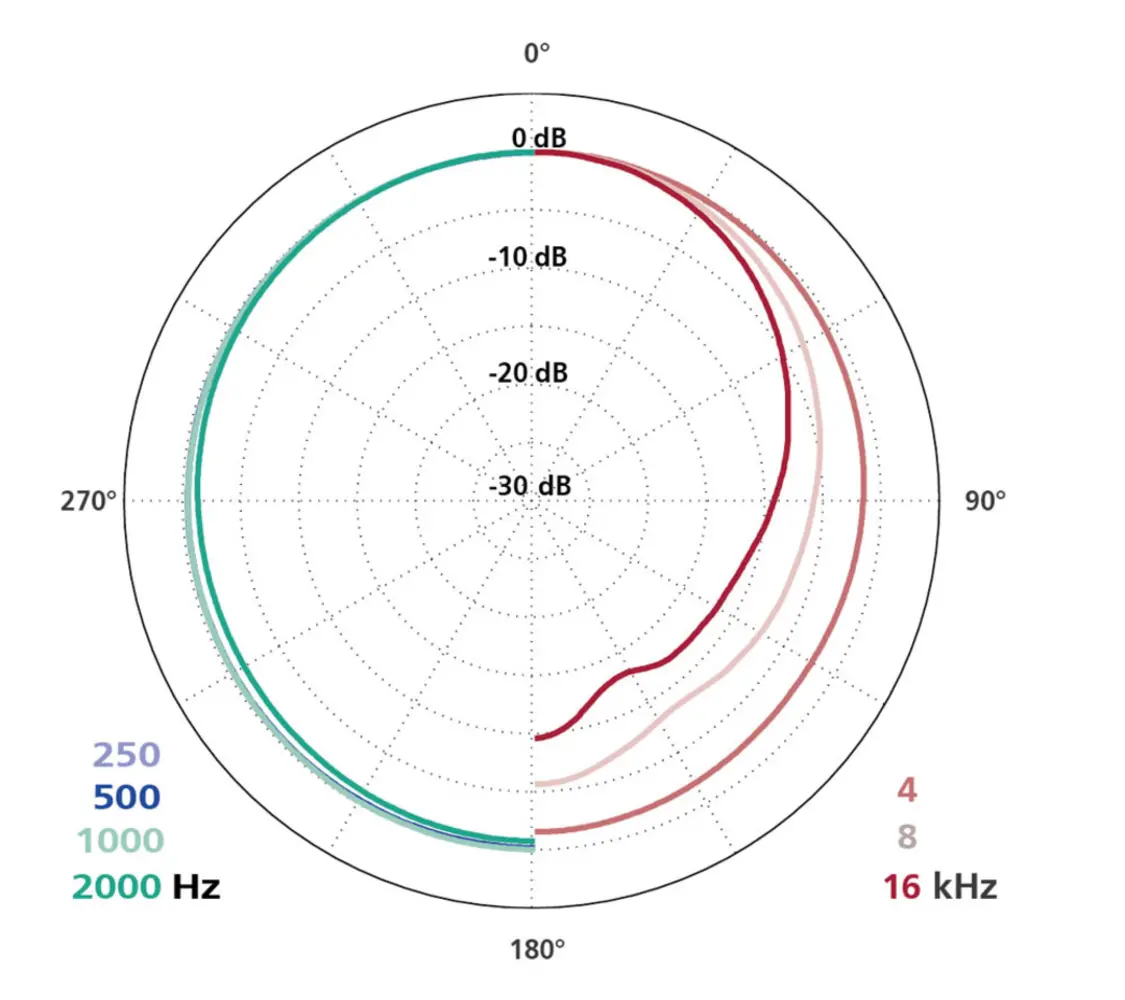

  • Polar pattern: Omnidirectional

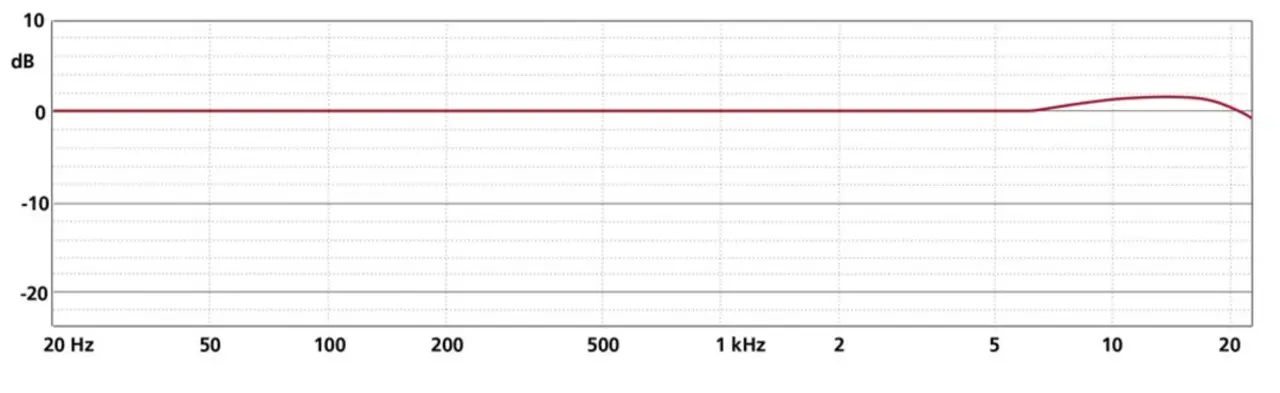

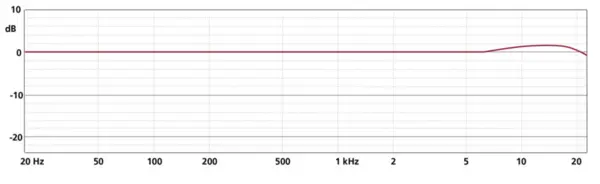

  • Frequency range: 20 Hz – 26 kHz
  • Sensitivity: 17 mV/Pa
  • Equivalent noise level (A-weighted): 10 dB
  • Maximum SPL (THD < 0.5%): 134 dB
  • Dimensions: 22 mm length, 20 mm diameter
  • Weight: 17 g

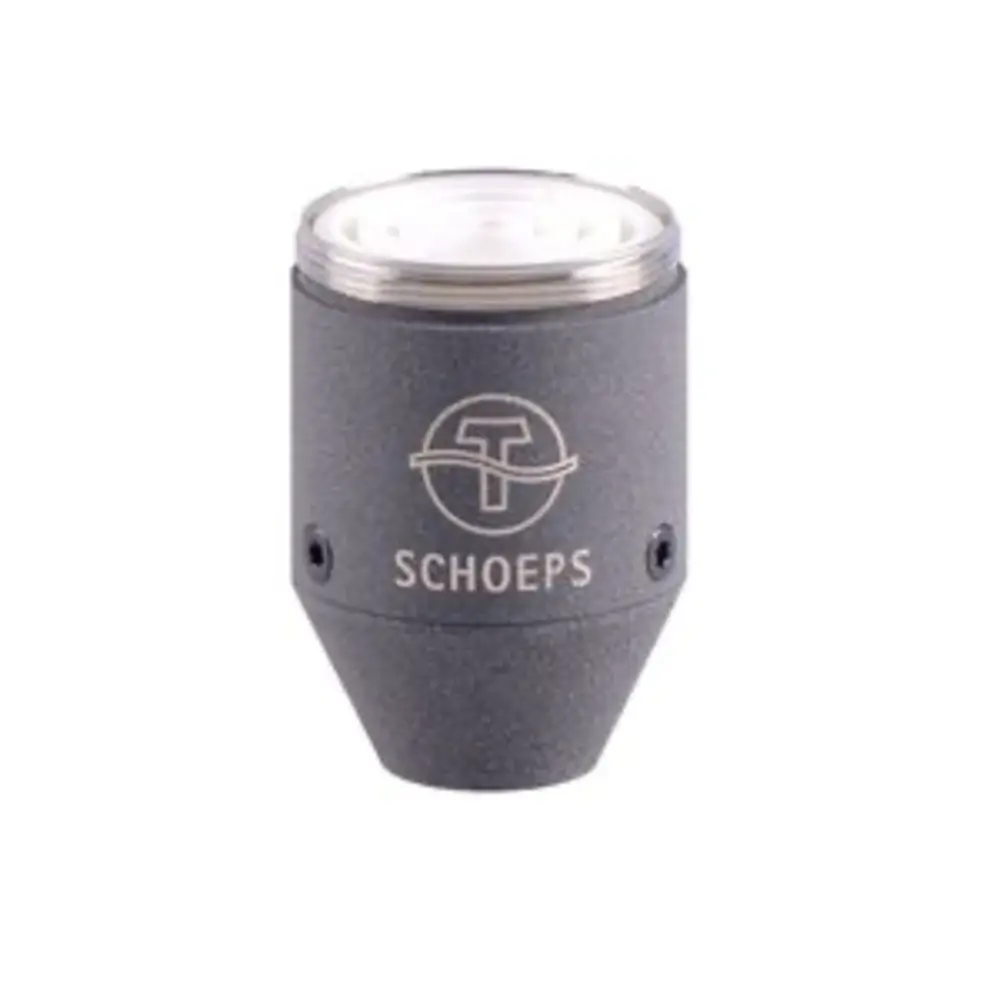

• CMC 1 L amplifier:
  • Output: Lemo, analog, 1 channel
  • Frequency range: 20 Hz – 20 kHz
  • Maximum output voltage: 1.8 V (5 dBV) with 1 kΩ load
  • Output impedance: 50 Ω ±1 Ω (8 Hz – 50 kHz)
  • Power requirements: P12 (11–13 V) or P48 (30–52 V)
  • Current consumption: 3 mA (P12), 2 mA (P48)
  • Dimensions: 25.5 mm length, 20 mm diameter
  • Weight: 28 g

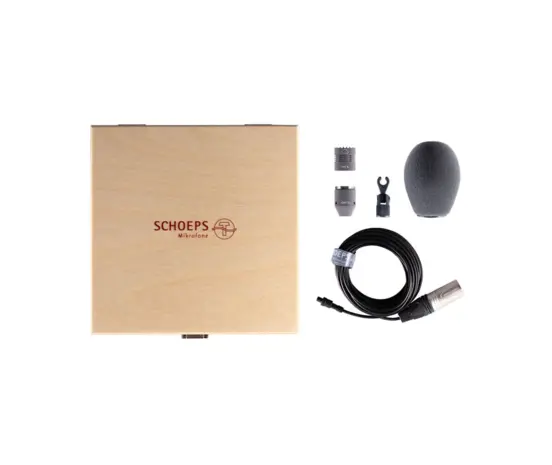

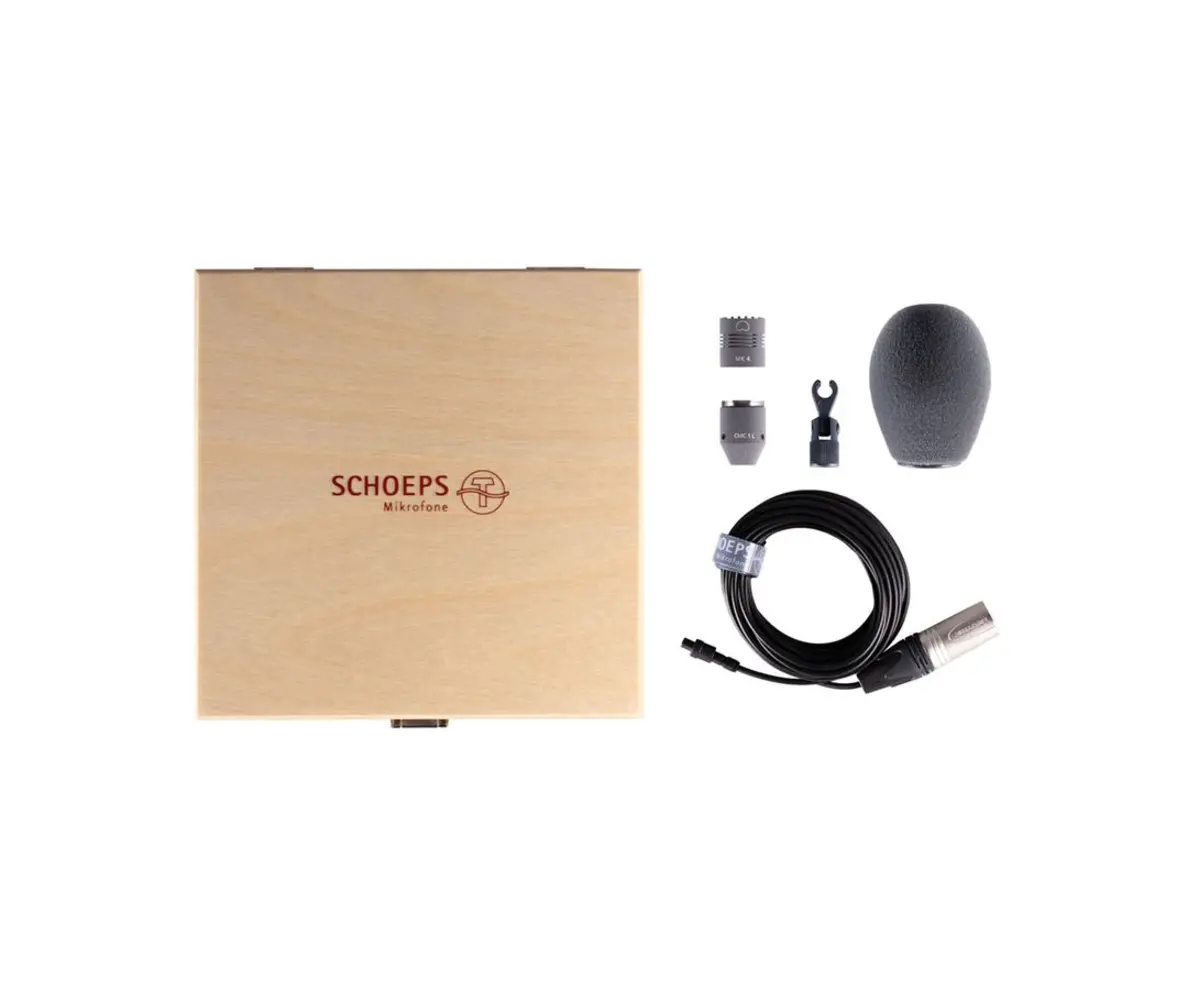

Included

• 1x Schoeps CMC 1 L microphone amplifier
• 1x Schoeps MK 2H capsule
• 1x SG 20 microphone clamp

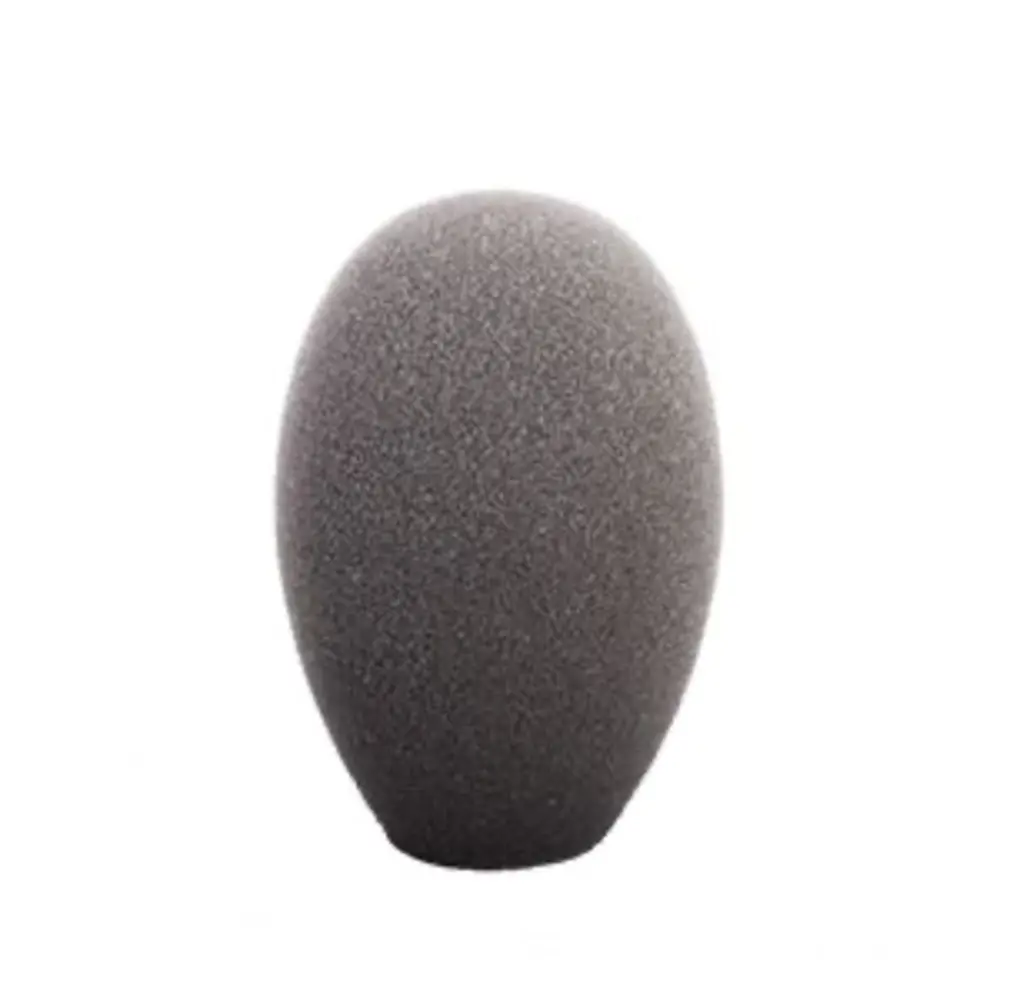

• 1x B 5 D windscreen
• 1x Velcro cable strap
• 1x Protective case
