Schoeps MK 5 matched pair

Schoeps MK 5 Matched Pair [131019mp]

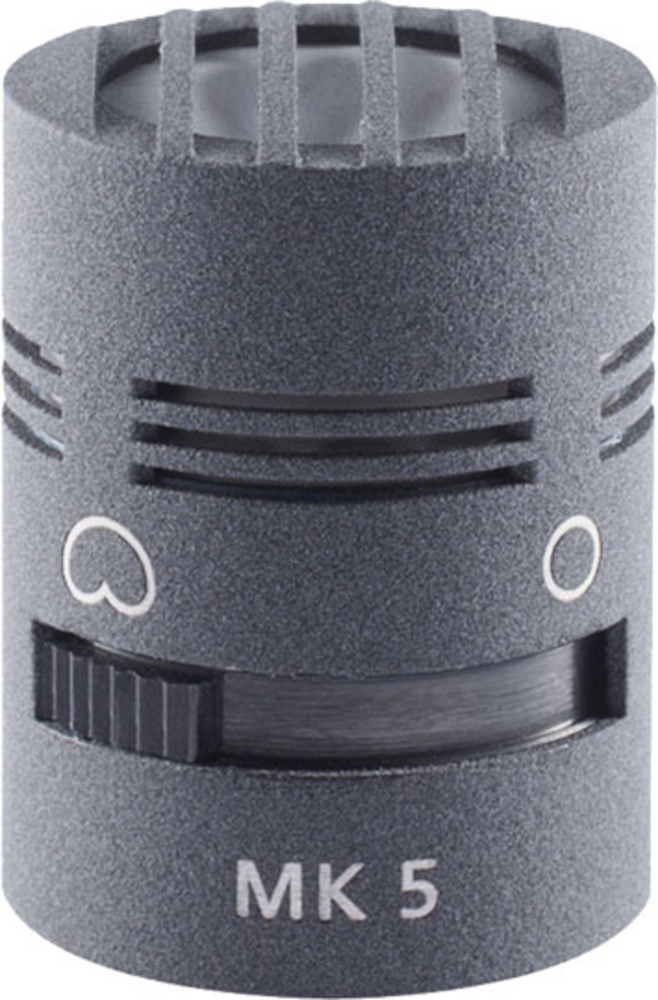

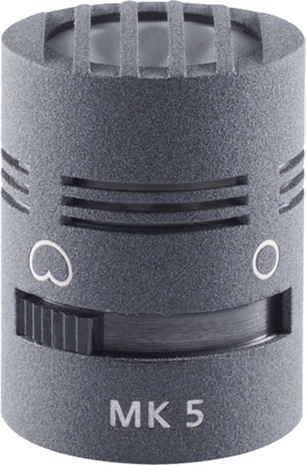

The Schoeps MK 5 matched pair [131019mp] consists of two identical capsules from the Colette series, each with a switchable directional characteristic: omnidirectional or cardioid. The desired pattern is selected via a mechanical switch on the capsule. In omni mode, it functions as a true pressure transducer; in cardioid mode, as a pressure gradient transducer.

This combination of two fundamentally different principles in a single housing offers great flexibility. The matched pair configuration ensures precise channel balance for stereo recordings.

Main Features

• Matched pair version: precisely matched capsules for balanced stereo imaging, including certificate.
• Switchable polar pattern: choice between omnidirectional and cardioid via mechanical switch.
• True pressure transducer in omni mode: natural sound without proximity effect.
• Pressure gradient transducer in cardioid mode: focused capture with reduced side and rear sound.

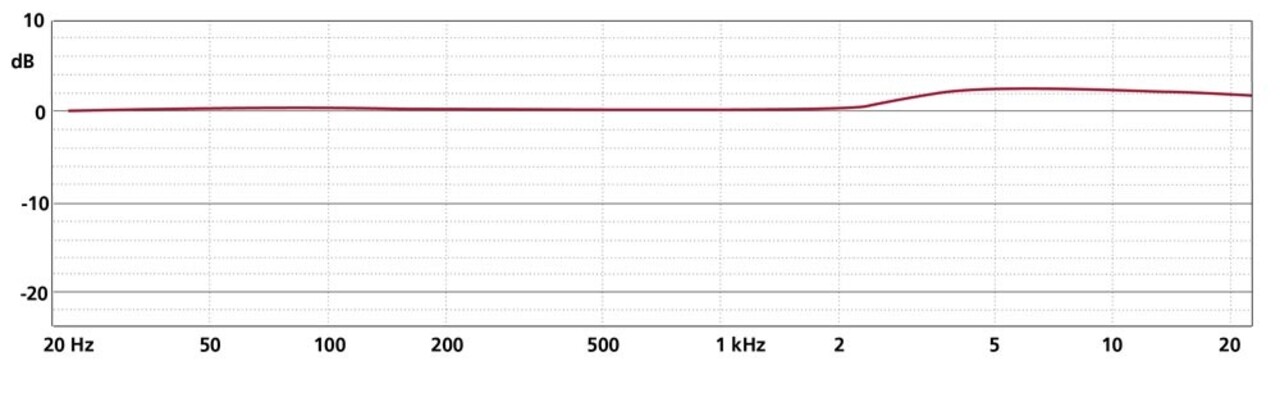

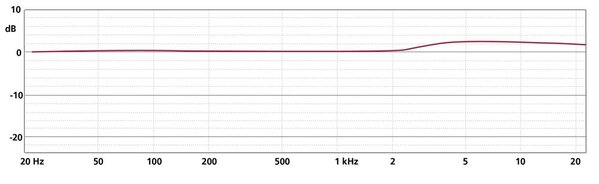

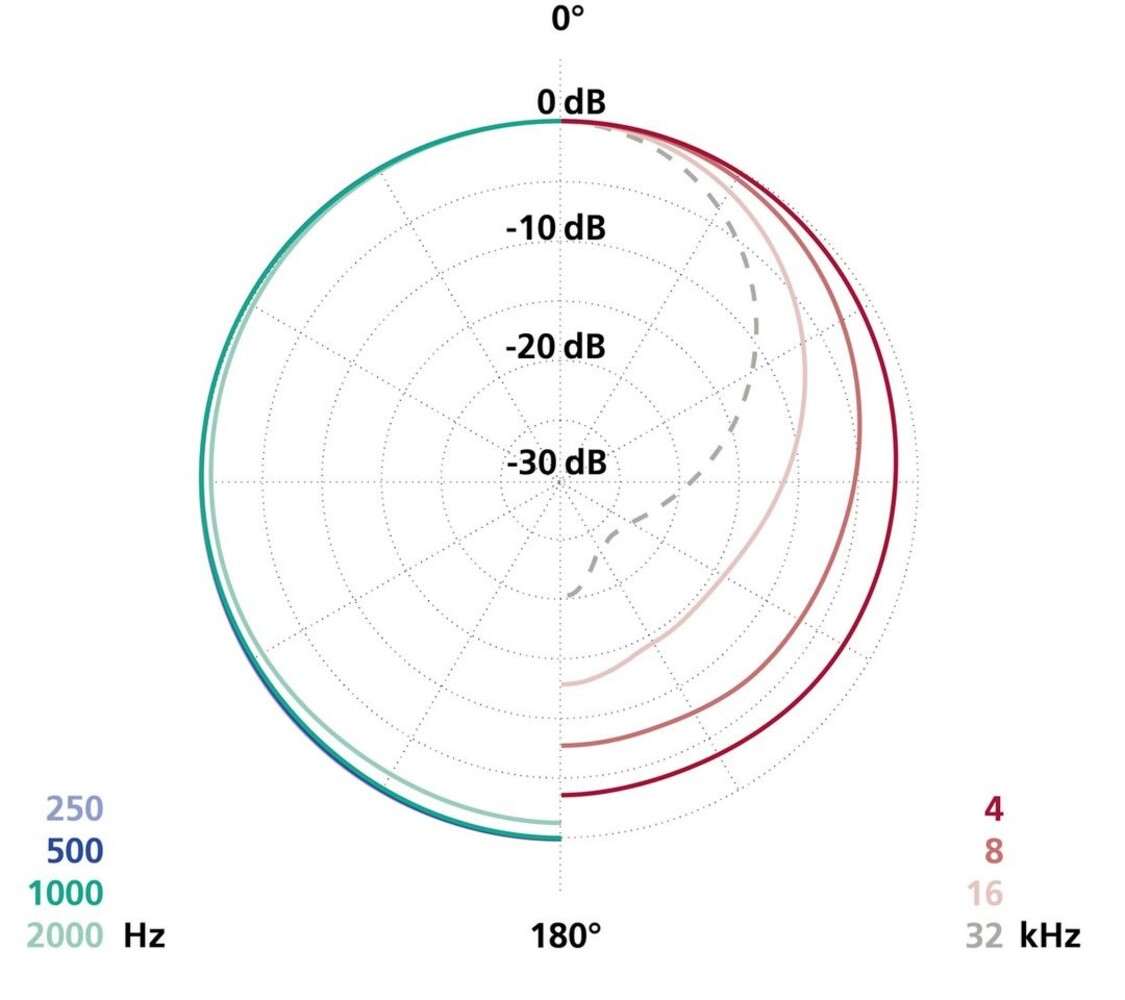

Specifications – Omnidirectional

• Polar pattern: omnidirectional
• Frequency range: 20 Hz – 28 kHz with CMC 6 / CMR; 20 Hz – 43 kHz with CMC 6xt
• Sensitivity: 12 mV/Pa (–38.0 dB) with CMC 6
• Equivalent noise level (A-weighted): 12 dB
• Equivalent noise level (CCIR): 24 dB
• S/N ratio (A-weighted): 82 dB
• Max SPL (THD < 0.5%): 132 dB SPL with CMC 6; 136 dB SPL with CMC 1

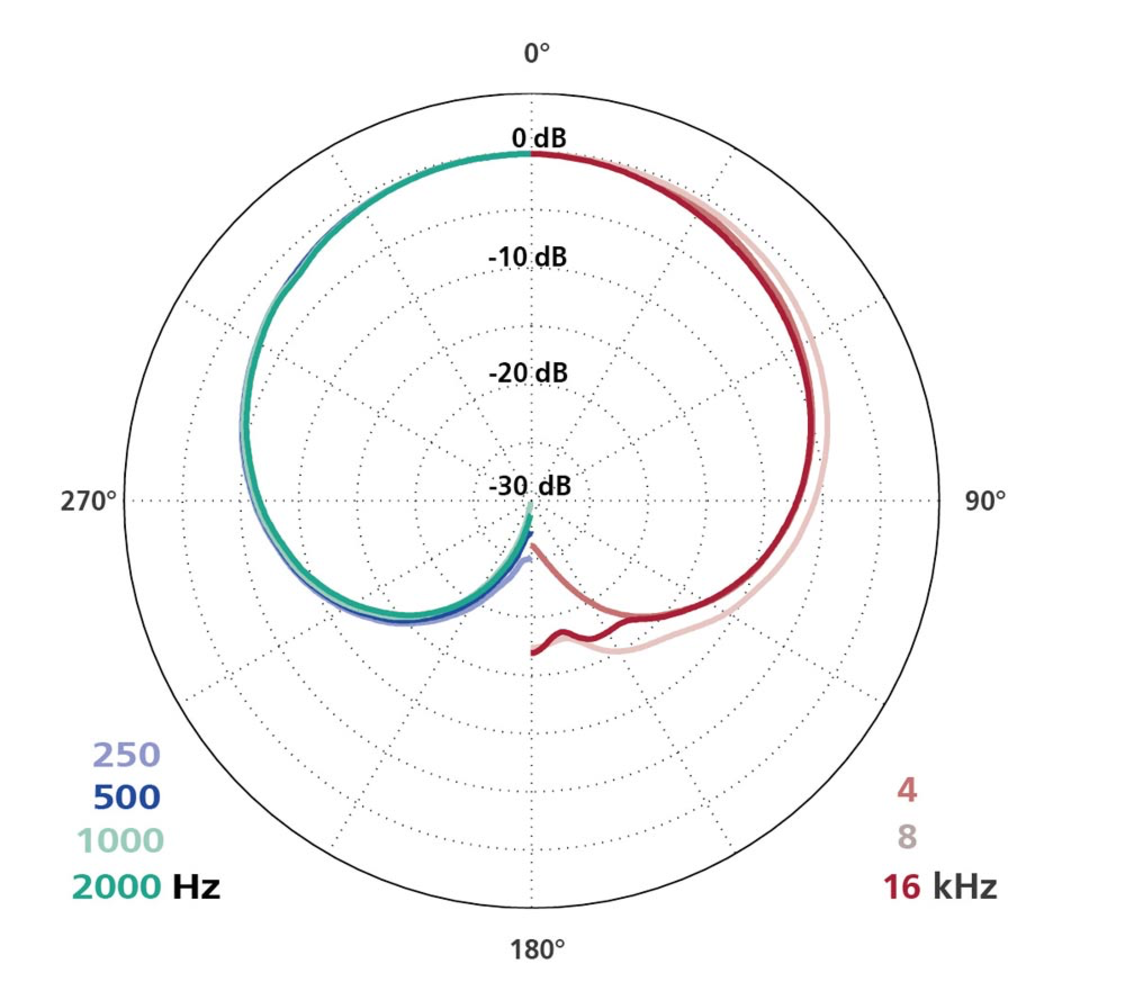

Specifications – Cardioid

• Polar pattern: cardioid
• Frequency range: 40 Hz – 26 kHz with CMC 6 / CMR; 40 Hz – 41 kHz with CMC 6xt
• Sensitivity: 14 mV/Pa (–37 dB) with CMC 6
• Equivalent noise level (A-weighted): 13 dB
• Equivalent noise level (CCIR): 23 dB
• S/N ratio (A-weighted): 81 dB
• Max SPL (THD < 0.5%): 131 dB SPL with CMC 6; 135 dB SPL with CMC 1

Mechanical Specifications

• Length: 27 mm
• Diameter: 20 mm
• Weight: 25 g per capsule
• Finish: matte grey; optional Chromagreen or Smoked Silver

Compatible Preamplifiers

• Schoeps CMC 1 U
• Schoeps CMC 1 L
• Schoeps CMC 1 K
• Schoeps CMC 6
• Schoeps CMC 6xt
• Schoeps CMR

Included

• 2× Schoeps MK 5 capsules [131019mp]
• Matched pair certificate
