Schoeps Mono-Set CMC 6, MK 5

Schoeps Mono-Set CMC 6, MK 5 [138019]

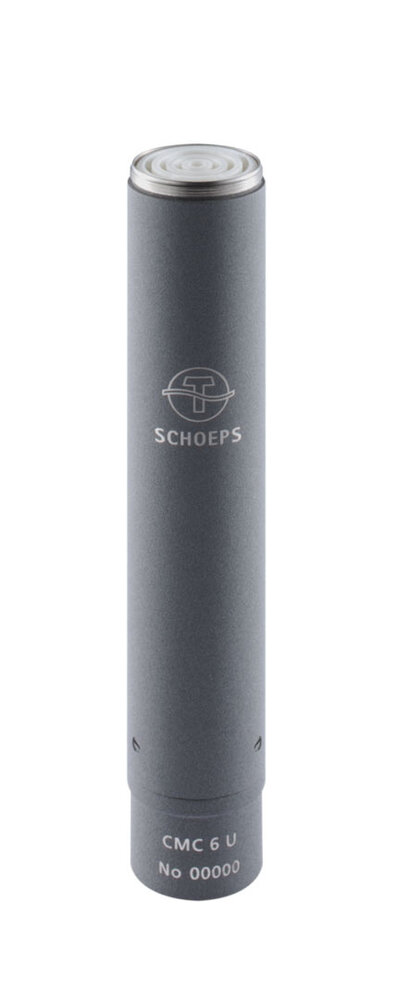

Colette microphone set with an MK 5 switchable capsule and a CMC 6 U microphone amplifier. The microphone has a balanced XLR output and operates on P12 or P48 phantom power.

Main Features

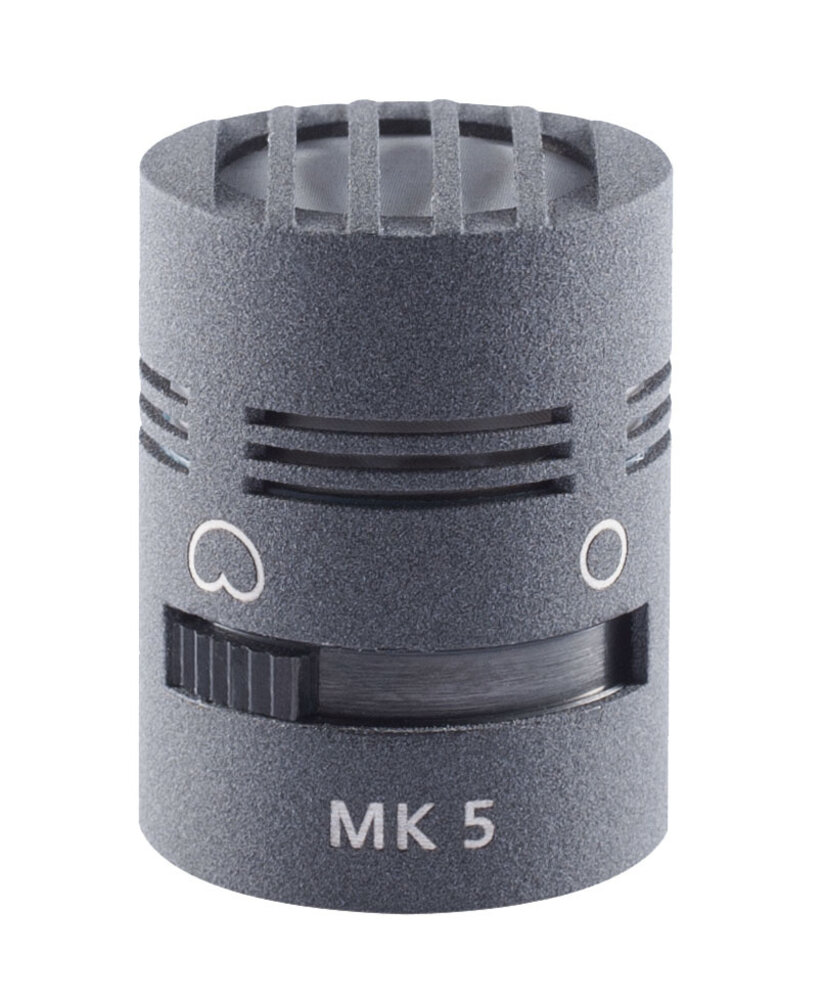

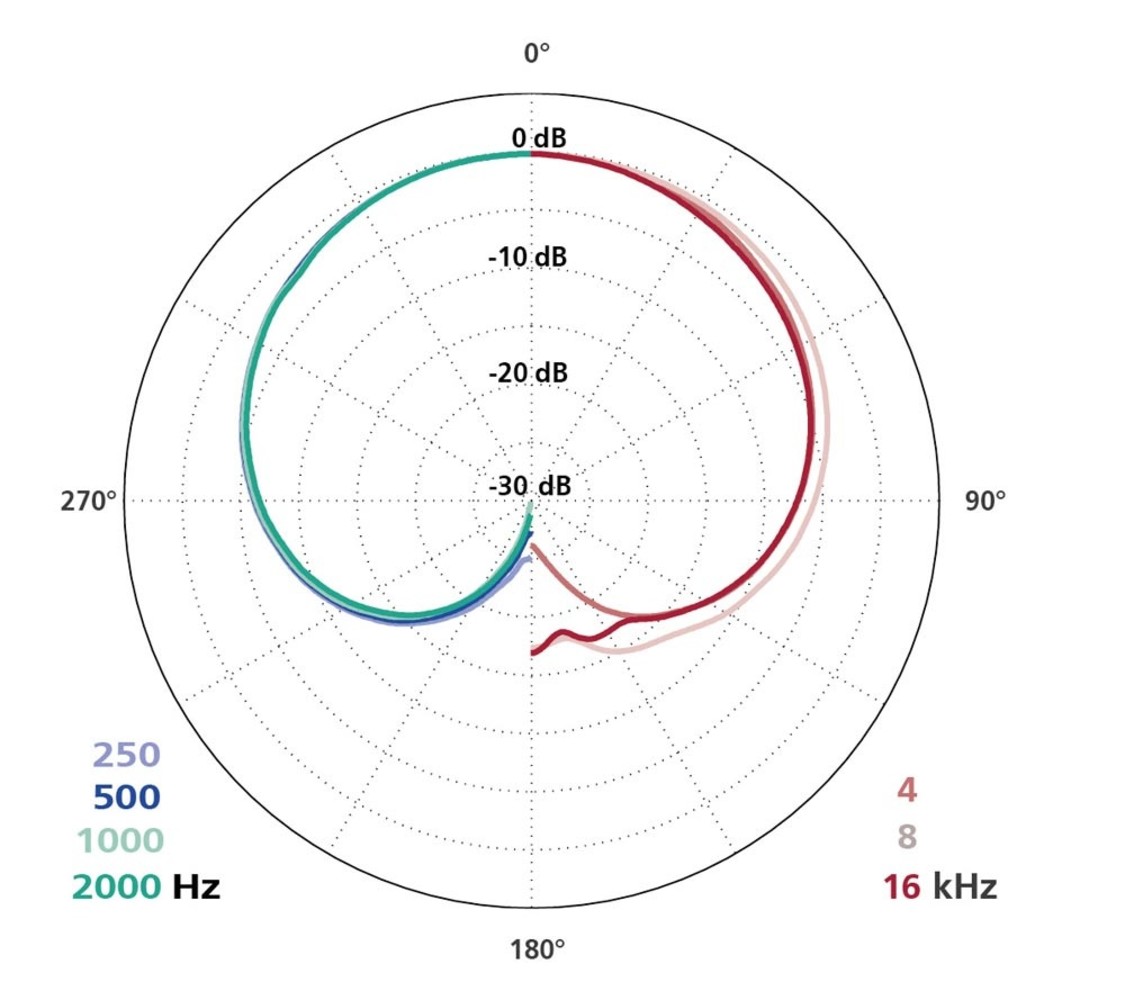

• Mechanically switches between omnidirectional and cardioid.
• A single diaphragm serves both pickup patterns.
• Interchangeable capsule within the modular Colette system.
• CMC 6 U amplifier with RFI Shield against radio-frequency interference.
• Includes a microphone clamp, windscreen and wooden storage case.

Using the Pattern Selector

Move the sliding selector fully into either the omni or cardioid position. Intermediate positions do not produce a defined pickup pattern.

Specifications

Connection and Powering

• Output: balanced, XLR-3 male.
• Output impedance: 42 Ω.
• Minimum recommended load impedance: 1 kΩ.
• Maximum output voltage: 1 V into a 1 kΩ load.
• Powering: P12 or P48.
• Current consumption: 8 mA at P12 / 4 mA at P48.
• Fixed amplifier low-cut filter: 20 Hz, 12 dB/octave.

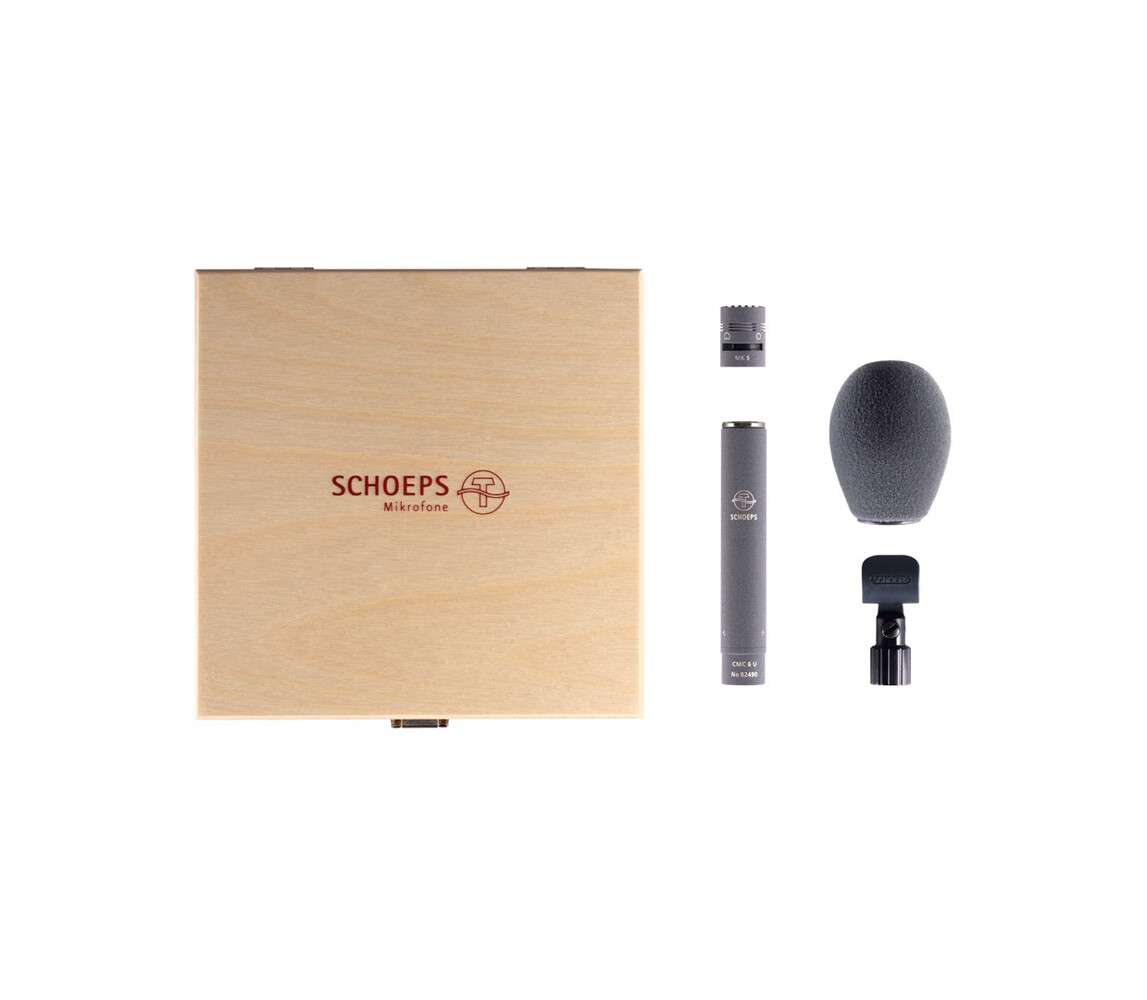

Included

• 1 × Schoeps MK 5 capsule.
• 1 × Schoeps CMC 6 U microphone amplifier.

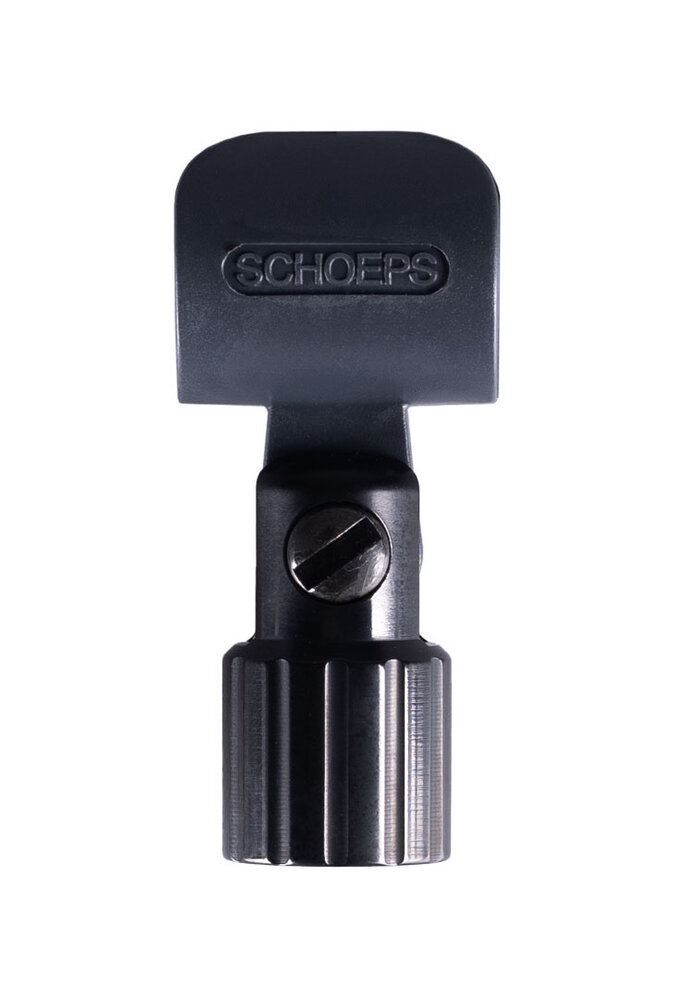

• 1 × Schoeps SG 20 microphone clamp, 2026 version.

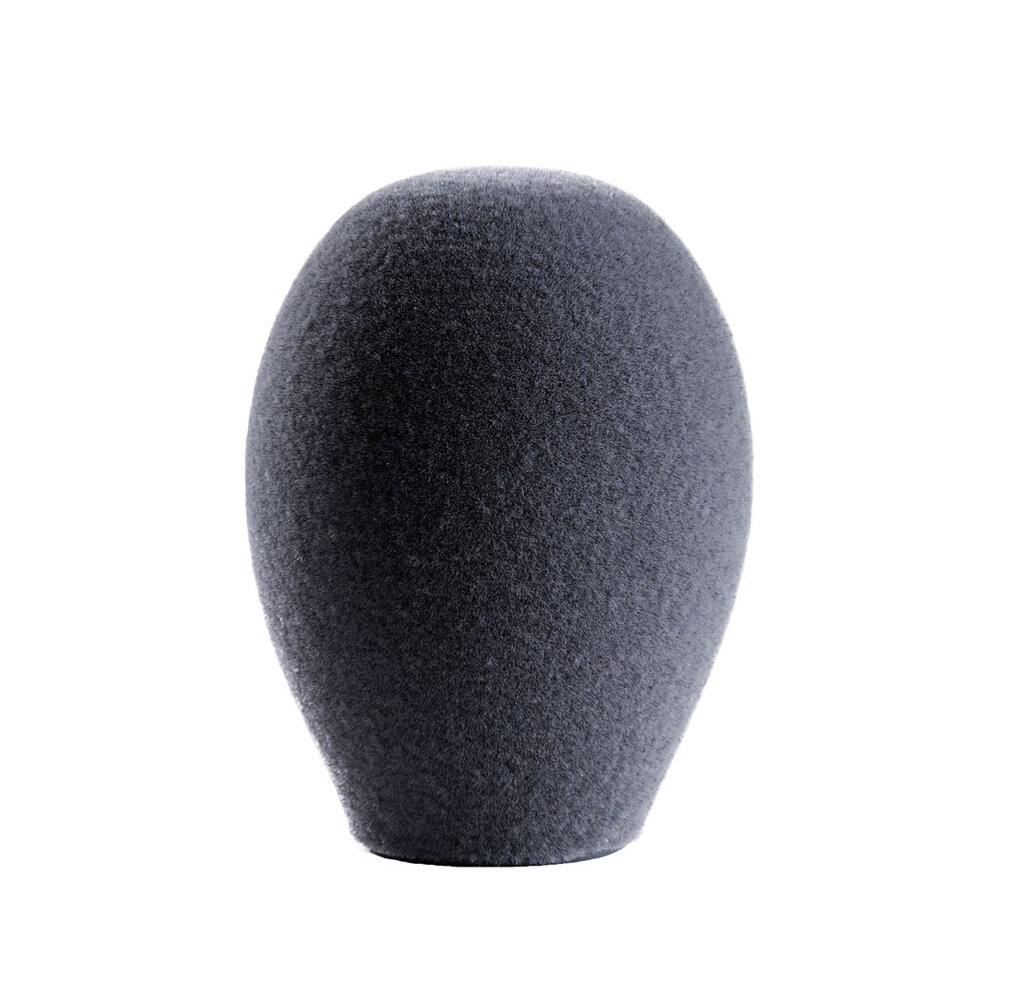

• 1 × Schoeps B 5 D hollow foam windscreen.
• 1 × Schoeps hook-and-loop cable strap.

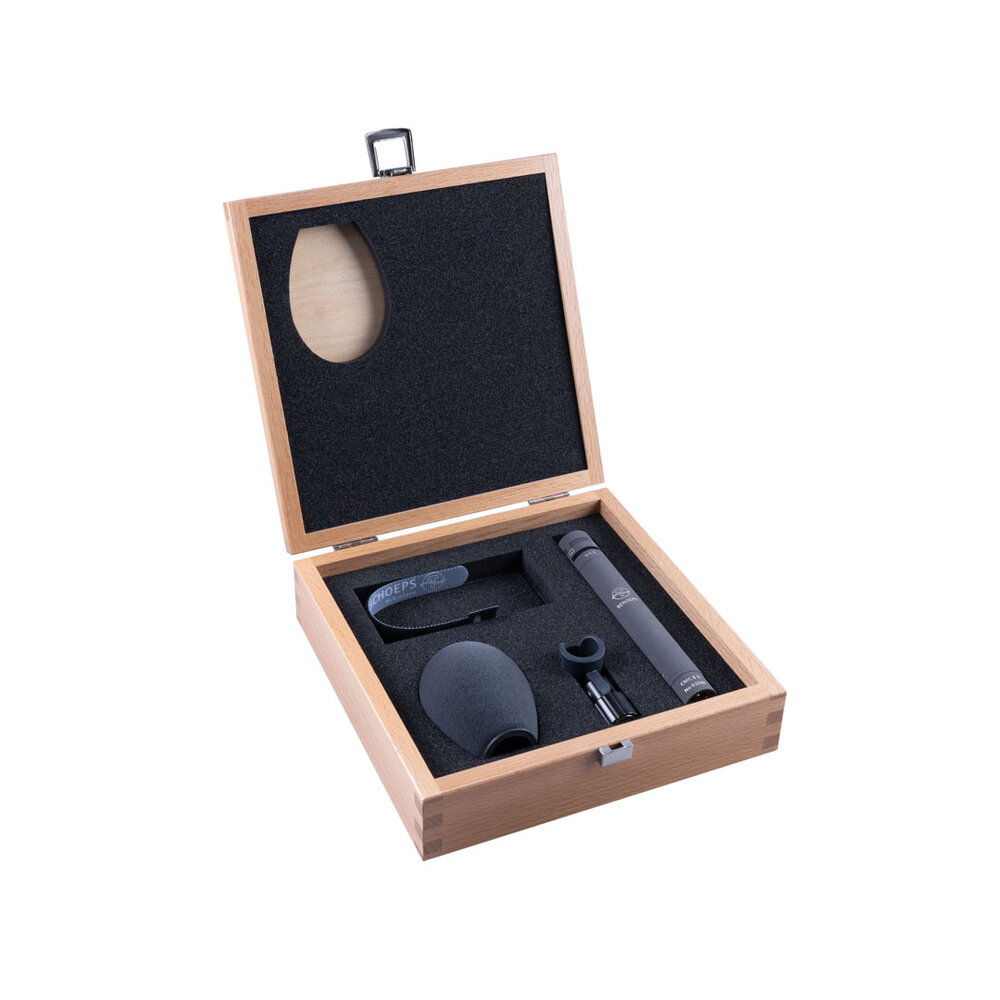

• 1 × Wooden storage case.

Related Products

For stereo recording, the Schoeps Stereo-Set CMC 6, MK 5 [139007] includes two microphones and matched capsules with a matching certificate.
