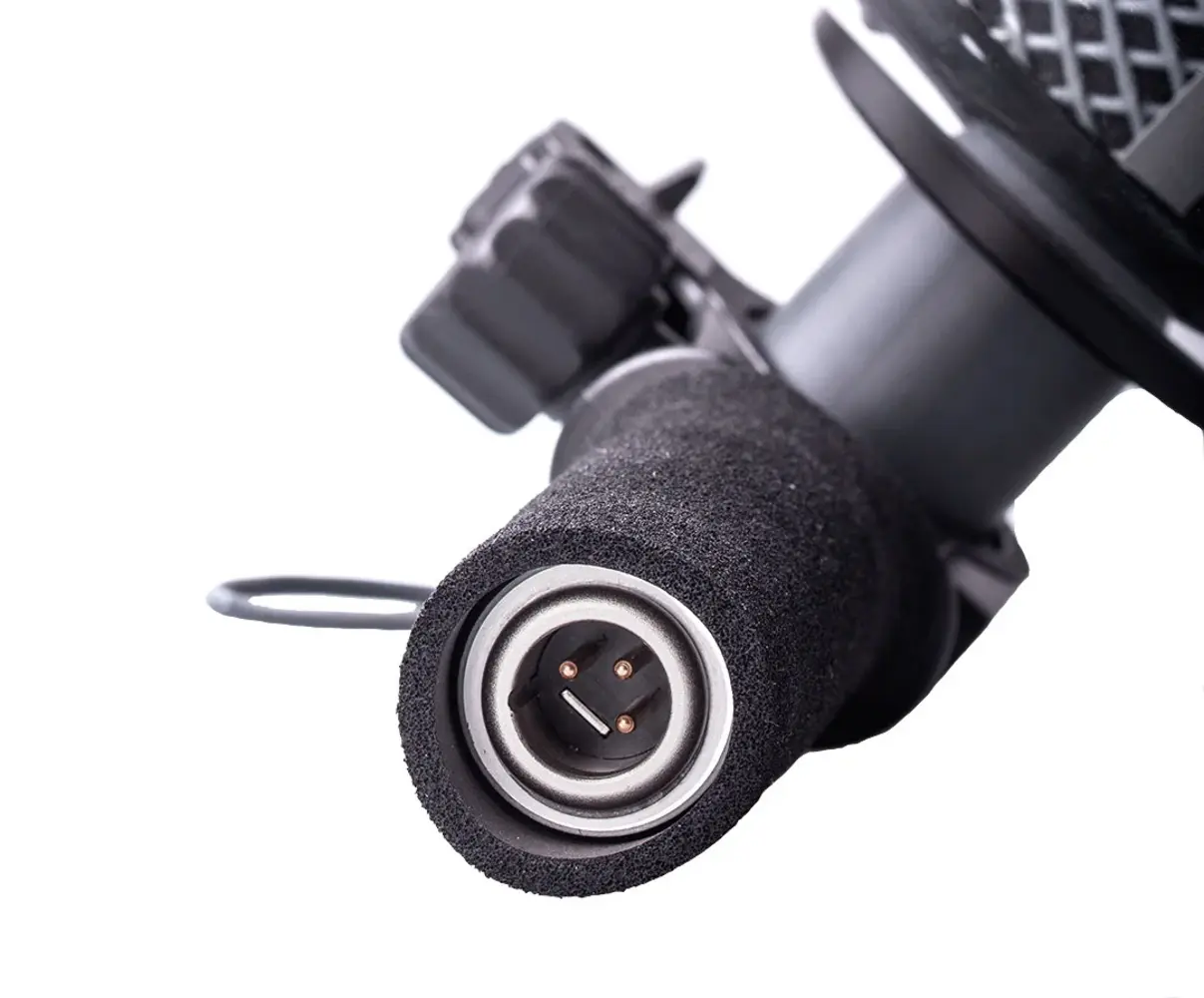

Schoeps Parabol-Set, CMC 1 L, MK 2

Schoeps Parabol-Set, CMC 1 L, MK 2

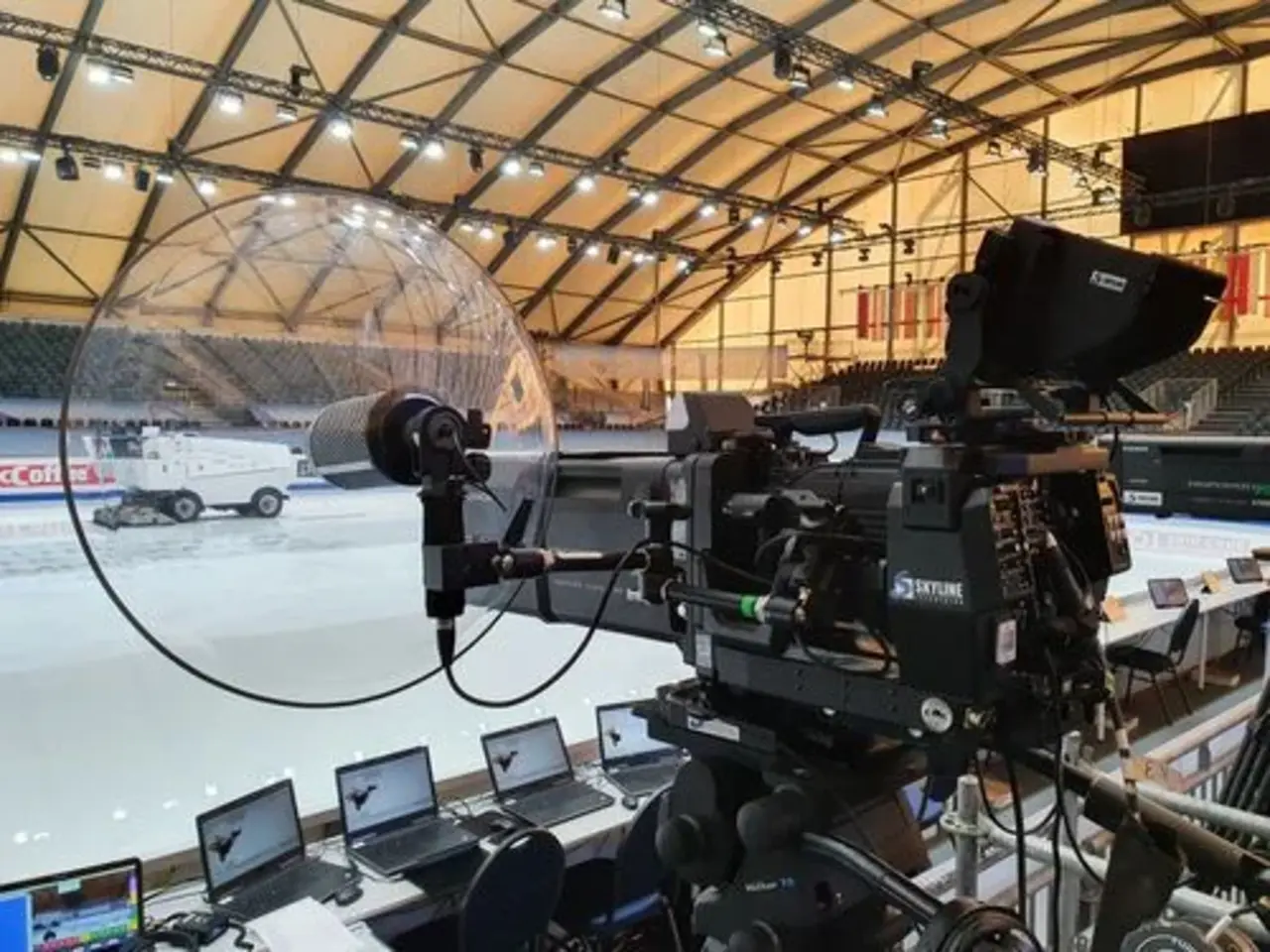

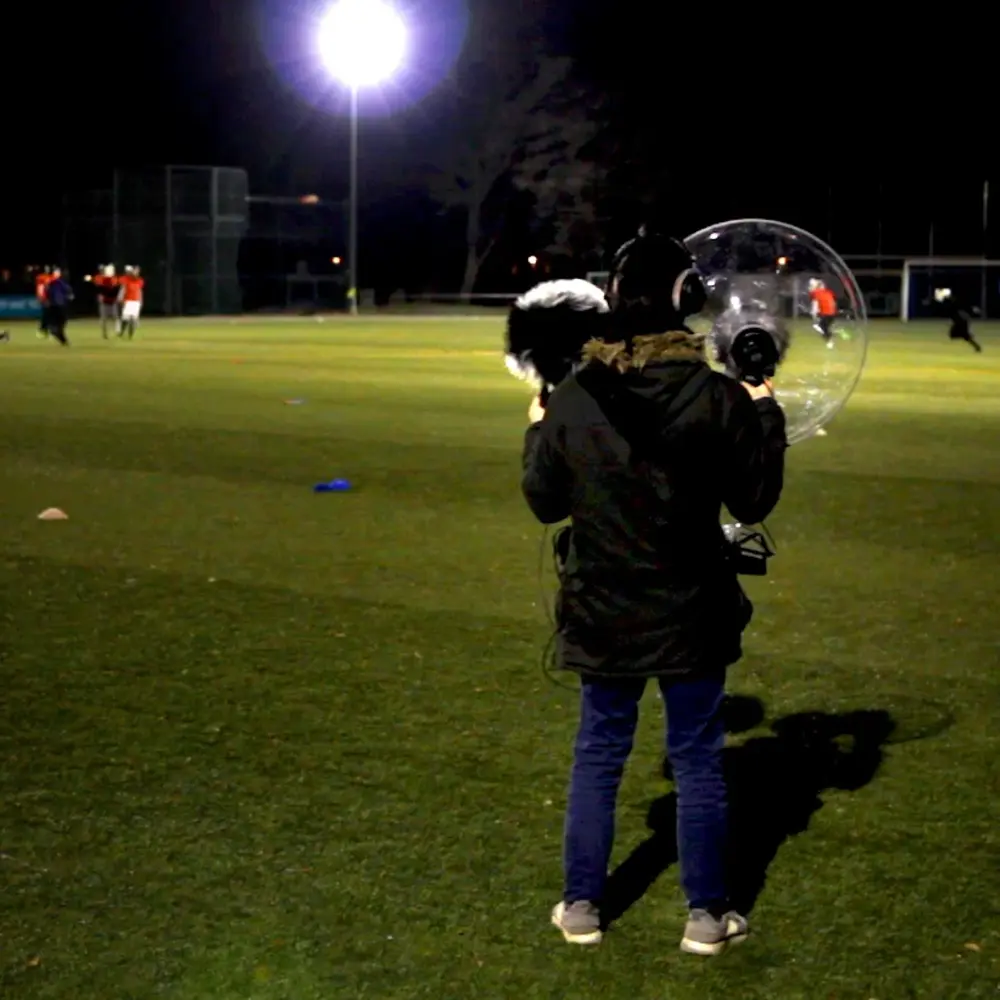

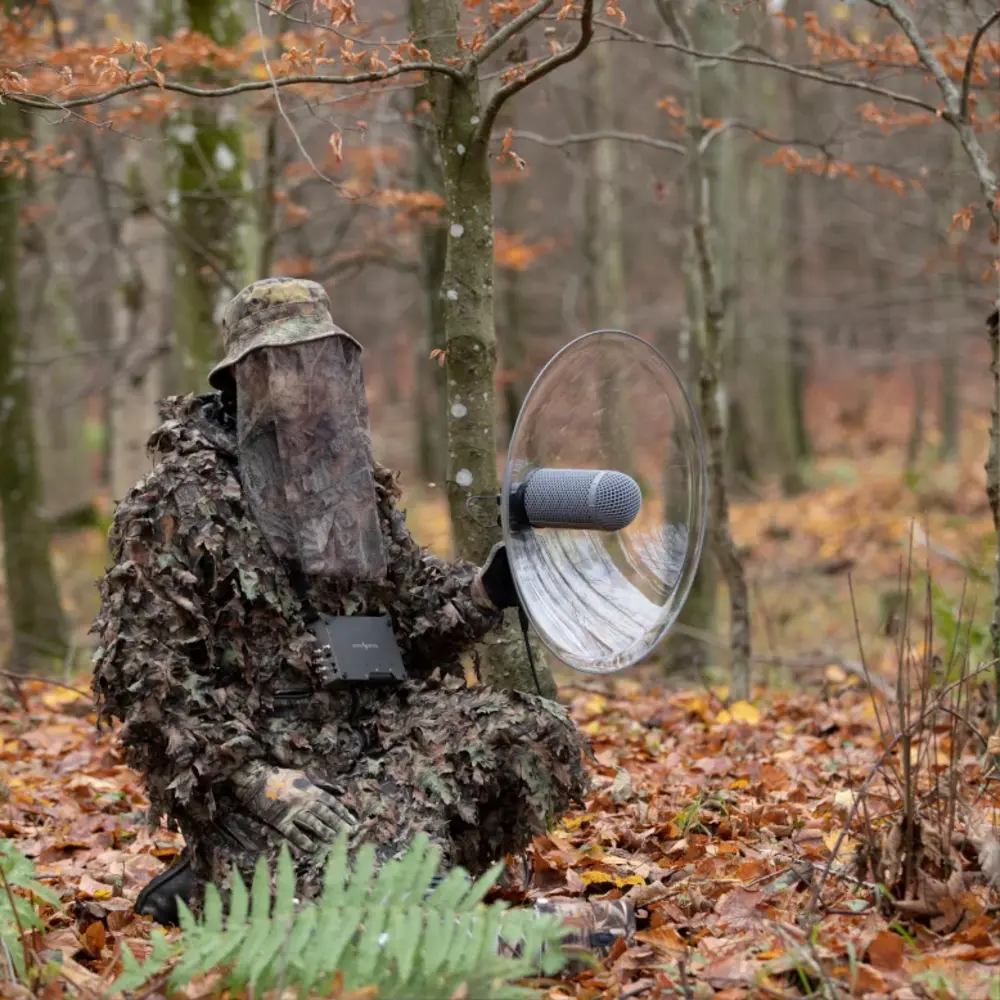

The Schoeps Parabol-Set, CMC 1 L, MK 2 combines a folding Telinga parabolic reflector with a CMC 1 L microphone amplifier and an MK 2 omnidirectional condenser capsule. The set is intended for nature recording, sports broadcasting and sound design requiring directional pickup of distant sounds.

The MK 2 capsule itself is omnidirectional. The reflector provides strong directionality at mid and high frequencies. Low frequencies are captured with less directionality, allowing low-frequency ambience to remain audible. Compared with a cardioid capsule, an omni generally causes fewer wind and handling noise problems in this application.

Main Features

• Complete parabolic set with CMC 1 L amplifier and MK 2 capsule

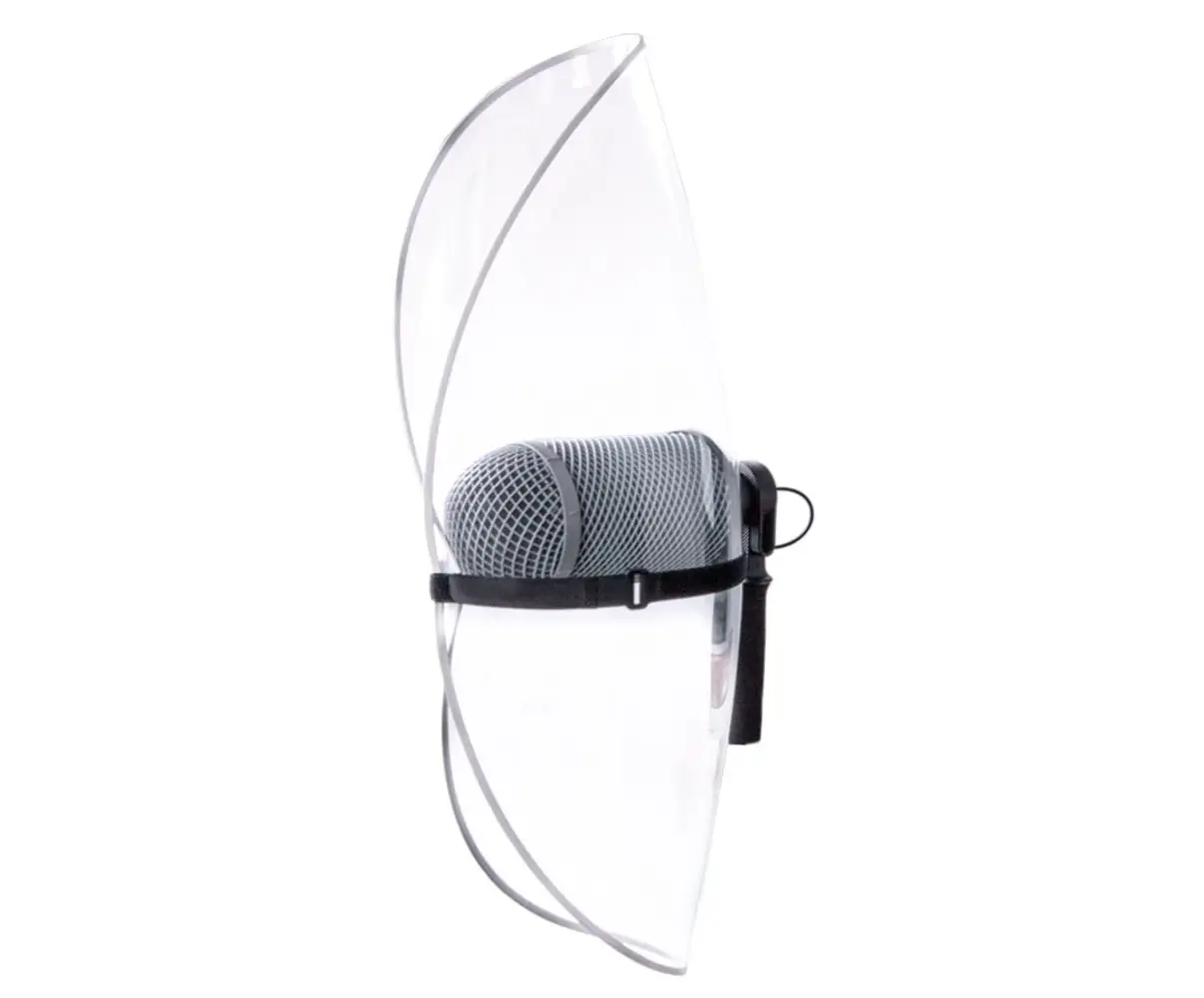

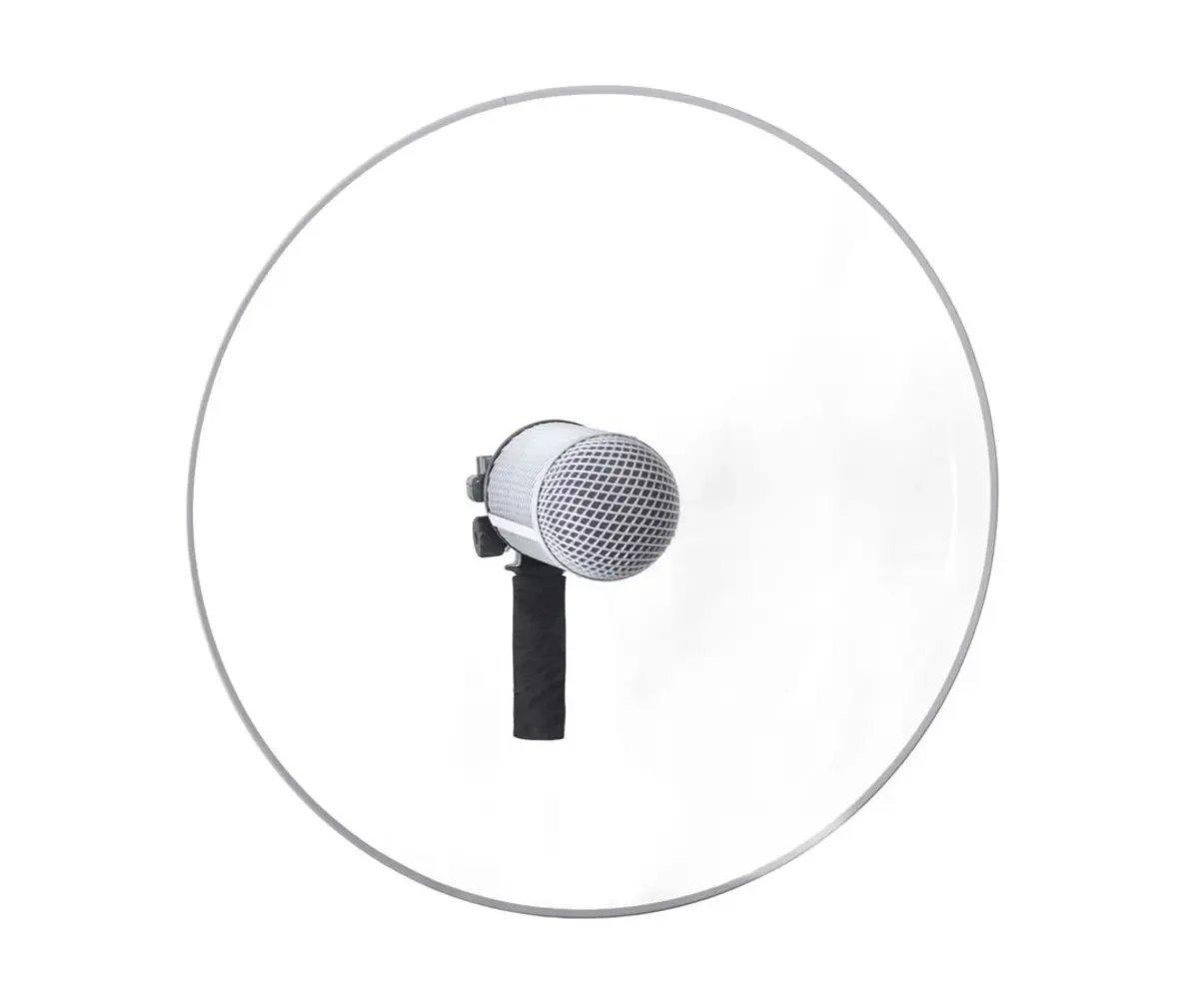

• Transparent, folding Telinga reflector

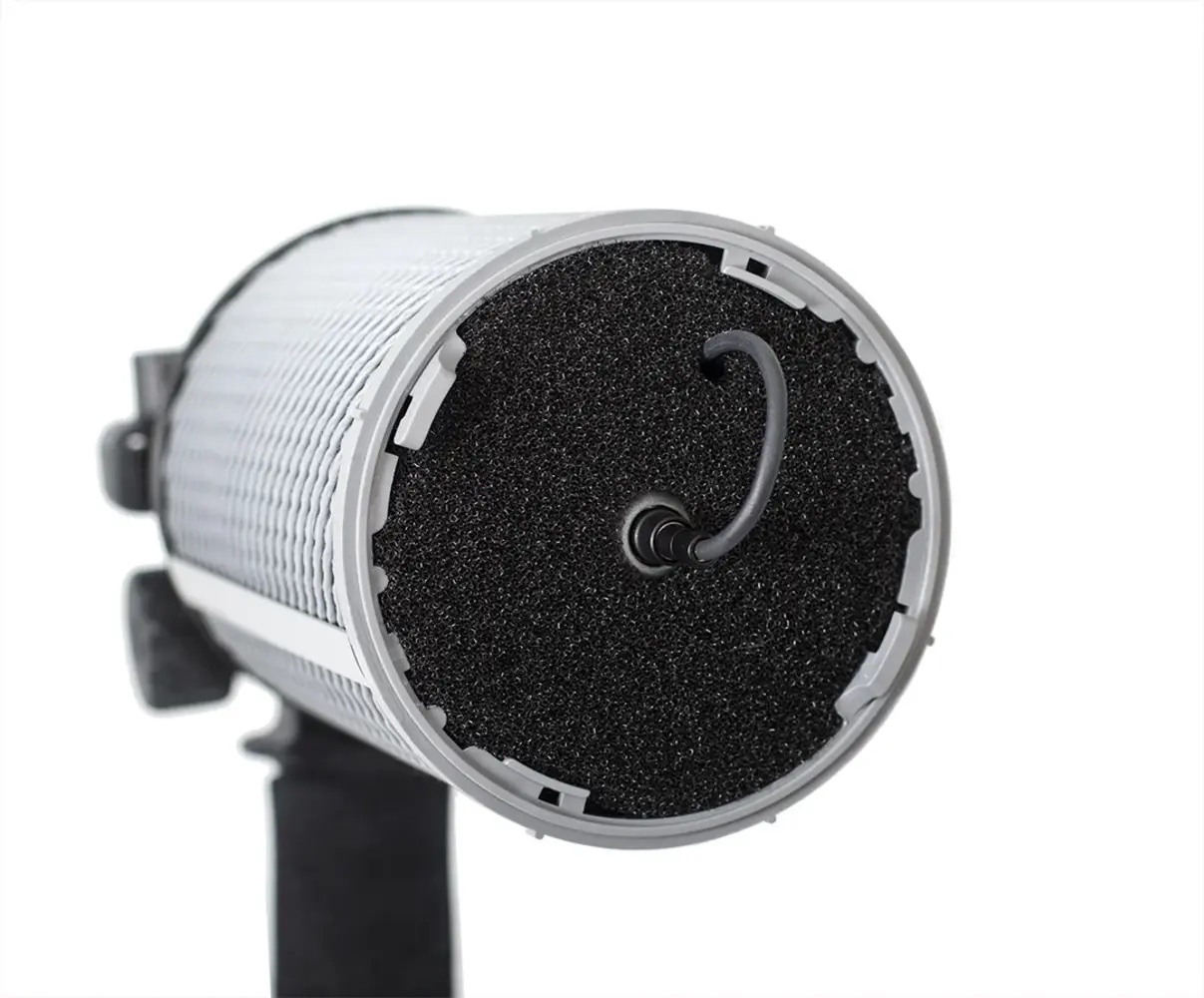

• Rycote wind protection with Windjammer
• Modular Colette microphone with interchangeable capsule
• Lemo amplifier output and supplied K 5 LU cable to XLR3M
• P12 or P48 phantom powering

Equalization with ParabolEQ

The reflector changes the frequency response. Schoeps recommends its free ParabolEQ plugin to correct the recording according to the setup. The recommended operating range of the parabolic system is 100 Hz – 20 kHz. This describes the system operating range, not the frequency range of the MK 2 capsule on its own.

Specifications

• Capsule: Schoeps MK 2, omnidirectional
• Microphone amplifier: Schoeps CMC 1 L
• Reflector: transparent and folding
• Reflector diameter: ø585 mm
• Reflector depth: 210 mm
• Recommended parabolic system operating range: 100 Hz – 20 kHz
• CMC 1 L output: Lemo, analog, single channel
• CMC 1 L output impedance: 50 Ω ±1 Ω, 8 Hz – 50 kHz
• Minimum recommended load impedance: 1 kΩ
• CMC 1 L maximum output voltage: 1.8 V into a 1 kΩ load
• CMC 1 L low-cut filter: 20 Hz, 12 dB/octave
• Powering: P48, 30–52 V; or P12, 11–13 V
• Current consumption: 2 mA at P48; 3 mA at P12
• Supplied cable: K 5 LU, 5 m, Lemo to XLR3M

Included

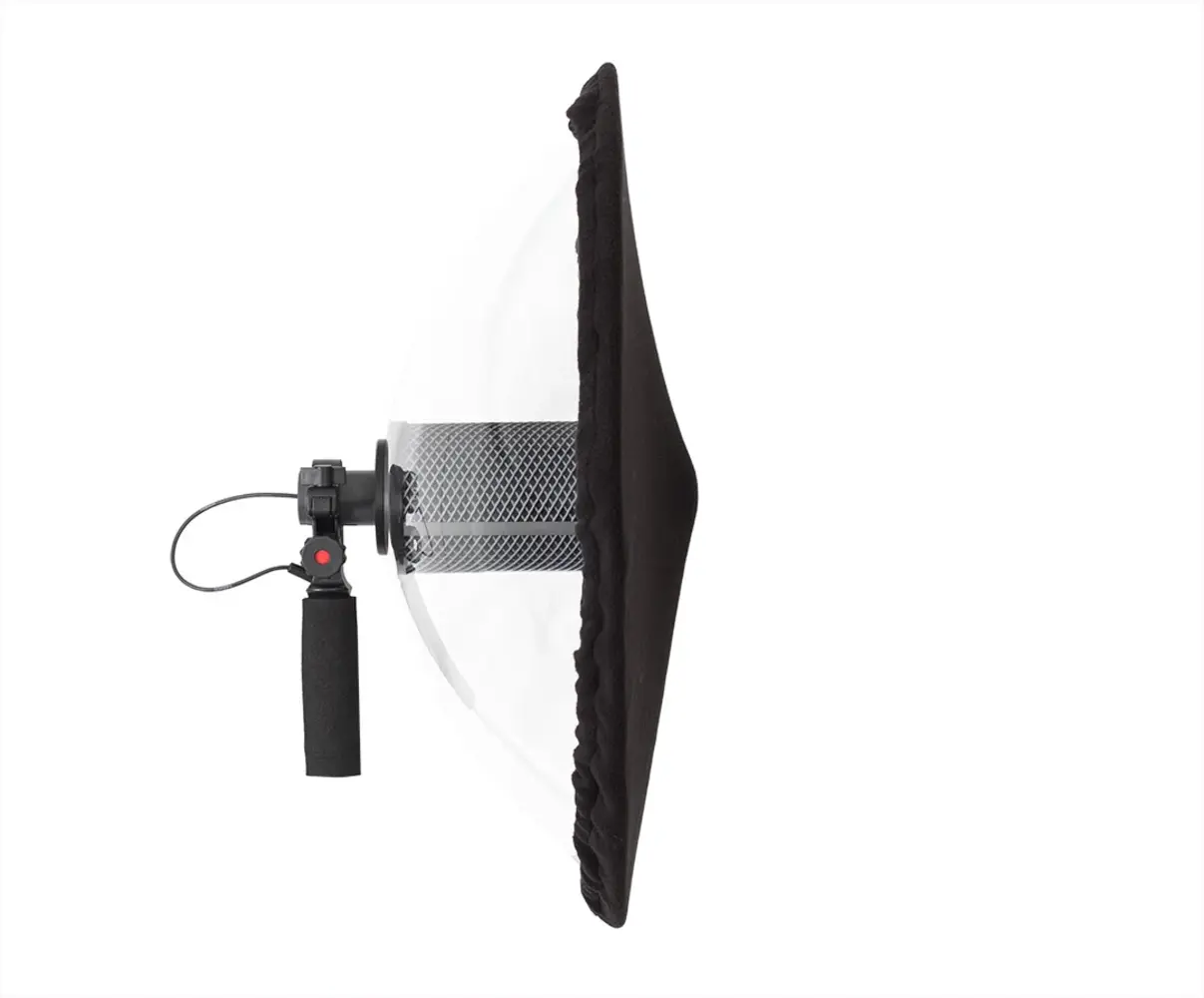

• Par-1 Kit with parabolic reflector, handle, microphone holder and wind protection with fur
• CMC 1 L microphone amplifier
• MK 2 omnidirectional capsule
• K 5 LU cable

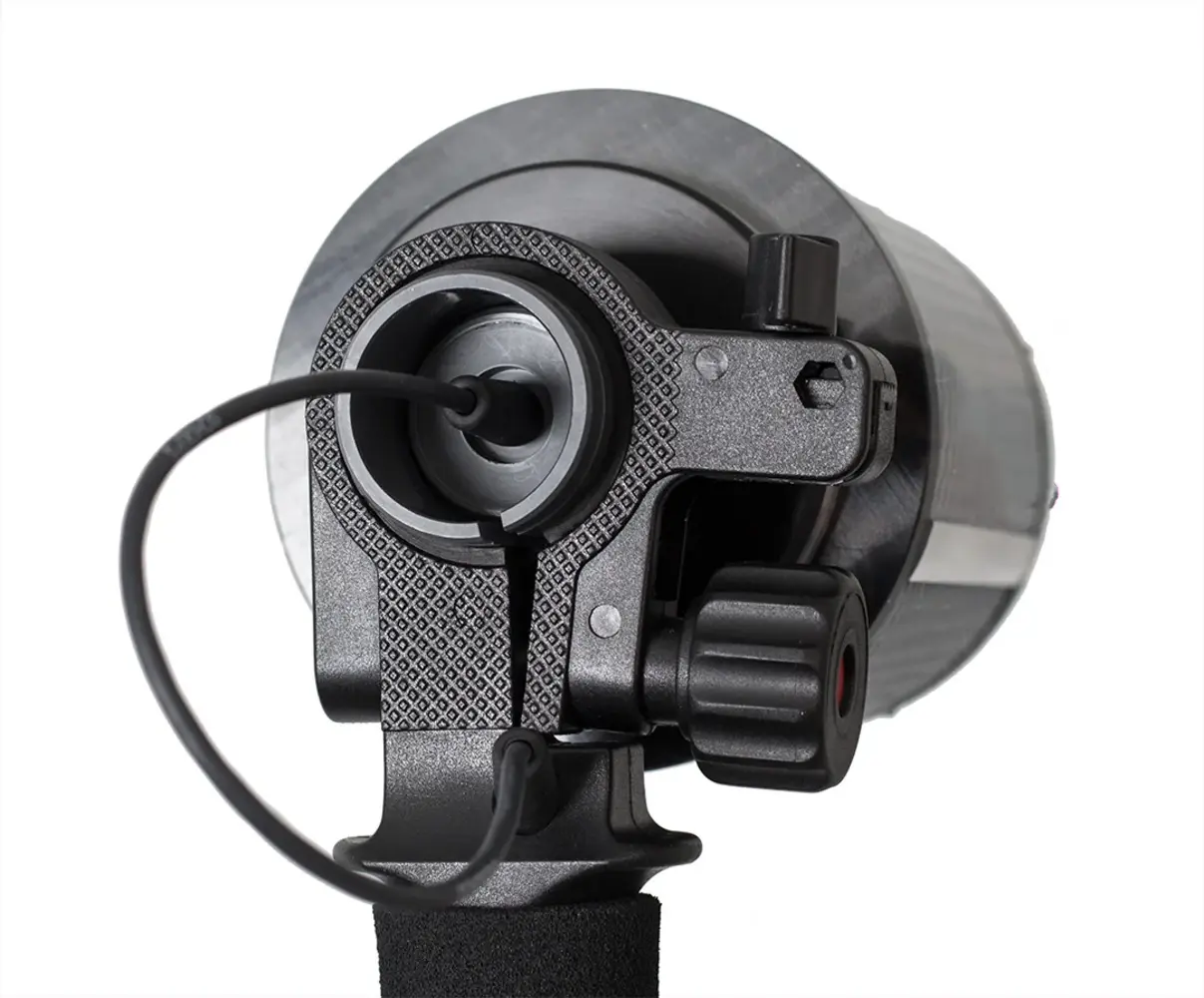

• SGC microphone mount
• Premium case for CCM/CMC 1 L

Variants and Accessories

This version includes the MK 2 omni capsule. Other versions include the set with MK 21 wide cardioid capsule and the set with MK 4 cardioid capsule.

The High Wind Cover, reflector carrying bag, tripod mount and Peli case are optional accessories and are not included as standard.
