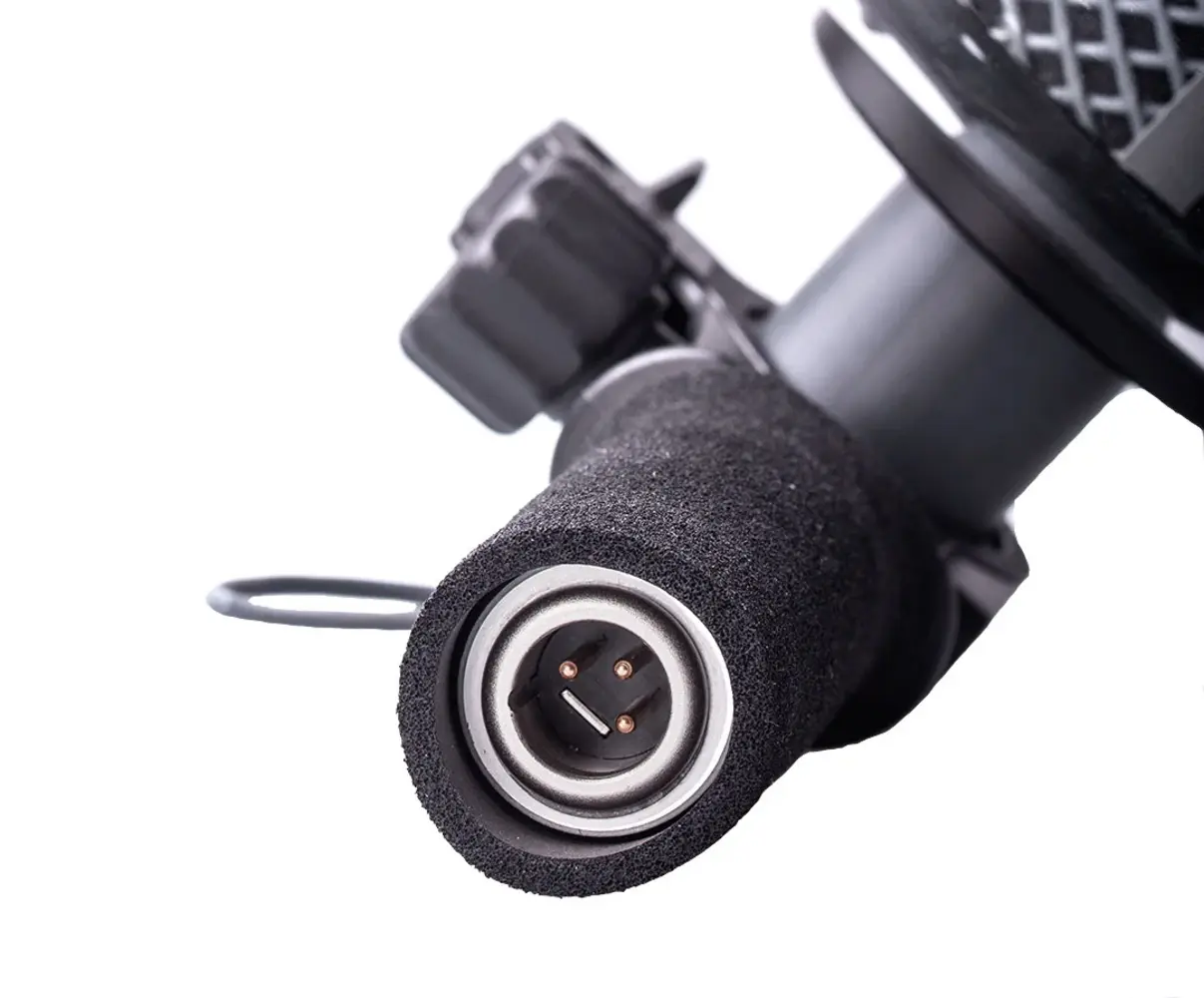

Schoeps Parabol-Set, CMC 1 L, MK 4

Schoeps Parabol-Set, CMC 1 L, MK 4 [163211]

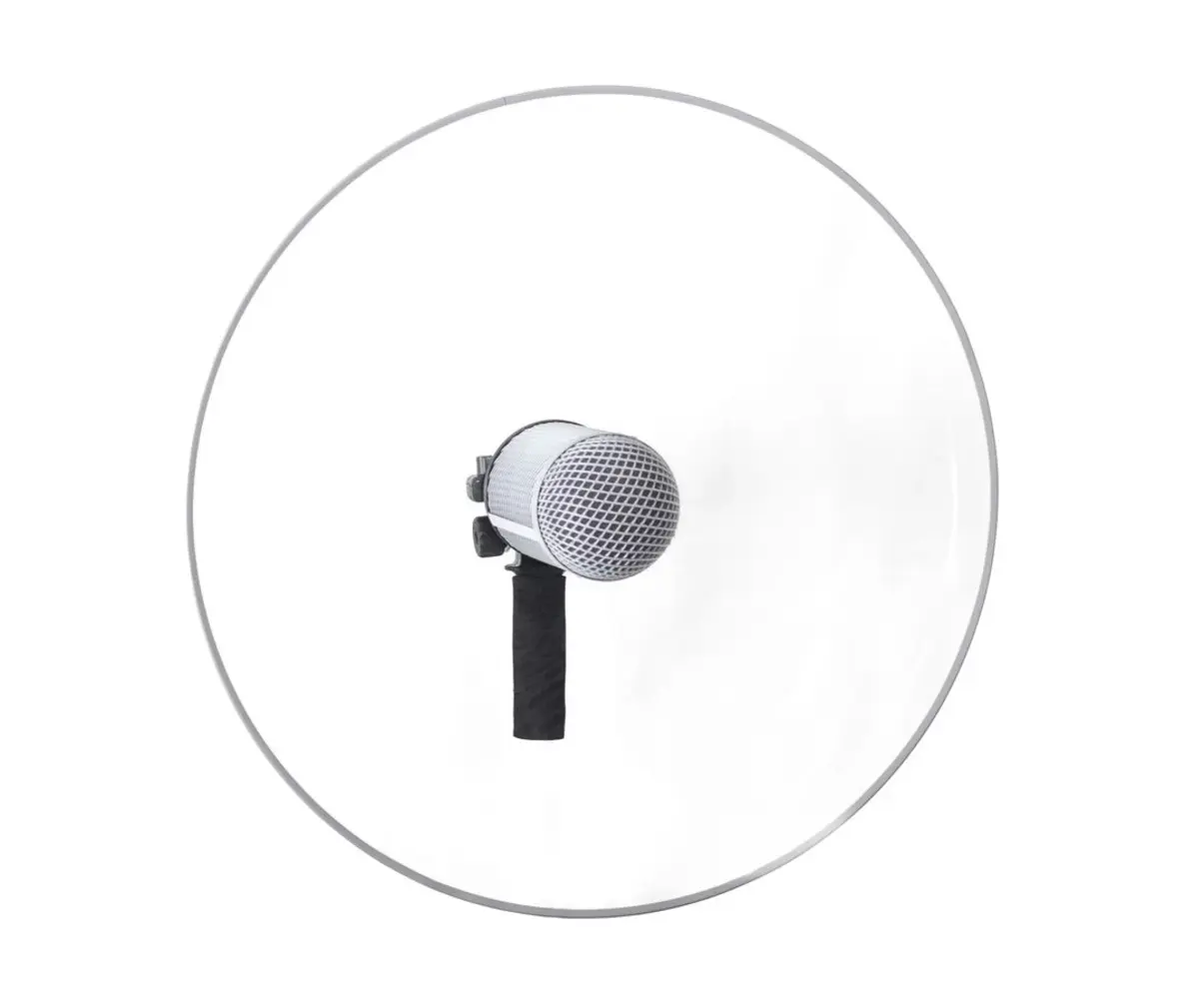

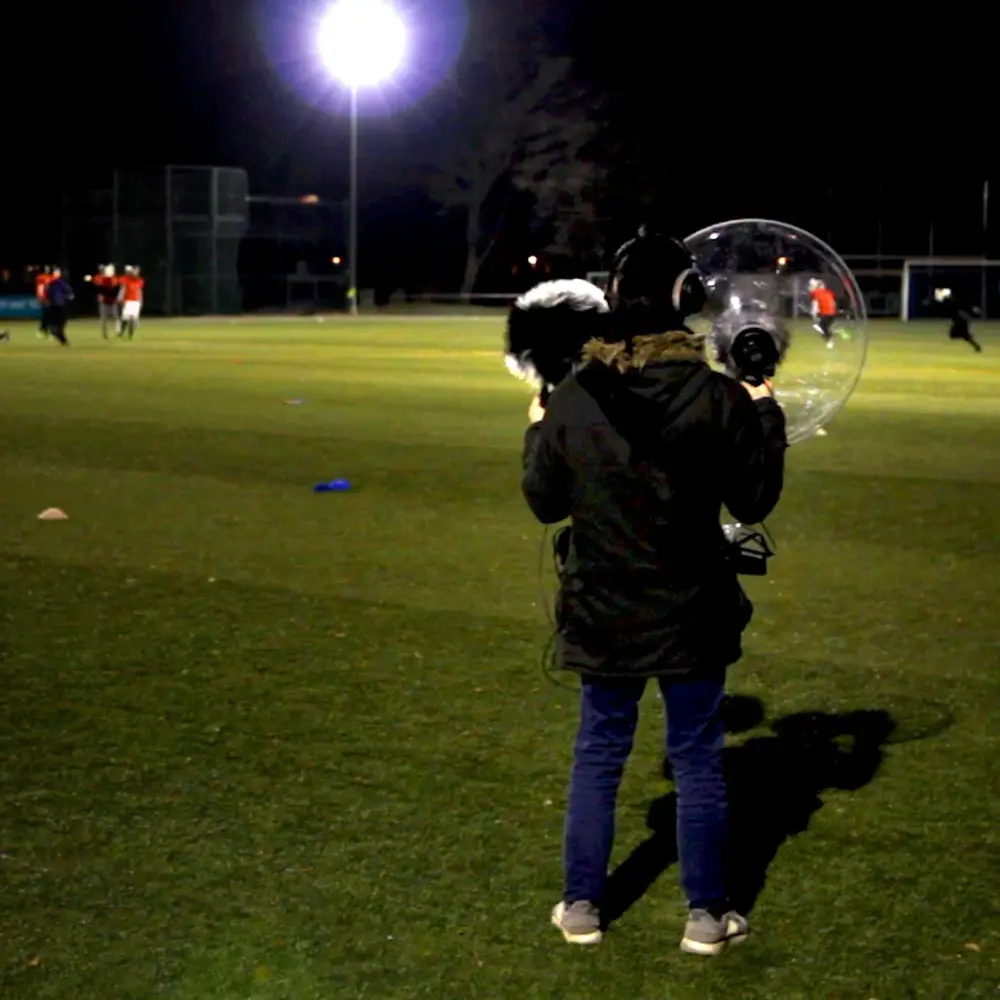

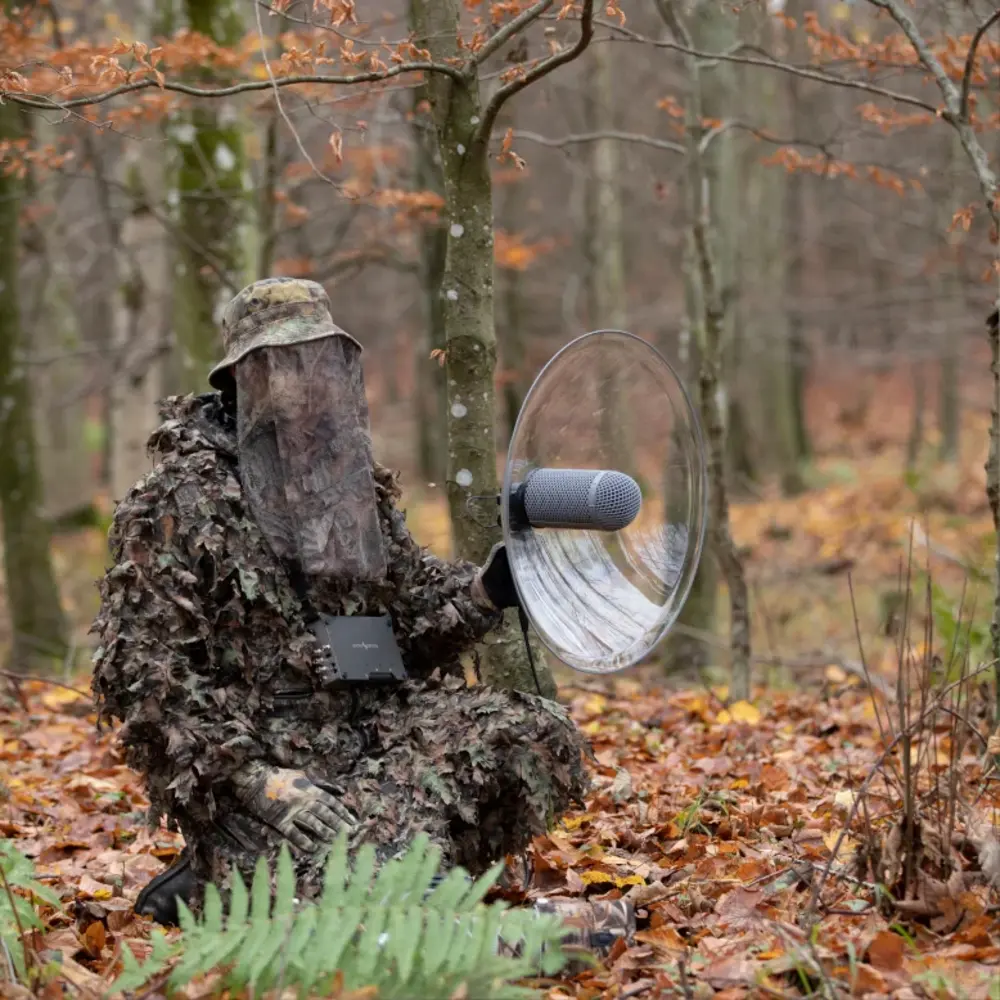

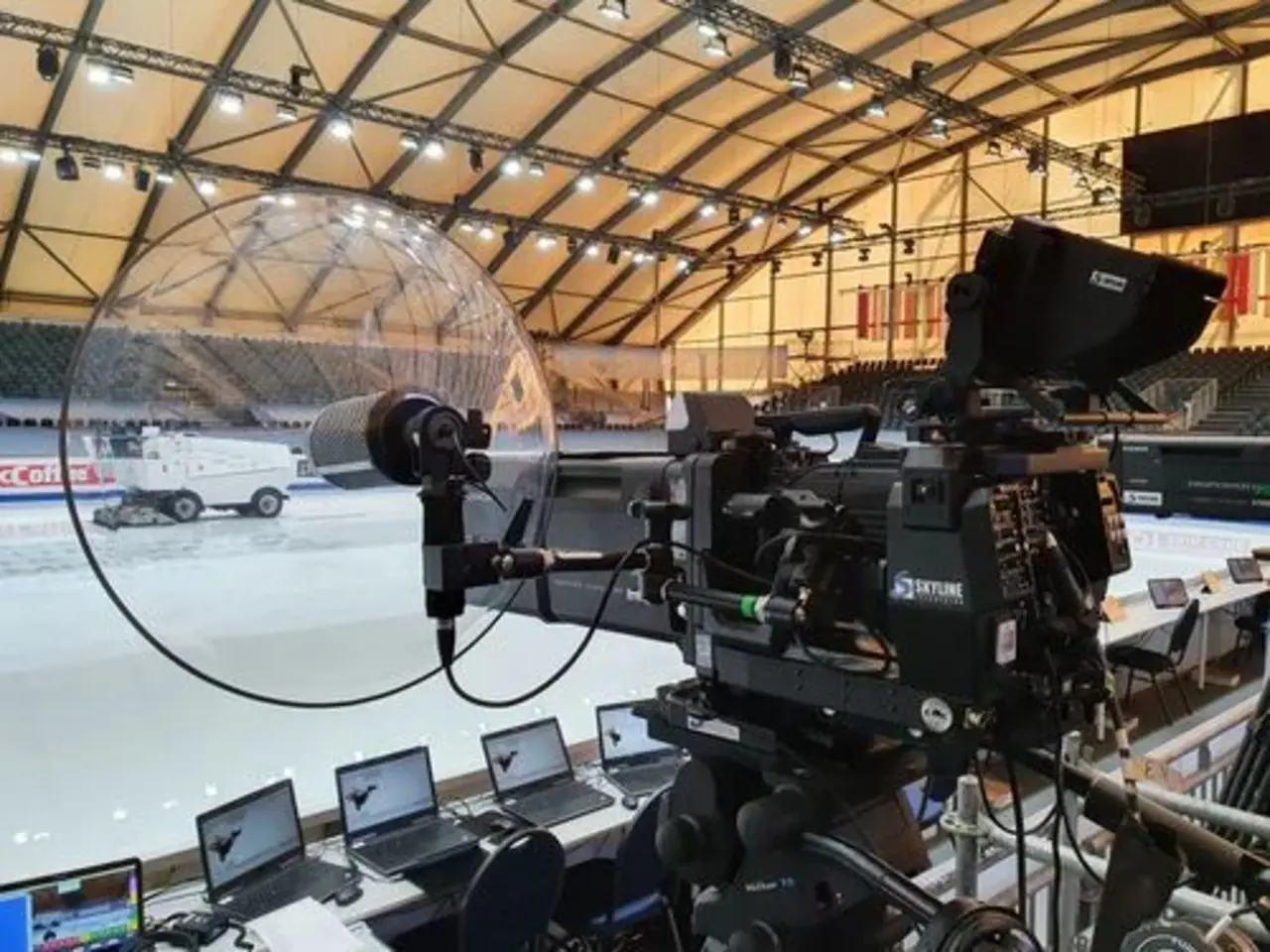

The Schoeps Parabol-Set, CMC 1 L, MK 4 combines a folding Telinga parabolic reflector with a CMC 1 L microphone amplifier [132012] and an MK 4 cardioid capsule [131015]. Applications include directional wildlife recording, sports broadcasting and sound design.

Reflector and Equalization

The reflector increases directionality mainly at medium and high frequencies and also changes the frequency response. Schoeps recommends its free ParabolEQ plugin for correcting the recording. The recommended operating range of the parabolic system is 100 Hz–20 kHz; this is not the frequency range of the MK 4 capsule on its own.

Specifications

• Product type: parabolic microphone set

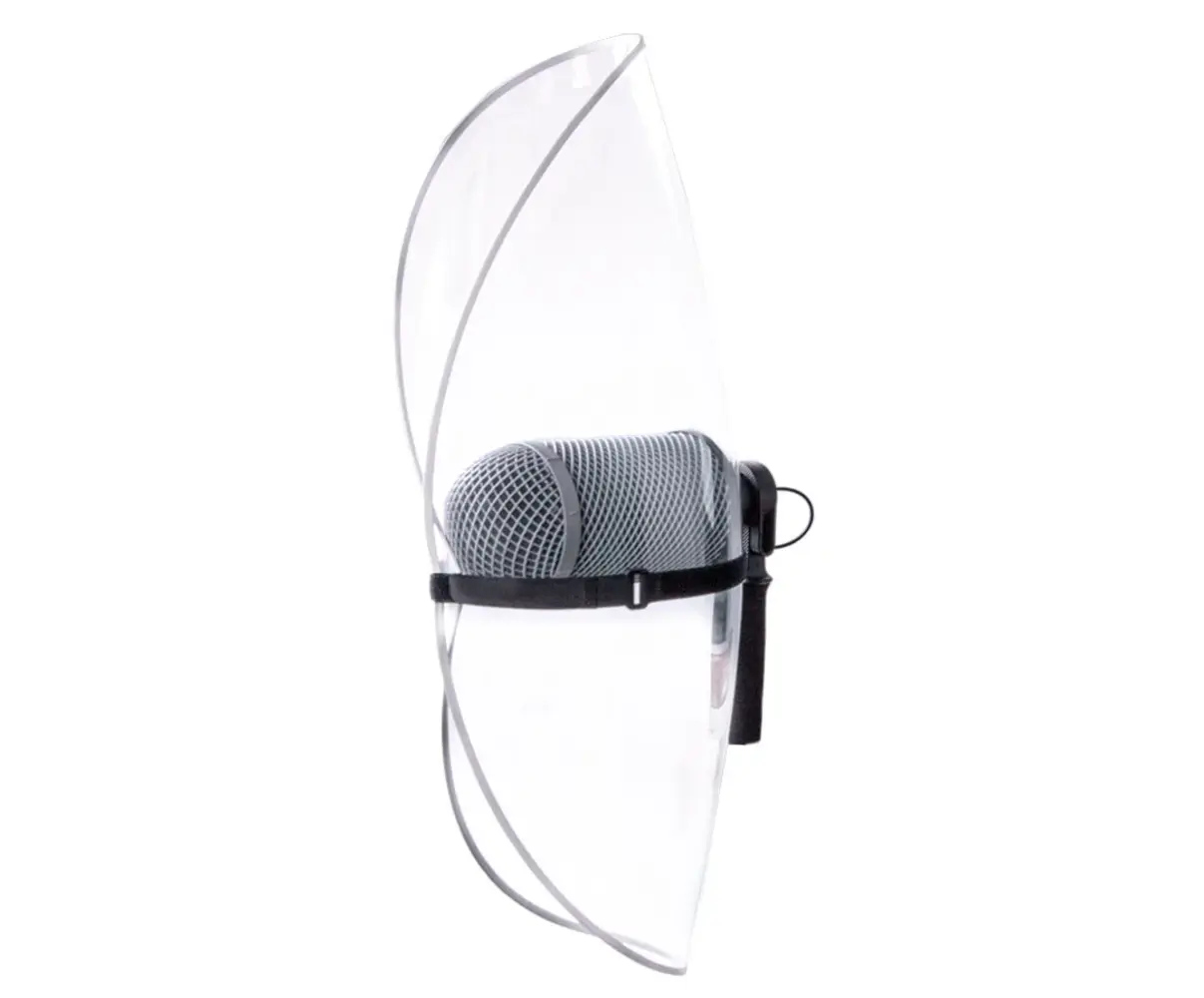

• Reflector: folding, transparent Telinga dish
• Reflector diameter: 585 mm
• Microphone amplifier: CMC 1 L
• Capsule: MK 4, cardioid
• Recommended parabolic system operating range: 100 Hz–20 kHz

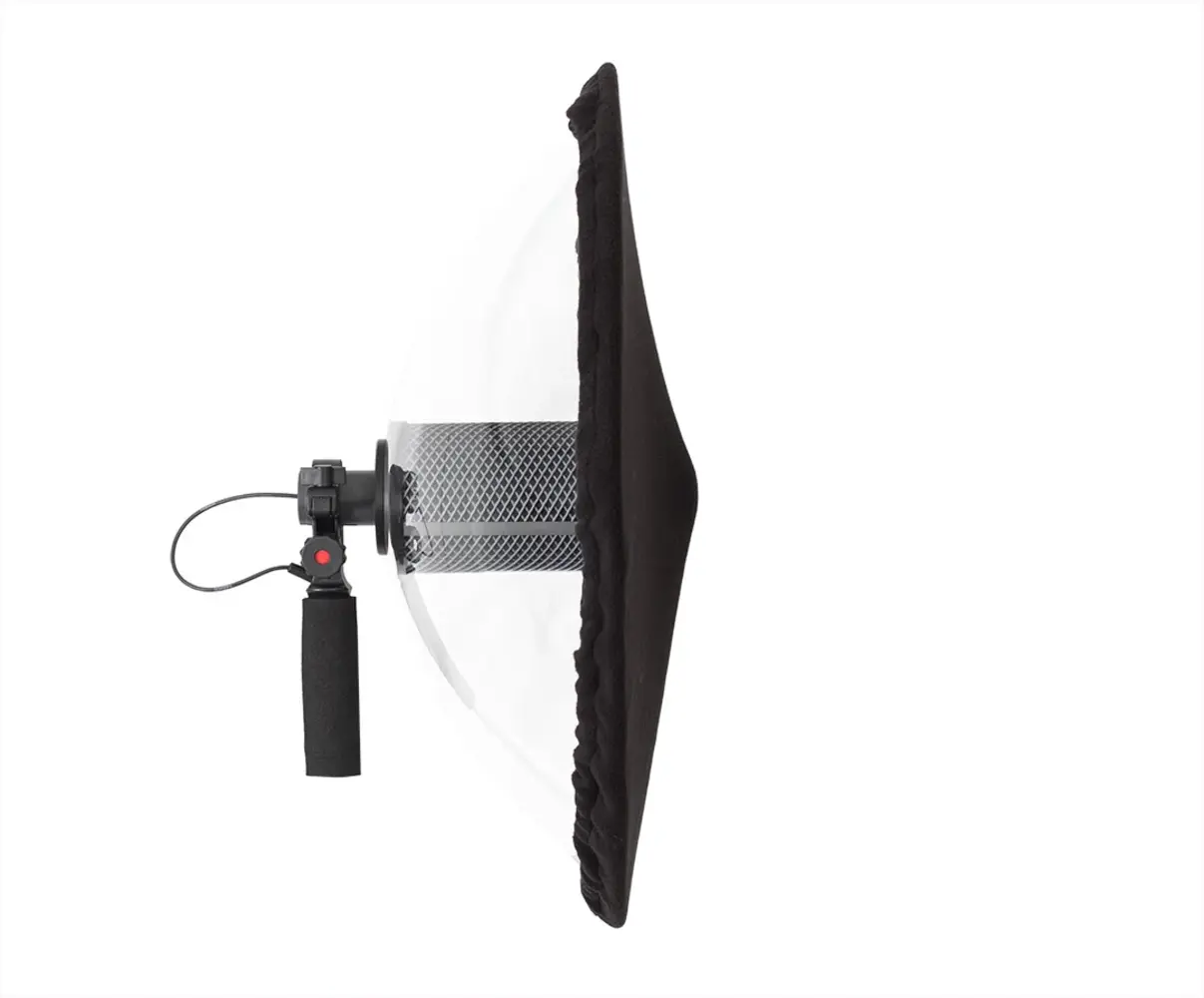

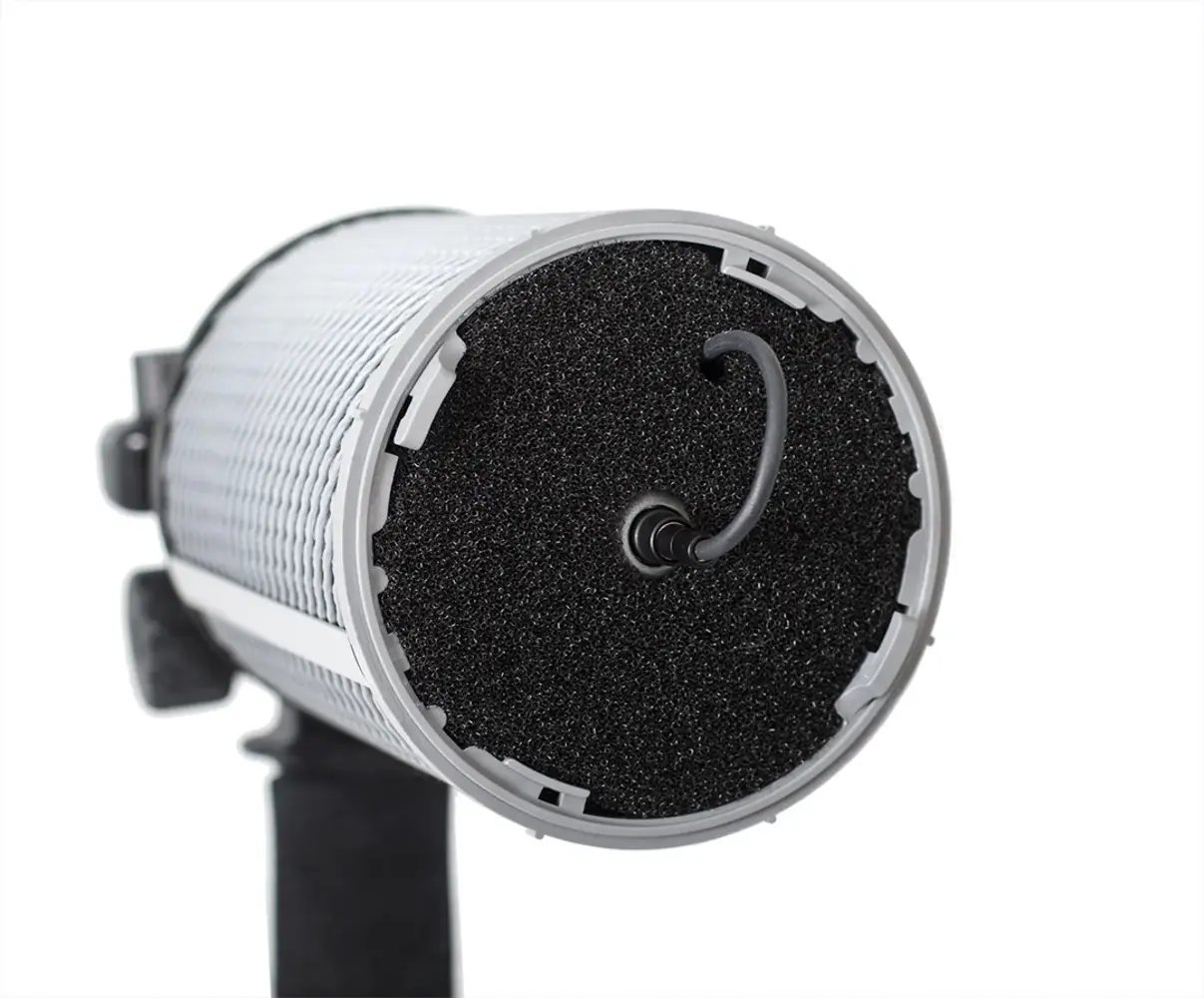

• Wind protection: Rycote windshield with fur cover
• Connection cable: K 5 LU, 5 meters, Lemo to XLR3M
• Microphone powering: P12 or P48 phantom power

Included

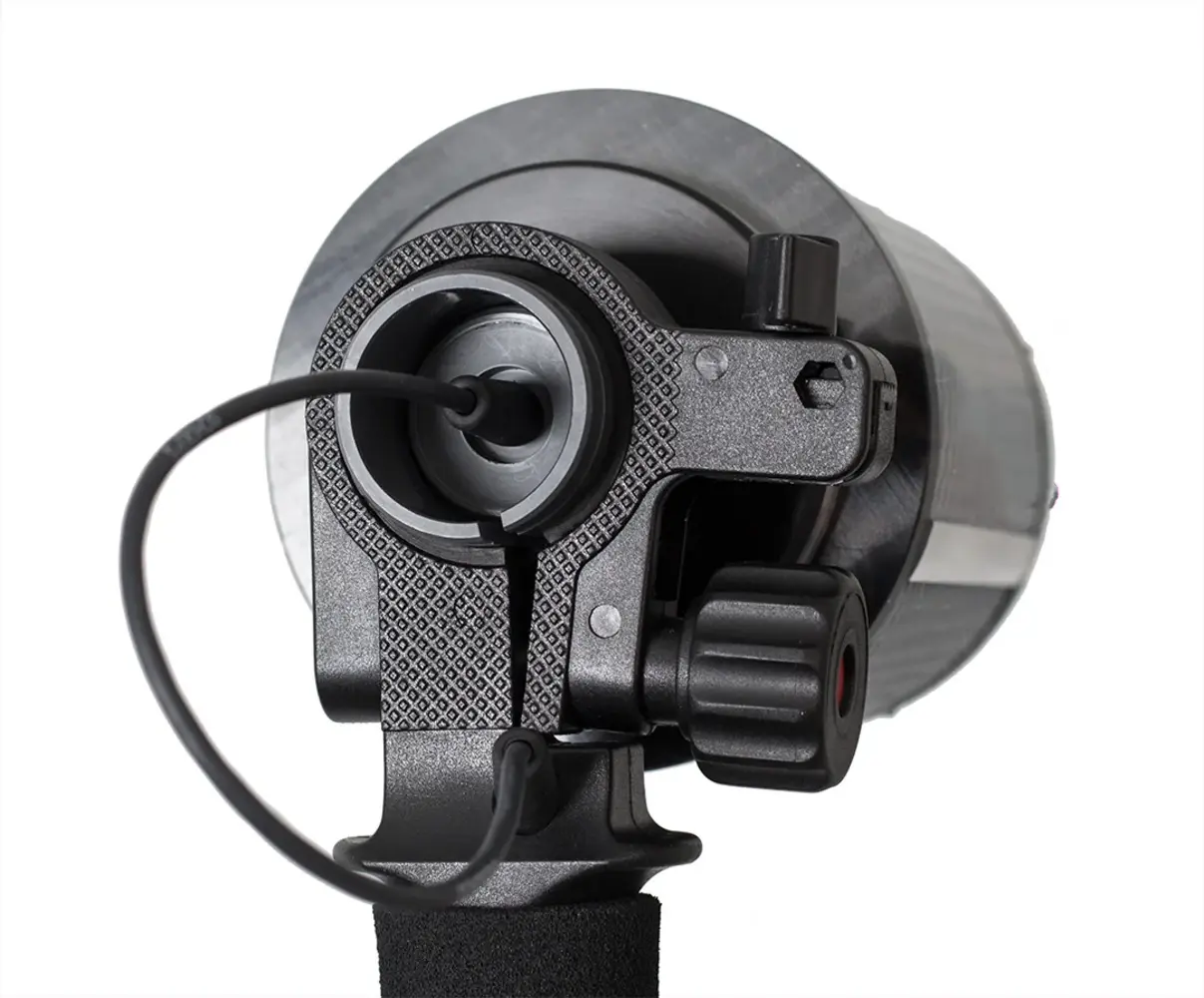

• Par-1 Kit with parabolic reflector, handle, microphone holder and windshield with fur cover
• CMC 1 L microphone amplifier [132012]
• MK 4 cardioid capsule [131015]
• K 5 LU connection cable [152004]
• SGC microphone clamp [161108]
• Wooden storage case for the microphone

The storage case does not accommodate the complete parabolic reflector. The High Wind Cover is an optional accessory and is not included.
