Sonosax SX-AD8+

Sonosax SX-AD8+

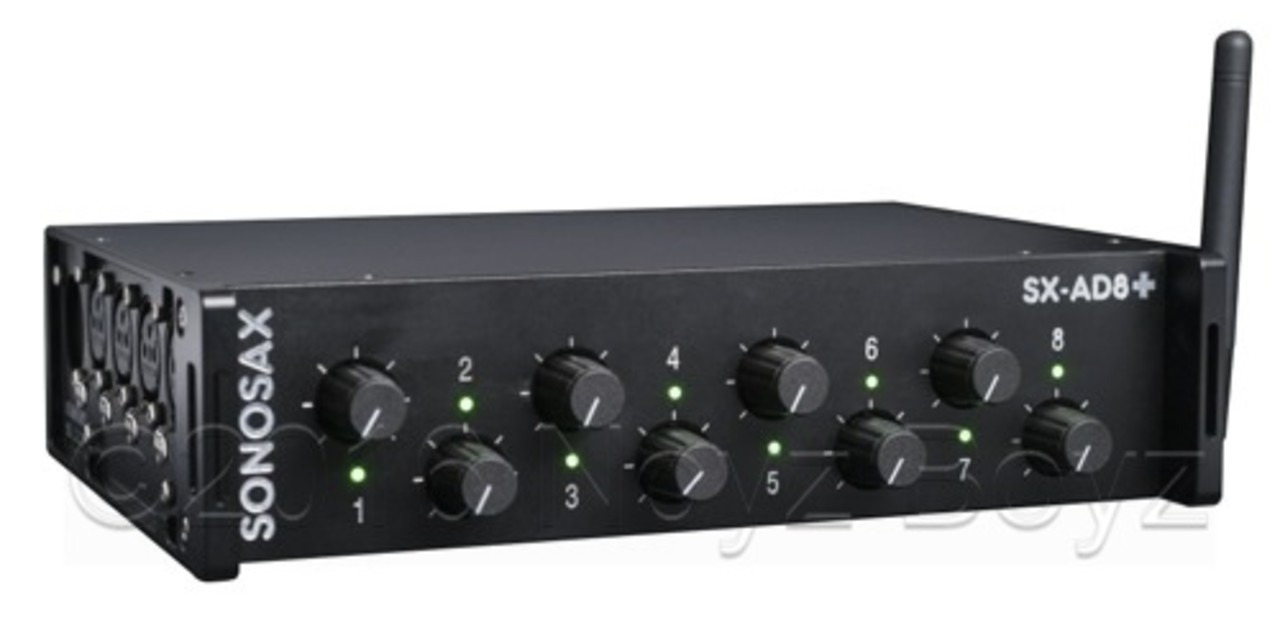

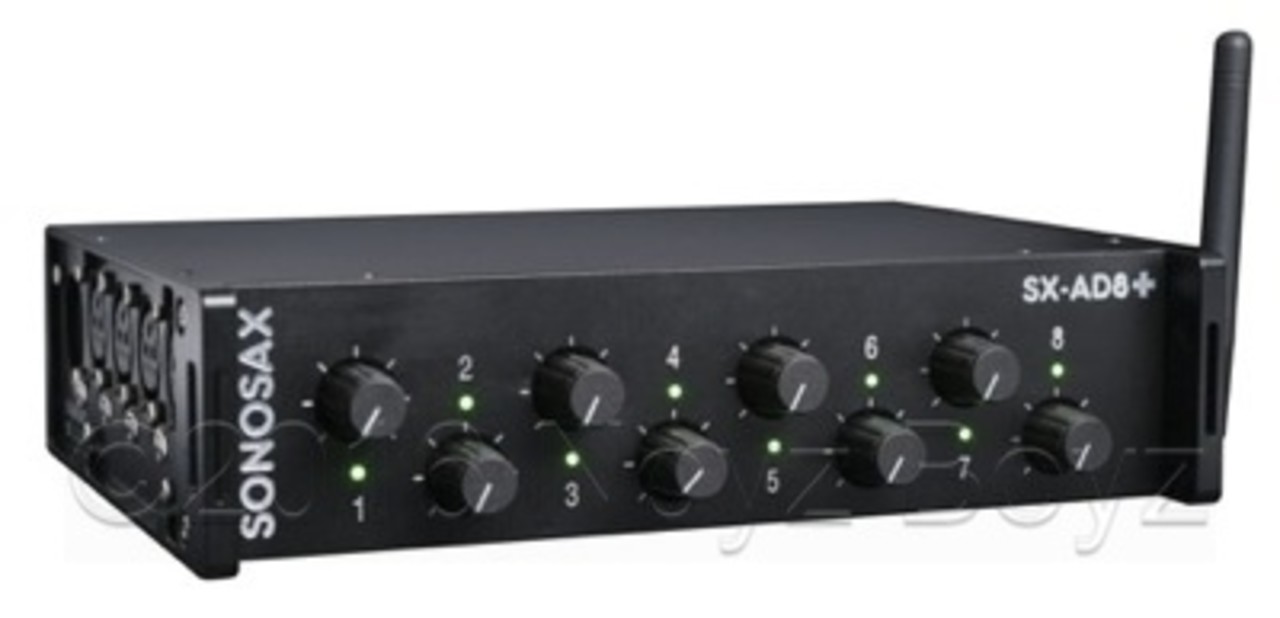

The Sonosax SX-AD8+ is an eight-channel microphone and line preamplifier with A/D conversion and digital AES3 outputs. It operates independently or expands the Sonosax SX-R4+.

Main Features

• Eight electronically balanced XLR3F inputs
• 48 V phantom power, phase reversal and low-cut filtering per input
• Four transformer-balanced AES3 outputs via 3M MDR26
• Control through the front panel, Wi-Fi web interface or SX-R4+

Specifications

• Digital resolution: 24 bit
• Sample rates: 48, 96 and 192 kHz
• Dynamic range: 135 dB, A-weighted
• Internal processing: 40 bit
• External power: 9–18 VDC via Hirose 4-pin
• Housing: machined aluminium
• Dimensions: 200 × 50 × 144.5 mm
• Weight: 850 g

Compatibility and Connection

SX-R4+ connection requires an MDR26 interconnection cable and a separate power connection. In this setup, settings are accessible through the recorder display and the rotary controls can operate as gain controls or faders.

Network Options

A Dante option card or AVB option card adds a network output. SX-Controller requires the Dante option and firmware 1.8 or later and supports up to ten units on the same Dante network.
