Sonosax SX-RC8+

Sonosax SX-RC8+

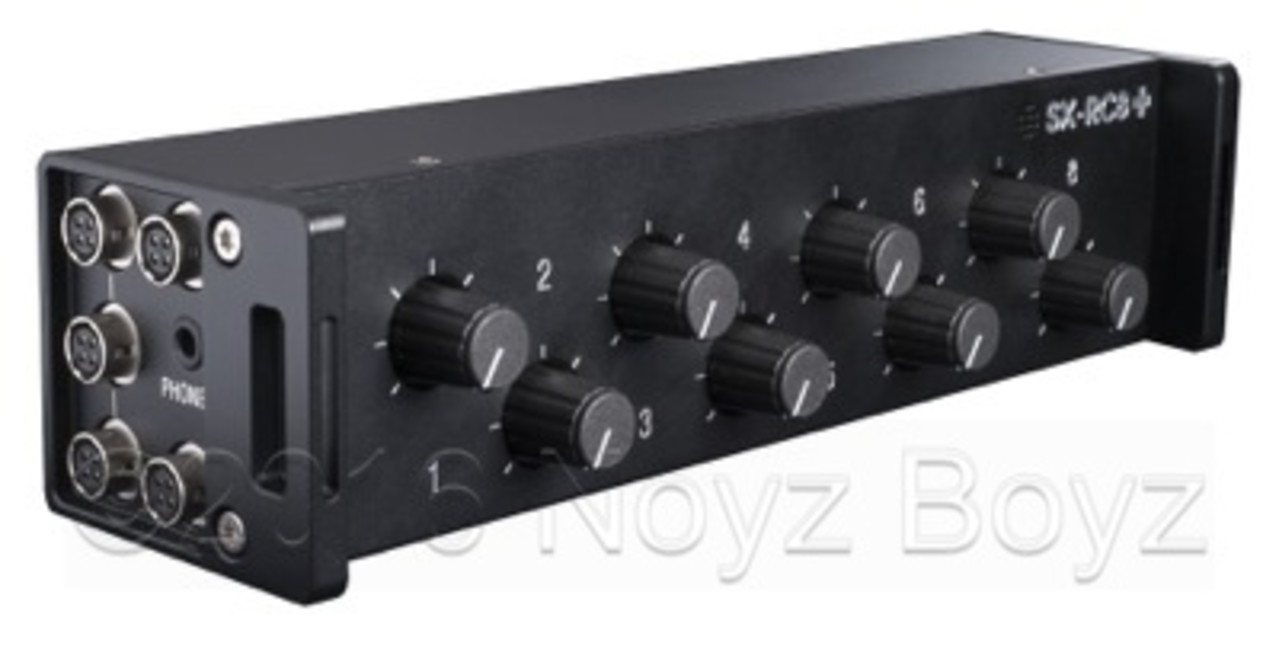

The Sonosax SX-RC8+ is a control extension for the Sonosax SX-R4+. Eight rotary controls with push-button functions adjust AES input gain or operate as rotary mix faders. The module also provides connections for digital audio sources, power distribution and communication.

Main Features

• Eight rotary faders with assignable push-button functions
• Four TA3M connectors providing an AES breakout for the recorder
• Integrated slate and communication microphone
• 3.5 mm headphone and headset connection supporting an external headset microphone
• Separate power distribution through five Hirose 4-pin connectors

Controls and Connections

In gain mode, the controls operate AES inputs 1–8. Fader mode offers curves from -60 to +12 dB or -60 to +24 dB, with mute at the closed position. The fourth TA3M connection for AES channels 7–8 is shared with the slate and communication microphone.

Specifications

• Recorder connection: 3M MDR26
• Controller power: supplied by the SX-R4+
• Power consumption: 200 mW with microphone off, 255 mW with microphone on
• Dimensions: 200 × 50 × 57 mm
• Weight: 363 g

Compatibility

The SX-RC8+ is designed for the SX-R4+. The MDR26 interconnection cable is ordered separately. Hirose power distribution is electrically independent of the controller power supplied by the recorder.

Alternative Control Surface

The SX-LC8+ provides eight linear faders instead of rotary faders.
