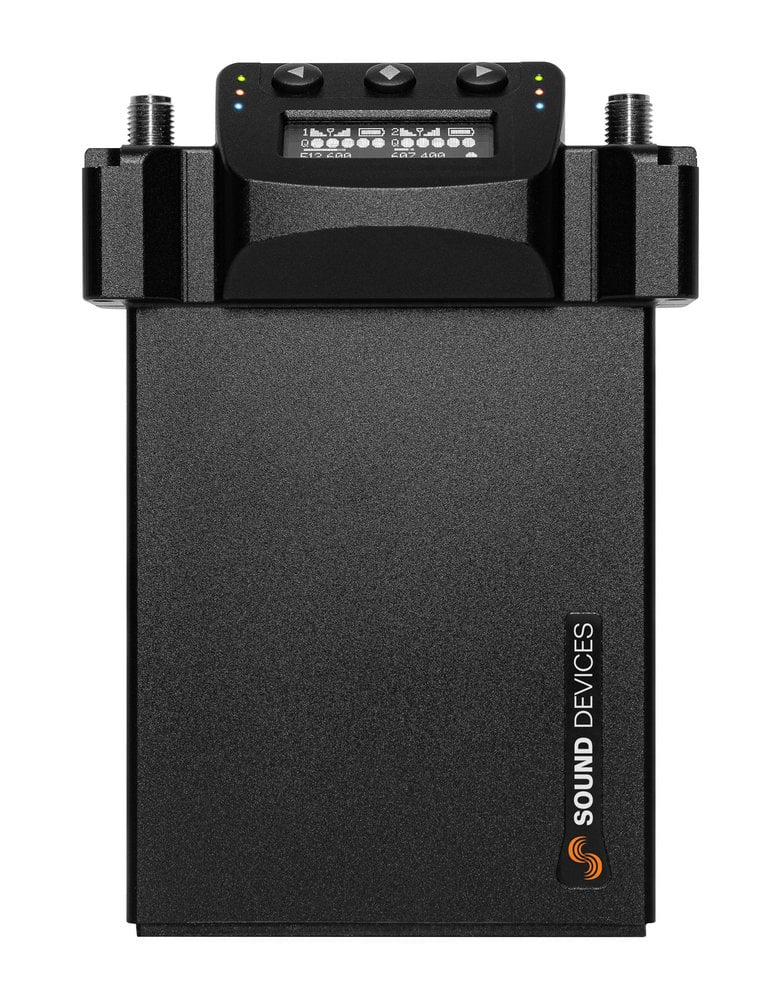

Sound Devices Astral ARX2 - XLR

Sound Devices Astral ARX2 - XLR [11491]

The Astral ARX2 - XLR is a version of the Astral ARX2 dual true diversity receiver, delivered with the XLR/Hirose output adapter [8847] for balanced XLR audio output. It supports two fully independent RF channels using SpectraBand technology with a wide tuning range of 169 to 1525 MHz.

With 32-bit float backup recording per channel, GainForward structure, and modular Hirose output, the ARX2 - XLR is ideal for demanding sound setups. The included XLR adapter provides direct connection to field mixers or recorders.

Main Features

• Dual true diversity receiver with 2 independent RF channels
• Wide 1055 MHz tuning bandwidth (169–1525 MHz)
• SpectraBand digital wireless technology
• Modular Hirose output with XLR adapter [8847]
• 32-bit float backup recording per channel to SD card
• GainForward structure for consistent gain staging
• Compatible with Astral TX and Astral HH transmitters
• Powered via USB-C or 4-pin Hirose DC input

Specifications

• RF range: 169–1525 MHz
• Channels: 2 (individually tunable)
• Bandwidth: 1055 MHz
• Output: XLR via adapter [8847] (balanced), optional Hirose 10p adapters
• Recording: 32-bit float per channel, to SD card
• Power: USB-C or Hirose 4p
• Dimensions: 112 × 76 × 23 mm
• Weight: approx. 280 g

Included

• Astral ARX2 receiver

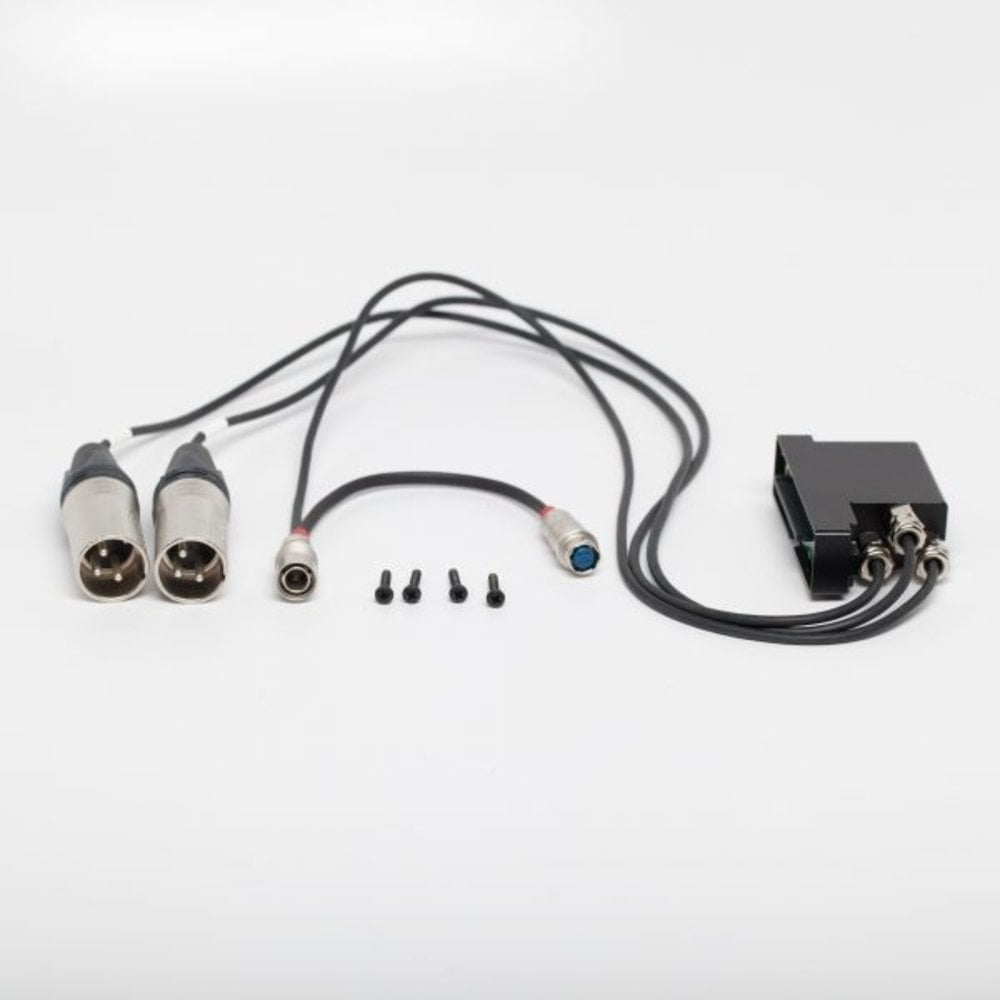

• XLR/Hirose output adapter [8847]
• USB-C cable
• Storage box
