Sound Devices Astral ARX-16

Sound Devices Astral ARX-16 [10873]

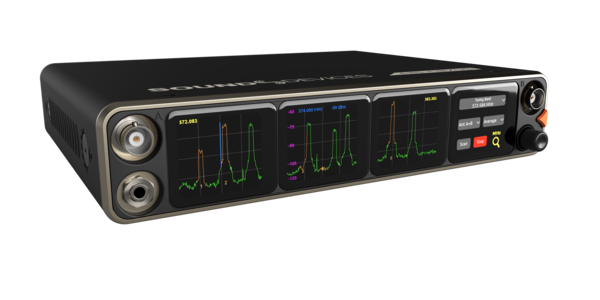

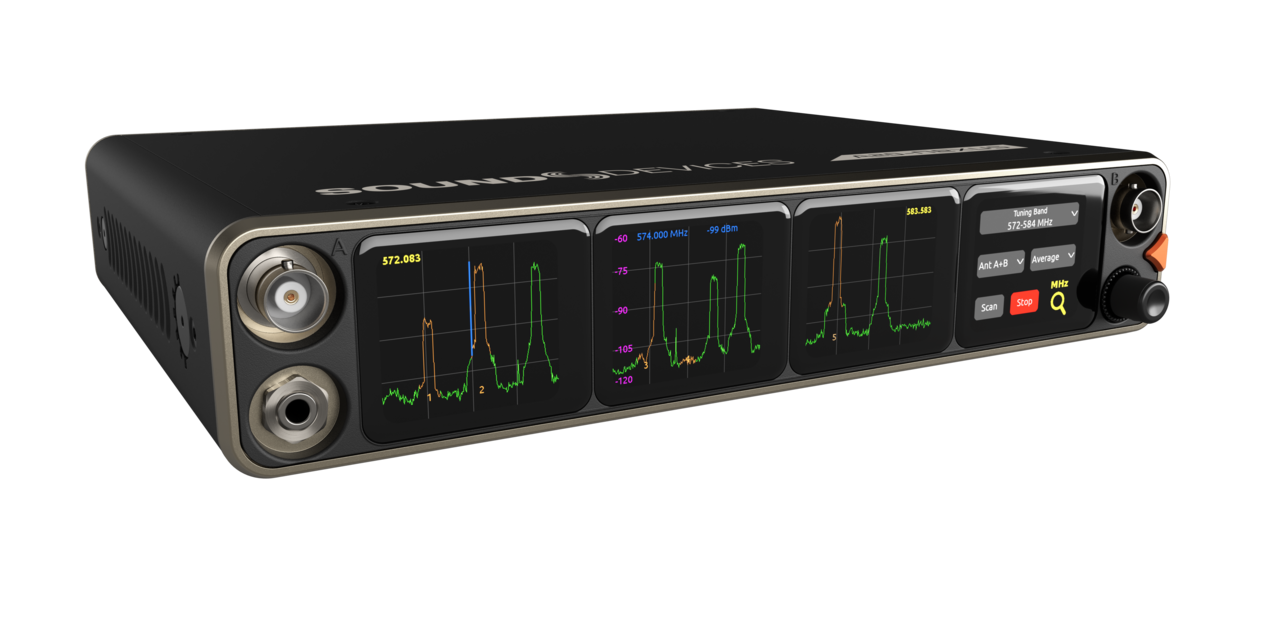

The Sound Devices Astral ARX-16 is an 8- to 16-channel true diversity receiver with SpectraBand technology. This half-rack unit includes NexLink remote control, real-time spectrum analysis, Dante audio-over-IP, a 6.2" OLED touchscreen, and GainForward architecture. It features dual DB25 connectors, optional optical SFP, and a BNC timecode input. Power options include PoE+, DC input, mains adapter, or direct docking with a Sound Devices 8-Series mixer via A20-QuickDock. Browser-based Web App control is supported.

Main Features

• 8-channel true diversity receiver, expandable to 12 or 16 channels via license

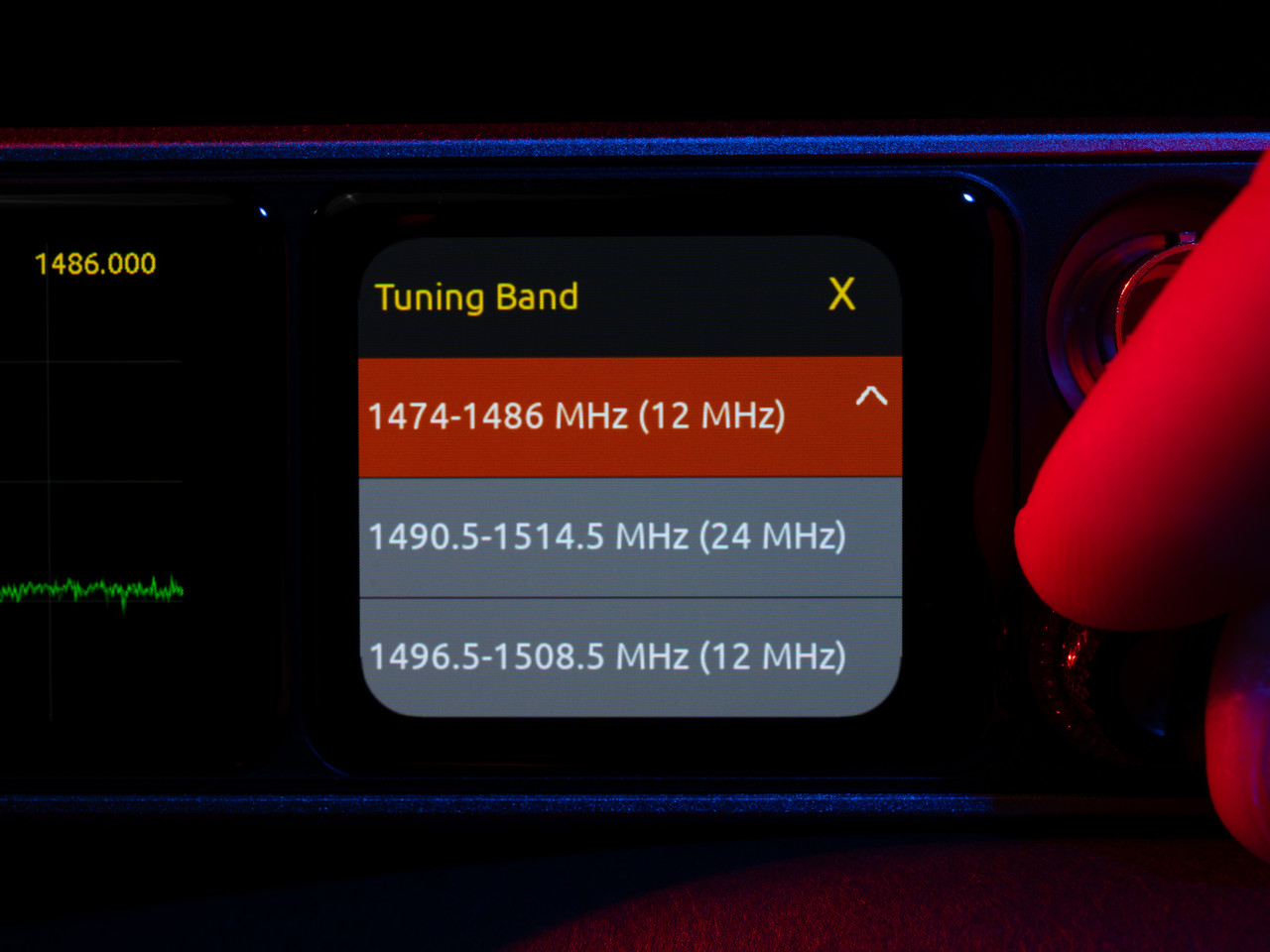

• SpectraBand tuning range: 470–1525 MHz
• NexLink remote, spectrum analysis, and Dante support
• 6.2" OLED touchscreen and browser-based Web App
• GainForward architecture for gain control on receiver or mixer

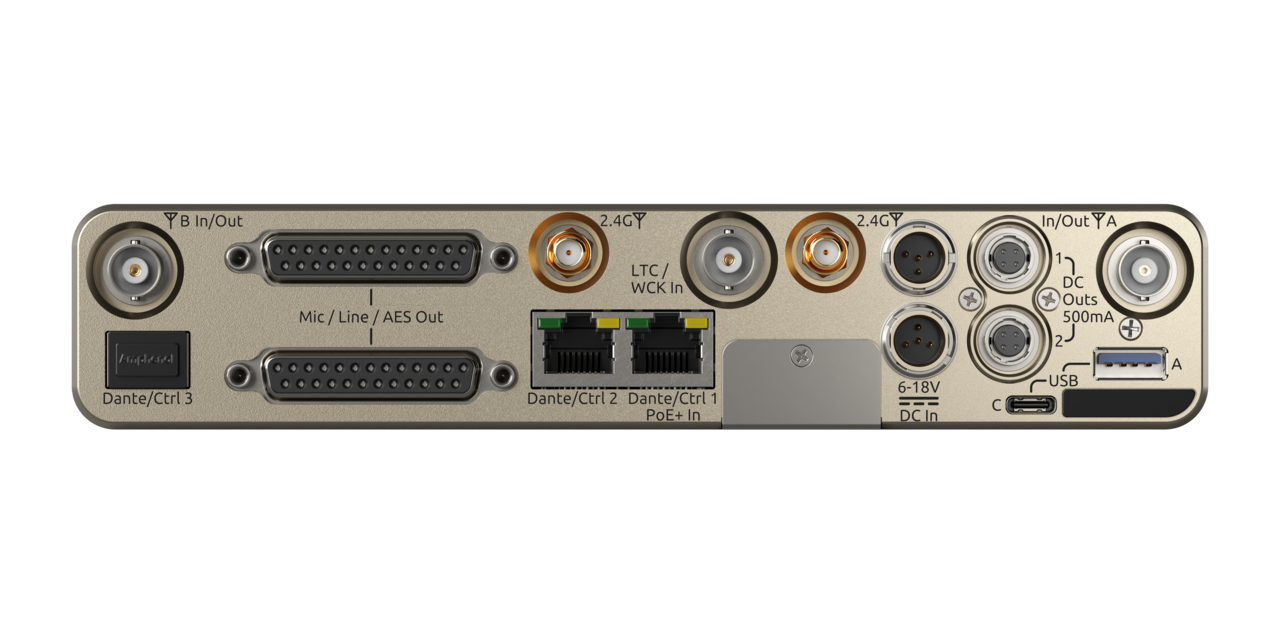

• Dual DB25 outputs for analog, AES, and Dante audio
• SFP slot for optical networking
• BNC timecode input for syncing transmitters
• Power via PoE+, DC (10–18 V), mains adapter, or A20-QuickDock

Specifications

• Size: 8.0 × 6.6 × 1.6 inches
• Weight: approx. 1.4 kg
• Frequency range: 470 MHz – 1525 MHz (SpectraBand)
• Outputs: 16× Dante, 16× analog/AES via DB25

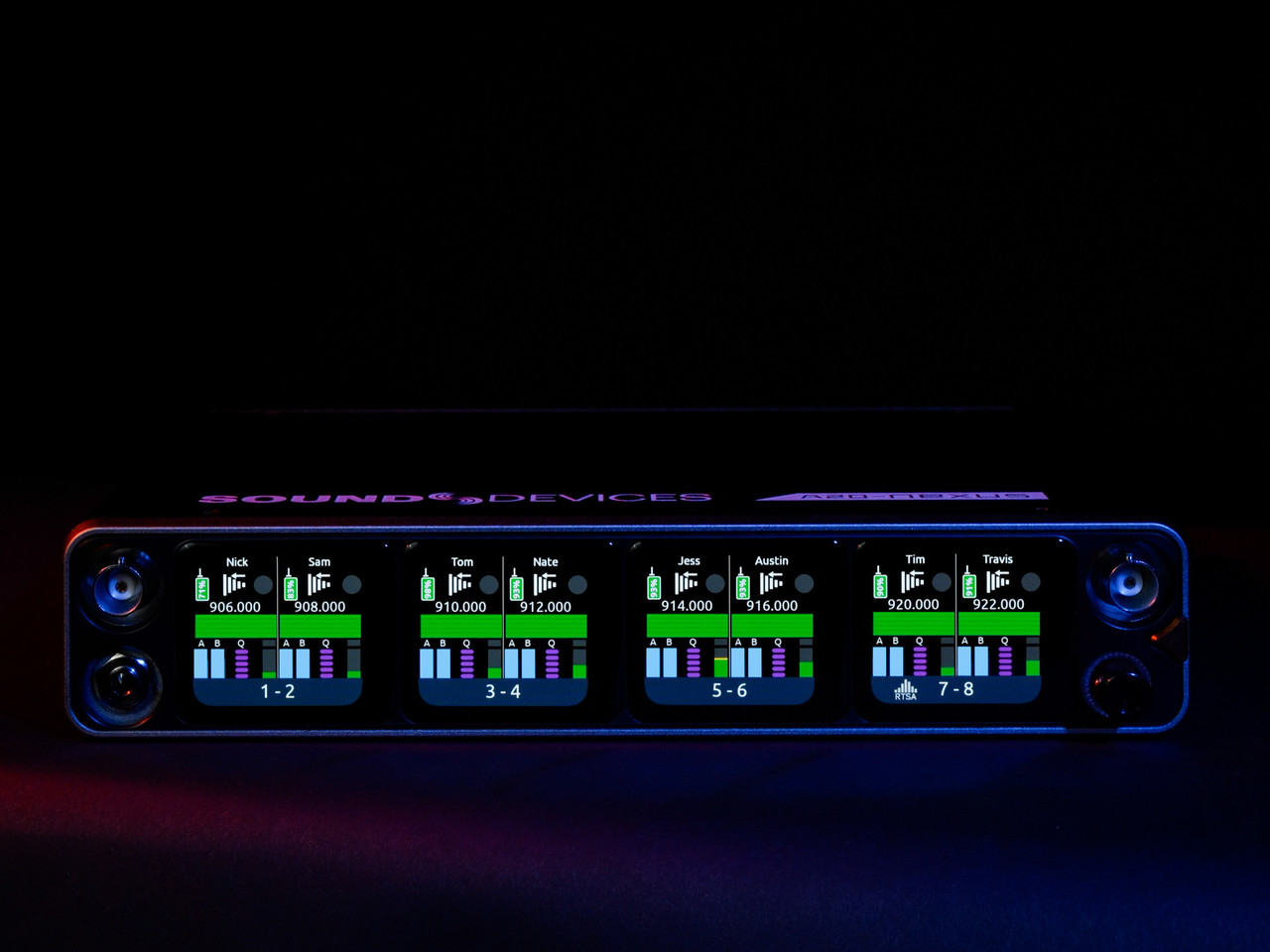

• Display: 6.2" OLED touchscreen
• Network: Ethernet RJ45 and optional SFP

Included

• 1× Astral ARX-16 receiver

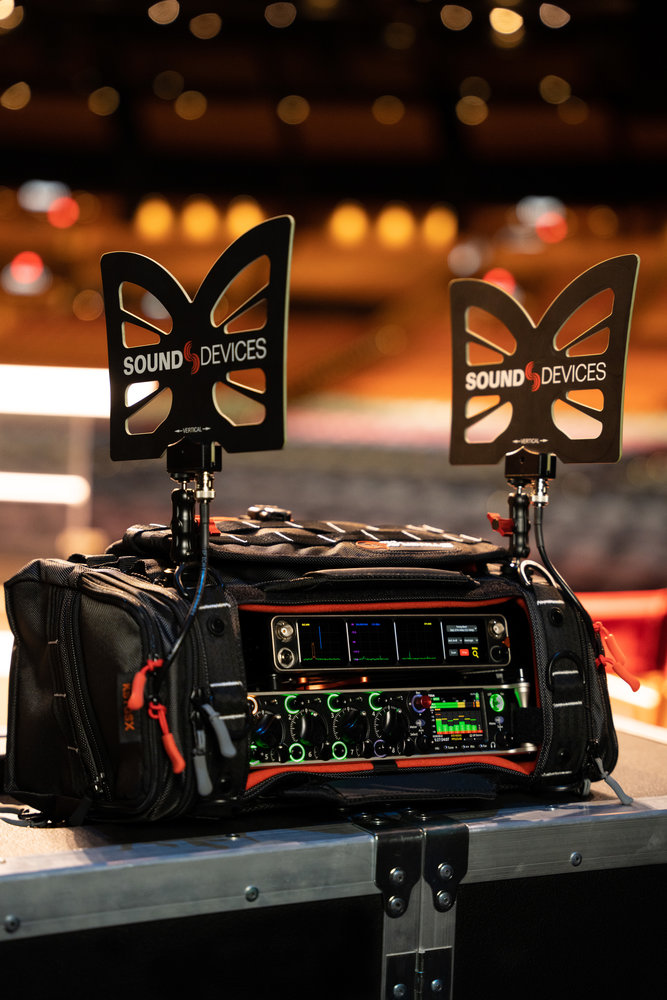

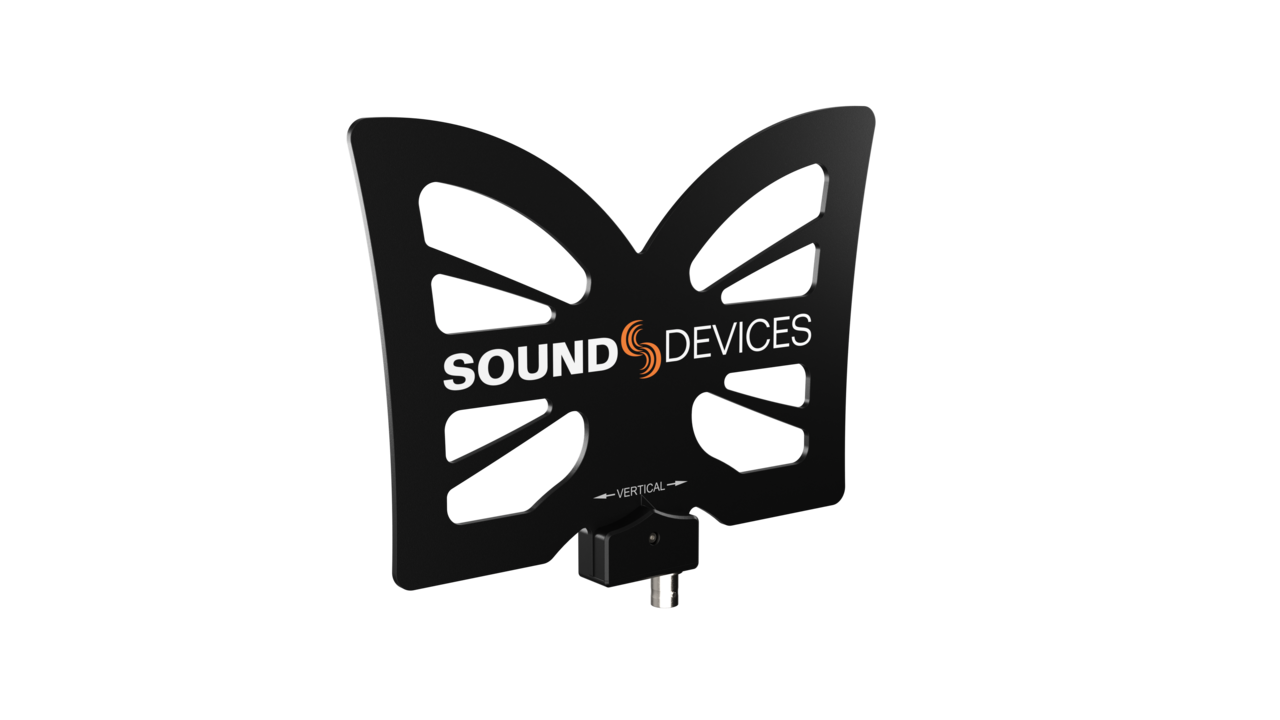

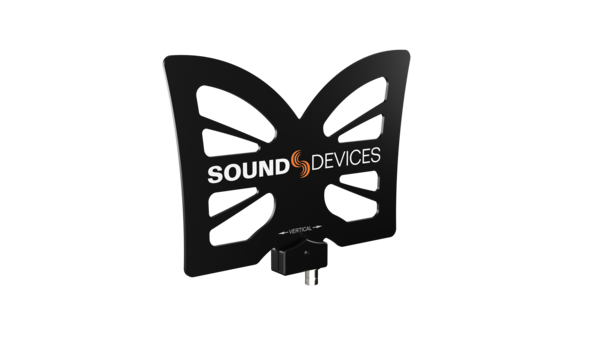

• 2× A20-Monarch antennas

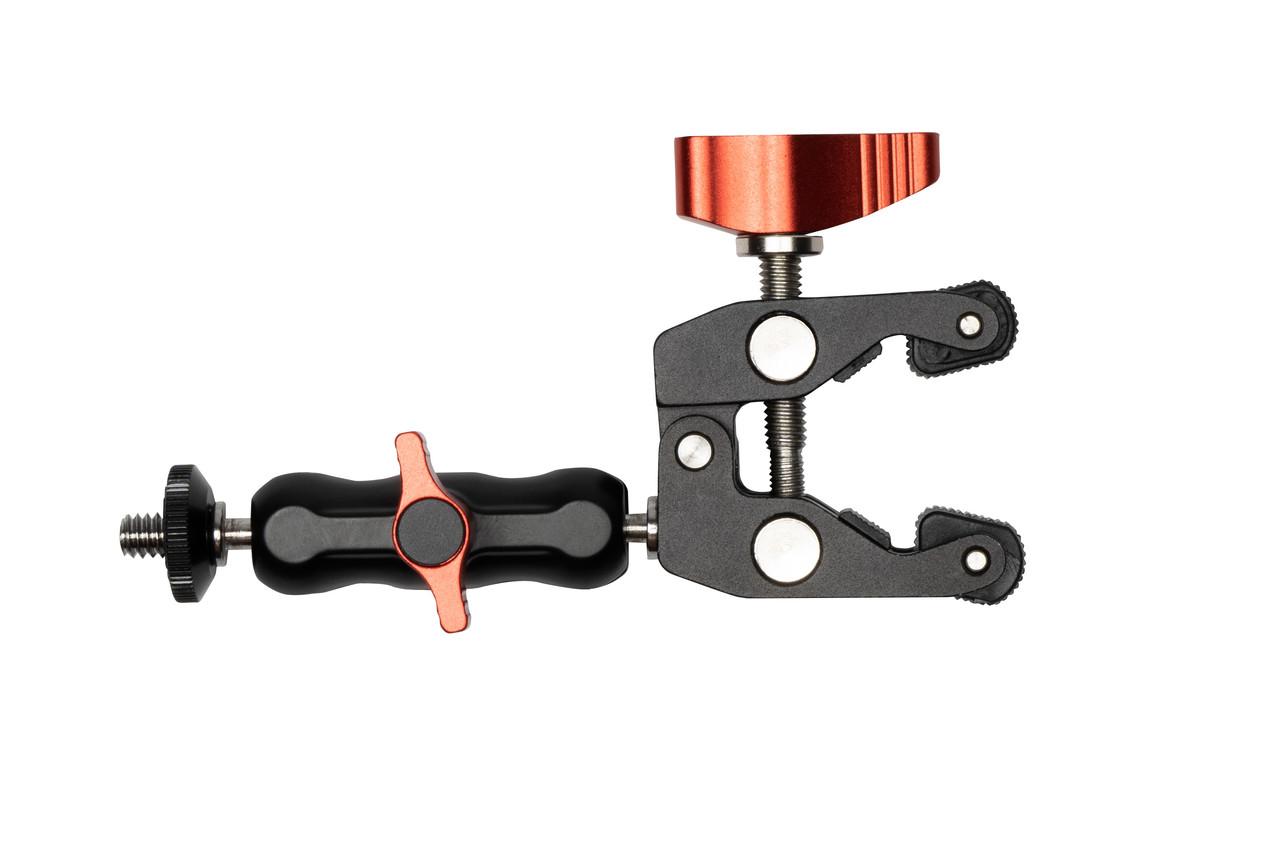

• 2× Articulating arms with ¼"-20 clamps
• 2× 30" BNC–BNC cables
• 2× A20-2.4G Ant 2.4GHz antennas
• 2× 2.4GHz bracket kits
