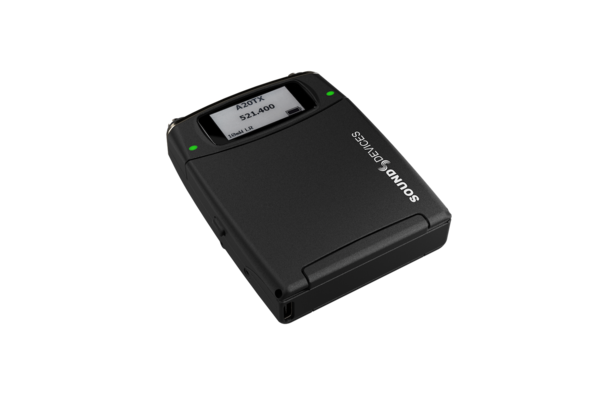

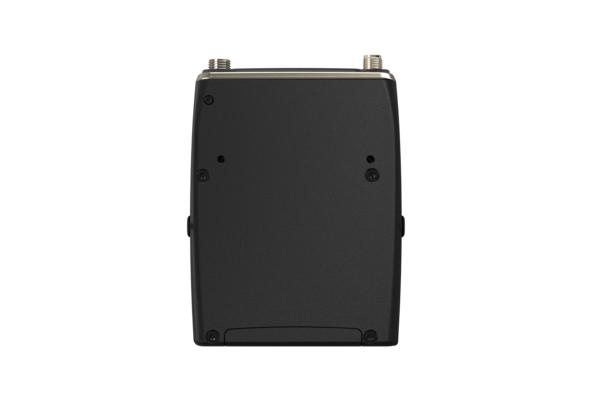

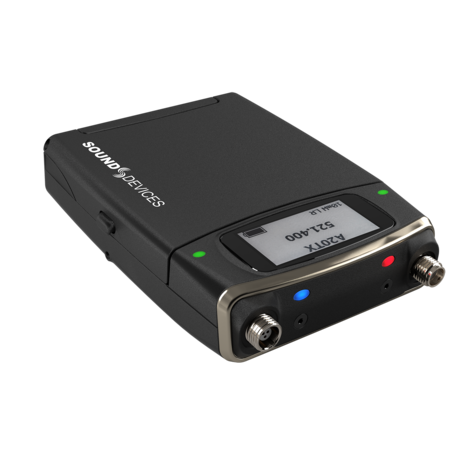

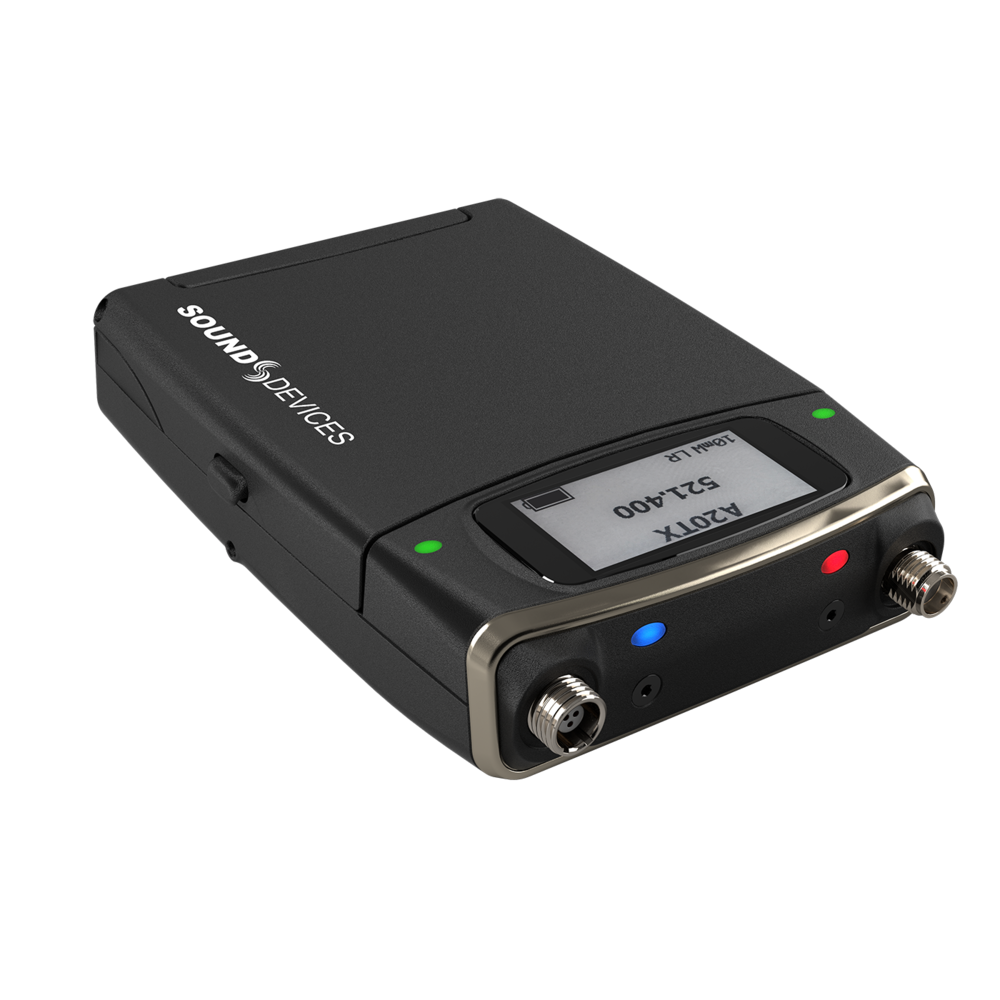

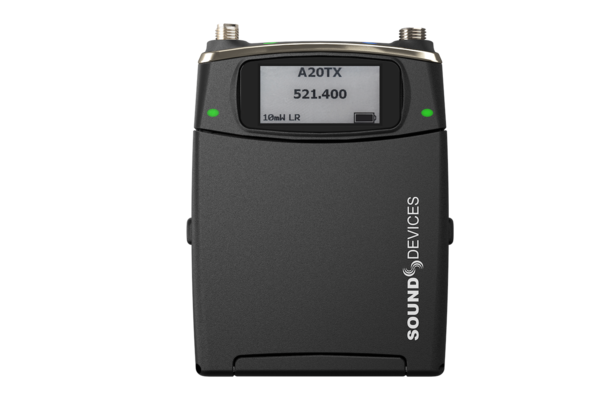

Sound Devices Astral TX

Sound Devices Astral TX [9608]

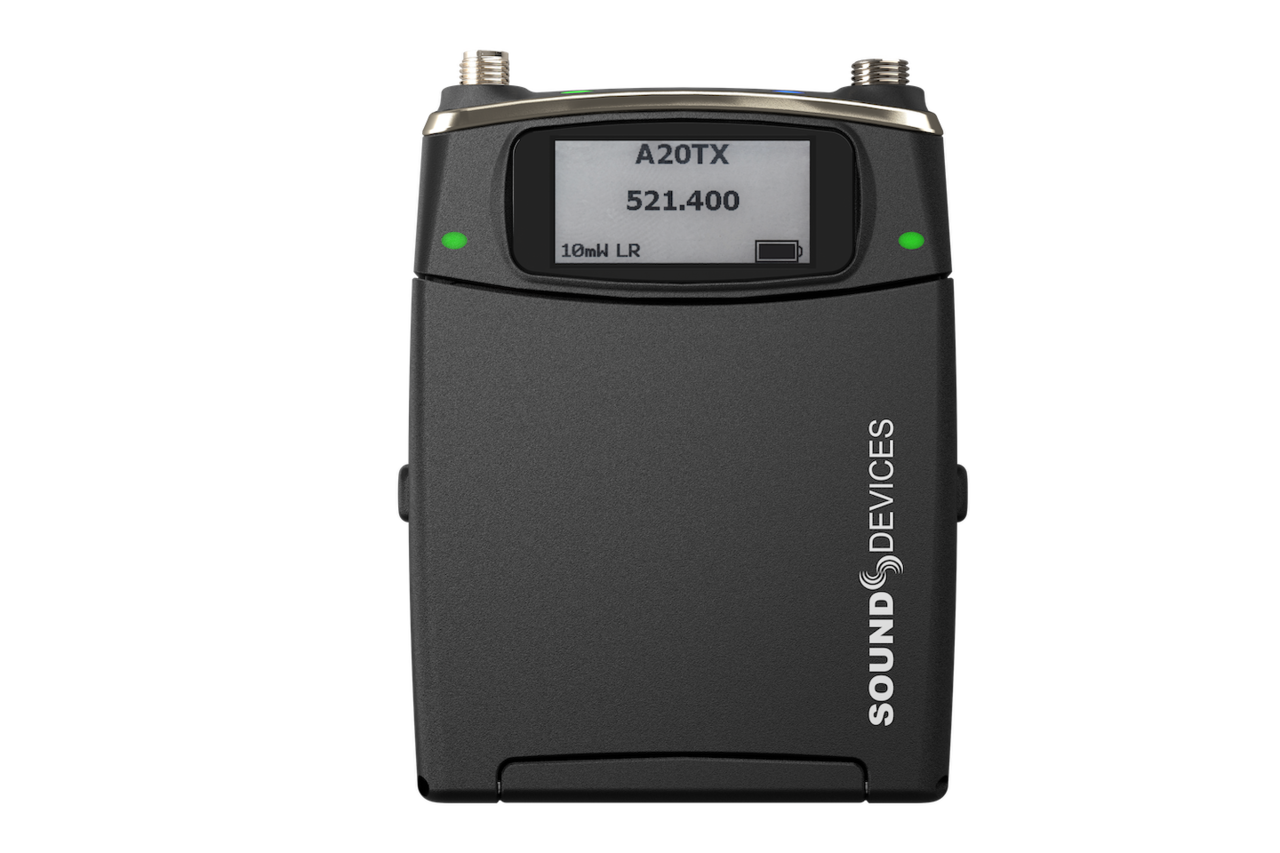

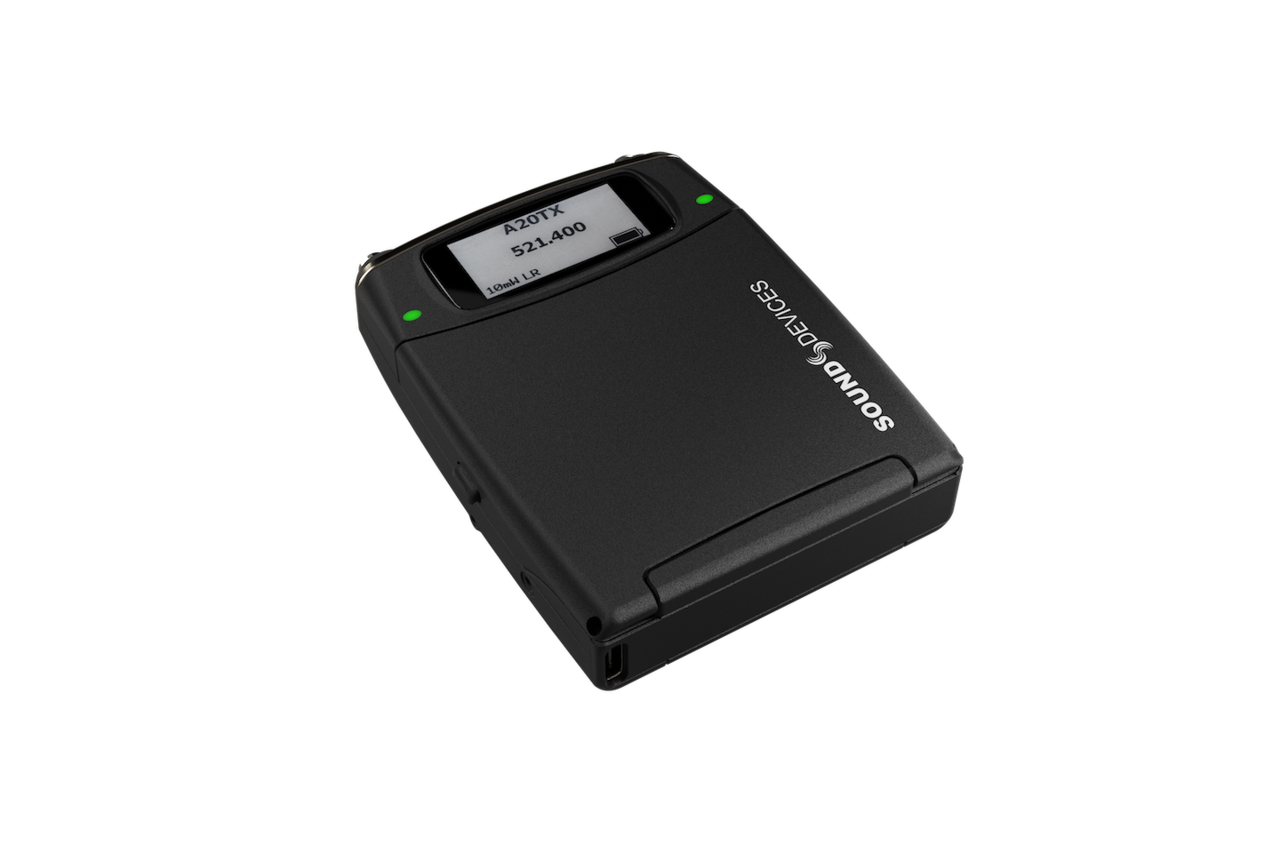

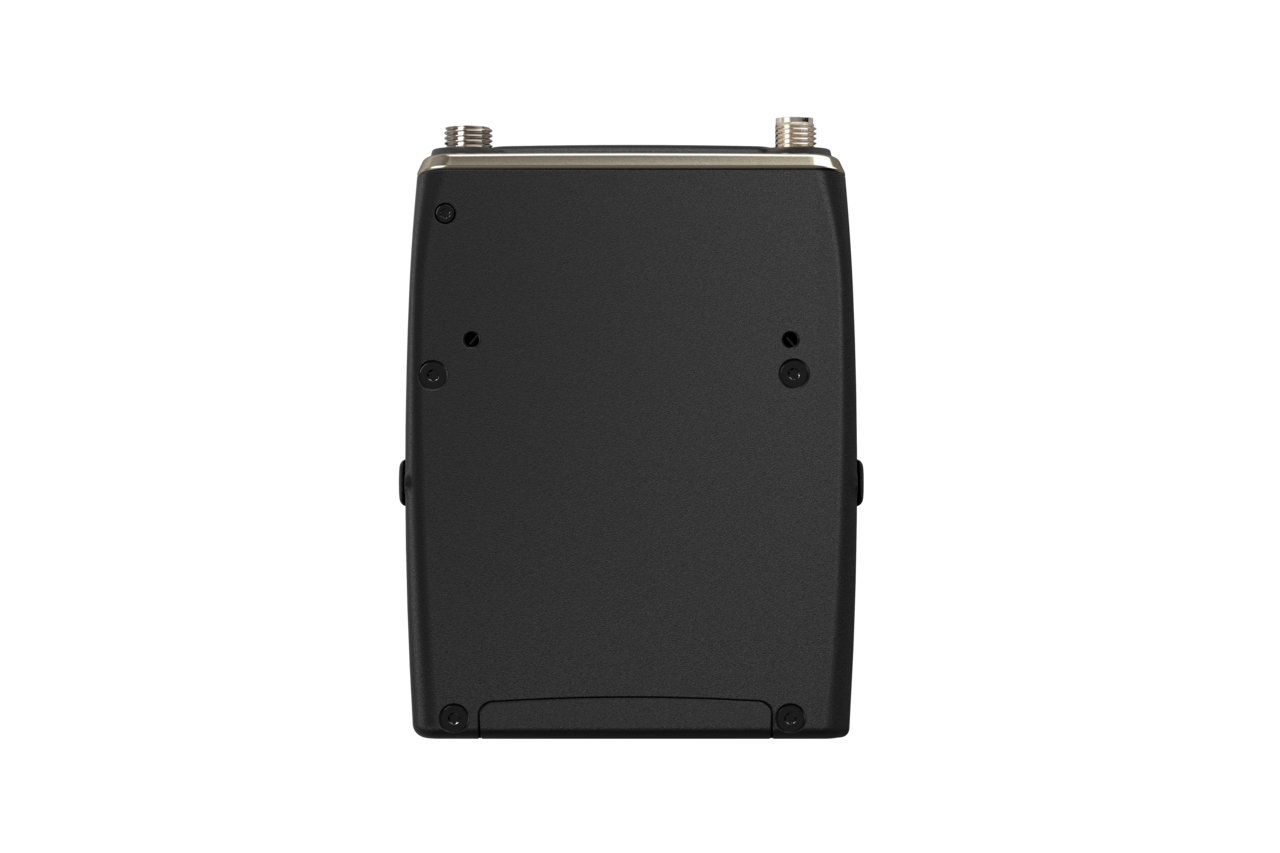

The Astral TX is a wideband transmitter for wireless audio in the Sound Devices Astral system. It features tuning from 169 to 1525 MHz (region and receiver dependent), 100% digital RF modulation, and GainForward architecture allowing gain control from receiver or mixer. The unit includes a 32-bit float recorder with 64 GB of internal memory, USB-C port, timecode input, and power via 3 AA batteries or external DC. Settings can be controlled via the Astral Web App or onboard buttons with display. The robust housing includes removable SMA antennas.

Main Features

• SpectraBand tuning 169–1525 MHz (region/receiver dependent)
• 100% digital RF modulation with GainForward support
• Internal 32-bit float recording in WAV format
• 64 GB internal storage for over 80 hours of recording
• Powered by 3× AA or external DC (5–18 VDC)

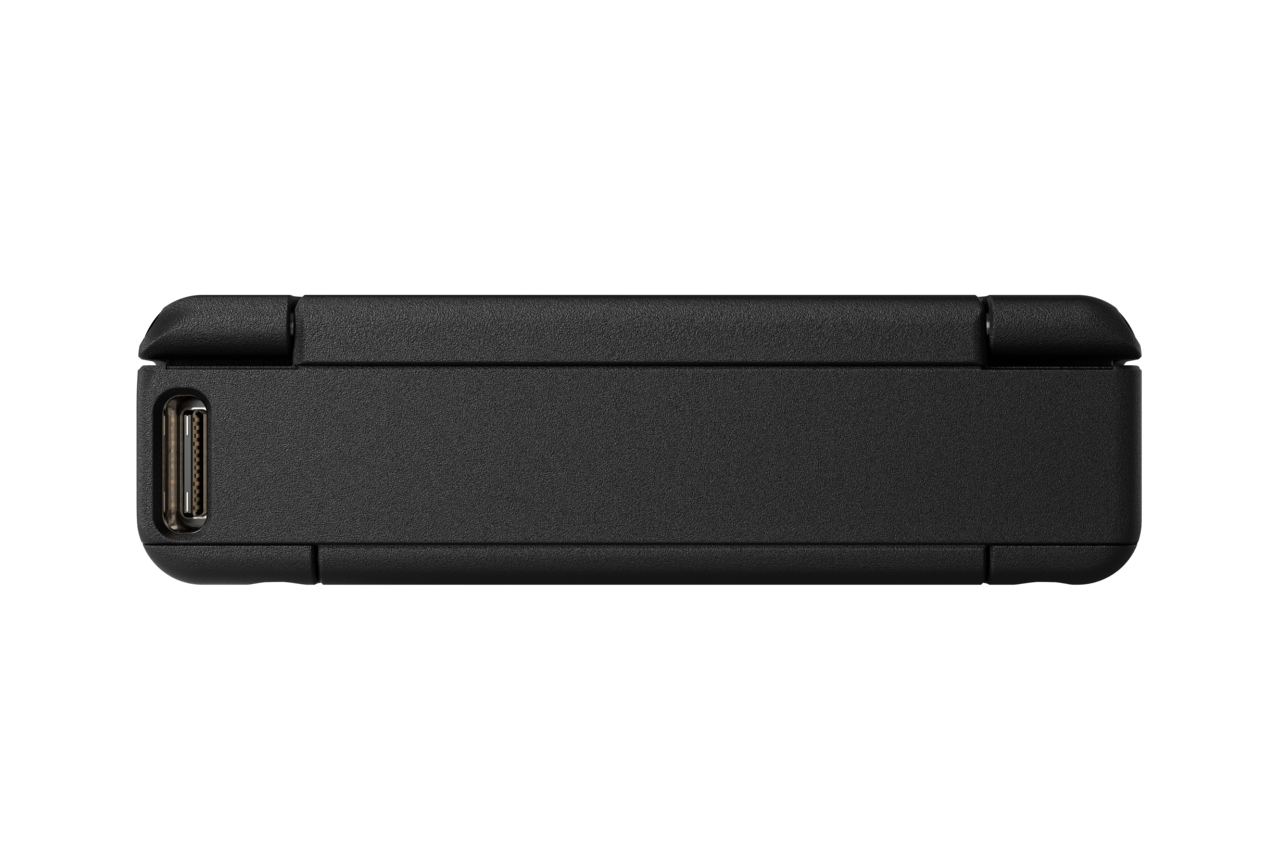

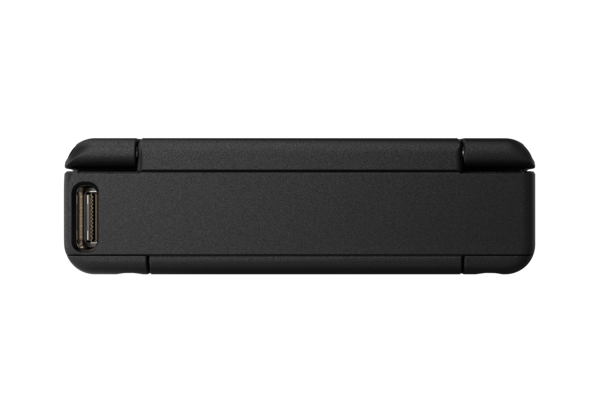

• USB-C for file transfer and timecode jamming
• Timecode input via 3.5 mm mini jack
• Control via Astral Web App or onboard buttons

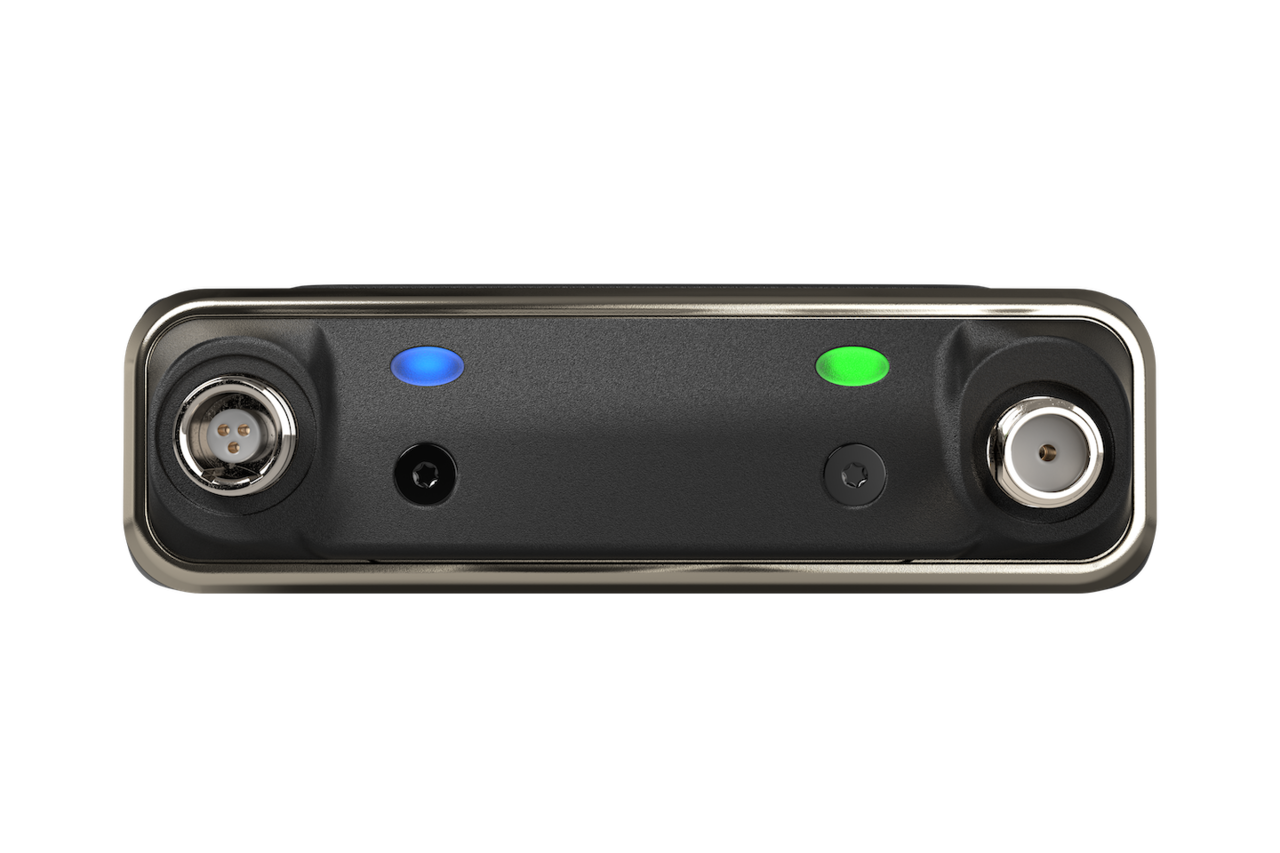

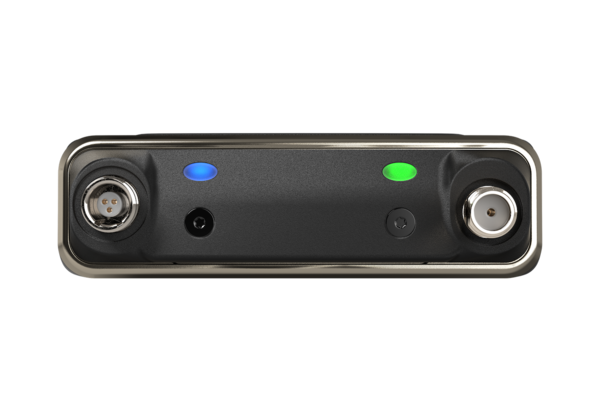

• Removable antenna with SMA connector

Specifications

• Frequency range: 169–1525 MHz (region and receiver dependent)
• Recording format: 32-bit float / 48 kHz WAV
• Storage: 64 GB internal memory

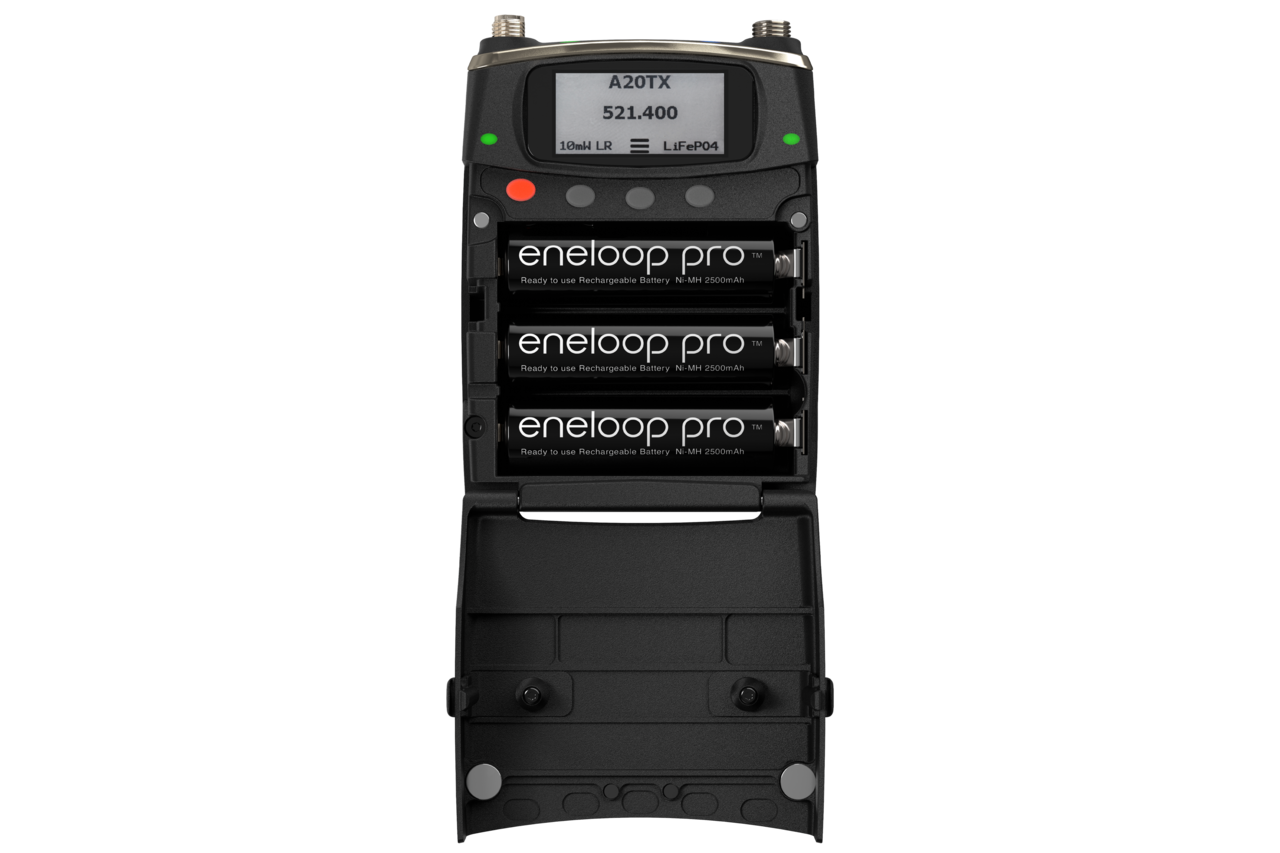

• Power: 3× AA (alkaline or lithium) or 5–18 VDC via Hirose
• Connectivity: USB-C, 3.5 mm timecode input
• Antenna connector: SMA female
• Dimensions: 86 × 66 × 27 mm
• Weight: approx. 220 grams (without batteries)

Included

• 1× Astral TX transmitter
• 1× SMA antenna

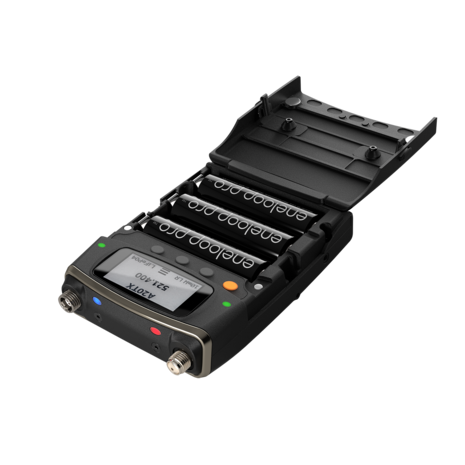

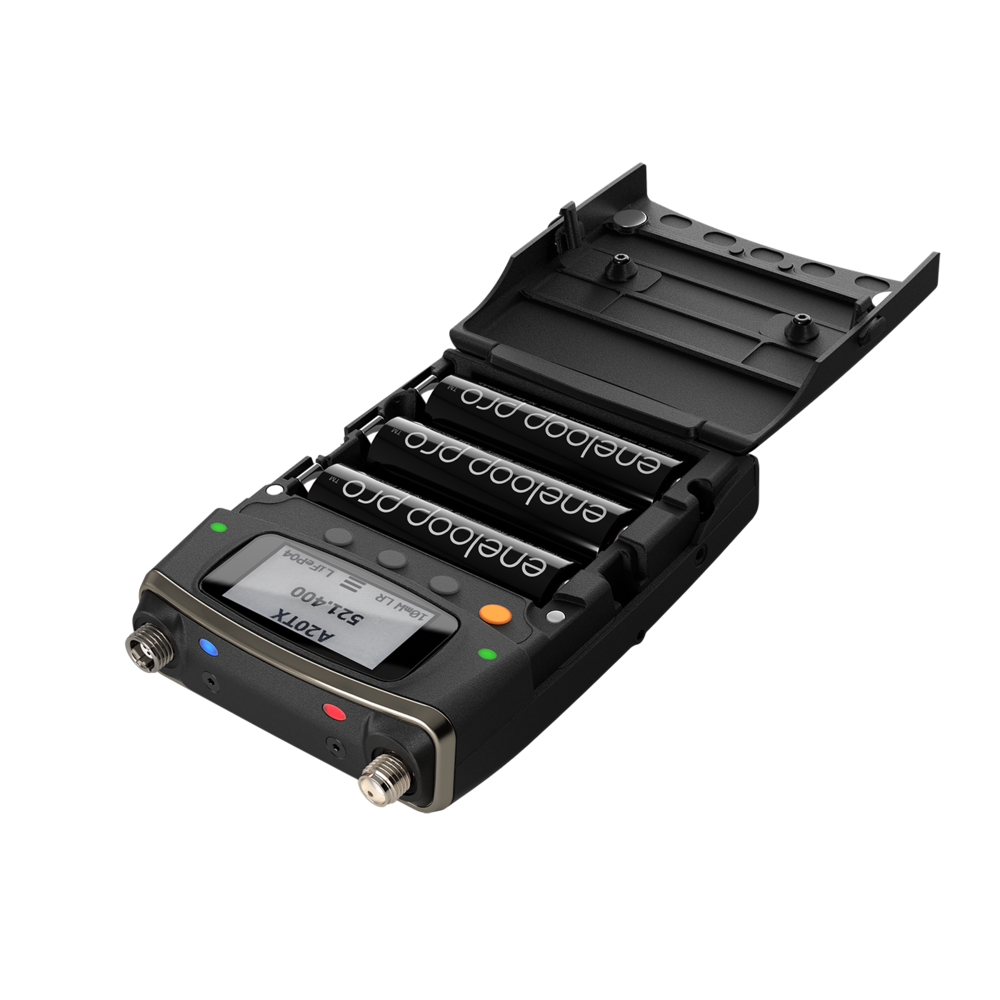

• 1× Battery holder for 3× AA
• 1× USB-C cable
