Schoeps CCM 4 XP K

Schoeps CCM 4 XP K

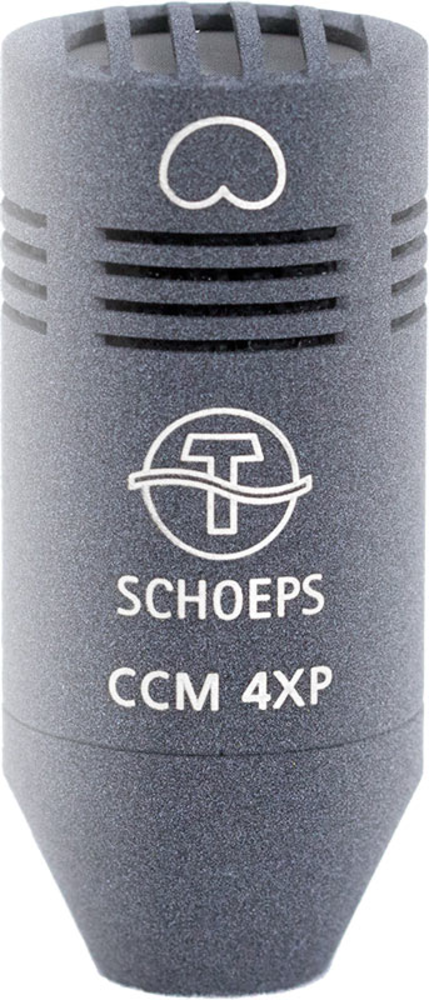

The Schoeps CCM 4 XP K is a compact cardioid condenser microphone with side-addressing, specifically designed for extremely close speech pickup, such as directly in front of the speaker's mouth. This microphone compensates for the low-frequency drop caused by proximity effects, ensuring a flat frequency response for the speaker's voice.

Key Features

• Side-Address Cardioid Capsule: Designed with the main axis on the side, ideal for situations requiring a side-facing recording position.
• Optimized for Close Speech Pickup: Its frequency response is tailored to compensate for proximity effects, ensuring natural sound for very close recordings.
• Consistent Directionality: Maintains a uniform directional pattern across the entire frequency range, ensuring accurate sound capture with minimal off-axis coloration.
• Permanently Attached Cable with XLR Connector: The fixed 5-meter cable with an XLR-3M connector offers a stable and durable connection, ideal for fixed setups.

Specifications

• Frequency Response: 40 Hz – 20 kHz
• Sensitivity: 13 mV/Pa
• Maximum SPL (THD < 0.5%): 136 dB SPL (P48); 128 dB SPL (P12)
• Equivalent Noise Level (A-weighted): 15 dB-A
• Output Impedance: 90 Ω at 1 kHz
• Recommended Load Impedance: 2 kΩ
• Power Supply: P48 (48V phantom power) or P12 (12V phantom power)
• Current Consumption: 4 mA (P48); 3.6 mA (P12)
• Dimensions: Length: 46 mm; Diameter: 20 mm
• Weight: 45 g
• Surface Finish: Matte grey

Applications

The CCM 4 XP K is suitable for scenarios requiring very close speech pickup, including:

• Broadcast and Announcing: Suitable for environments where the microphone must be placed close to the speaker for optimal sound quality.
• Stage and Theater: Ideal for live performances requiring discreet and close microphone placement.
• Voice Recording: Offers natural and clear sound for very close recordings, making it suitable for voice-overs and other vocal applications.
