Schoeps CMC 1 K, LemoZaxcom

Schoeps CMC 1 K, LemoZaxcom [132017]

The Schoeps CMC 1 K, LemoZaxcom is a compact Colette microphone amplifier with a fixed 0.5-meter cable and a 3-pin Lemo connector for Zaxcom. Combined with a separately available MK capsule, it forms a complete analog microphone.

Main Features

• Compatible with Schoeps MK capsules and active Colette accessories.
• Fixed connecting cable with Lemo connector for Zaxcom.
• SCHOEPS RFI Shield for protection against radio-frequency interference.
• Operates on P12 or P48 phantom power.
• Fixed low-cut filter: 20 Hz, 12 dB/octave.

Compatibility and Connection

Schoeps specifies this version for Zaxcom ZMT transmitters with phantom powering. The transmitter must supply suitable P12 or P48 phantom power. Check the connection and powering capabilities of the particular ZMT model; this version is not automatically compatible with every Zaxcom transmitter featuring a Lemo input.

Specifications

• Amplifier frequency range: 20 Hz–20 kHz.
• Output: 3-pin Lemo for Zaxcom, analog, one channel.
• Cable length: 0.5 m, tolerance ±5%.
• Maximum output voltage: 1.8 V into a 1 kΩ load.
• Maximum SPL with MK 4: 135 dB SPL at P48; 131 dB SPL at P12, with less than 0.5% distortion.
• Output impedance: 50 Ω.
• Minimum recommended load: 1 kΩ.
• Powering: P48, 30–52 V; P12, 11–13 V.
• Current consumption: 2 mA at P48; 3 mA at P12.
• Amplifier length: 29 mm; diameter: 20 mm.
• Weight: approximately 28 g without cable.
• Finish: matte gray.

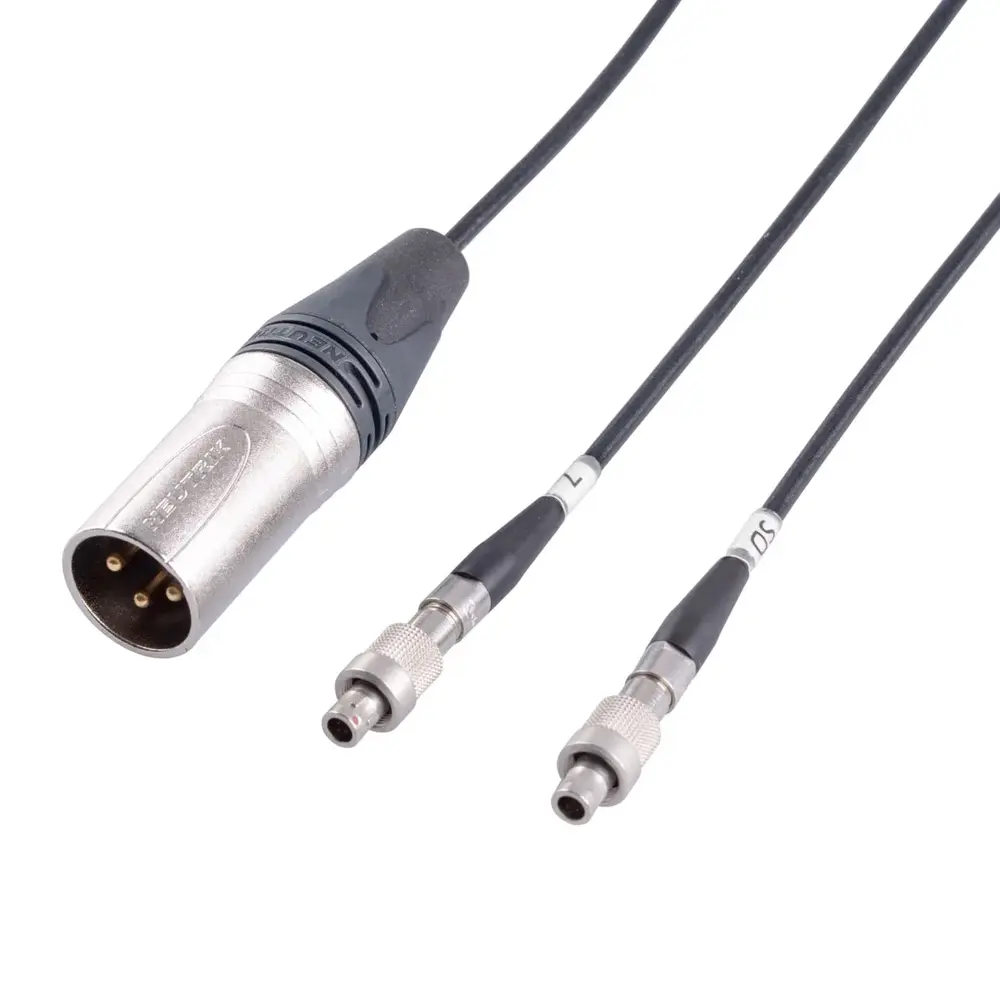

Other Versions

• CMC 1 K, XLR [132013]: fixed 5 m cable with XLR3M connector.
• CMC 1 K, LemoSD [132016]: fixed 0.5 m cable with 3-pin Lemo connector for compatible Sound Devices transmitters supplying P12 or P48 phantom power.

Included

• 1 × Schoeps CMC 1 K with fixed 0.5 m cable and 3-pin Lemo connector for Zaxcom.
• 1 × SGC [161108] miniature stand mount with swivel.
• 1 × wooden storage case.

MK capsule and transmitter are available separately. Polar pattern and sensitivity depend on the selected capsule.
