Schoeps CMC 1 KV, XLR

Schoeps CMC 1 KV XLR [132018]

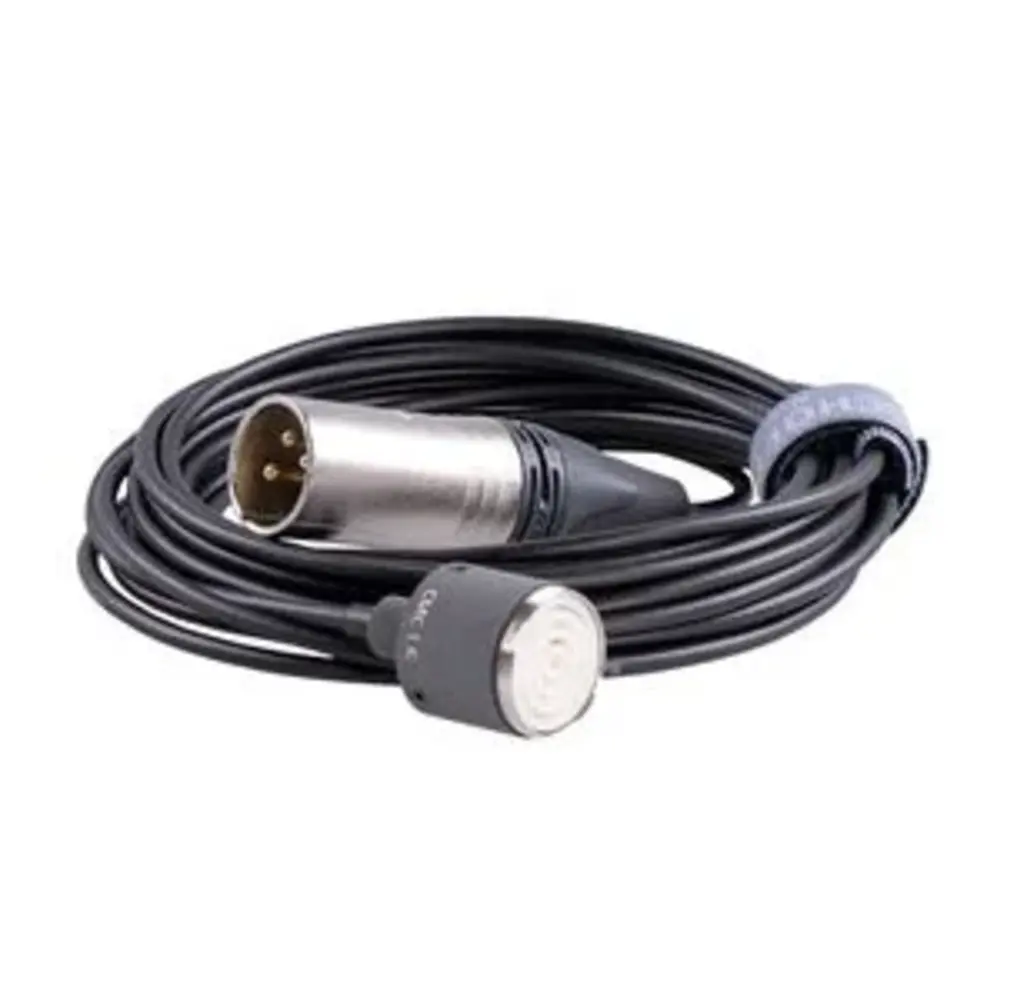

The Schoeps CMC 1 KV XLR is a compact Colette microphone amplifier with a lateral cable exit and permanently attached 2 meter cable terminating in an XLR3M connector. The sideways cable exit reduces the overall microphone length, making it suitable for compact windshield setups, concealed placement and installation in tight spaces.

The CMC 1 KV is part of the modular Schoeps Colette series and is compatible with all MK capsules and active Colette accessories. The amplifier delivers the same electrical performance as the CMC 6 in a significantly more compact housing.

The CMC 1 KV includes an integrated low-cut filter below 20 Hz with 12 dB/oct slope to suppress handling noise, wind and vibration outside the audible range. Schoeps RFI Shield technology provides high immunity against RF interference from wireless systems and mobile devices.

This version includes a permanently attached 2 meter cable terminating in XLR3M and several magnetic accessories for mounting and cable management in concealed applications.

Main Features

• Compact Colette microphone amplifier with lateral cable exit
• Permanently attached 2 m cable with XLR3M connector
• Compatible with all Schoeps MK capsules
• Compatible with active Colette accessories
• Electrical performance comparable to the CMC 6
• Integrated low-cut filter below 20 Hz, 12 dB/oct
• High RF immunity with Schoeps RFI Shield
• Operates on P48 and P12 phantom power

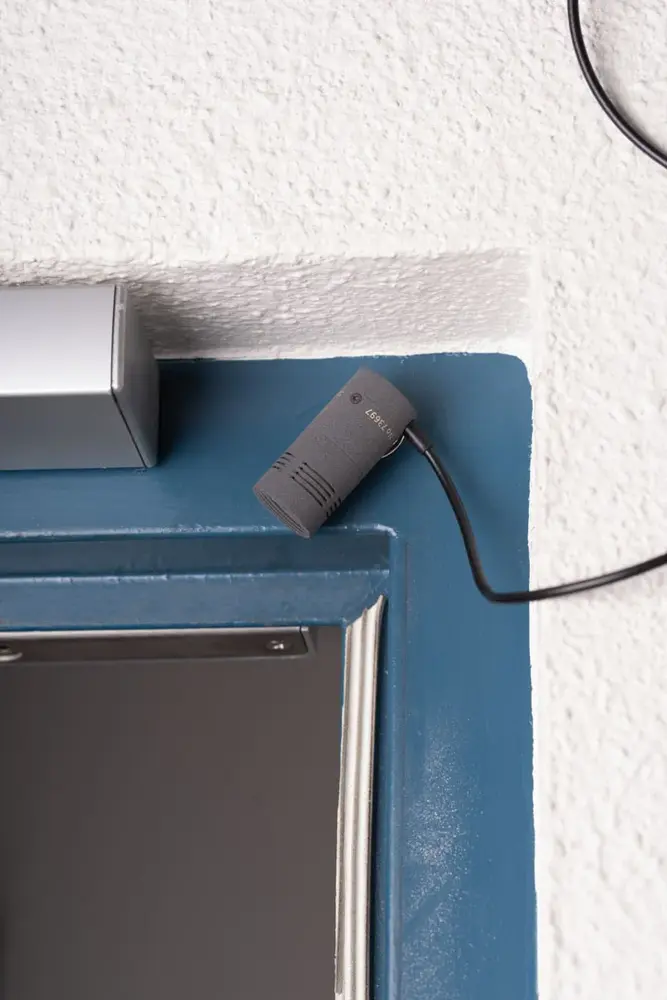

• Compact construction for concealed applications
• Side-exit cable design for compact mounting

Specifications

• Type: Miniature Microphone Amplifier
• Series: Colette
• Article number: 132018
• Cable exit: lateral
• Cable: permanently attached
• Cable length: 2 m
• Connector: XLR3M
• Frequency range: 20 Hz – 20 kHz
• Low-cut filter: below 20 Hz, 12 dB/oct
• Output impedance: 50 Ω
• Minimum load impedance: 1 kΩ
• Maximum output voltage: 1.8 V (5 dBV) at 1 kΩ load
• Common mode rejection ratio: >55 dB at 1 kHz
• Powering: P48 (30–52 V) / P12 (11–13 V)
• Current consumption: 2 mA (P48) / 3 mA (P12)
• Length: 29 mm
• Diameter: 20 mm
• Weight: approx. 28 g without cable
• Surface finish: matte gray

Included

• CMC 1 KV with XLR3M output

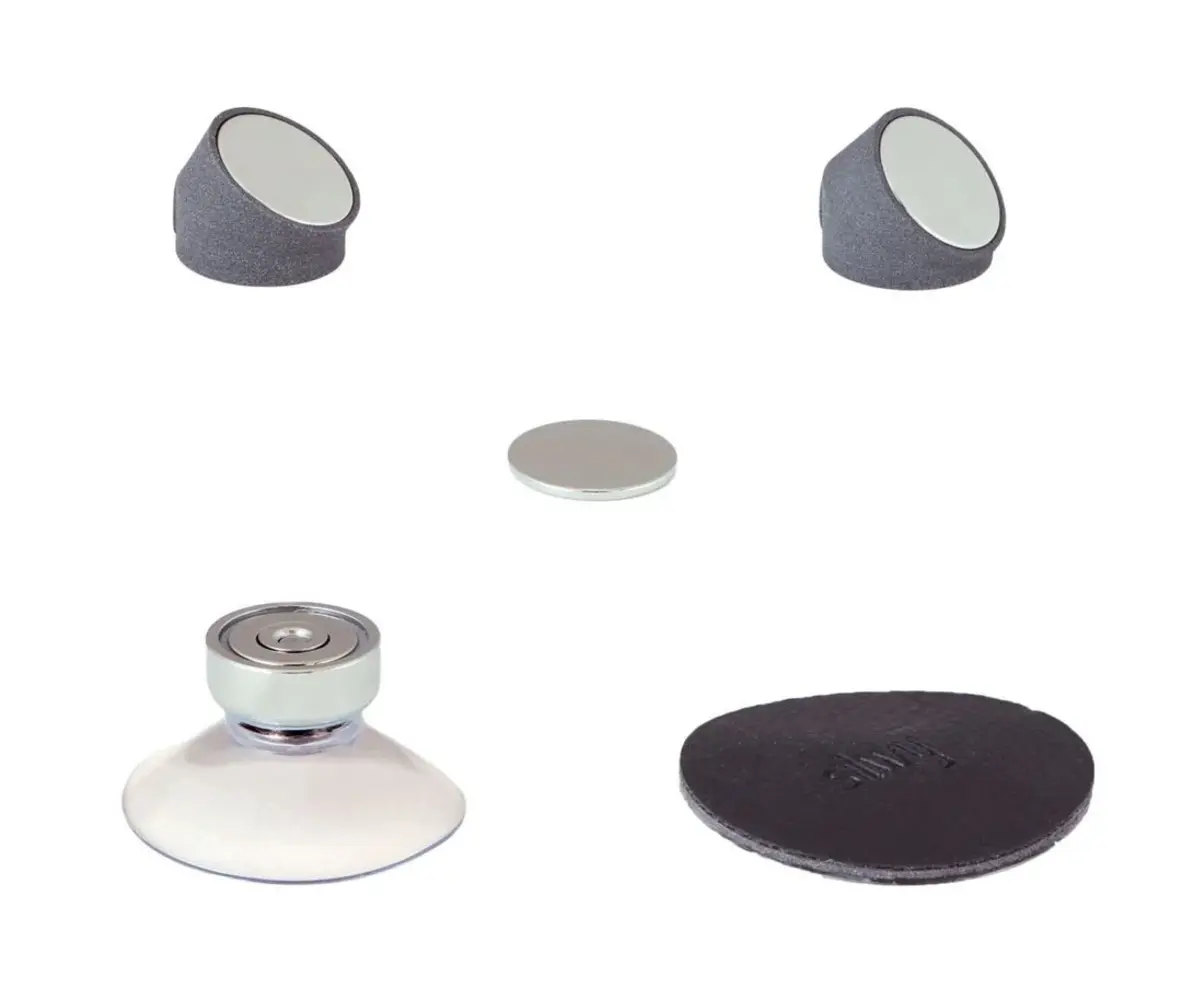

• 161116 Magnetic angle piece 30°
• 161117 Magnetic angle piece 45°
• 302034 Disc magnet 20 mm
• 302033 Self-adhesive magnetic pad 5 cm black

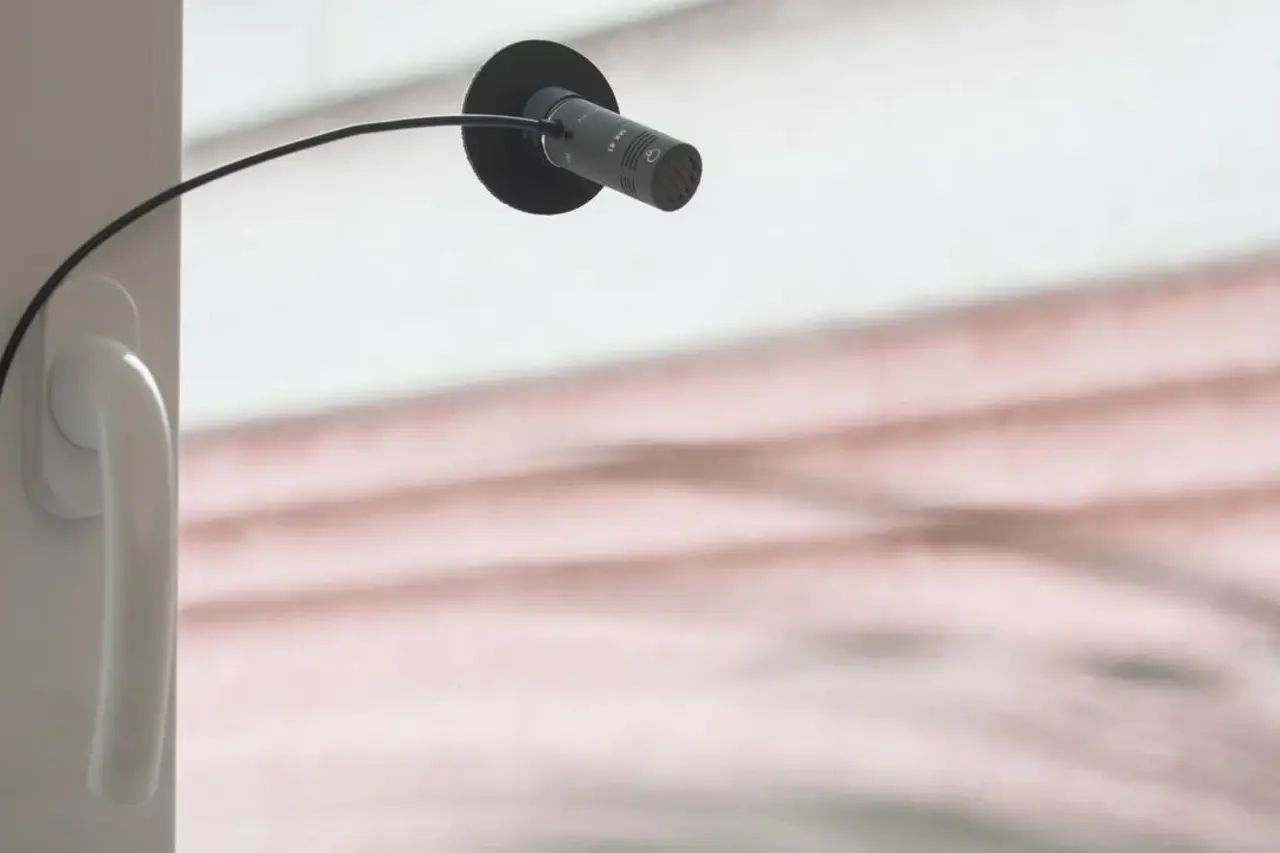

• 302039 Suction cup with magnet
• 161105 Stand clamp SG 20
