Schoeps CMC 1 KV, LemoZaxcom

Schoeps CMC 1 KV, LemoZaxcom [132020]

The Schoeps CMC 1 KV, LemoZaxcom is a compact Colette microphone amplifier with a fixed 0.5-meter cable and 3-pin Lemo connector for Zaxcom. The cable exits the side, keeping the microphone setup short. Combined with a separately available MK capsule, it forms a complete analog microphone.

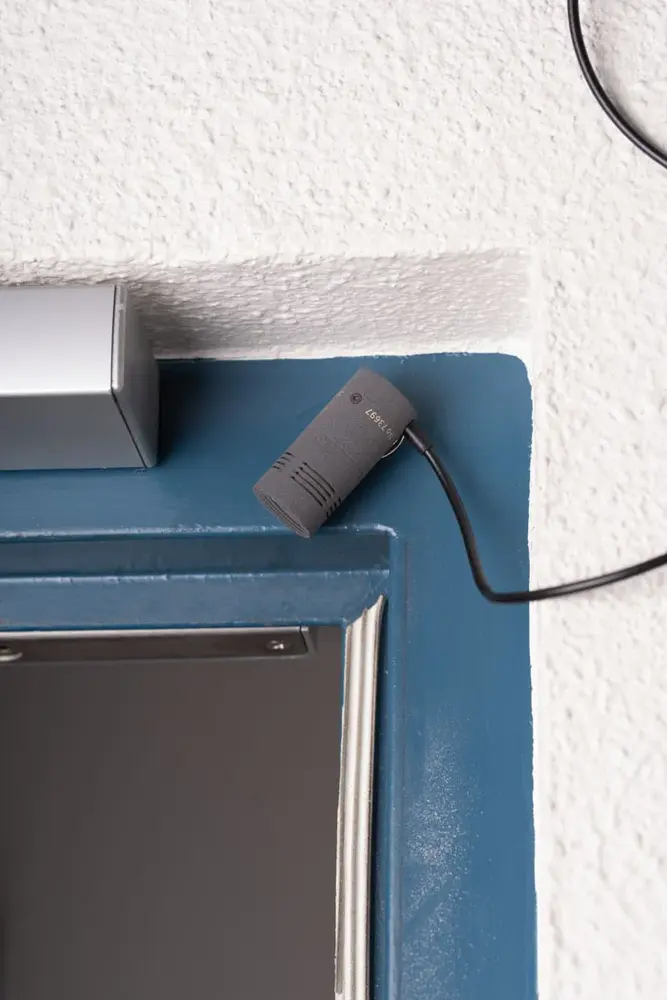

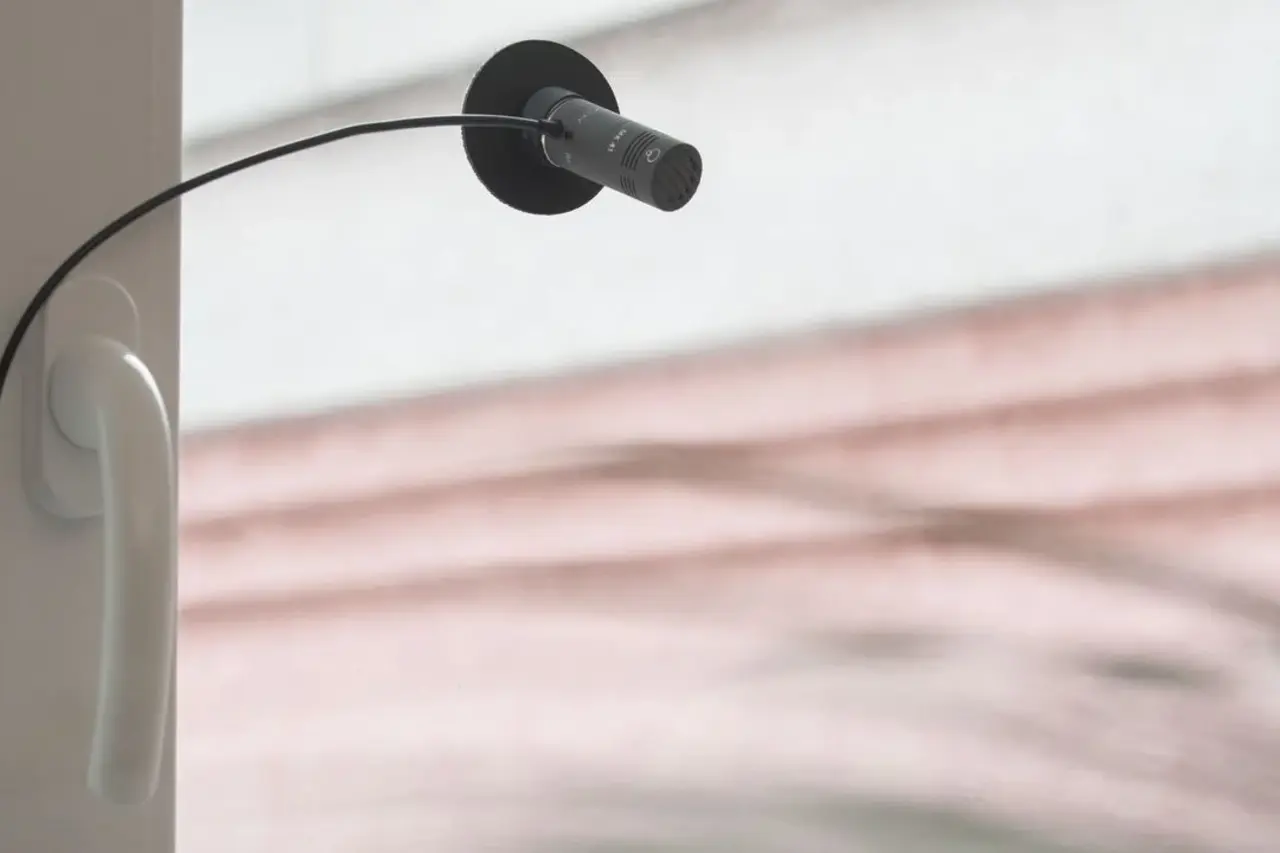

The magnetic rear surface and supplied mounting accessories allow discreet placement, for example as a plant microphone for film dialogue.

Main Features

• Compatible with Schoeps MK capsules and active Colette accessories.
• Magnetic rear surface for mounting with the supplied accessories.
• SCHOEPS RFI Shield for protection against radio-frequency interference.
• Operates on P12 or P48 phantom power.
• Fixed low-cut filter: 20 Hz, 12 dB/octave.

Compatibility and Connection

This version is wired for Zaxcom ZMT transmitters with P12 or P48 phantom power. Check the wiring and phantom-power capability of the specific transmitter model; a matching Lemo connector alone does not establish compatibility.

Specifications

• Output: 3-pin Lemo for Zaxcom, analog, one channel.
• Cable length: 0.5 m, tolerance ±5%.
• Amplifier frequency range: 20 Hz–20 kHz.
• Maximum output voltage: 1.8 V into a 1 kΩ load.
• Maximum SPL with MK 4: 135 dB SPL at P48; 131 dB SPL at P12, with less than 0.5% distortion.
• Output impedance: 50 Ω; minimum recommended load: 1 kΩ.
• Common-mode rejection: >55 dB at 1 kHz.
• Powering: P48, 30–52 V; P12, 11–13 V.
• Current consumption: 2 mA at P48; 3 mA at P12.
• Amplifier length: 29 mm; diameter: 20 mm.
• Weight: approximately 28 g without cable.
• Finish: matte gray.

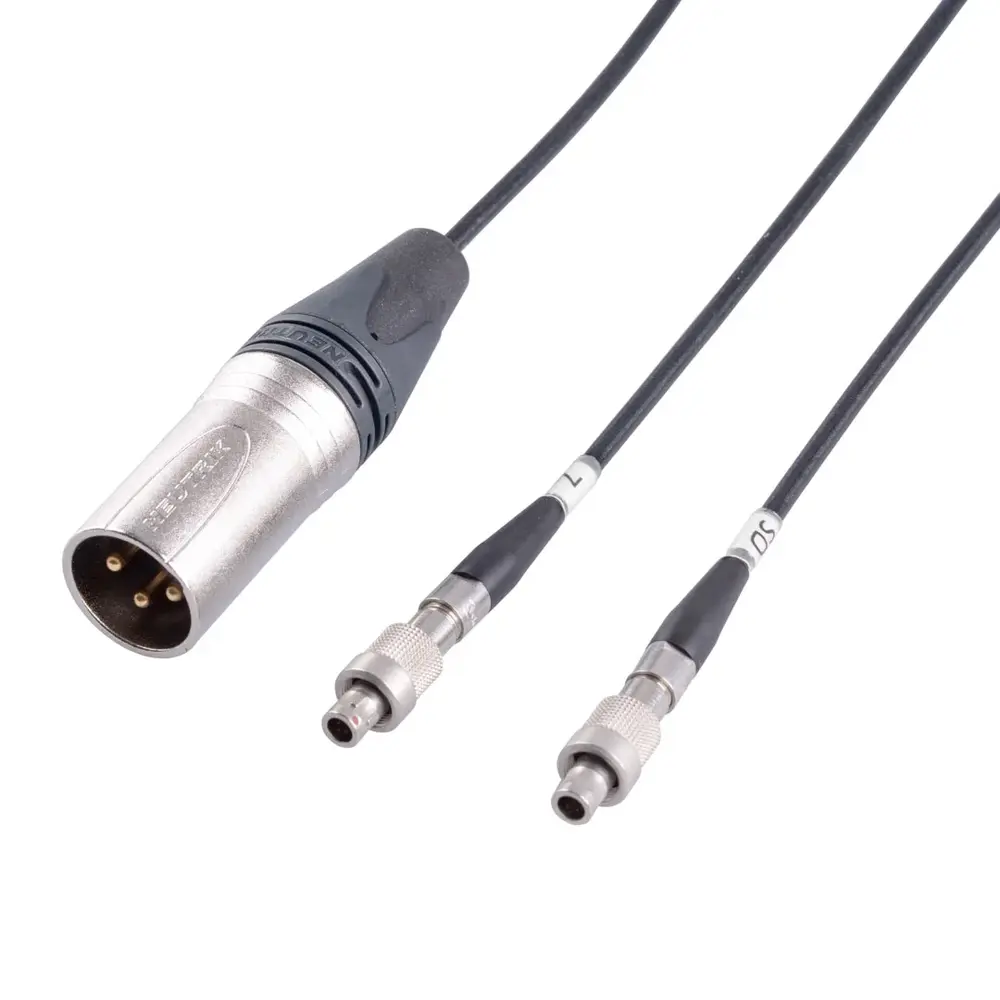

Other Versions

• CMC 1 KV, XLR [132018]: fixed 2 m cable with XLR3M connector.
• CMC 1 KV, LemoSD [132019]: fixed 0.5 m cable with 3-pin Lemo connector for Sound Devices.

The Lemo versions require a compatible transmitter supplying P12 or P48 phantom power.

Included

• 1 × Schoeps CMC 1 KV with fixed 0.5 m cable and 3-pin Lemo connector for Zaxcom.

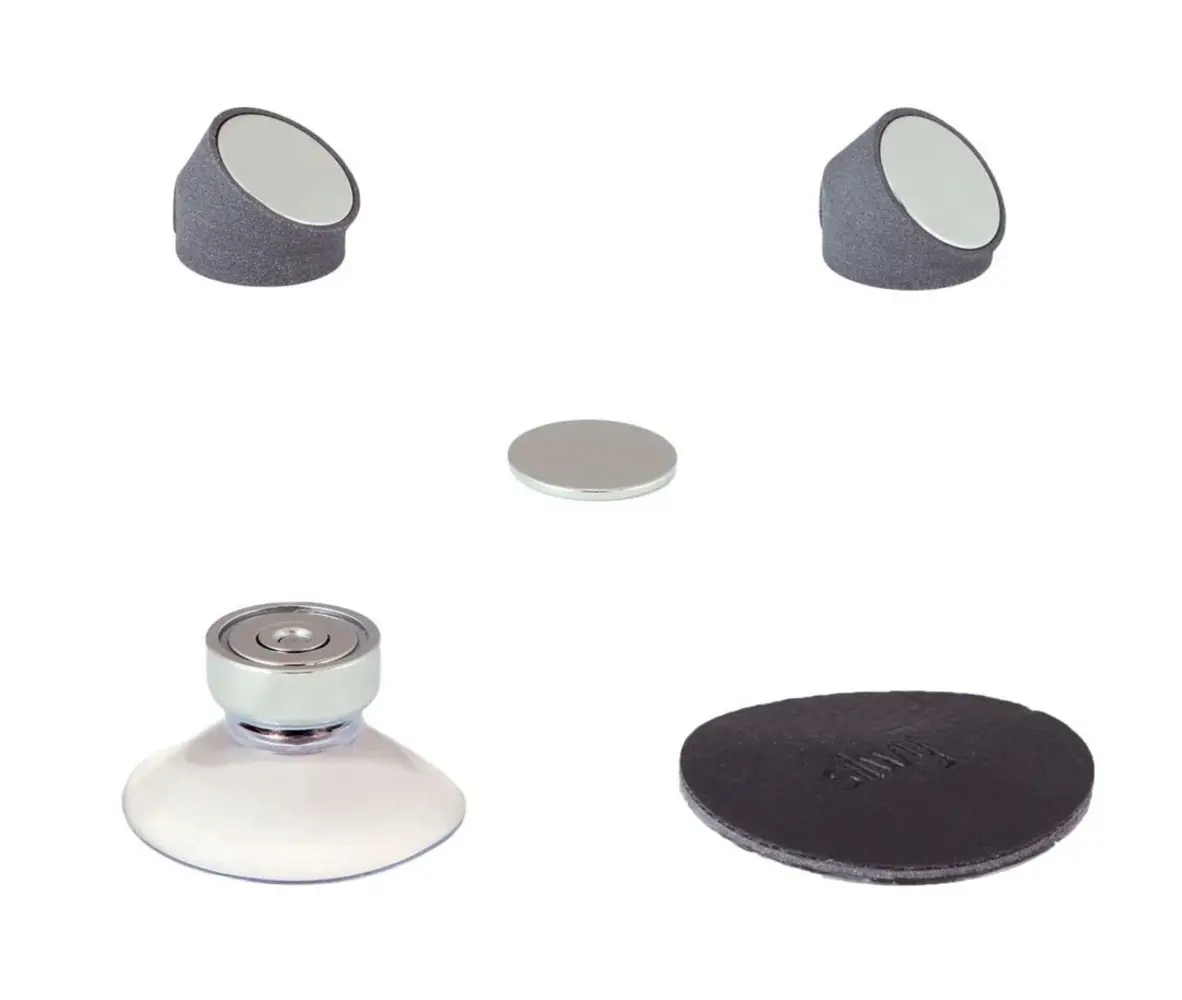

• 1 × magnetic angle piece 30° [161116].
• 1 × magnetic angle piece 45° [161117].
• 1 × Disc magnet 20 mm [302034].
• 1 × self-adhesive magnetic pad, 5 cm, black [302033].
• 1 × suction cup, Ø50 mm, with magnet [302039].
• 1 × SG 20 [161125] stand clamp.
• 1 × wooden storage case.

MK capsule and transmitter or microphone preamplifier are available separately.
