    Schoeps CMC 1 KV, LemoSD

    Product description
    Schoeps CMC 1 KV, LemoSD [132019] The Schoeps CMC 1 KV, LemoSD is a compact Colette microphone amplifier with a fixed 0.5-meter cable and 3-pin Lemo connector for Sound Devices. The cable exits the side, keeping the microphone setup short. Combined with a separately available MK capsule, it forms a complete analog microphone. The magnetic rear surf...

    Schoeps CMC 1 KV, LemoSD [132019]

    The Schoeps CMC 1 KV, LemoSD is a compact Colette microphone amplifier with a fixed 0.5-meter cable and 3-pin Lemo connector for Sound Devices. The cable exits the side, keeping the microphone setup short. Combined with a separately available MK capsule, it forms a complete analog microphone.

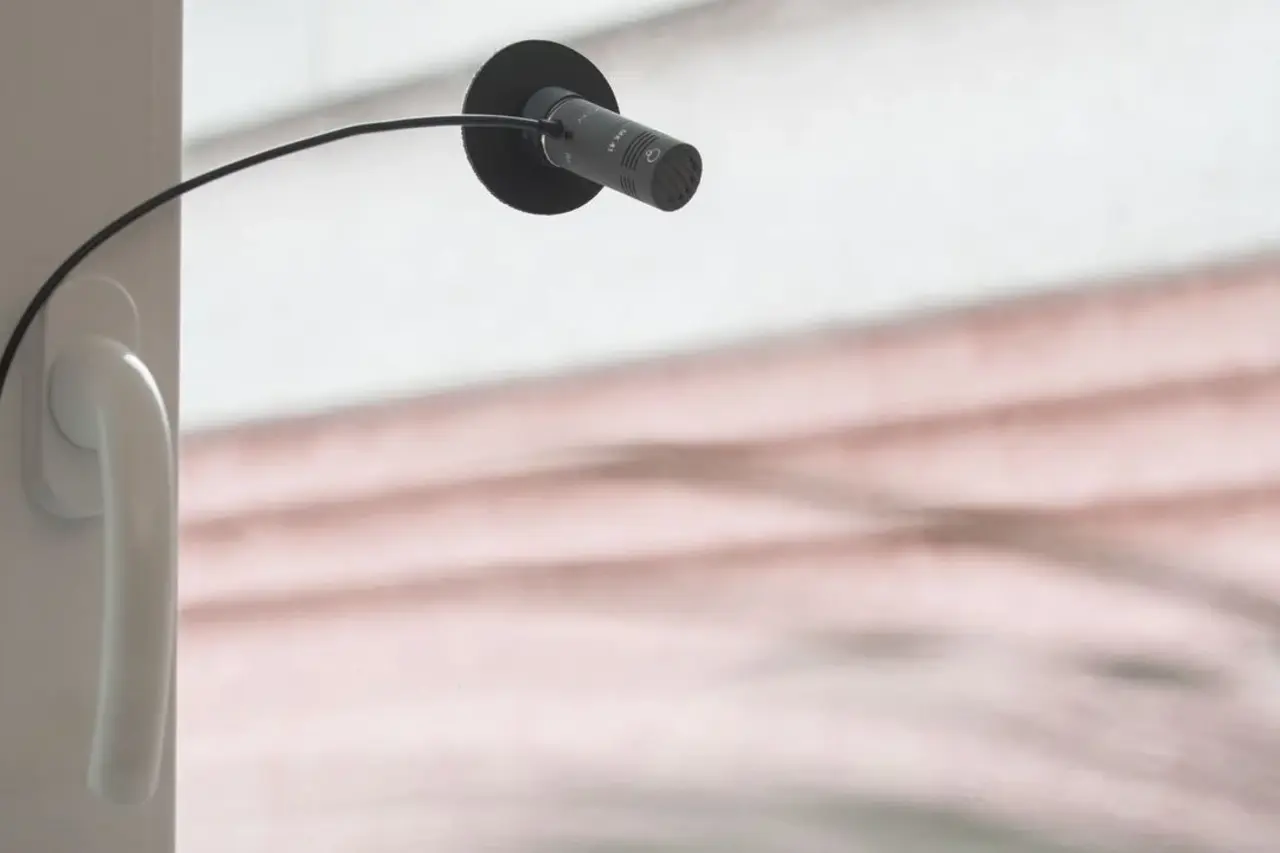

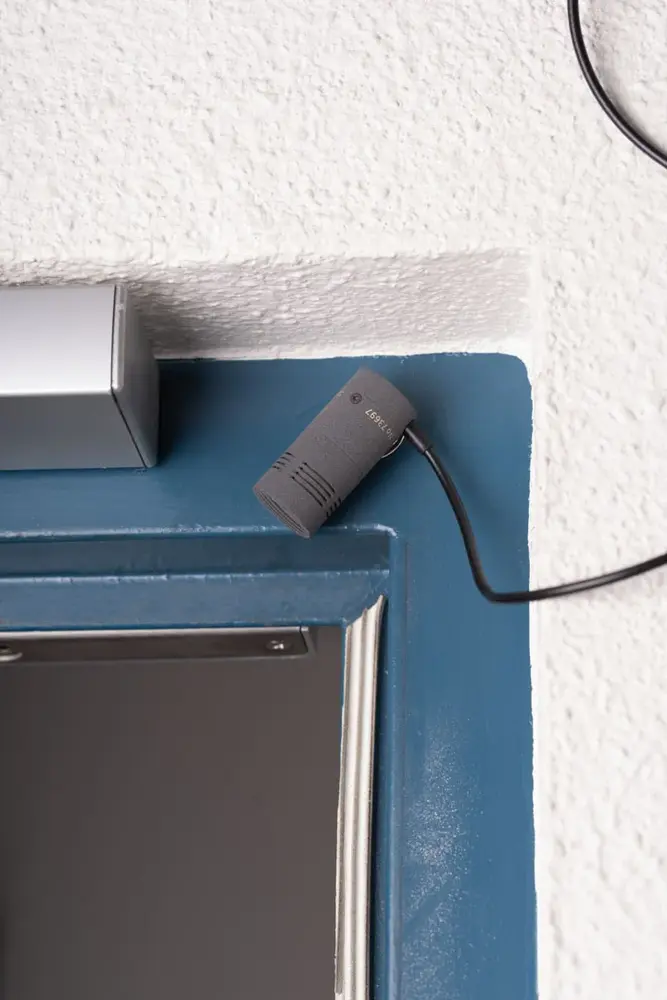

    The magnetic rear surface and supplied mounting accessories allow discreet placement, for example as a plant microphone for film dialogue.

    Main Features

    • Compatible with Schoeps MK capsules and active Colette accessories.
    • Magnetic rear surface for mounting with the supplied accessories.
    • SCHOEPS RFI Shield for protection against radio-frequency interference.
    • Operates on P12 or P48 phantom power.
    • Fixed low-cut filter: 20 Hz, 12 dB/octave.

    Compatibility and Connection

    This version is wired for Sound Devices transmitters with P12 or P48 phantom power. Check the wiring and phantom-power capability of the specific transmitter model; a matching Lemo connector alone does not establish compatibility.

    Specifications

    • Output: 3-pin Lemo for Sound Devices, analog, one channel.
    • Cable length: 0.5 m, tolerance ±5%.
    • Amplifier frequency range: 20 Hz–20 kHz.
    • Maximum output voltage: 1.8 V into a 1 kΩ load.
    • Maximum SPL with MK 4: 135 dB SPL at P48; 131 dB SPL at P12, with less than 0.5% distortion.
    • Output impedance: 50 Ω; minimum recommended load: 1 kΩ.
    • Common-mode rejection: >55 dB at 1 kHz.
    • Powering: P48, 30–52 V; P12, 11–13 V.
    • Current consumption: 2 mA at P48; 3 mA at P12.
    • Amplifier length: 29 mm; diameter: 20 mm.
    • Weight: approximately 28 g without cable.
    • Finish: matte gray.

    Other Versions

    The Lemo versions require a compatible transmitter supplying P12 or P48 phantom power.

    Included

    • 1 × Schoeps CMC 1 KV with fixed 0.5 m cable and 3-pin Lemo connector for Sound Devices.

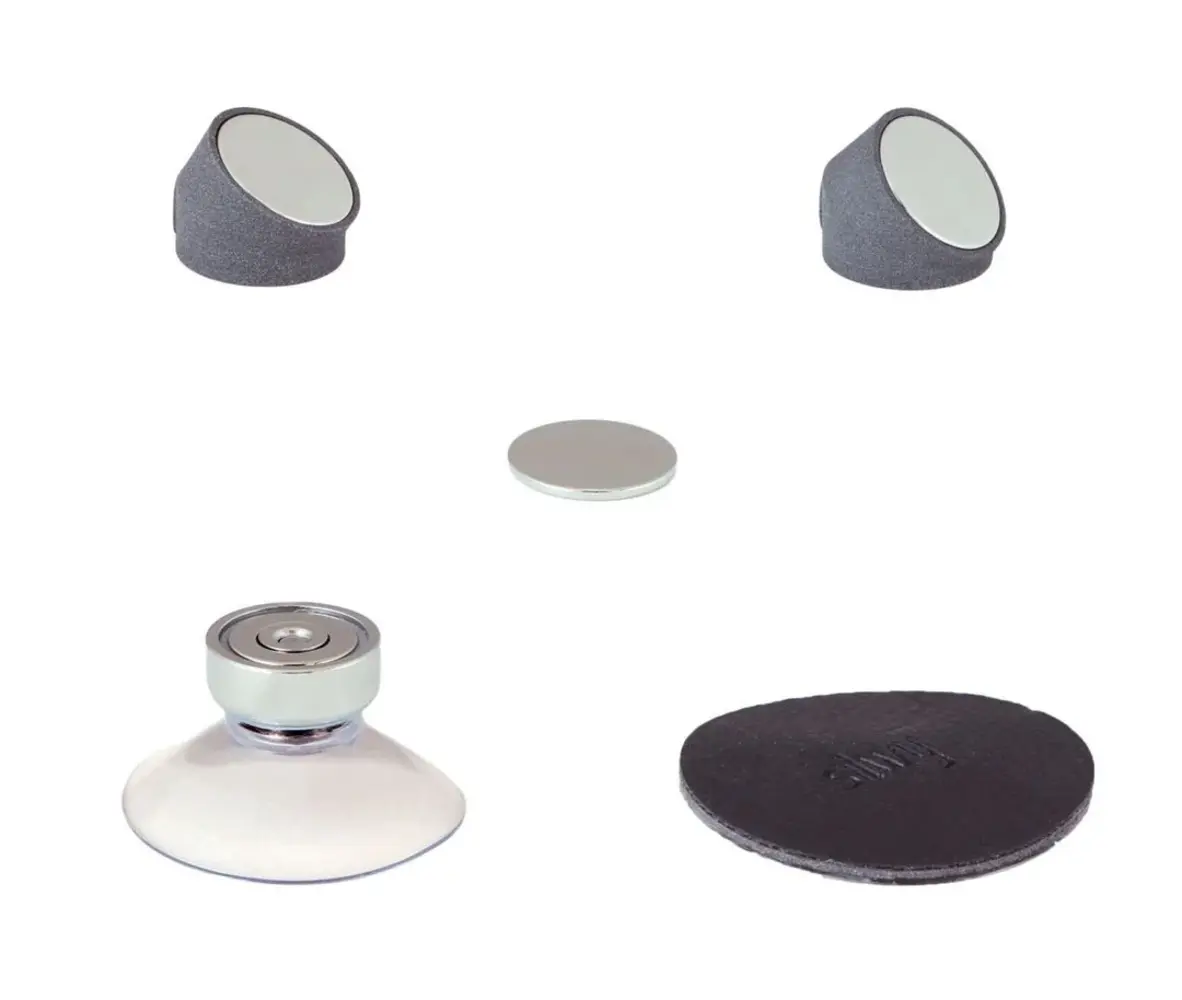

    • 1 × magnetic angle piece 30° [161116].
    • 1 × magnetic angle piece 45° [161117].
    • 1 × Disc magnet 20 mm [302034].
    • 1 × self-adhesive magnetic pad, 5 cm, black [302033].
    • 1 × suction cup, Ø50 mm, with magnet [302039].
    • 1 × SG 20 [161125] stand clamp.
    • 1 × wooden storage case.

    MK capsule and transmitter or microphone preamplifier are available separately.

    Product specifications

    Article number
    SCHMicCMC 8483
    SKU
    132019
    EAN
    4068305001692
