Schoeps Mono-Set CMC 1 L, MK 8

Schoeps Mono-Set CMC 1 L, MK 8 [138505]

Compact Colette microphone set combining an MK 8 figure-eight capsule with a CMC 1 L microphone amplifier. The miniature Lemo output connects to an XLR microphone input with phantom power through the included K 5 LU cable.

Use and placement

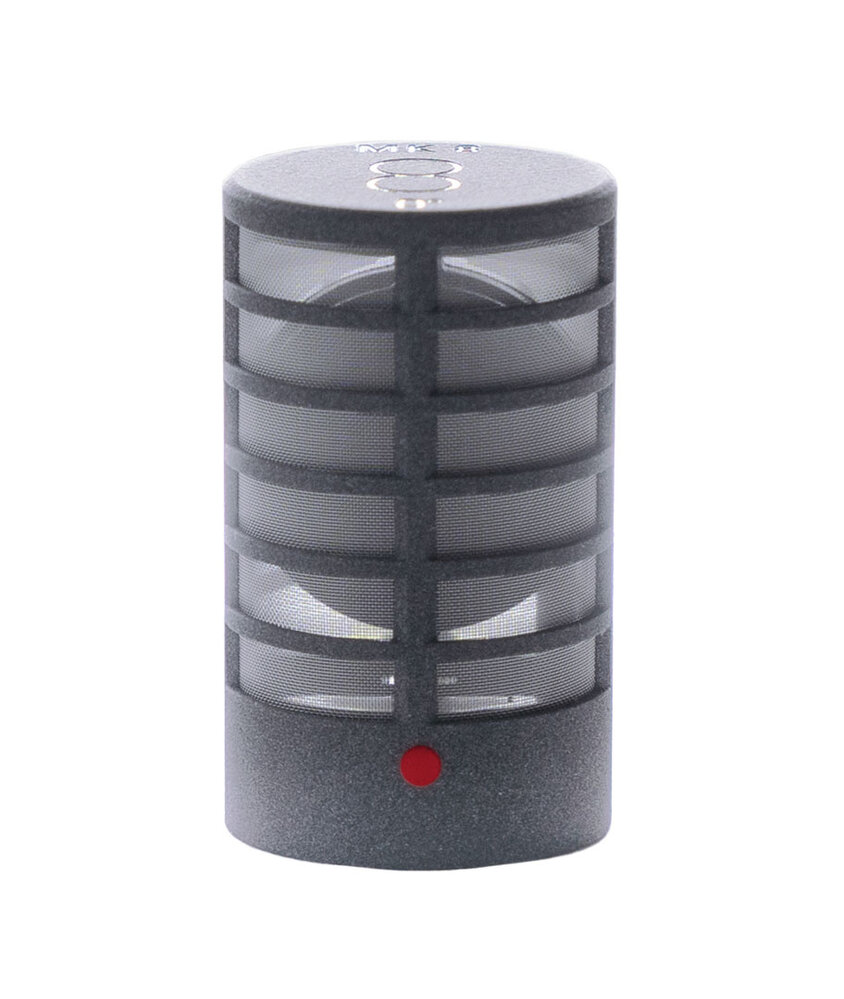

The MK 8 is side-addressed, with a red dot marking the 0° side. Suitable as the side microphone in an M/S setup or as part of a Blumlein pair. These configurations require an additional microphone.

Specifications

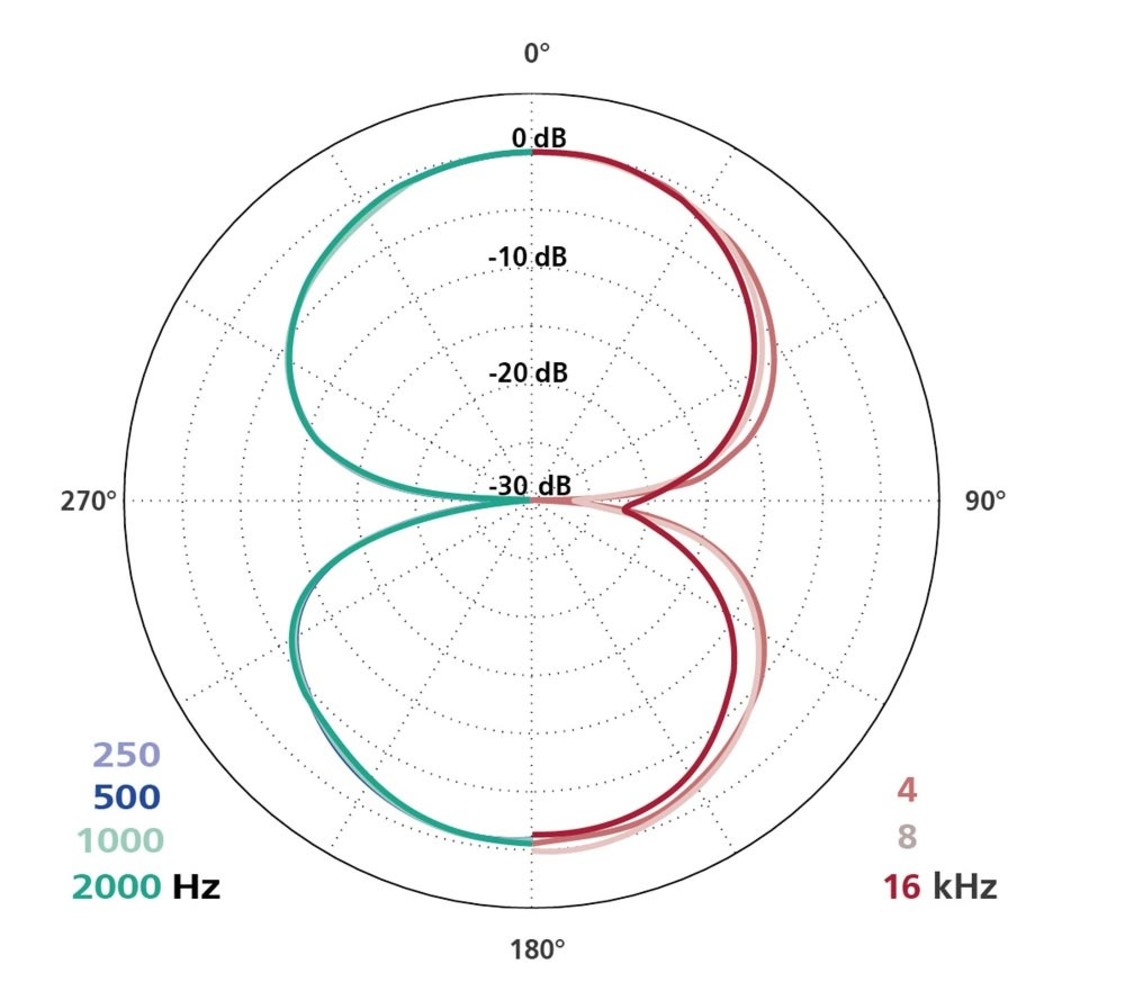

• Polar pattern: figure-eight
• Frequency range: 40 Hz–15 kHz
• Sensitivity: 12 mV/Pa
• Equivalent noise level: 17 dB-A; 26 dB CCIR
• Signal-to-noise ratio: 77 dB-A
• Maximum SPL with CMC 1: 137 dB SPL at THD < 0.5%
• Power supply: P12 / P48
• Current consumption: 3 mA at P12; 2 mA at P48
• Output impedance: 50 Ω
• Microphone connector: Lemo
• Included cable: 5 m, Lemo to XLR-3M
• Finish: matte gray

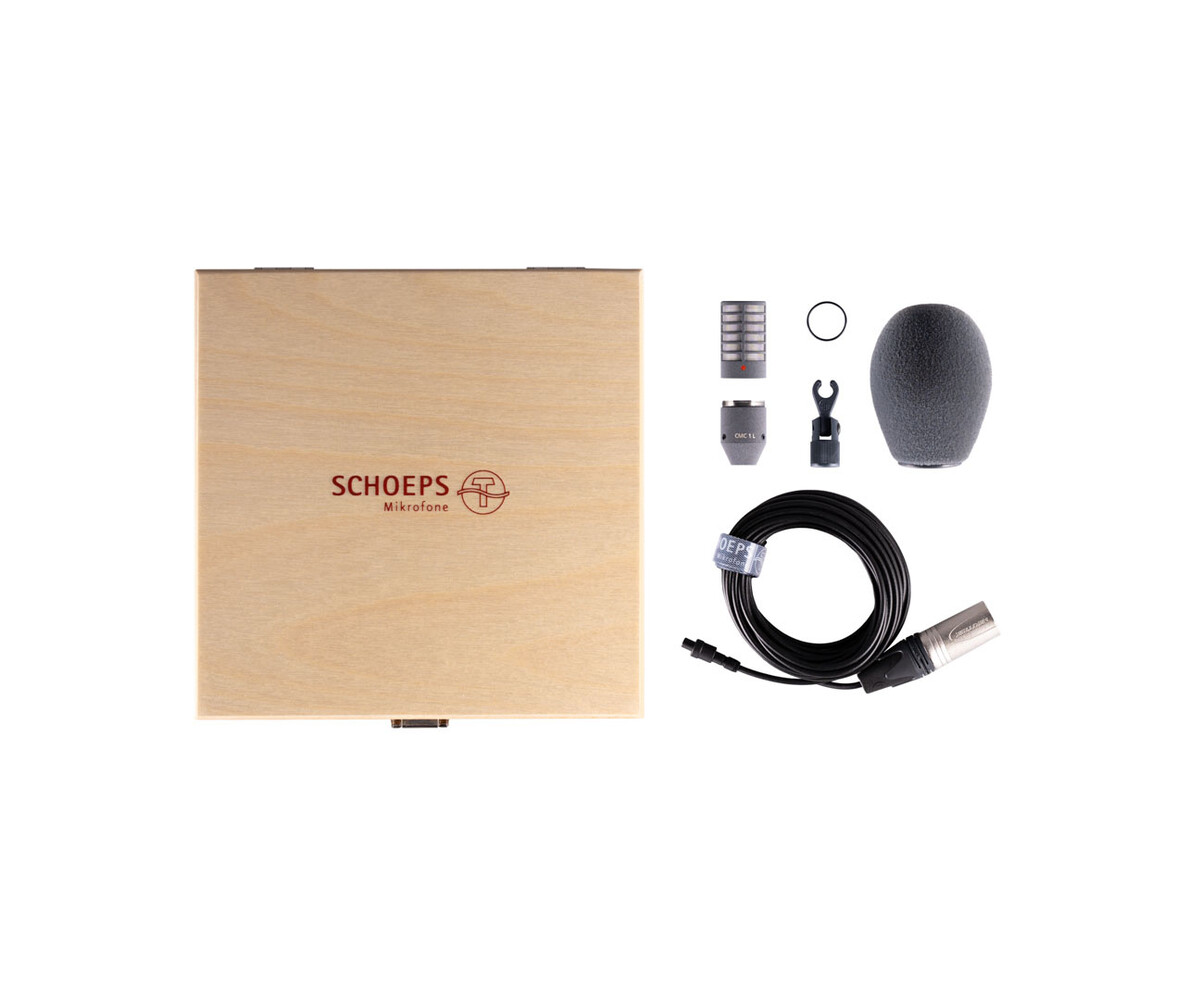

Included

• 1 × MK 8 microphone capsule

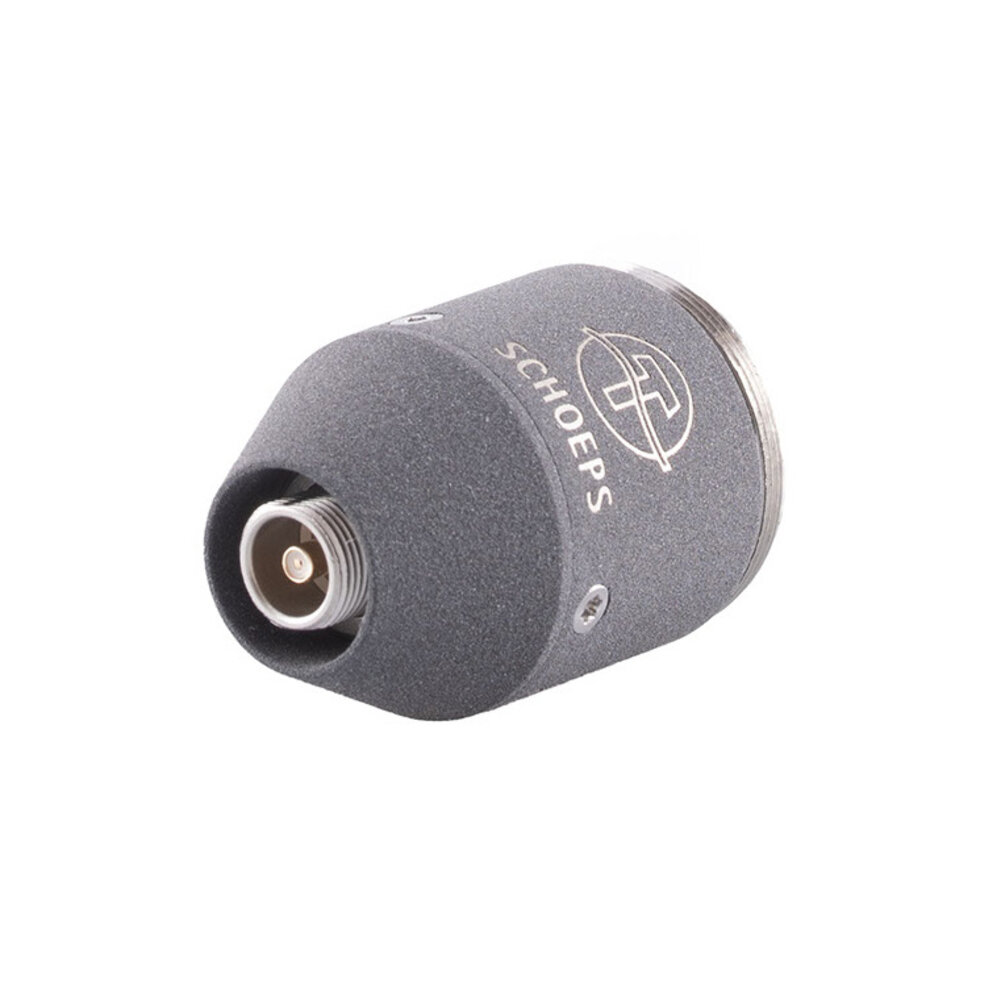

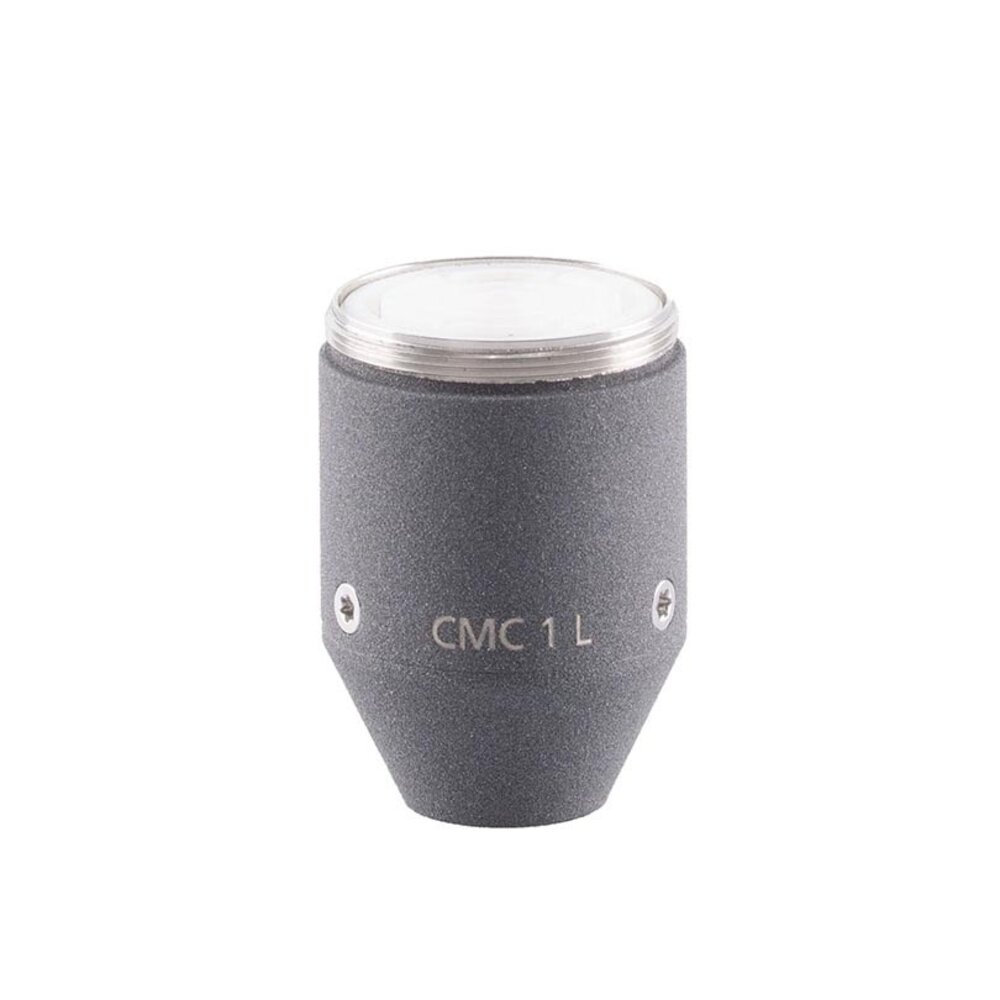

• 1 × CMC 1 L microphone amplifier

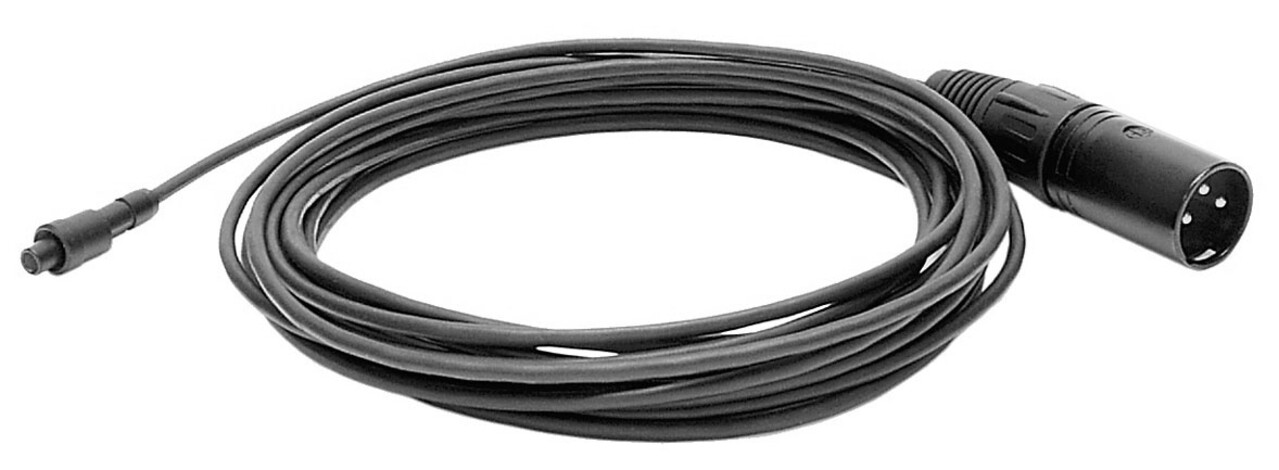

• 1 × K 5 LU cable, 5 meters

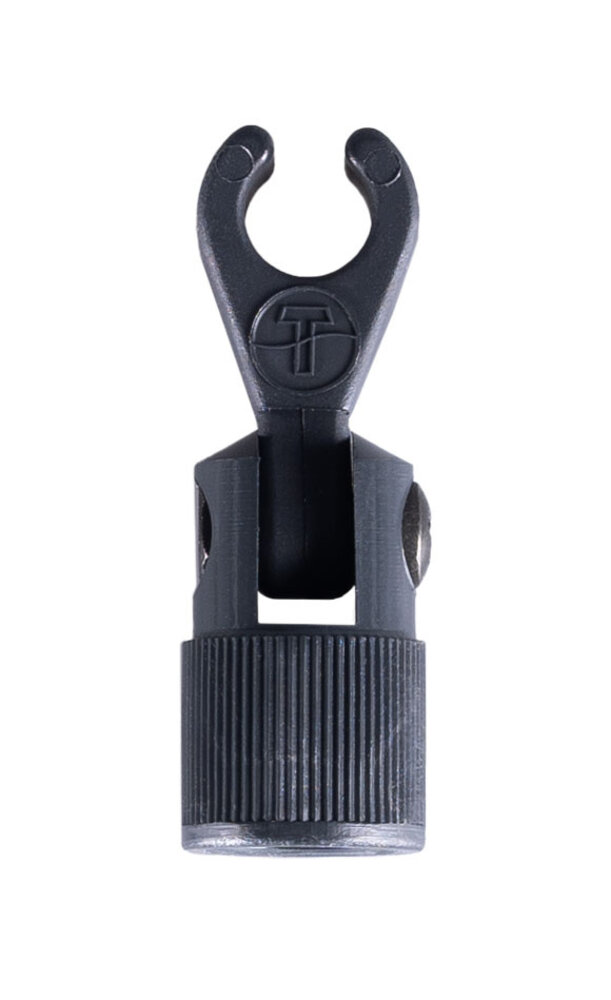

• 1 × SGC microphone clamp

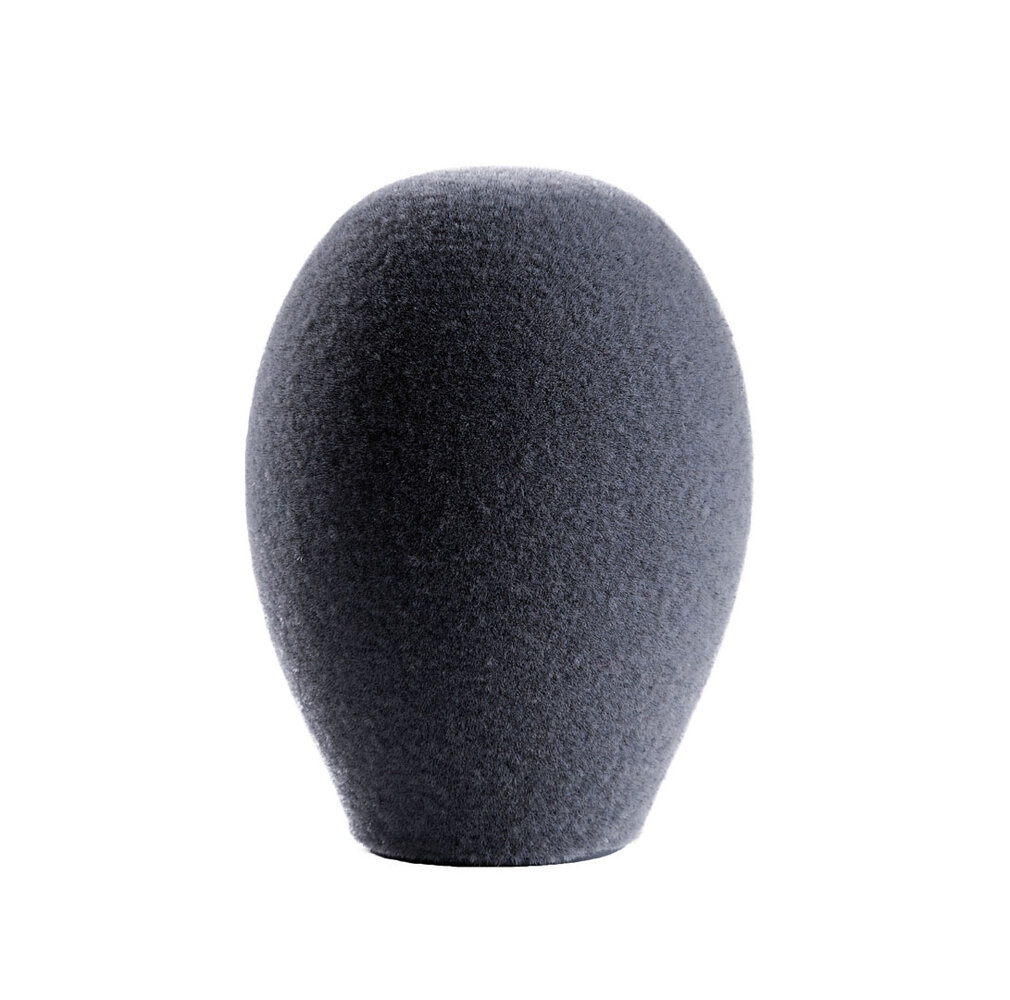

• 1 × B 5 D hollow foam screen

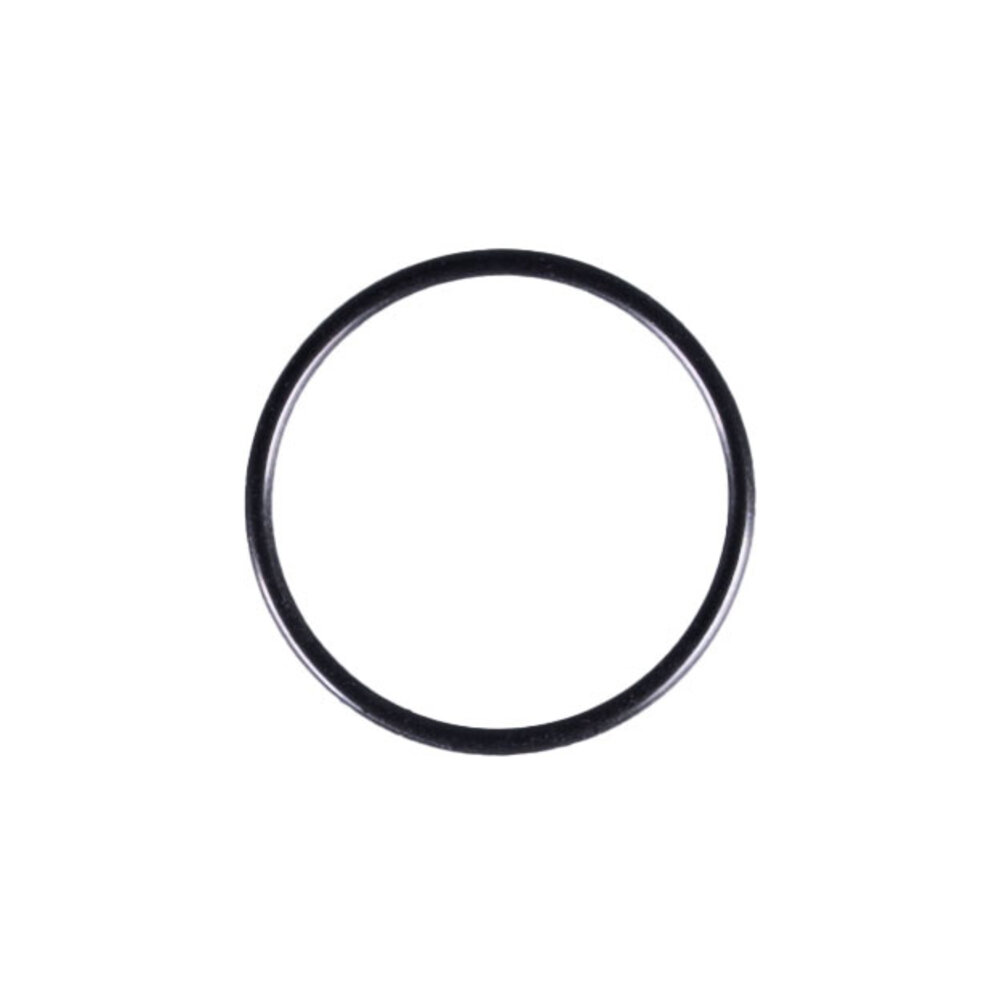

• O-rings for radial alignment of the MK 8
• Schoeps hook-and-loop cable strap

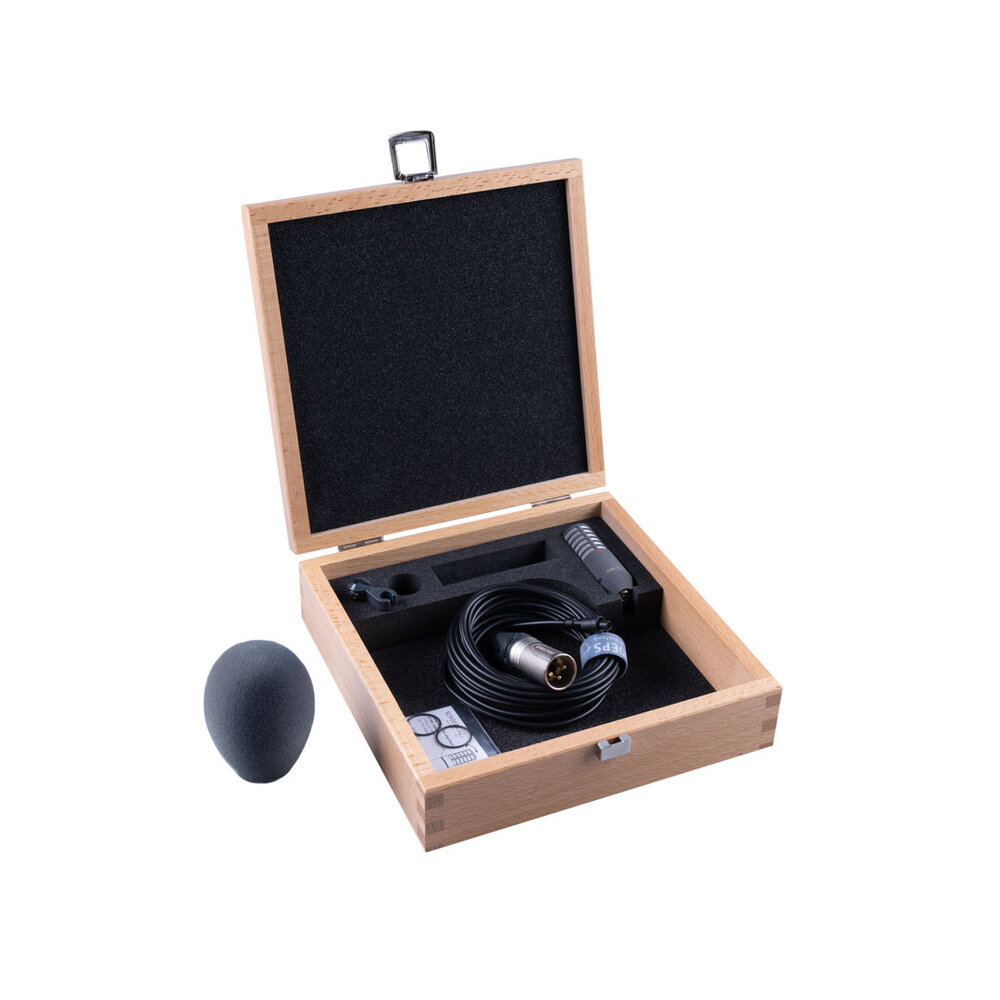

• Wooden storage case

Microphone stand not included.
