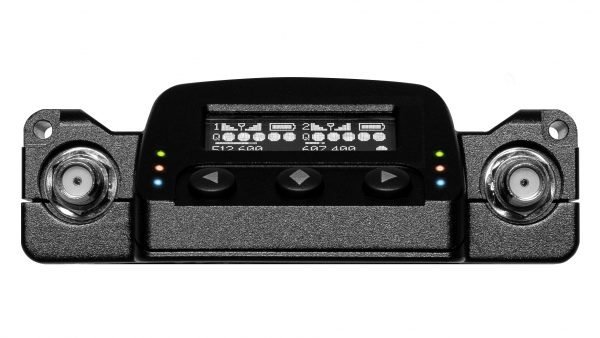

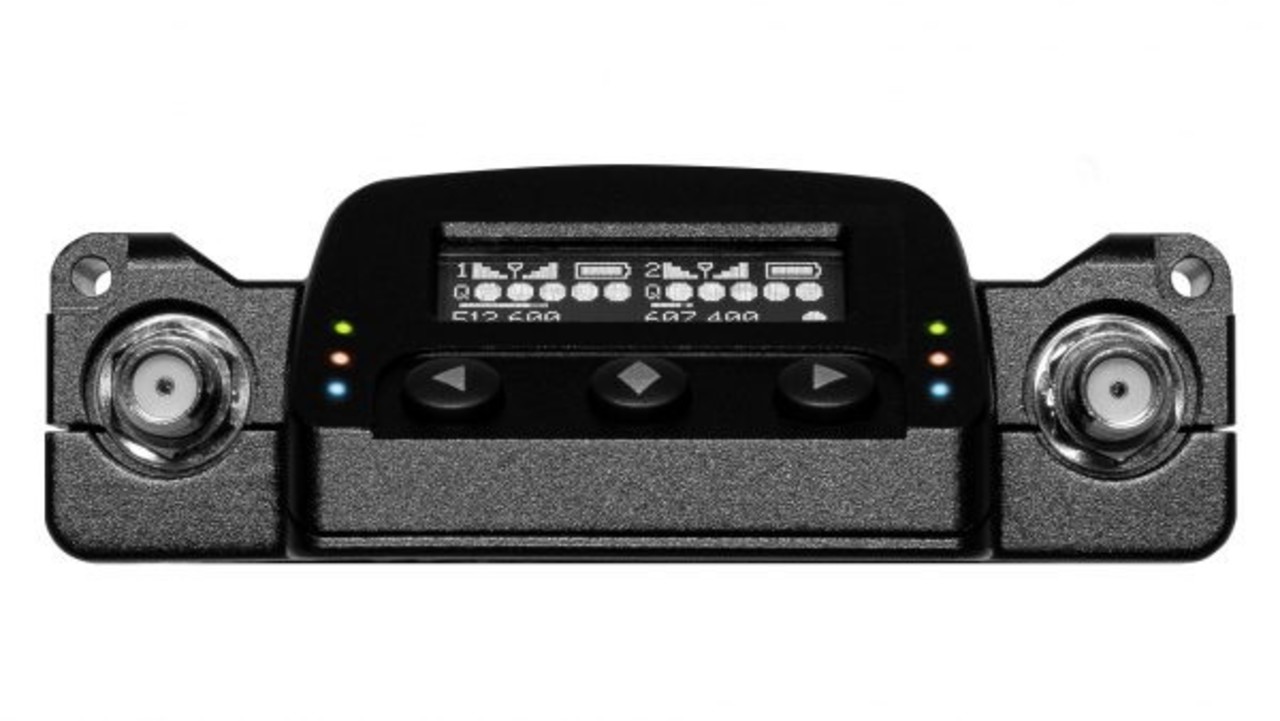

Sound Devices A20-RX Standalone

Description:

The Sound Devices A20-RX Standalone is a dual-channel true diversity receiver featuring SpectraBand technology, supporting a wide tuning range of 169 to 1525 MHz. The device provides exceptional flexibility in various RF environments with advanced digital long-range modulation and extensive connectivity options.

Features:

• SpectraBand technology: tuning range of 169 to 1525 MHz.
• Digital true diversity: two full RF receivers per channel.
• 100% digital long-range modulation for extended transmission range.
• GainForward architecture for flexible gain settings.
• Compatible with SuperSlot, XLR and TA3 adapters, and more.

Specifications:

• RF tuning range: 169 to 1525 MHz
• Modulation: Proprietary digital RF modulation
• Latency: 2 ms (standard modulation), 3.9 ms (long-range modulation)
• Audio frequency range: 10 Hz–20 kHz
• Maximum output level: +14 dBu, +2 dBu, -10 dBu, or -22 dBu
• Digital audio output: AES3 balanced, 110-ohm output impedance
• Power: 6–18 VDC
• Operating temperature: -10 °C to +55 °C
• Dimensions (H x W x D): 113.7 mm x 78.5 mm x 26.6 mm
• Weight: 165 g (without backplate accessories)
