Sound Devices A20-NEXUS GO

Product description
Sound Devices A20-Nexus Go True-diversity Wireless Receiver with SpectraBand    Ready.  When you’re doing bag work, you need a high-quality, high-channel-count audio receiver that won’t weigh you down. Sound Devices’ A20-Nexus Go true-diversity wireless receiver was made with portability in mind. It comes with four receiver channels, and...

Sound Devices A20-Nexus Go

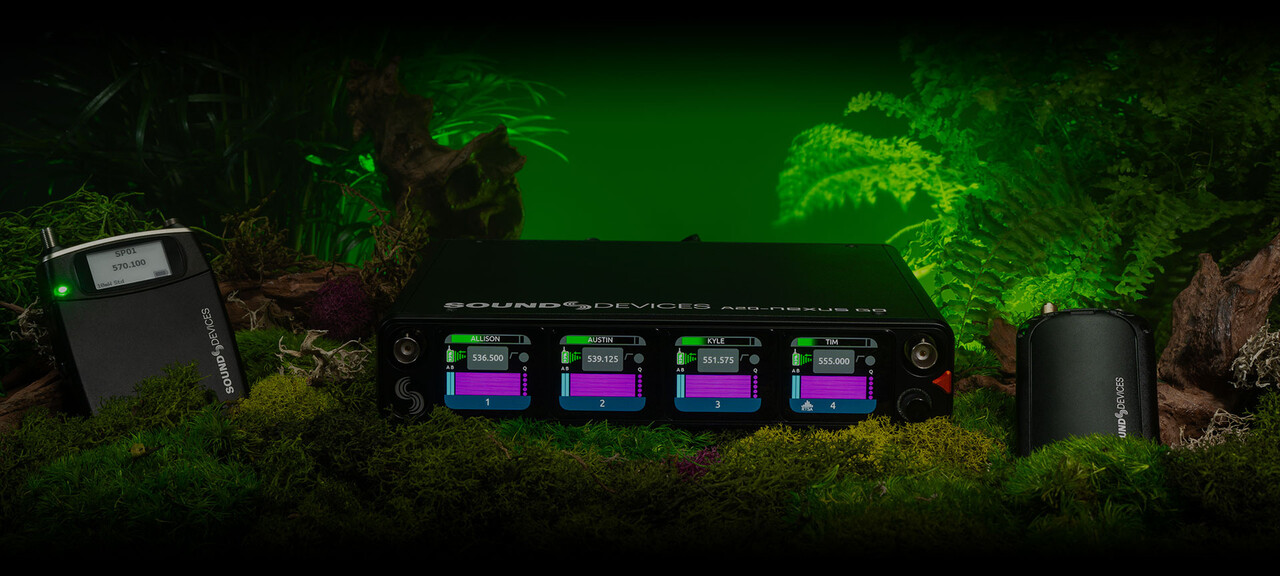

Sound Devices A20-Nexus Go True-diversity Wireless Receiver with SpectraBand



Sound Devices A20-Nexus-Go

Ready.

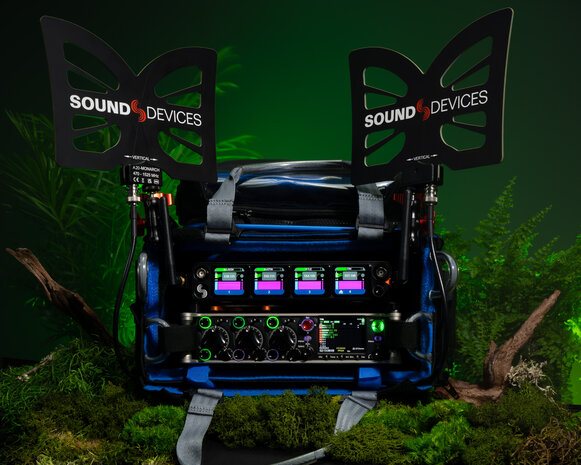

When you’re doing bag work, you need a high-quality, high-channel-count audio receiver that won’t weigh you down. Sound Devices’ A20-Nexus Go true-diversity wireless receiver was made with portability in mind. It comes with four receiver channels, and can be expanded to six and eight channels via software license, without additional hardware. Need to transition to a rack or cart? The A20-Nexus Go receiver’s half-unit size will save you space there, too. It’s ready for anything.

Set.

The A20-Nexus Go receiver has an advanced set of features inherent in the Sound Devices Astral family of products, including:

SpectraBand: The A20-Nexus Go receiver utilizes the unparalleled SpectraBand tuning range of 169 – 1525 MHz, allowing you the ability to find open spectrum, even in the busiest UHF TV band.

GainForward: No more stopping the action on set. No more adjusting the transmitter gain on the talent. You can set your levels and make adjustments at your A20-Nexus Go receiver and not at the transmitter with GainForward.

Go.

The A20-Nexus Go receiver is ready to go the distance, thanks to Sound Devices’ proprietary NexLink protocol.

NexLink: By utilizing the NexLink protocol, the A20-Nexus Go receiver has full long-range remote control of transmitters, even in the presence of on-set 2.4 GHz interference.

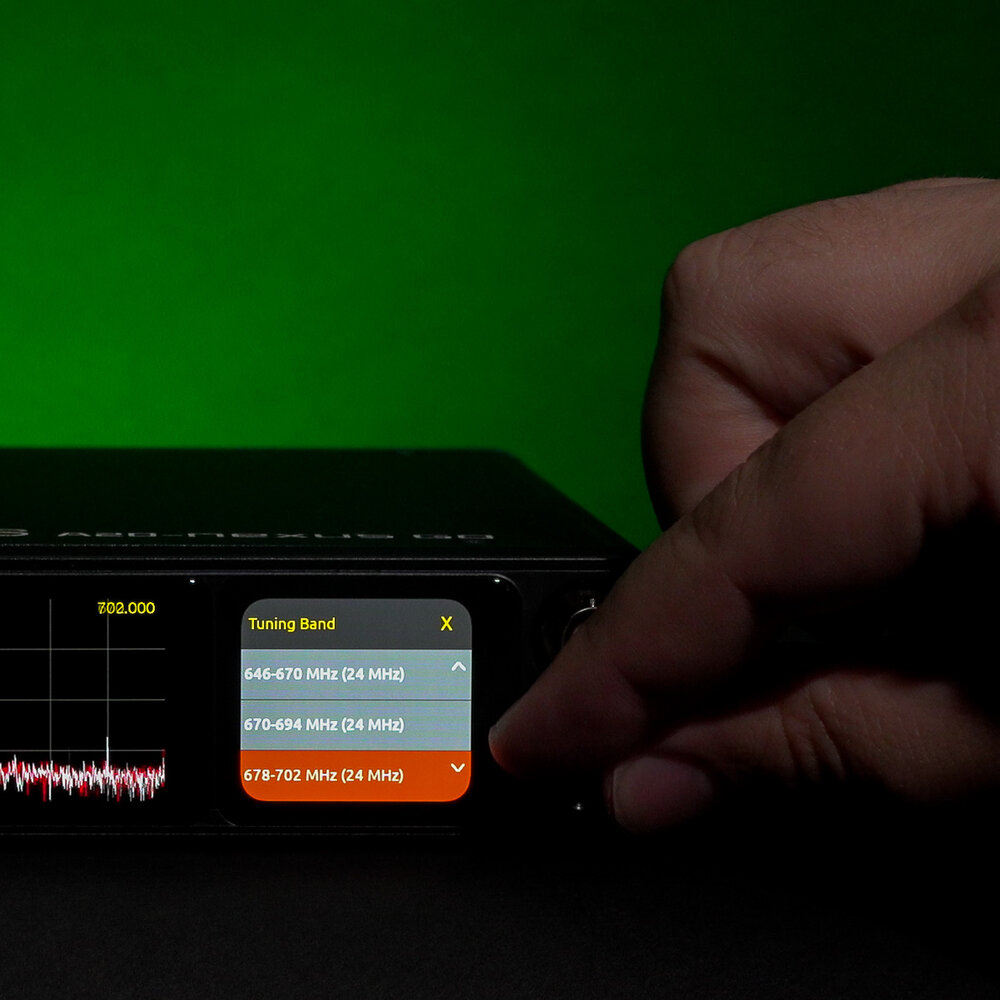

RTSA: With NexLink and the A20-Nexus Go receiver’s integrated RTSA (Real Time Spectrum Analyzer), you can visually monitor the changing RF environment without interrupting the audio or a shoot.

AutoAssign: Save time on set. The AutoAssign function automatically scans the current tuning band for clean frequencies and assigns them to multiple channels. The clean frequencies are then automatically pushed to transmitters linked to the NexLink protocol. This is all done with one button in mere seconds.



A20-Nexus Go Main Product Features

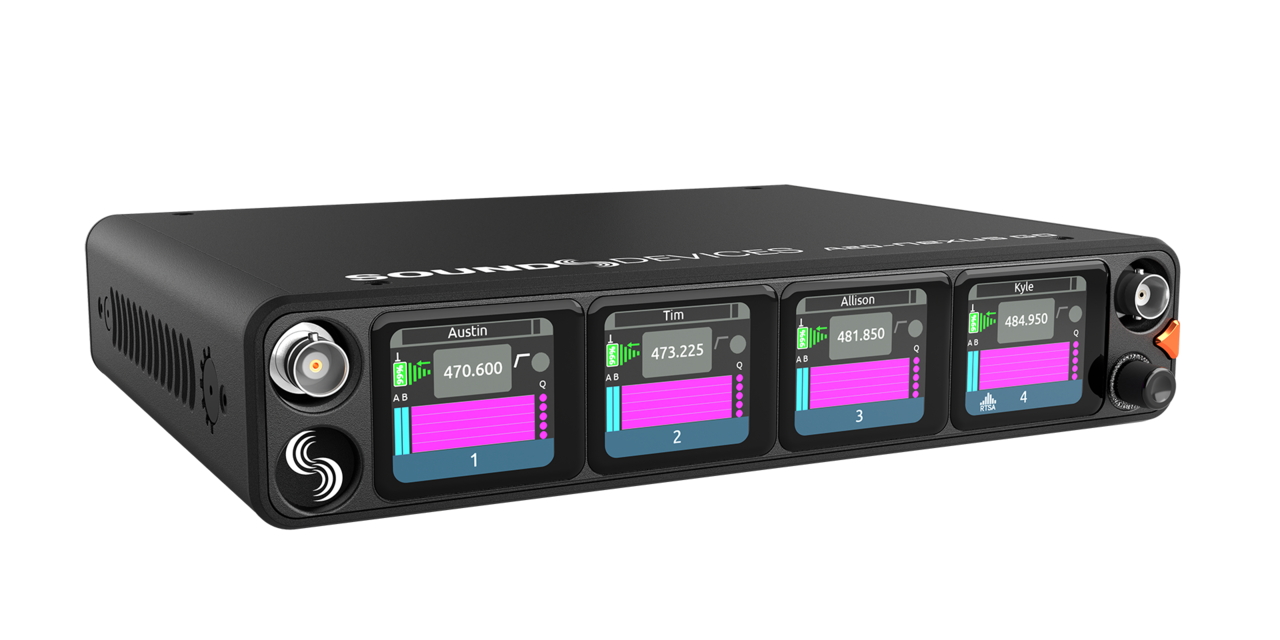

  • 4-channel ultra-high-performance, true-diversity receivers in a half-rack size (8.0” x 6.6” x 1.6” / 20.3cm x 16.8cm x 4.1cm).
  • Expandable to 6 or 8 channels via A20-Nexus Go 2-Channel Expansion Licenses.
  • 169 MHz – 1525 MHz tuning range via Sound Devices’ proprietary SpectraBand Technology.
  • Sound Devices NexLink: integrated, long-distance remote control of all wireless transmitters, including group power on/off.
  • AutoAssign: automatic deployment of clean frequencies in seconds.
  • Integrated Real Time Spectrum Analyzer (RTSA) and scanning for intuitive frequency coordination.
  • Flexible powering: via DC input, 8-Series, or AC mains (with optional adapter).

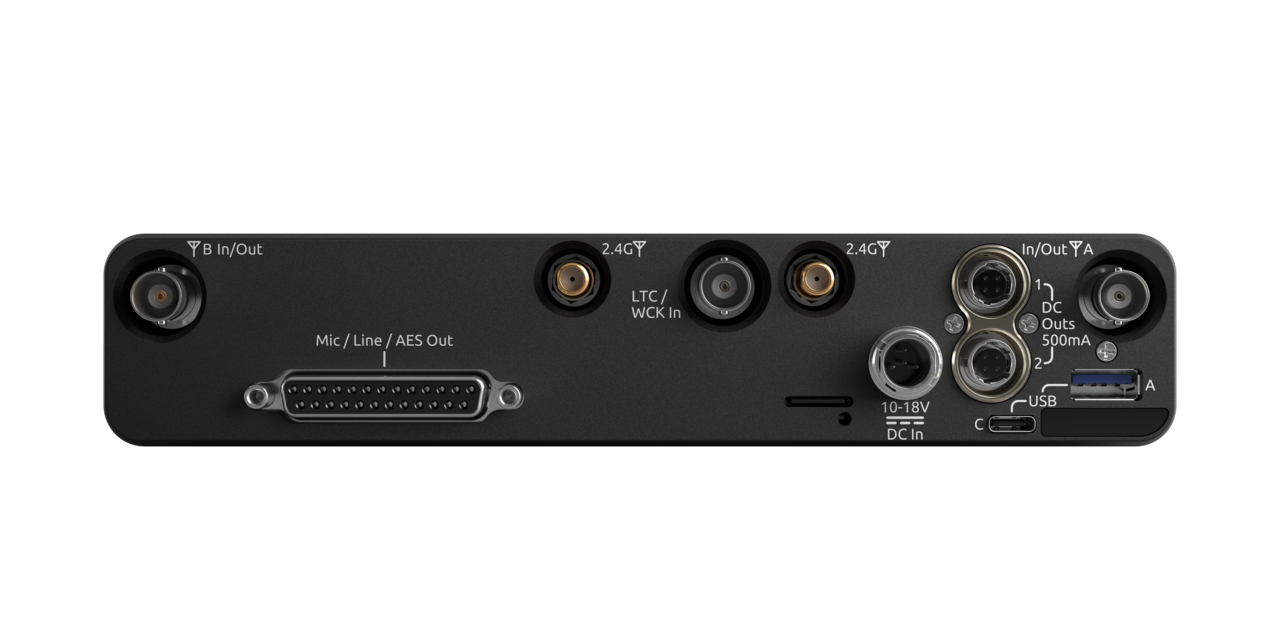

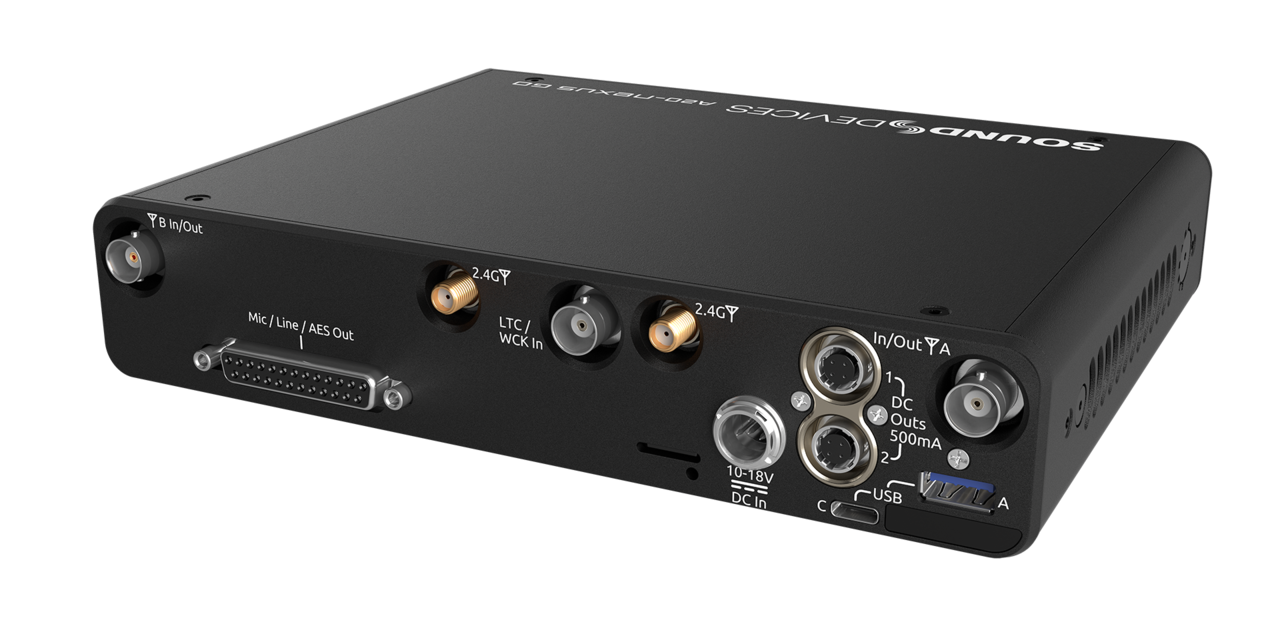

  • DB-25 connector for 8 channels of mic, line, or AES outputs.
  • Wide, 6.2” color OLED array with touch for control and monitoring.

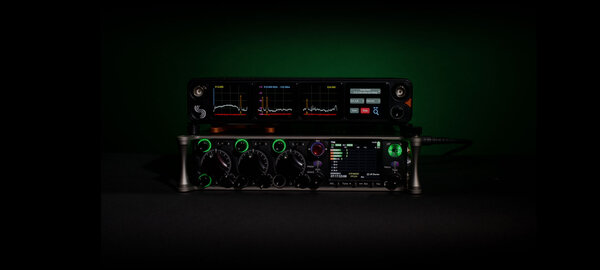

  • A20-QuickDock allows docking and undocking in seconds from Sound Devices 8-Series mixer-recorders with no tools or additional hardware.
  • Supports GainForward Architecture: No gain setting on the A20 transmitter. Adjust gain at the receiver or mixer.
  • 100% digital long-range modulation delivers the longest transmission distance of any digital system on the market. 
  • RF SAW filters for excellent rejection of interference from nearby IFB or camera hop transmitters.
  • Excellent audio quality, full 10 Hz – 20 kHz audio bandwidth.
  • BNC timecode input for auto timecode sync of transmitters over NexLink.
  • Front panel and rear panel BNC antenna inputs. Compatible with passive and bias-powered antennas
  • Supports control of the Wisycom LFA smart antenna.
  • Cascade out option on rear BNCs for cascading multiple A20-Nexus Go units.
  • USB-A port for thumb drives, keyboards, transmitter pairing, and timecode syncing. Supports USB hubs.

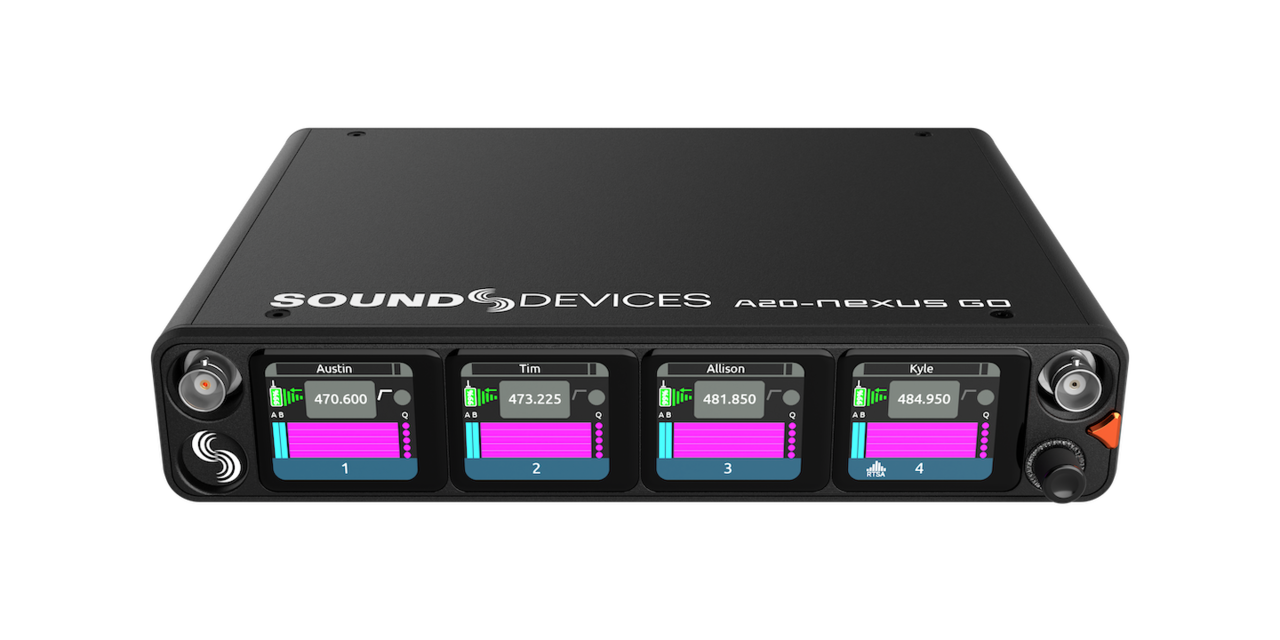

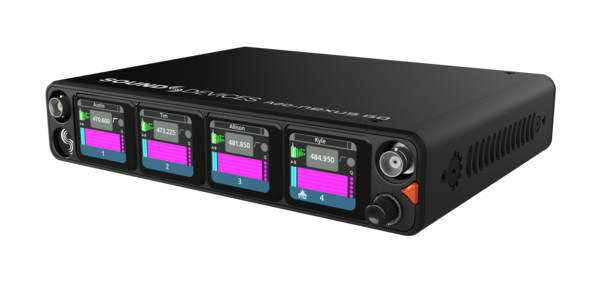

Sound Devices A20-Nexus Go Front

A20-Nexus Go Specifications

Specifications are subject to change without prior notice. For the latest information available on all Sound Devices products, visit our website: www.sounddevices.com

Patents: The A20-Nexus Go is protected by US patents US10678294B2, US20190166523A1, International patent WO2018022209A1, and several patents pending.



RF

Tuning

  • 169 to 1525 MHz (1356 MHz switching bandwidth)
  • 25 kHz steps
  • SpectraBand Technology for maximum rejection of out-of-band signals
  • Available frequencies depend on country of operation

Modulation

  • Proprietary, 100% digital RF modulation
  • Standard or Long Range, selectable per channel

Spurious Rejection

  • >100 dB typical

Cascade output

  • 50 ohm
  • 3.5 dB Insertion Loss from front BNC through rear BNC: It is recommended to use an external powered antenna to overcome the 3 dB splitting loss in the A20-Nexus so that the receivers maintain excellent range
  • Wideband power split, pre-LNA

RF Bias output

  • 12V, 200 mA each BNC
  • Smart antenna support, Wisycom-compatible

Audio

Latency

  • Standard modulation = 2 ms, analog or digital outputs
  • Long Range modulation = 3.9 ms, analog or digital outputs

Audio Frequency Response

  • 10 Hz–20 kHz, +/- 1 dB relative to 1 kHz

Dynamic Range

  • >130 dB with an A20 transmitter

Output Level

  • Line-level: +20 dBu for 0 dBFS
