Schoeps MK 4

Schoeps MK 4 [131015]

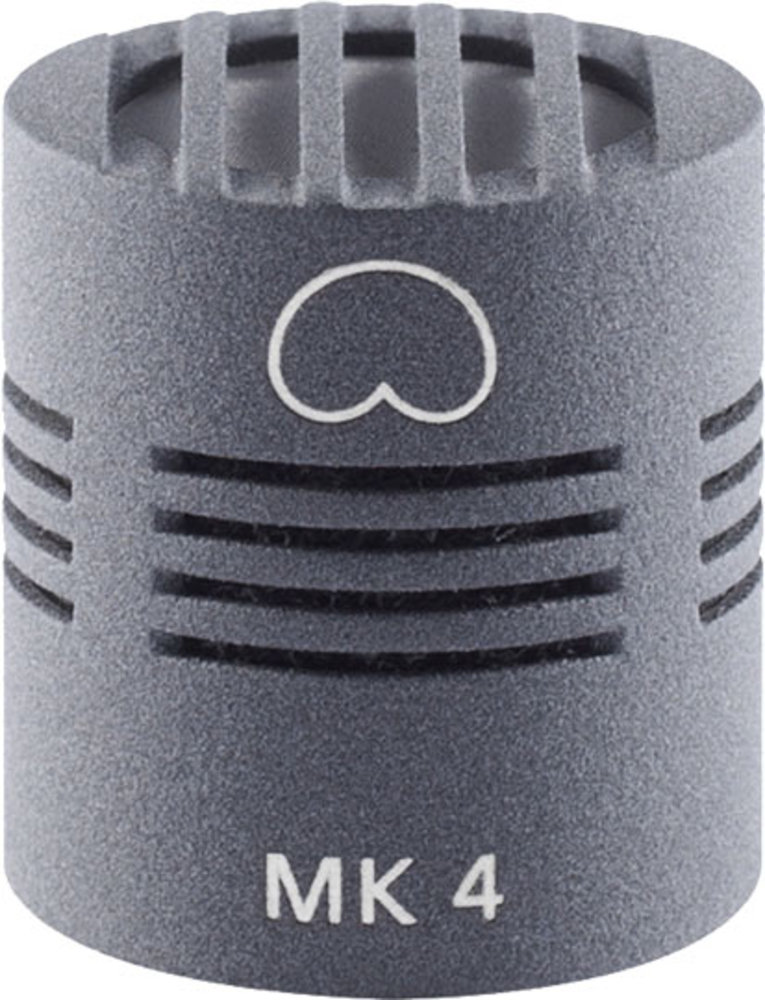

The Schoeps MK 4 is a small-diaphragm cardioid condenser microphone capsule for the modular Colette system. Combined with a suitable microphone amplifier, it can be used for speech, vocals, acoustic instruments and ensemble recording.

The capsule combines a flat frequency response with consistent off-axis sound. Sound arriving from the sides is reduced in level with little change in tonal balance. This makes the MK 4 useful as an individual spot microphone and in stereo techniques such as XY and ORTF.

Main Features

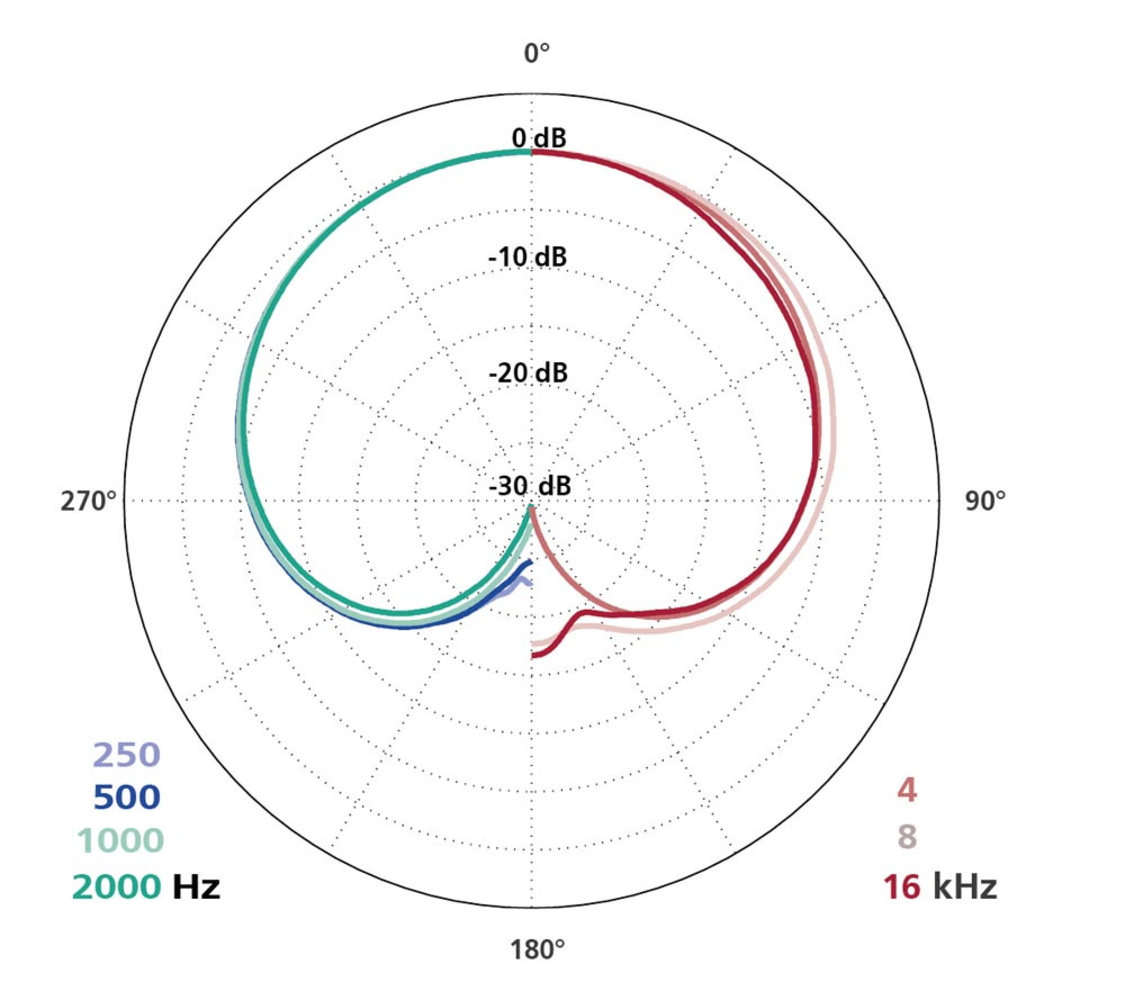

• Cardioid pickup pattern with the strongest rejection at the rear.
• Consistent directivity across a broad frequency range.
• Modular capsule for the Schoeps Colette system.
• Suitable for instrument, speech and music recording.
• Matte gray finish.

Specifications

• Pickup pattern: cardioid.

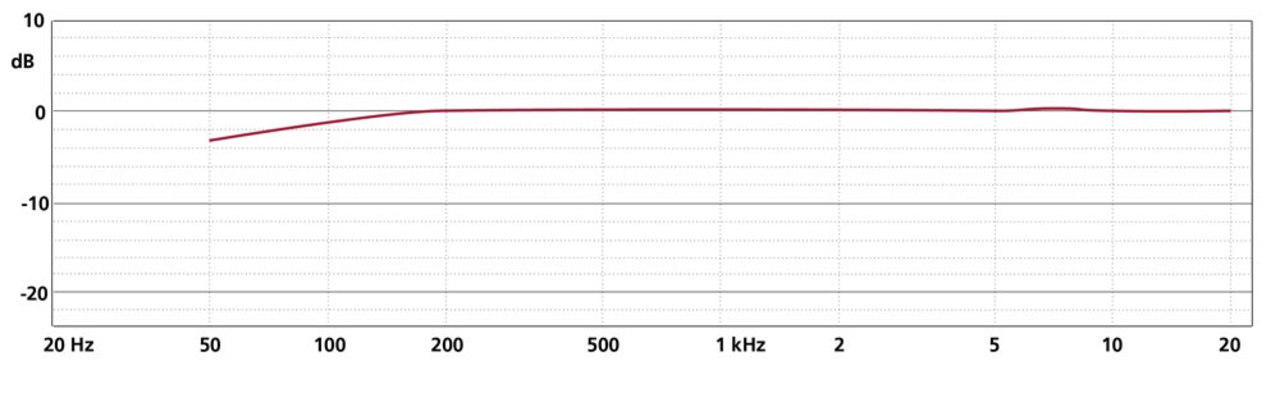

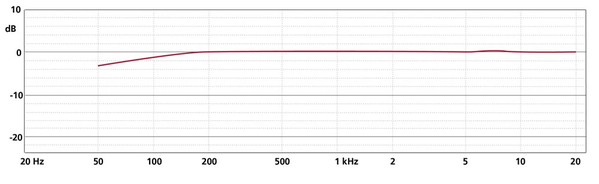

• Frequency range: 40 Hz – 26 kHz; 40 Hz – 41 kHz with CMC 6xt.
• Sensitivity: 15 mV/Pa (-36.5 dB V/Pa).
• Equivalent noise level: 14 dB(A); 24 dB CCIR.
• Signal-to-noise ratio: 80 dB(A).
• Maximum SPL with CMC 6: 131 dB SPL.
• Maximum SPL with CMC 1: 135 dB SPL on P48; 131 dB SPL on P12.
• Maximum SPL figures specified at less than 0.5% distortion.
• Length: 22 mm.
• Diameter: 20 mm.
• Weight: 17 g, without microphone amplifier.

Included

• One MK 4 microphone capsule.

The required Colette microphone amplifier is supplied separately.

Compatibility and accessories

• CMC 1 U: compact microphone amplifier with XLR output.
• CMC 1 L: compact microphone amplifier with Lemo connection.
• CMC 6 U: Colette microphone amplifier with XLR output.
• CMC 6xt: microphone amplifier for extended high-frequency response.
• B 5 D: optional wind and pop shield.

Stereo version

For a matched capsule pair, see the MK 4, matched pair [131015mp], comprising two capsules with a matching certificate.
