Schoeps Desert Island Set MK 5

Schoeps Desert Island Set MK 5 [134219]

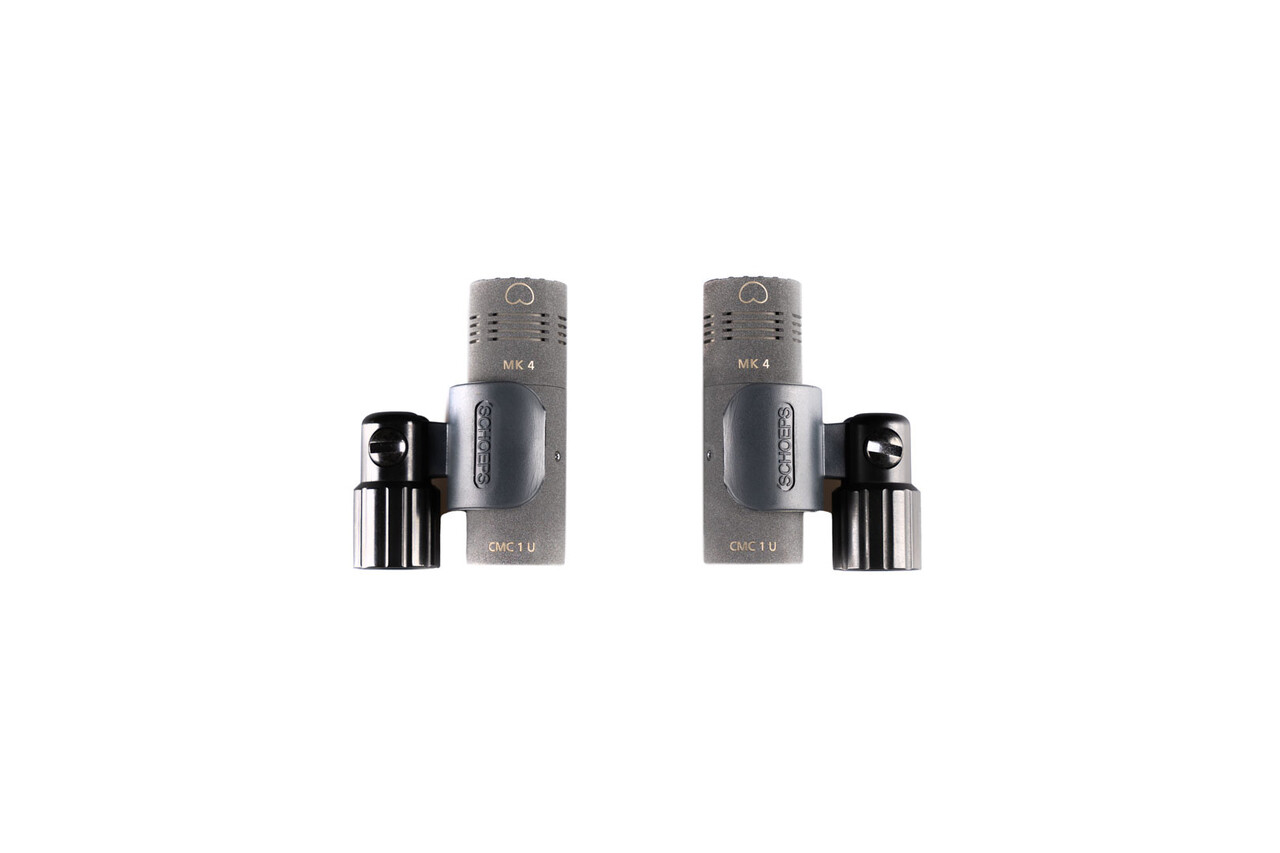

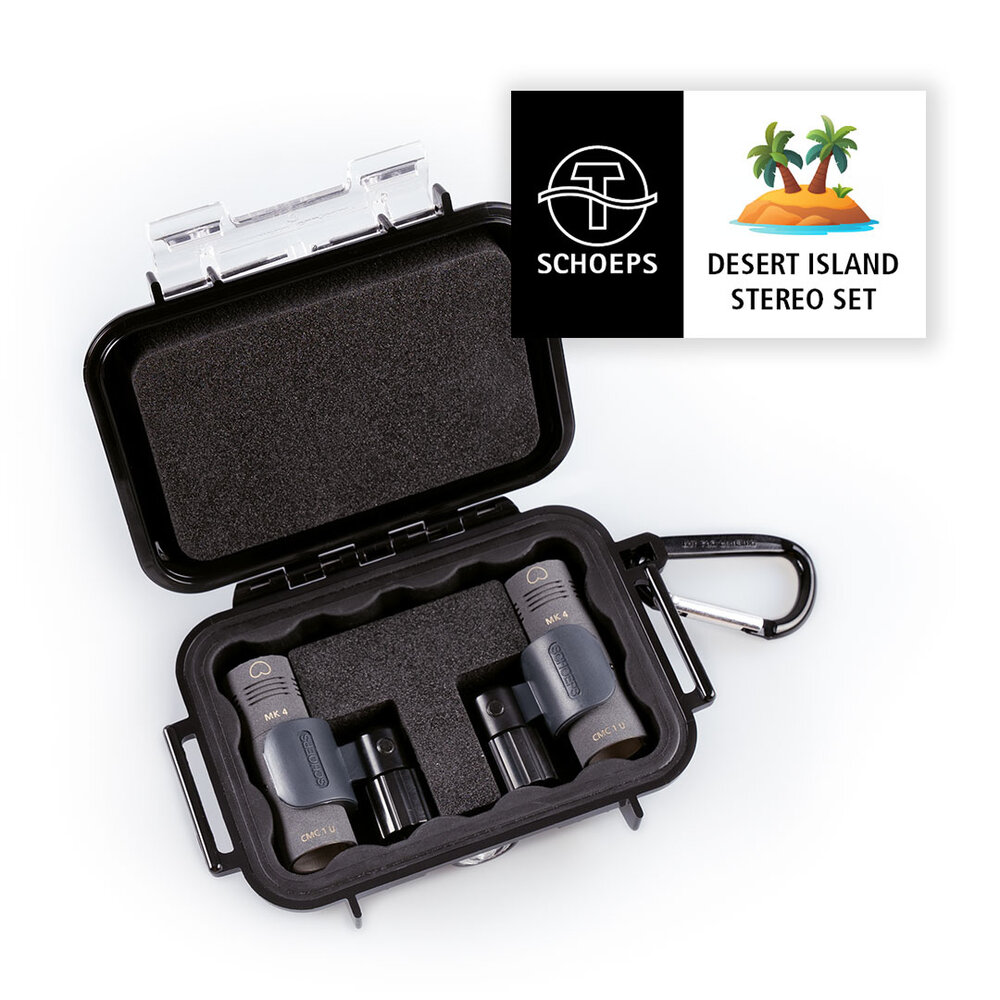

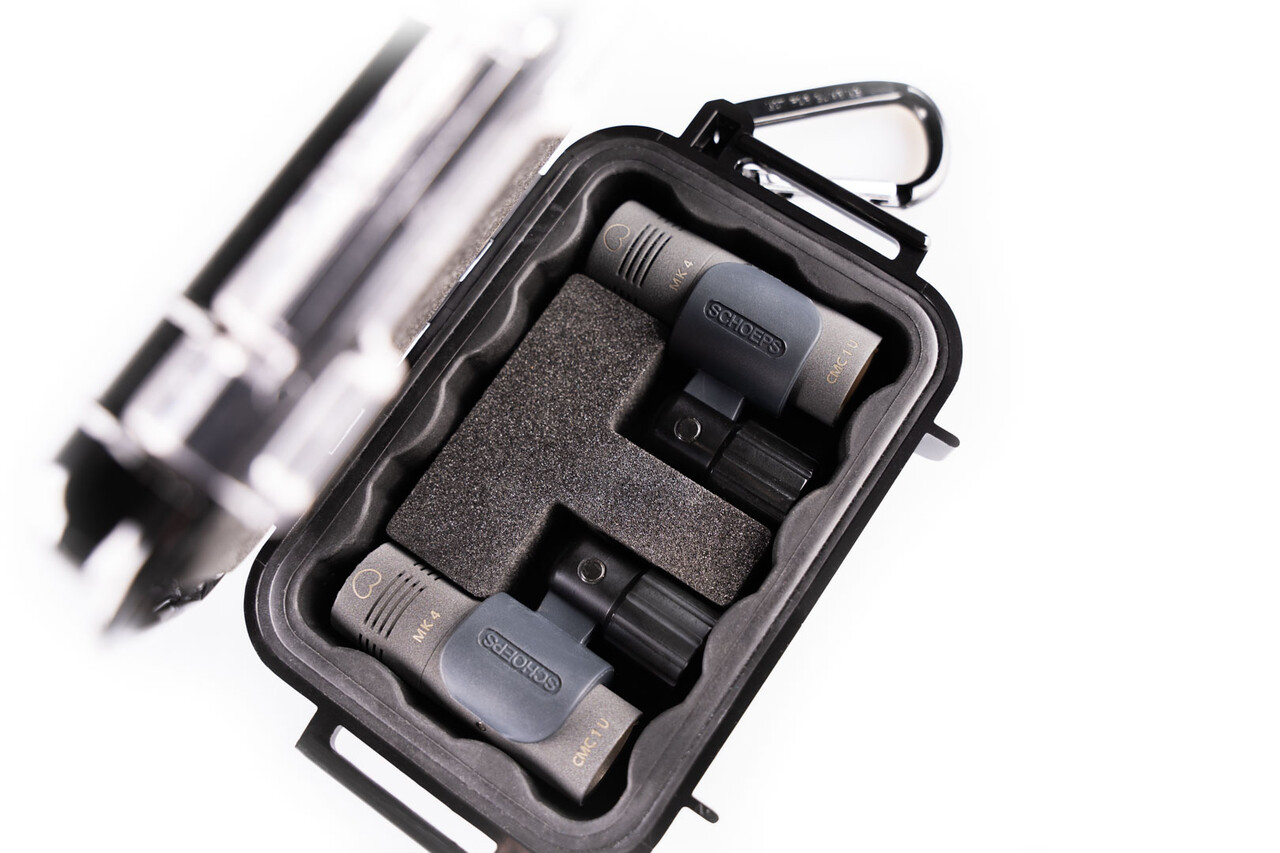

The Schoeps Desert Island Set MK 5 combines two MK 5 switchable capsules with two compact CMC 1 U microphone amplifiers. The capsules are matched and supplied with a matching certificate. The set is stored in a Peli Case 1010 with a fitted insert.

A mechanical switch on each capsule selects omnidirectional or cardioid operation. In omni mode, the MK 5 operates as a true pressure transducer without proximity effect. In cardioid mode, it provides directional pickup and attenuates sound from the rear. This allows the recording setup to be adapted without changing capsules.

Main features

• Two compact Colette microphones with switchable polar patterns.
• Matched MK 5 capsules with a matching certificate.
• Mechanical selection between omnidirectional and cardioid.
• Suitable for A/B stereo in omni mode and arrangements such as XY or ORTF in cardioid mode.
• Modular design with interchangeable MK capsules.
• CMC 1 U amplifiers with balanced XLR outputs.
• Includes two SG 20 clamps and a Peli Case 1010 with a fitted insert.

Using the pattern switch

Set the switch fully to either omni or cardioid. Intermediate positions do not provide a defined polar pattern. Use the same setting on both capsules for a symmetrical stereo pair. A microphone stand and stereo bar are not included.

Specifications per microphone — omnidirectional

• Frequency range: 20 Hz – 28 kHz.
• Sensitivity: 12 mV/Pa.
• Equivalent noise level: 12 dB-A / 24 dB CCIR.
• Signal-to-noise ratio: 82 dB-A.
• Maximum sound pressure level: up to 136 dB SPL with CMC 1, at less than 0.5% THD.

Specifications per microphone — cardioid

• Frequency range: 40 Hz – 26 kHz.
• Sensitivity: 14 mV/Pa.
• Equivalent noise level: 13 dB-A / 23 dB CCIR.
• Signal-to-noise ratio: 81 dB-A.
• Maximum sound pressure level: up to 135 dB SPL with CMC 1, at less than 0.5% THD.

Connection and power

• Output per microphone: balanced, XLR-3 male.
• Output impedance: 50 Ω.
• Power supply: P12 or P48.
• Current consumption per microphone: 3 mA at P12 / 2 mA at P48.

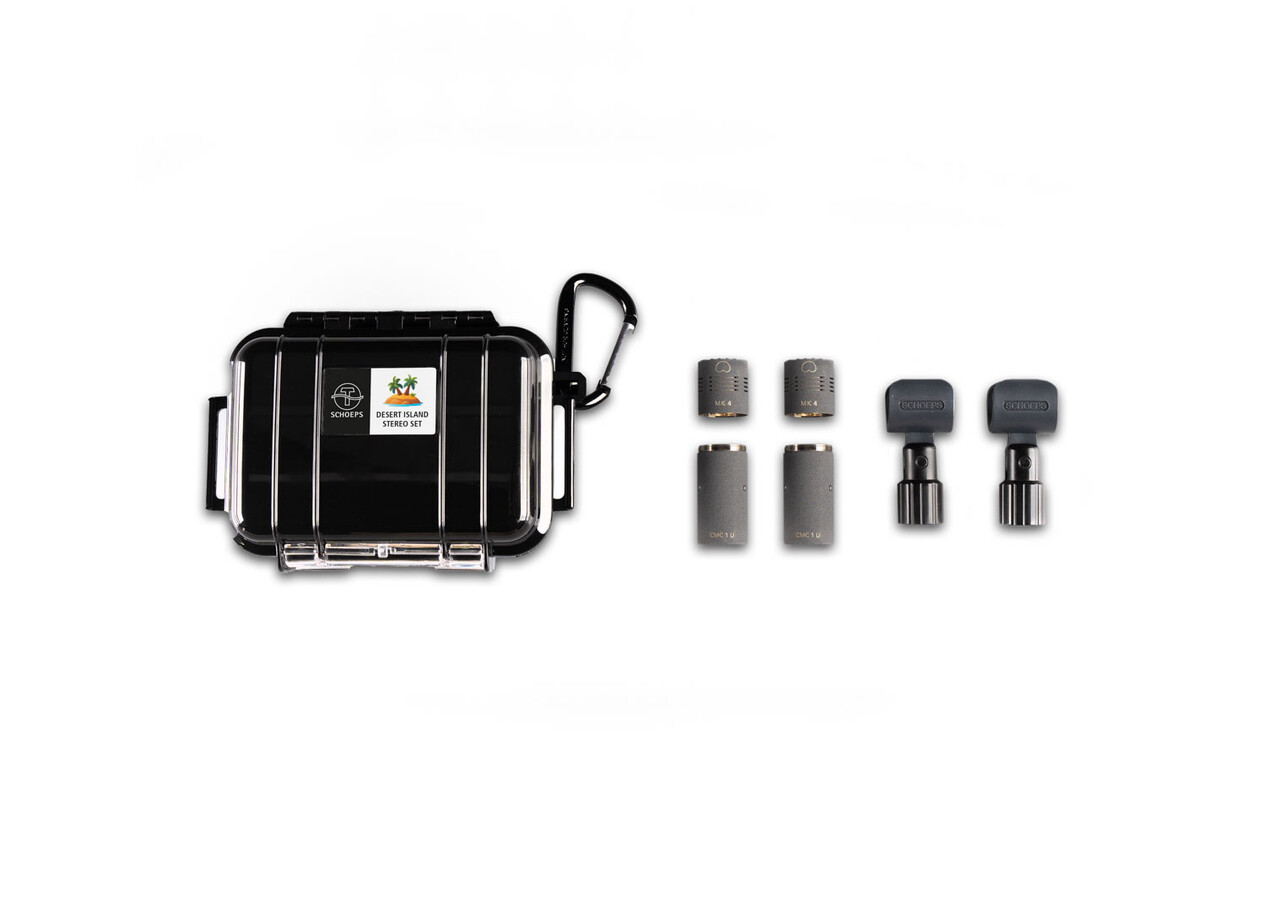

Included

• 2 × Schoeps MK 5 capsule, matched.
• 1 × Matching certificate.
• 2 × Schoeps CMC 1 U microphone amplifier.
• 2 × Schoeps SG 20 stand clamp, 2026 version.

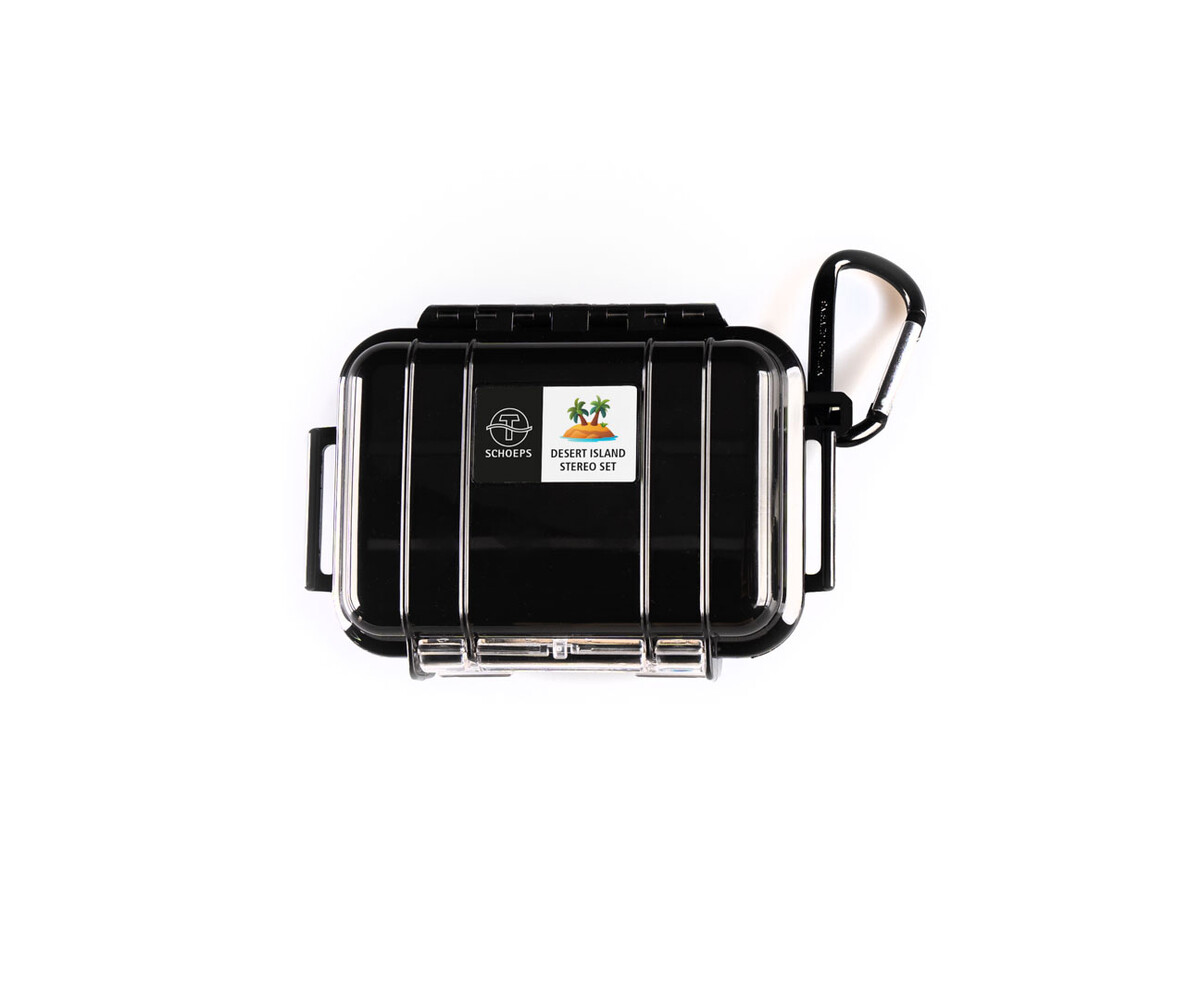

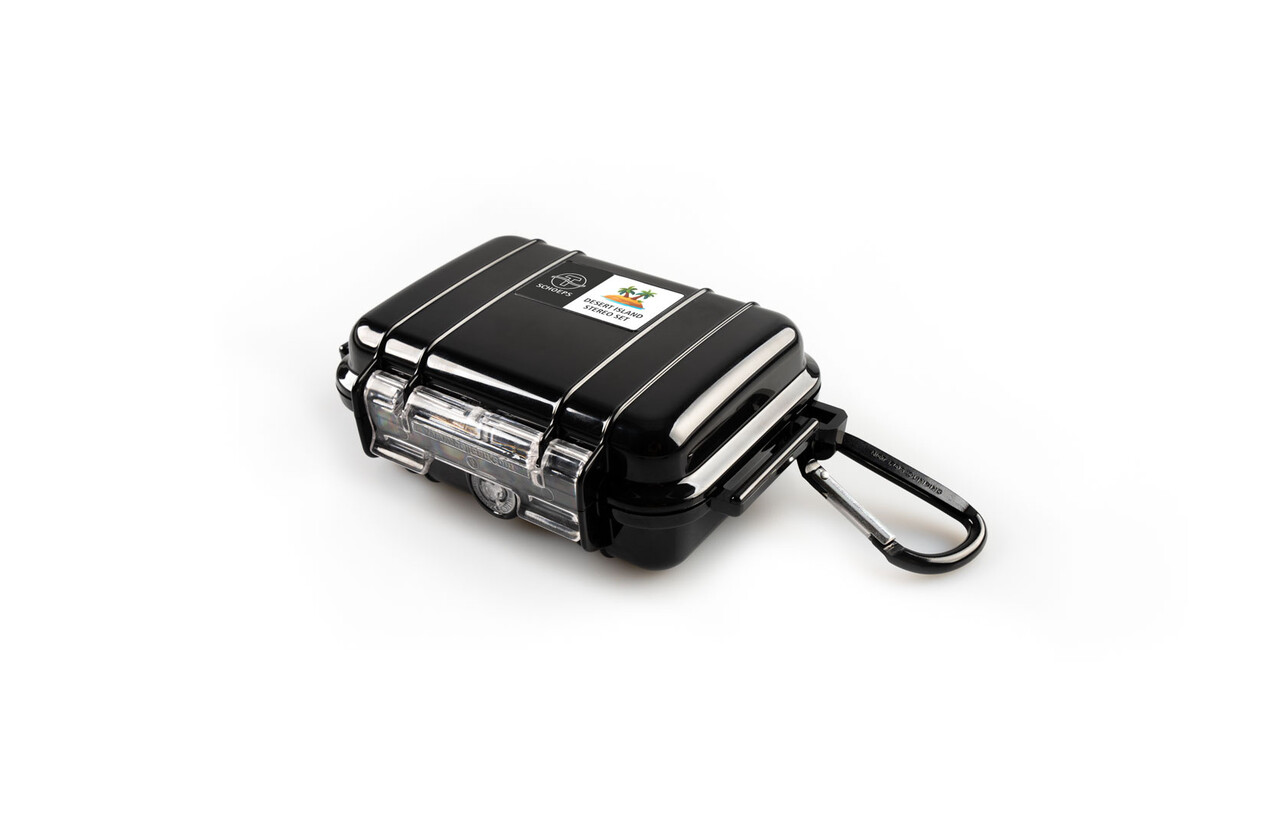

• 1 × Peli Case 1010 with a fitted insert.

Optional accessory

The Schoeps B 5 D hollow foam windscreen is available separately. Two are required to equip both microphones; these are not included.
